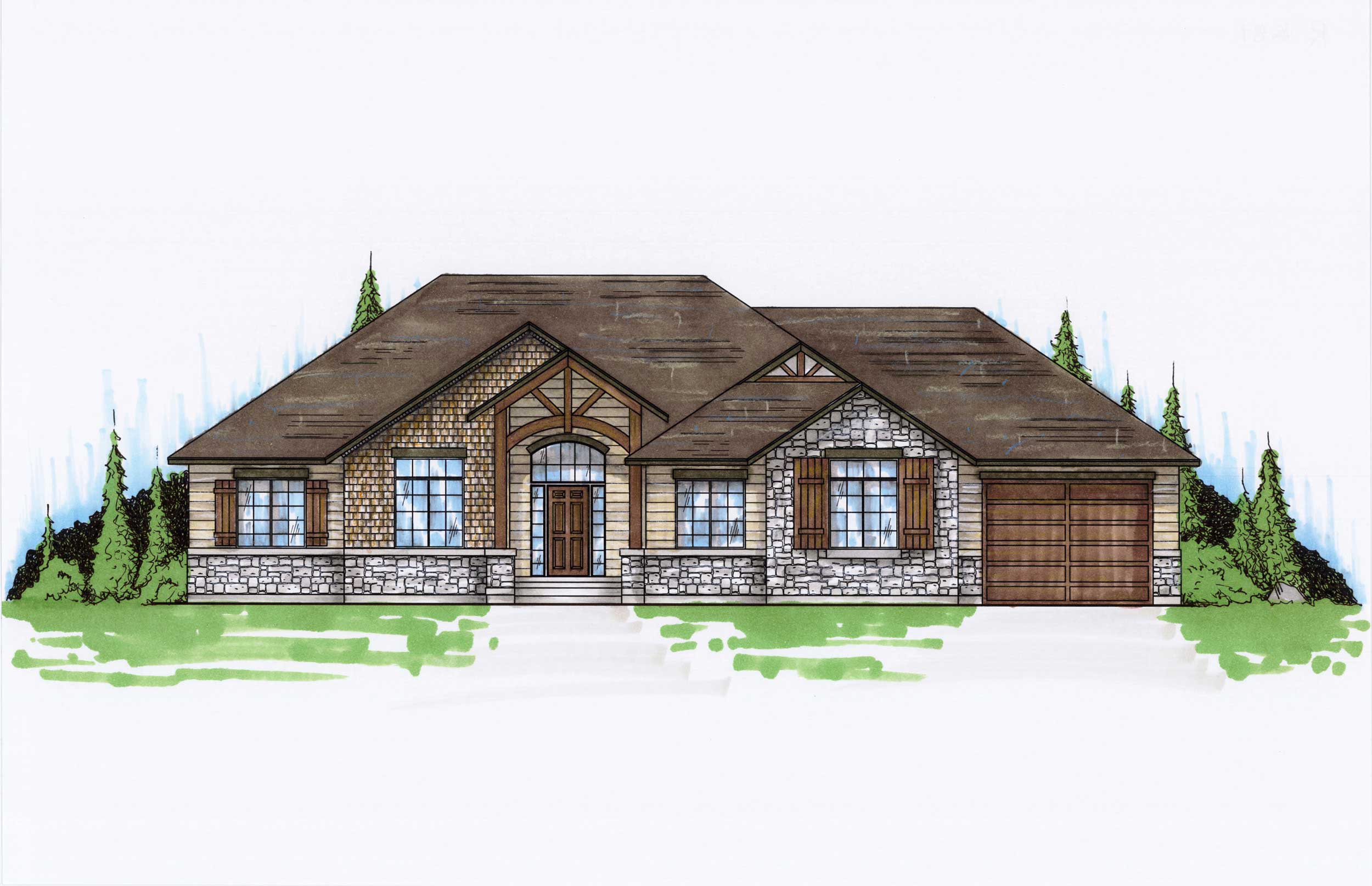

5-Bedroom, 1681 Sq Ft Craftsman Plan with Patio
Related House Plans
| 1681 SQUARE FEET | 5 BEDROOMS | 3 FULL BATH | 1 HALF BATH |
| 1 FLOOR | 71' 3" WIDTH | 55' 1" DEPTH | 3 GARAGE BAY |

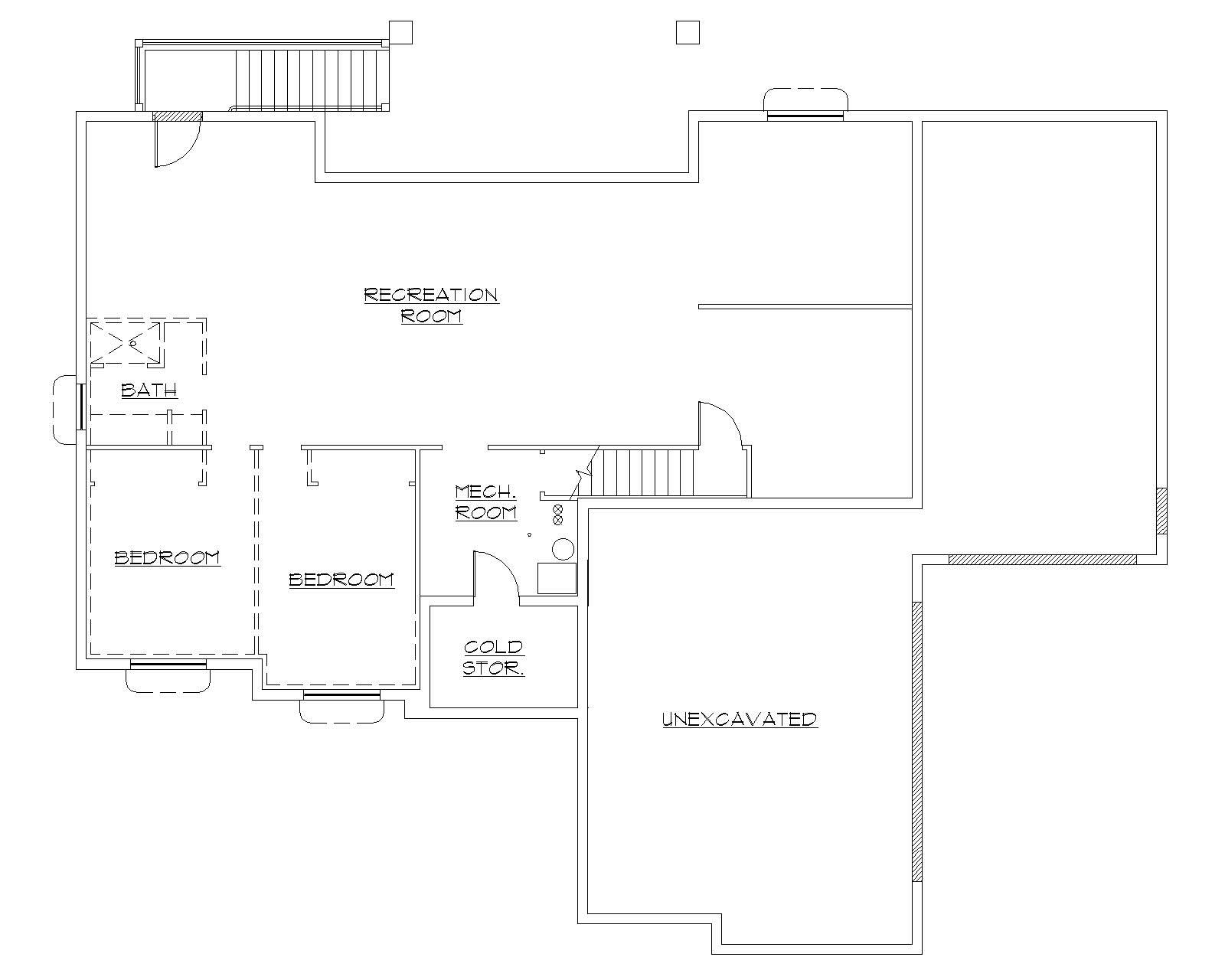

This mountain style house features two garages with three bays available. The great room is separated from the entry and kitchen by arched doorways. The double garage area has access to the home through the bedroom. A long game room takes up most of the basement but there are two bedrooms and a cold storage room.
Each plan set includes the following:
- Cover
- General notes
- Foundation/Footing plan
- Basement plan
- Floor framing plan
- Main level plan
- Upper-level floor framing (if applicable)
- Upper floor plan (if applicable)
- Roof framing plan
- Building sections/details
- Electrical layout
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

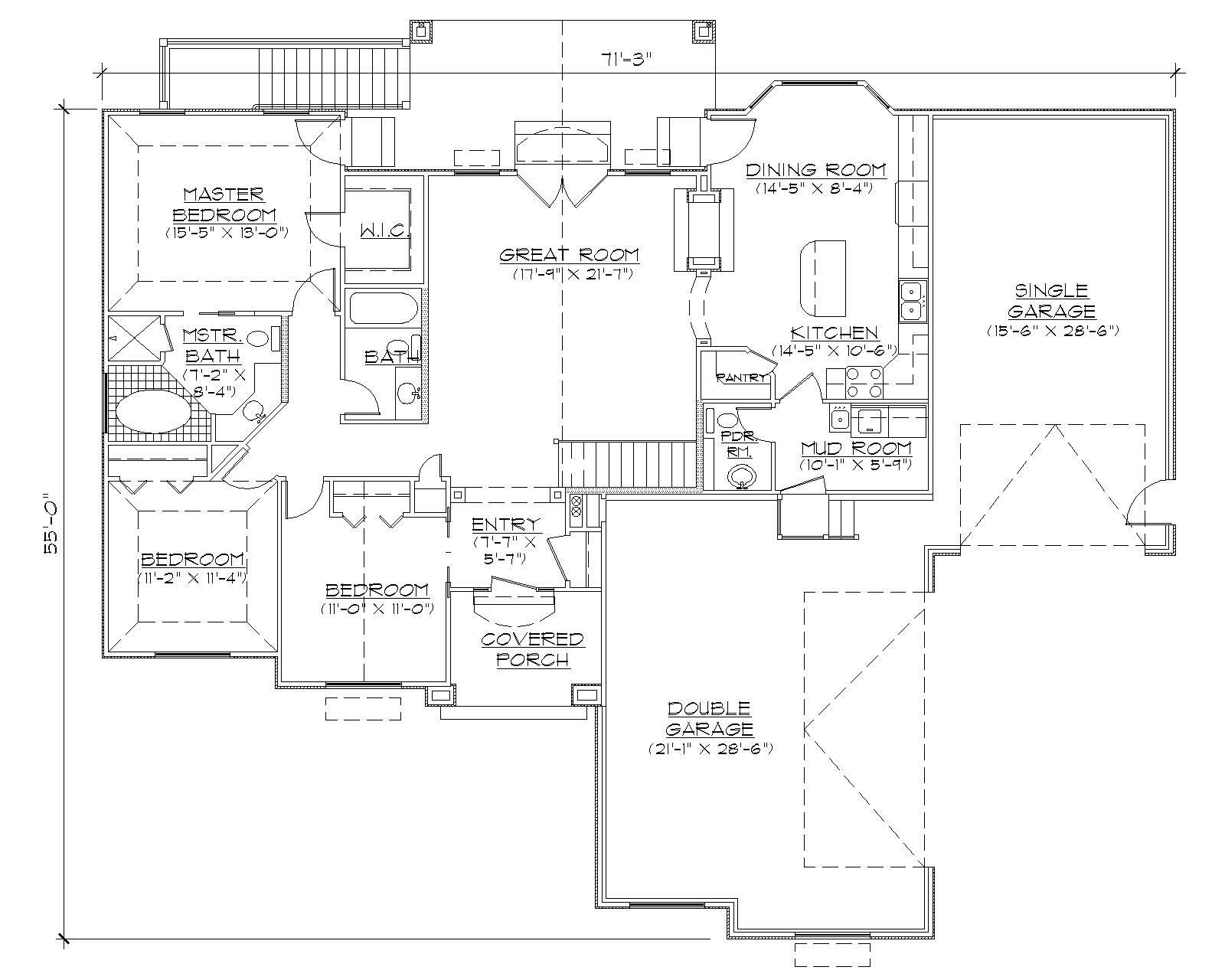

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roof Pitch
Ceiling Height
Special Feature
Garage Type
Fireplaces
Exterior Wall Framing
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
