3-Bedroom, 1697 Sq Ft Cape Cod Plan with Split Master Bedroom
Related House Plans
| 1697 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 1 HALF BATH |
| 2 FLOOR | 64' 10" WIDTH | 35' 5" DEPTH | 2 GARAGE BAY |

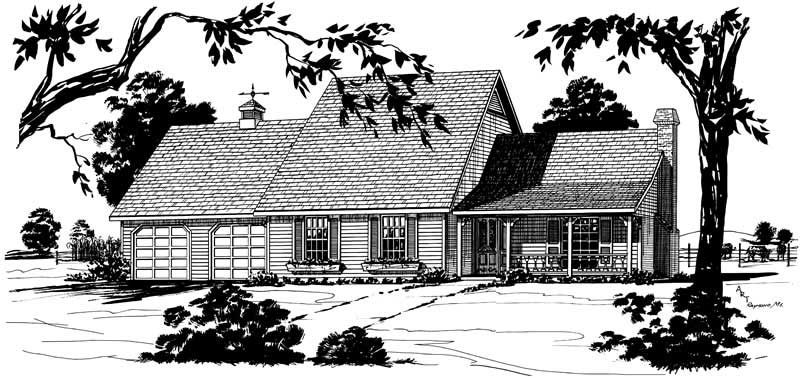

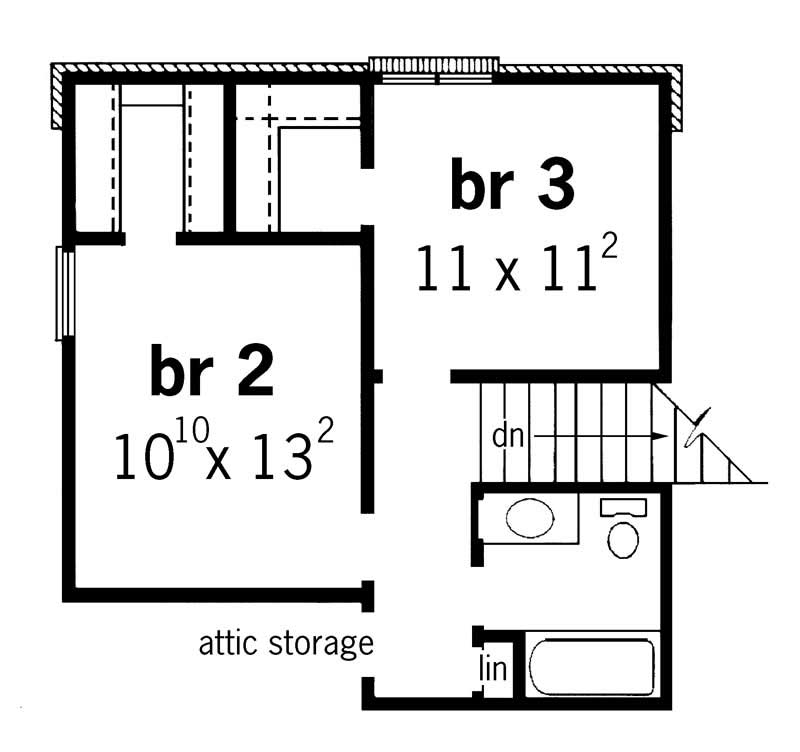

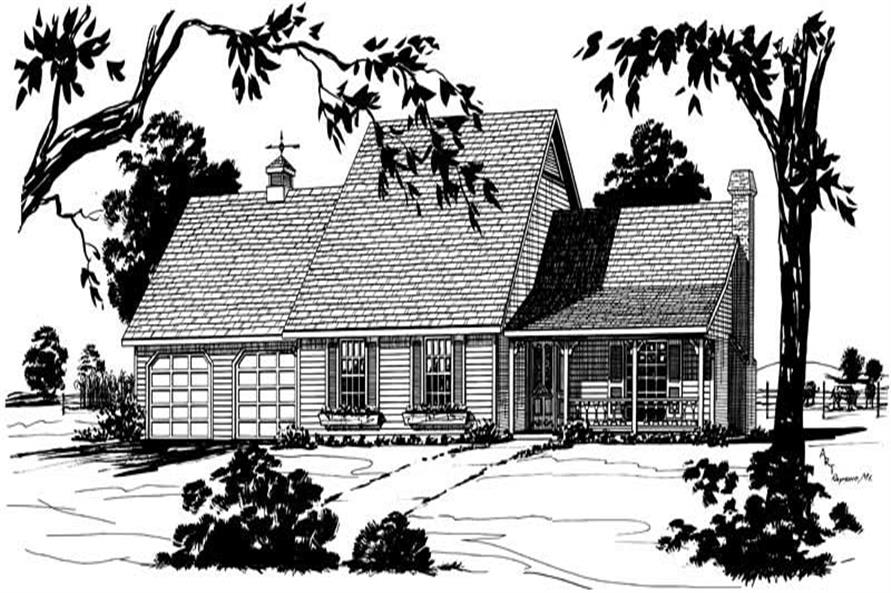

These Country House Plans have a unique roofline that incorporates a few different styles, and it looks wonderful. The Covered front porch has a comfortable and homelike essence and leads into a large den with a vaulted ceiling and a fireplace. The Master Bedroom is very large and has a private bath and walk-in closet. The Eating Area looks out on the backyard patio. Upstairs are two bedrooms and a bath, both with walk-in closets.
Each plan set includes the following:
- Cover sheet
- Foundation plan
- Floor plan
- Electrical layout
- Exterior elevations
- Building sections
- Specifications
- Cabinet details
- Roof plan
- Miscellaneous details
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

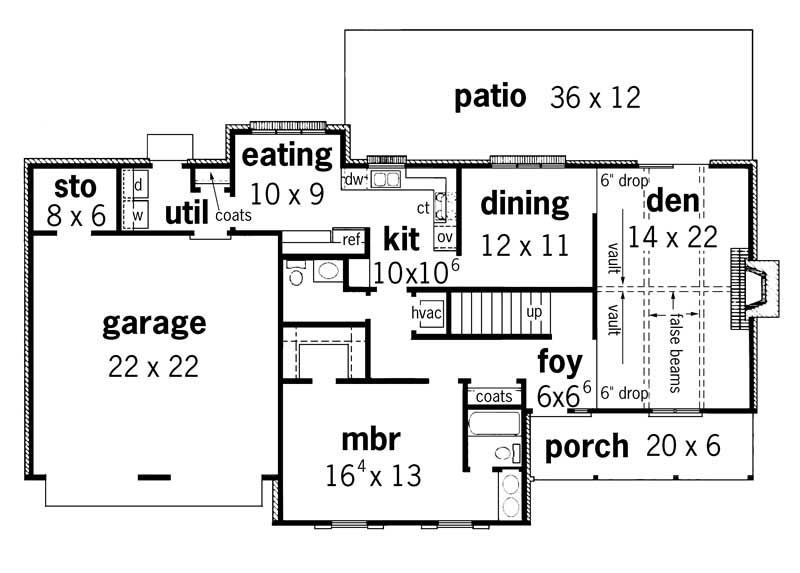

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Roof Pitch
Ceiling Height
Special Feature
Garage Type
Fireplaces
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
