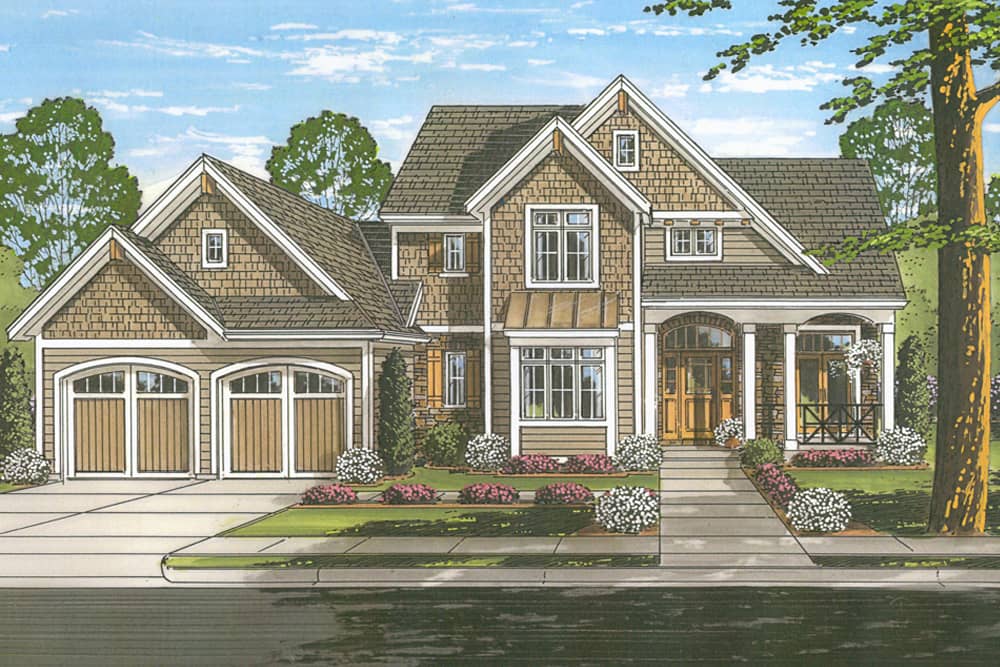

4-Bedroom, 2540 Sq Ft Country Plan with Sitting Area

Each plan set includes the following:

• General notes and specifications

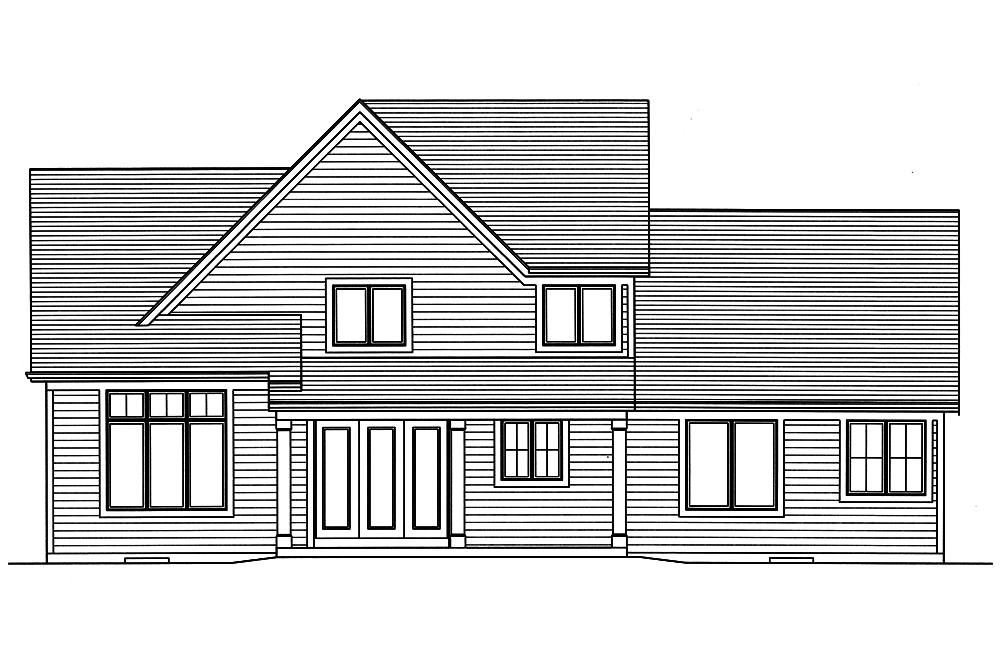

• Front, rear and side elevations (1/4" scale)

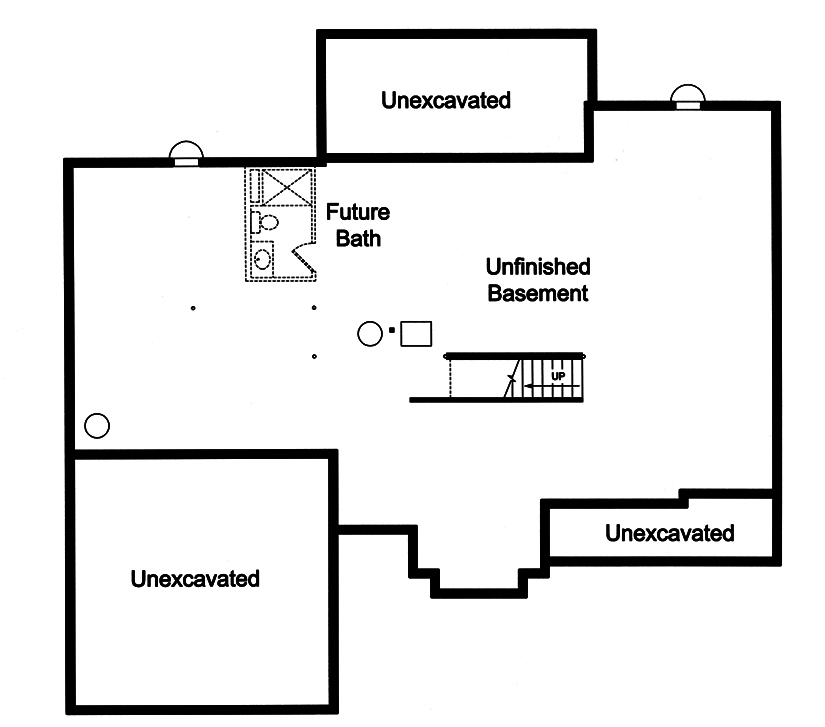

• Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
• Reinforced foundation and footing details

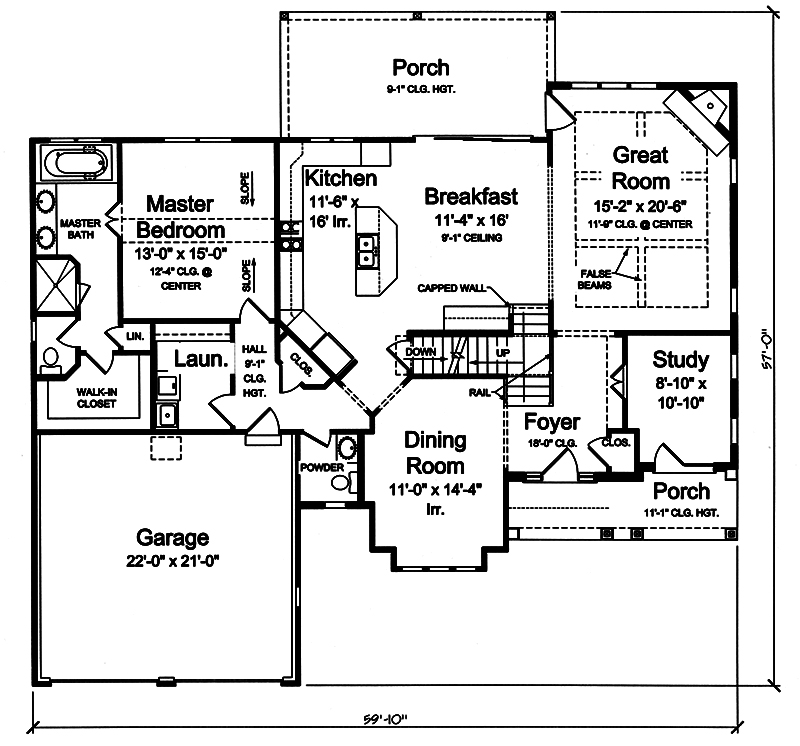

• First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
• Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction method
• Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas

These items are NOT included:

• Architectural or Engineering Stamp - handled locally if required.
• Site Plan - handled locally when required.
• Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
• Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
• Energy calculations - handled locally when required.
