4-Bedroom, 3138 Sq Ft Colonial Plan with Walk In Closet

Each plan set includes the following:

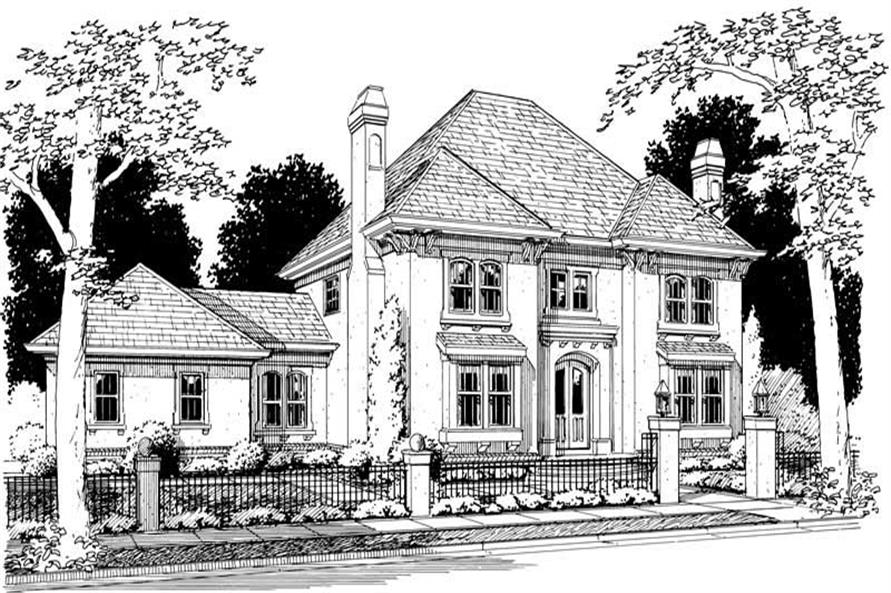

• Front elevation and construction notes

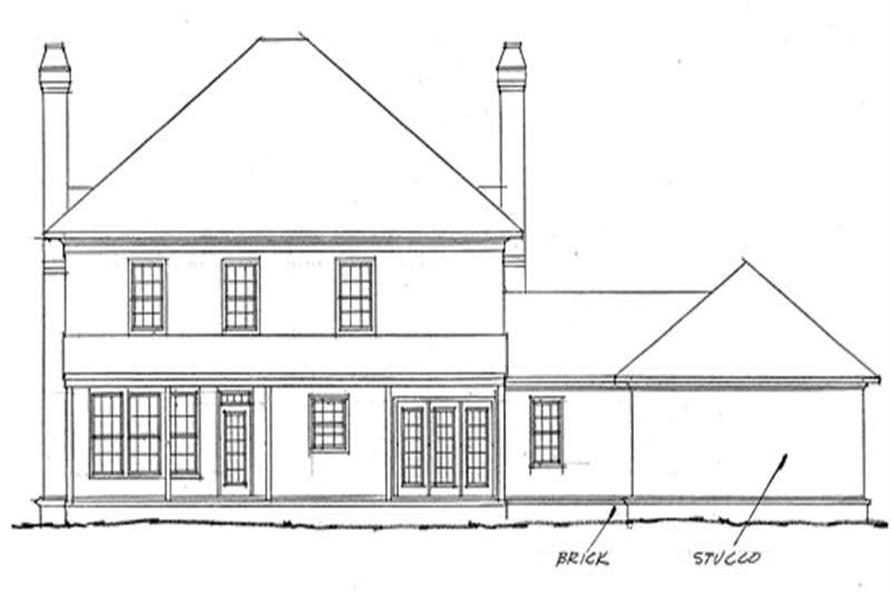

• Rear and side elevations

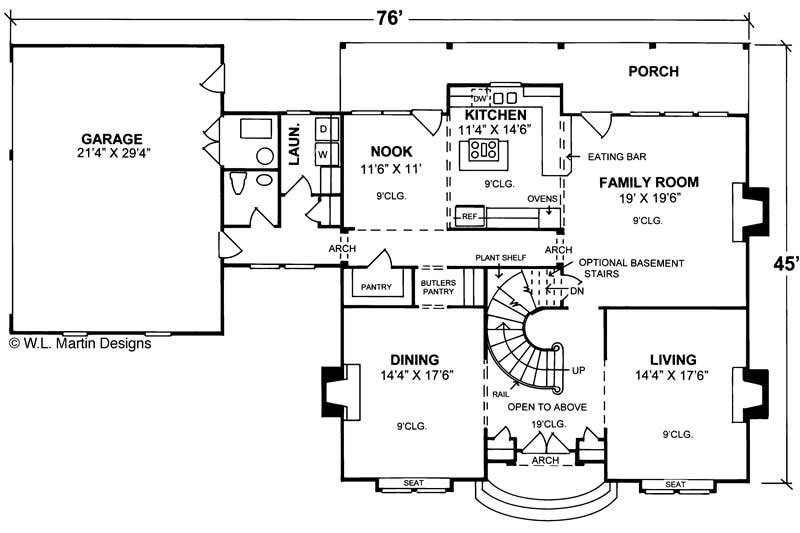

• Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)

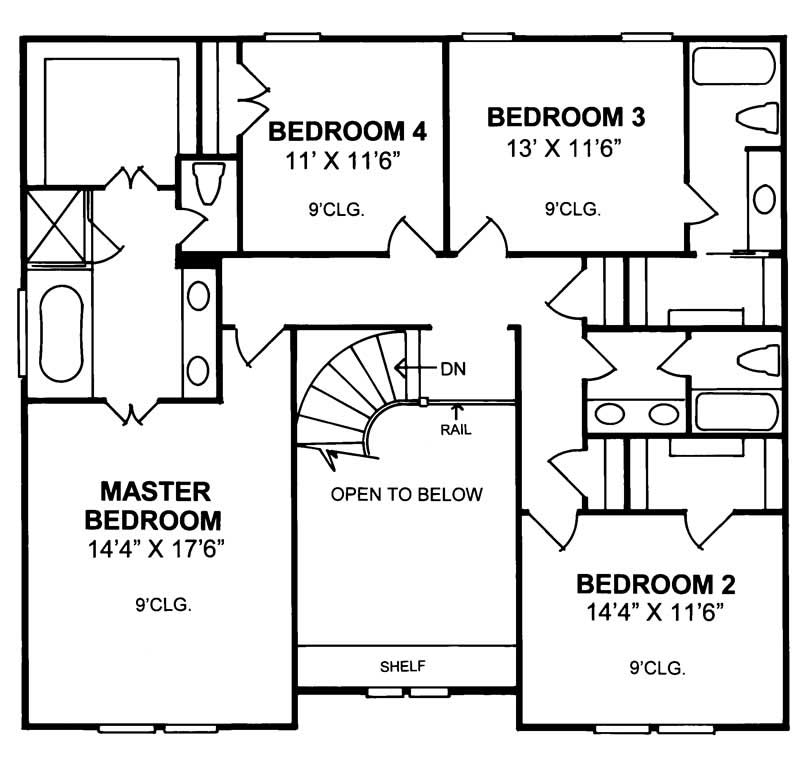

• Second-floor plan (if applicable) with the same info as shown on first-floor plan
• Typical wall section
• Typical foundation details
• Roof plan showing roof pitches, ridges & valleys.
• Foundation plan
• Full building section

These items are NOT included:

• Architectural or Engineering Stamp - handled locally if required.
• Site Plan - handled locally when required.
• Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
• Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
• Energy calculations - handled locally when required.
