| 3368 SQUARE FEET | 3 BEDROOMS | 3 FULL BATH | 1 HALF BATH |
| 2 FLOOR | 67' 8" WIDTH | 45' 8" DEPTH | 2 GARAGE BAY |
Raising the bar in Old Florida living, the Coco Cay house plan provides a tropical exterior highlighted by a covered front porch on the first floor and a covered balcony, private to the master suite, on the second floor. This Old Florida house plan has a wide-open great room, featuring beautiful coffered ceilings, leading the way to the dining room and island kitchen. Outside, entertaining is a breeze with the convenient kitchen, covered lanai and relaxing pool and spa. A private study is tucked away in the floor plan, providing an area for working and relaxation. Upstairs, accessible by elevator, offers a huge master suite, with sitting area, and plays host to two additional bedrooms, each with their own bath. The Coco Cay home plan is your personal tropical paradise.
- The Entry/ Foyer is 130 Sq Ft
- Balcony is 115 Sq Ft
- Lanai 260 Sq Ft
- The 2nd floor framing is 2x6
Each plan set includes the following:

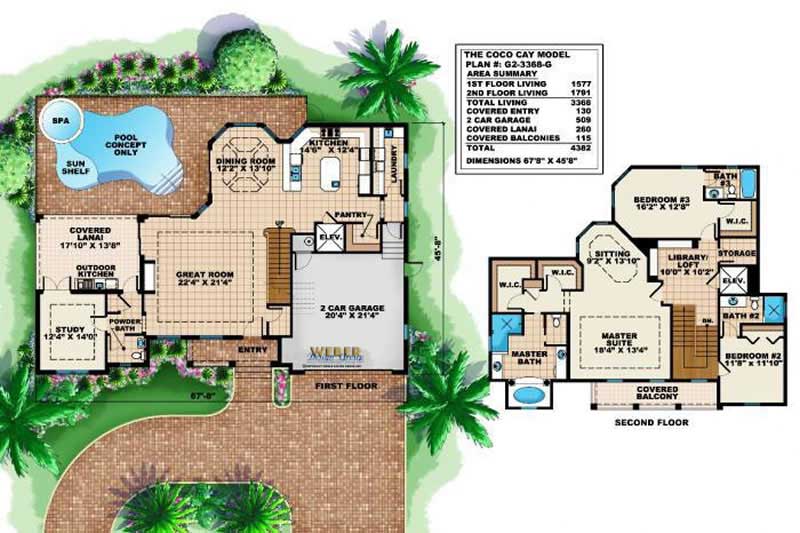

- FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
- ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
- CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
