3-Bedroom, 3827 Sq Ft Tudor Plan with Main Level Laundry
Related House Plans
| 3827 SQUARE FEET | 3 BEDROOMS | 3 FULL BATH | 1 HALF BATH |
| 2 FLOOR | 40' 0" WIDTH | 80' 0" DEPTH | 2 GARAGE BAY |
An impressive sight during daytime and captivating during night time, this Tudor-European style home is a magnificent feat of architectural design achievement. With the appearance of a traditional house, this transitional home has a master suite and open floor plan living area on the main floor Two secondary bedrooms, each with its own bathroom and walk-in closet, are on the upper level. The 2-story floor plan has 3827 square feet of living space and includes an unusual 2-car attached garage, with two 1-car bays that flank the home.
Each plan set includes the following:
- Dimension Plan
- Notation Plan
- Electrical Layout

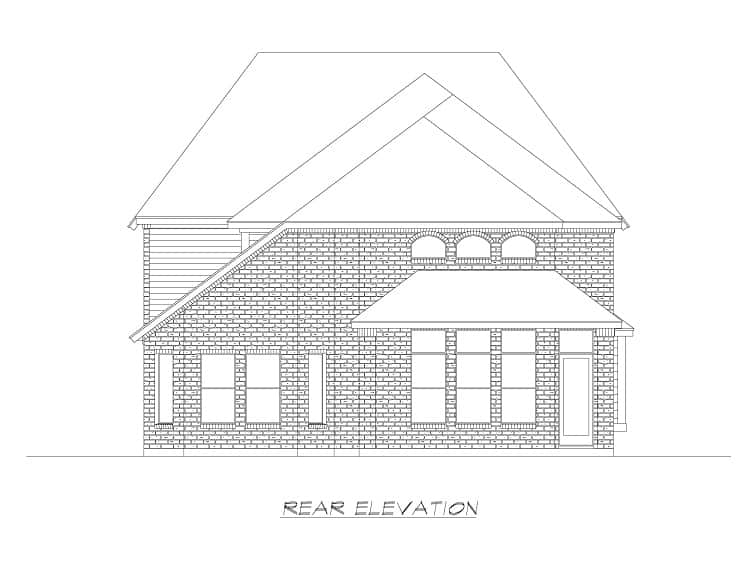

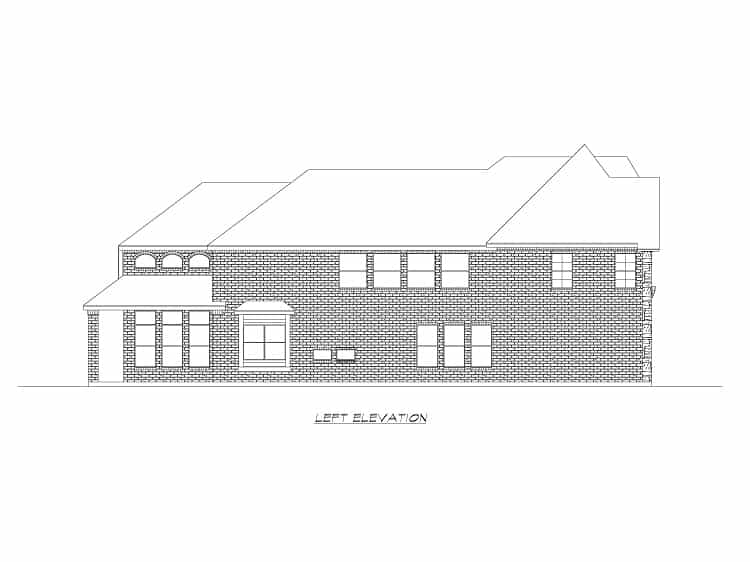

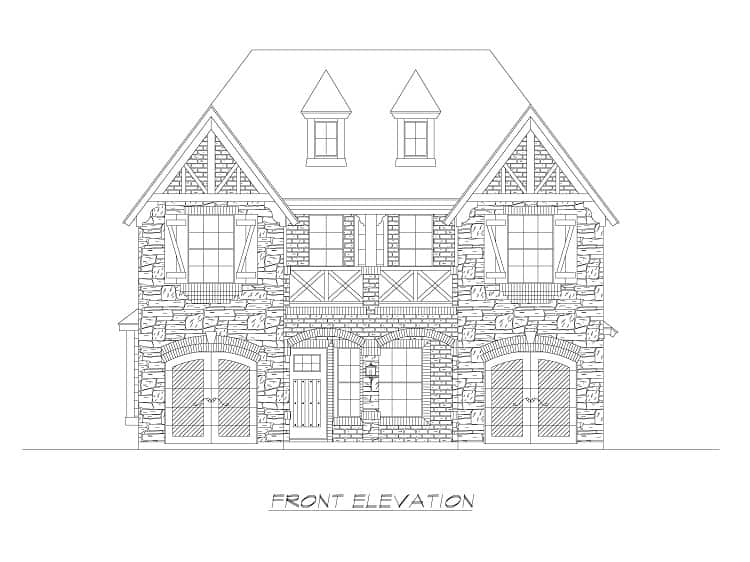

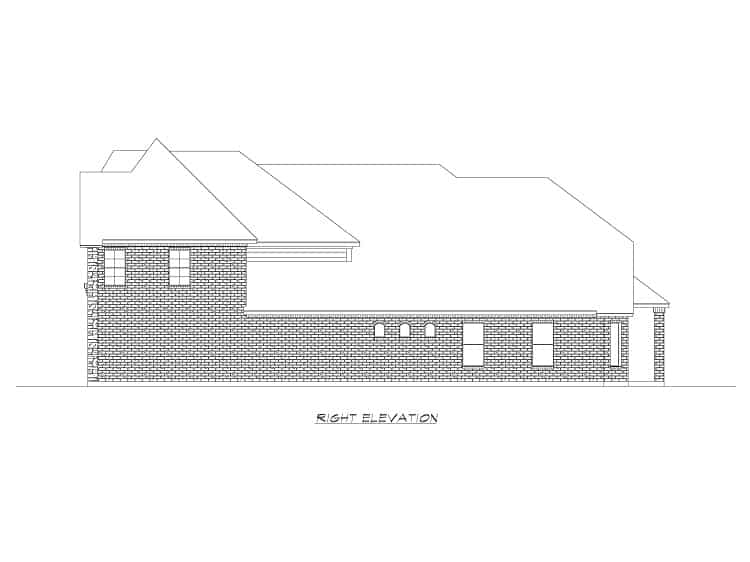

- Elevations
- Roof Plan
- General Specifications
- General Details
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

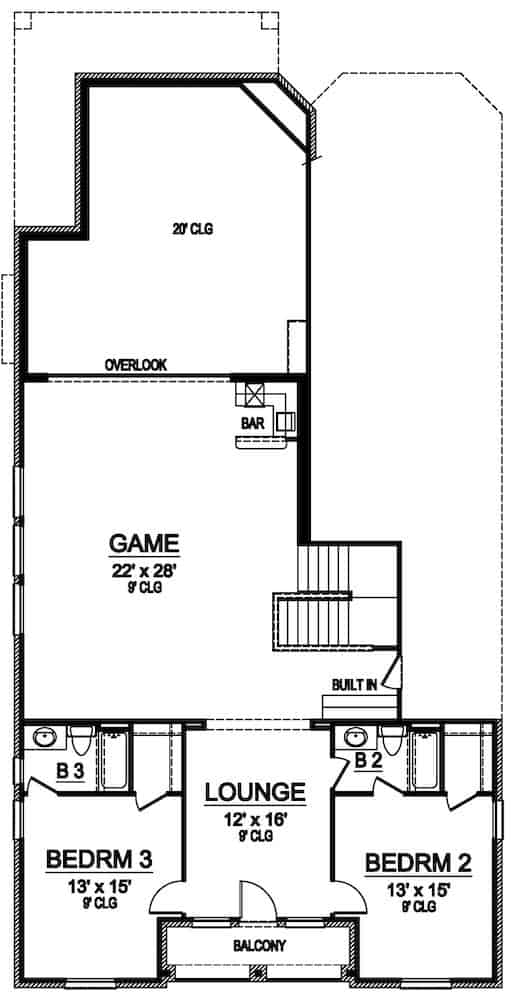

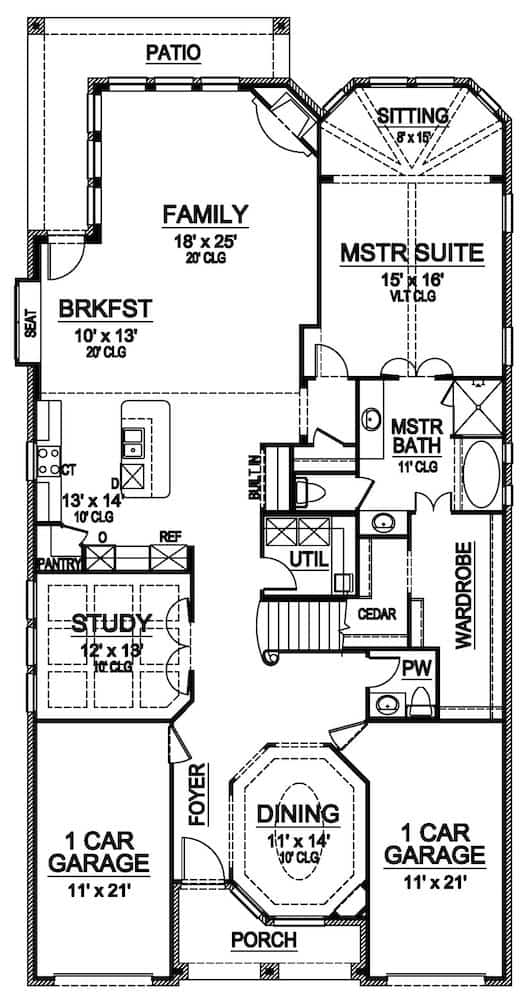

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Ceiling Height
Special Feature
Garage Type
Fireplaces
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
