Craftsman Duplex Plan with Matching 3-Bedrooms, 2-Bathroom Per Unit
Related House Plans
| 4090 SQUARE FEET | 6 BEDROOMS | 6 FULL BATH | 0 HALF BATH |
| 2 FLOOR | 68' 0" WIDTH | 65' 0" DEPTH | 4 GARAGE BAY |

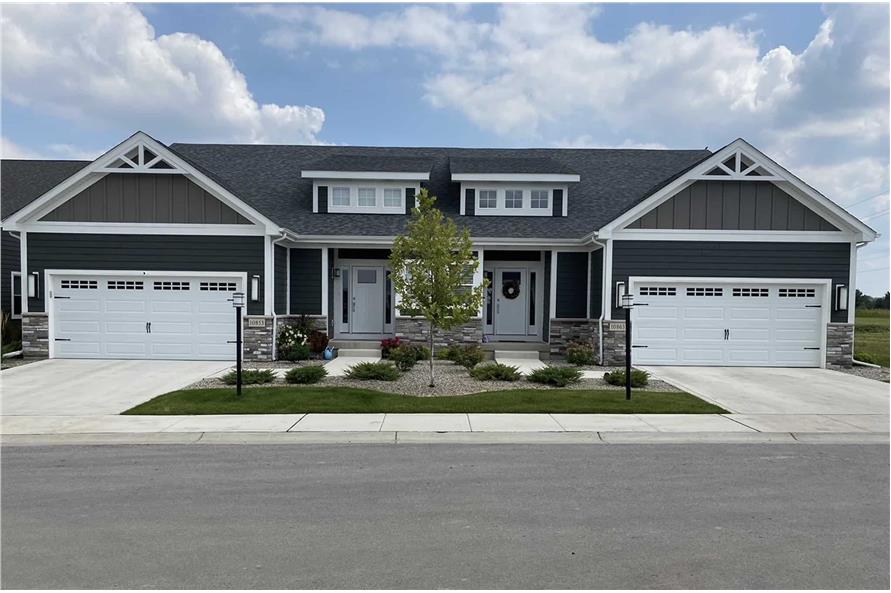

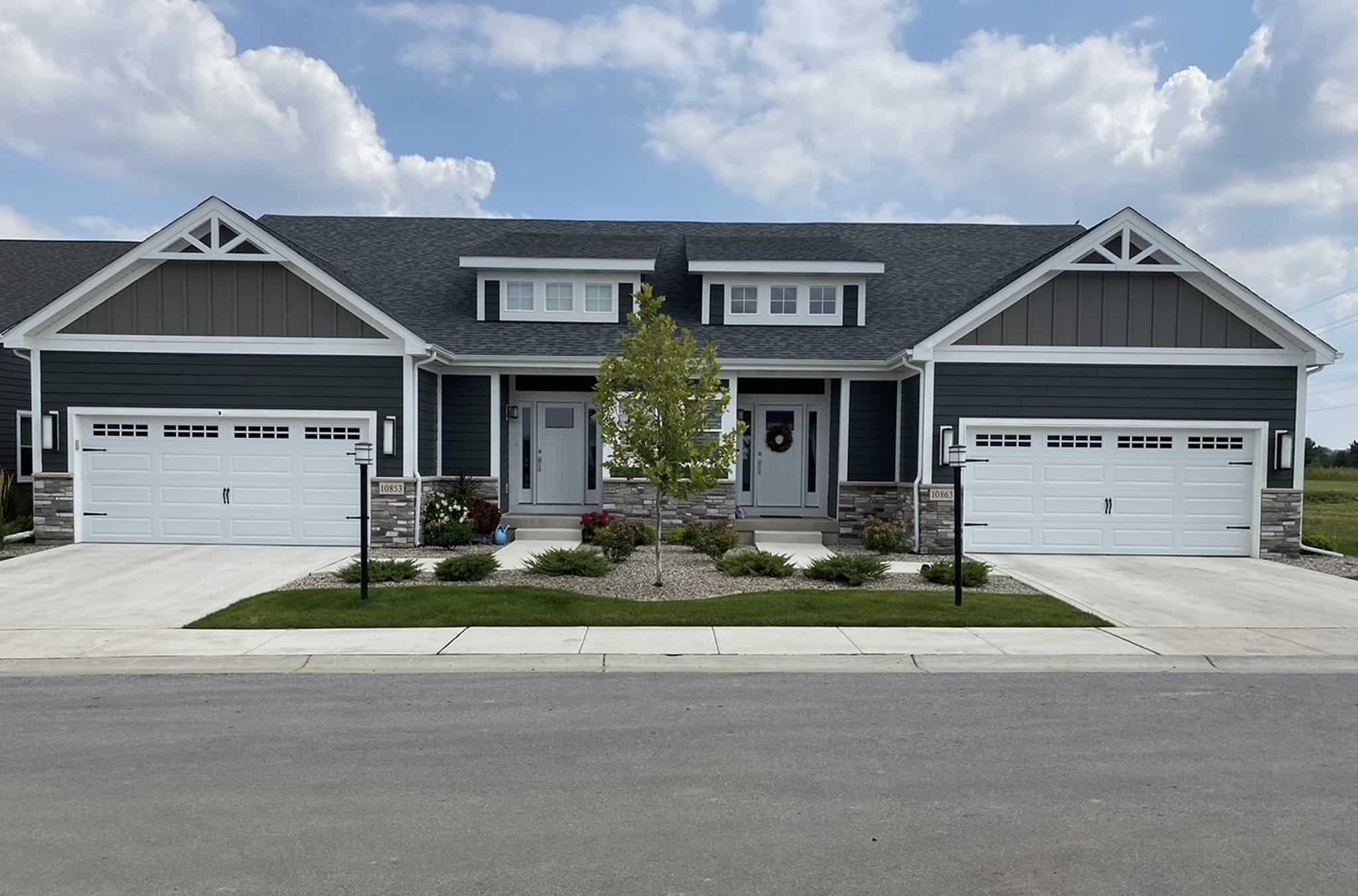

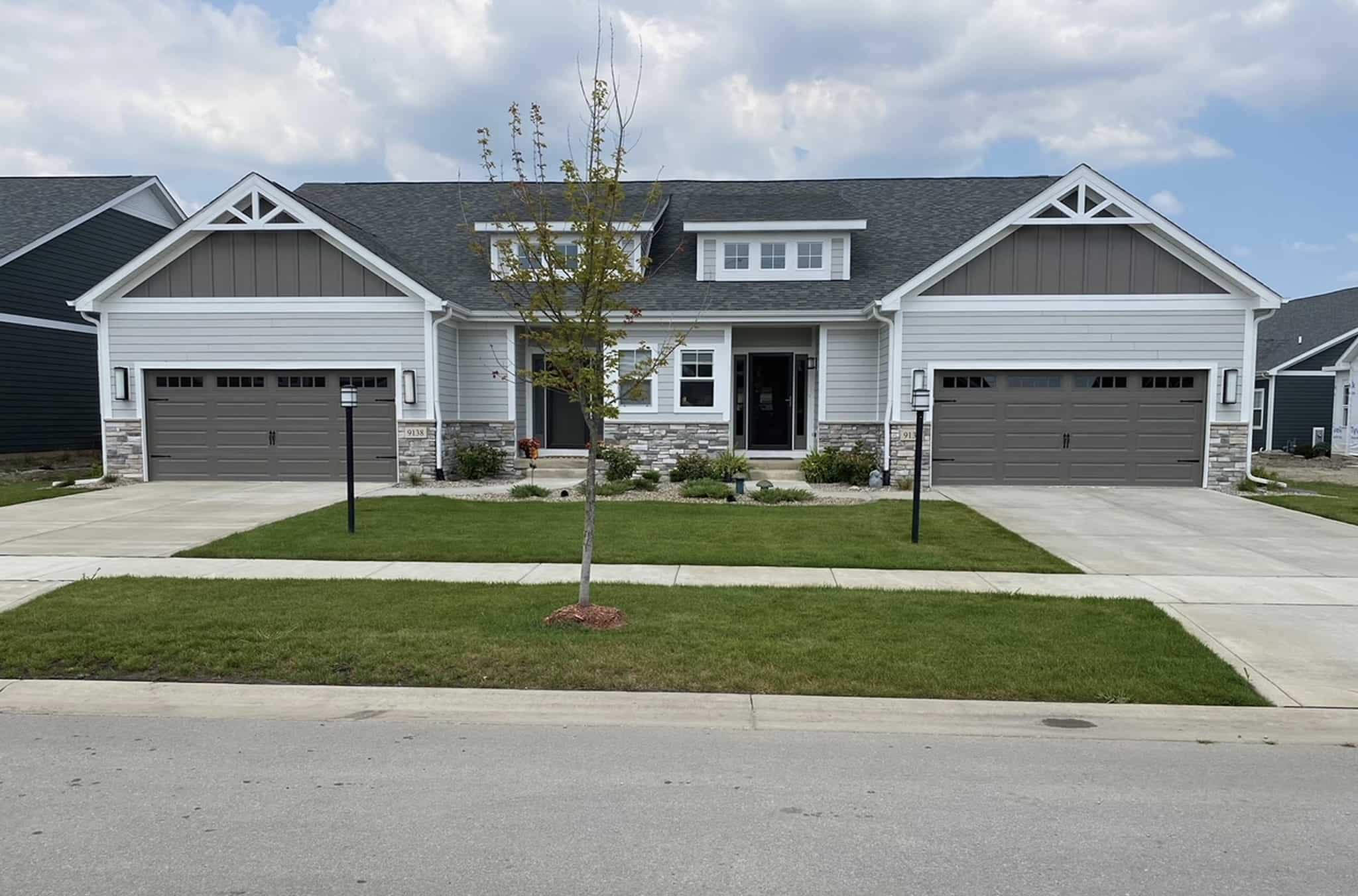

The architectural prowess of this 2-unit Craftsman style home is truly remarkable, showcasing a blend of excellence and authenticity that makes an ideal dwelling for families. With a 2-story plan, totaling 4,090 sq ft (2,045 living sq ft per unit), it offers an array of exceptional amenities:
- 3 Bedrooms, 3 Bathrooms, 2 Garage Spaces (per unit)
- Family Room, Den, Kitchen with Walk-in Pantry
- Main Floor Master Bedroom with Walk-in Closet, Master Bathroom, Sitting Area
Most plan sets include the following:
- Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.

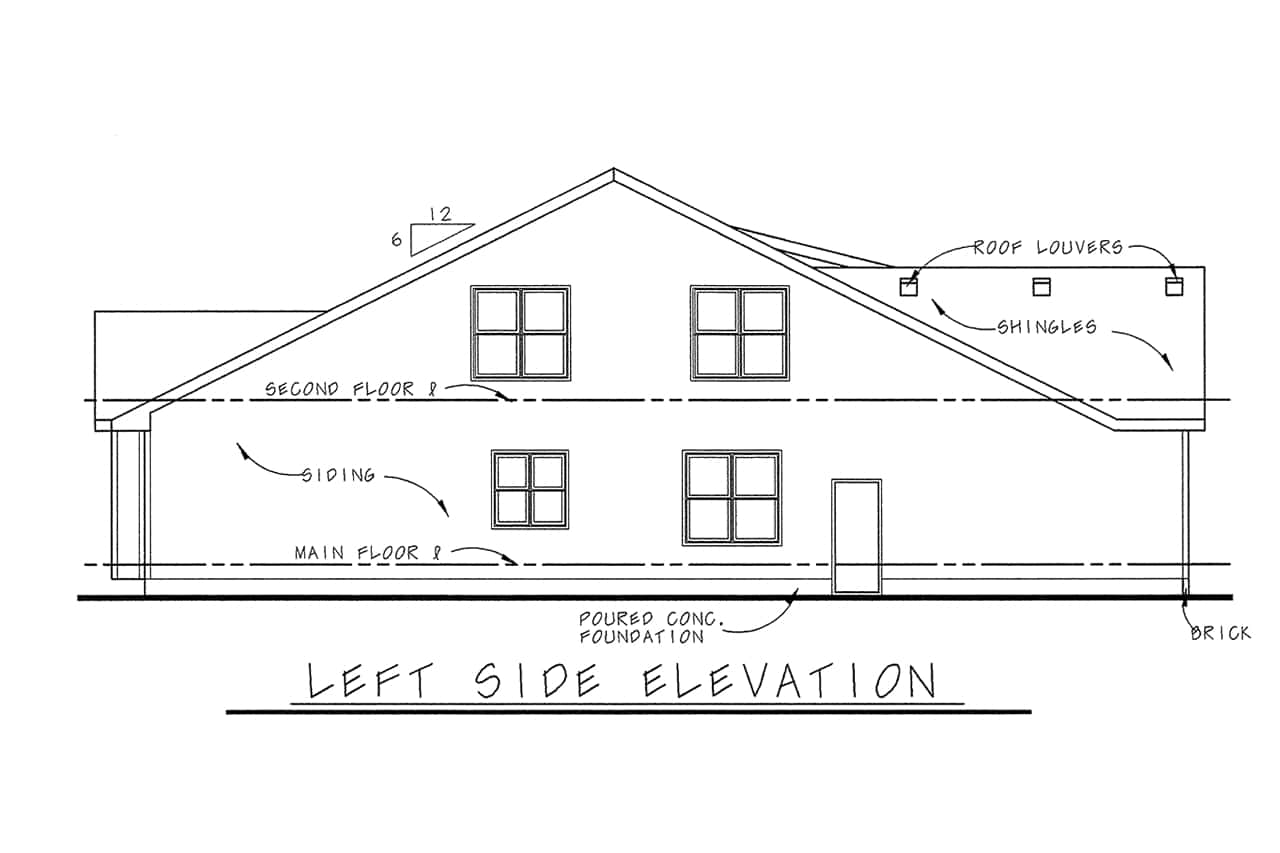

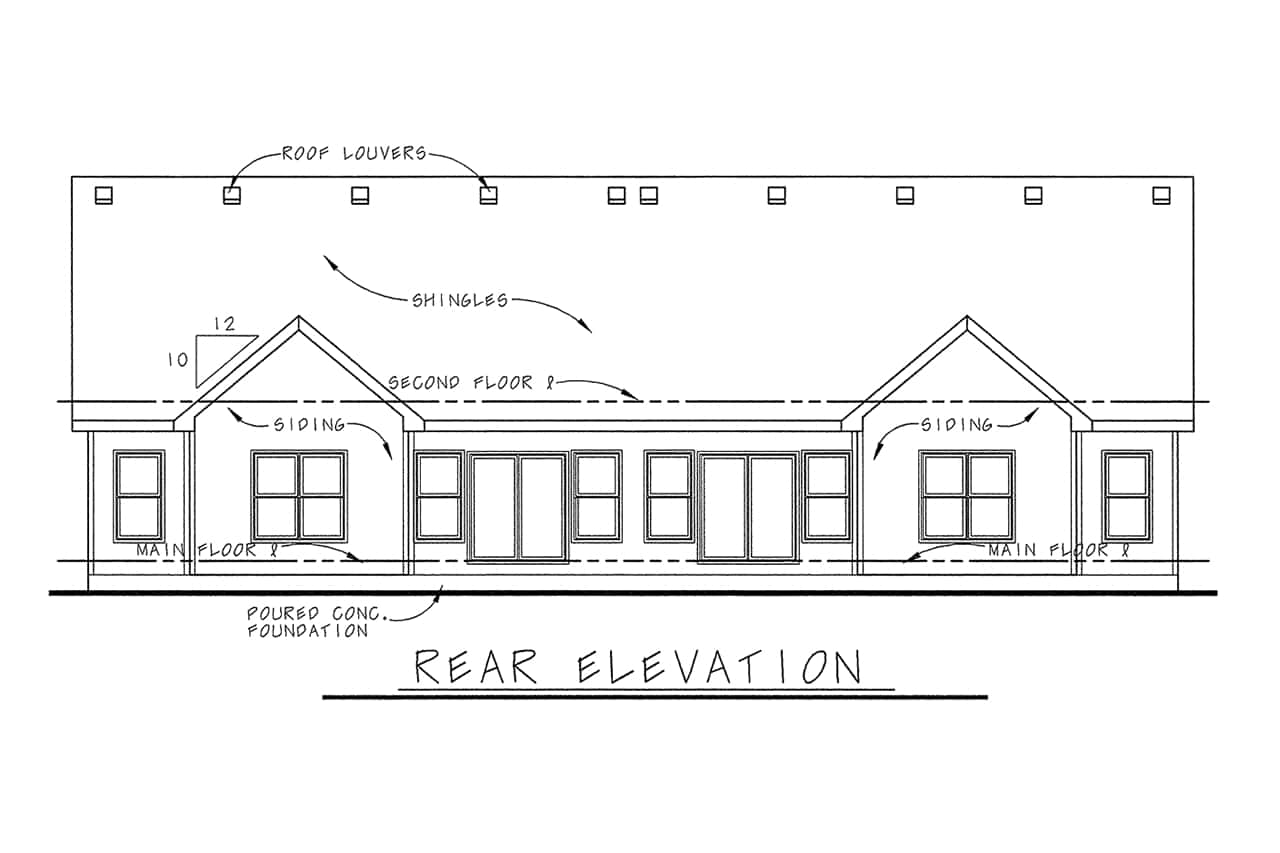

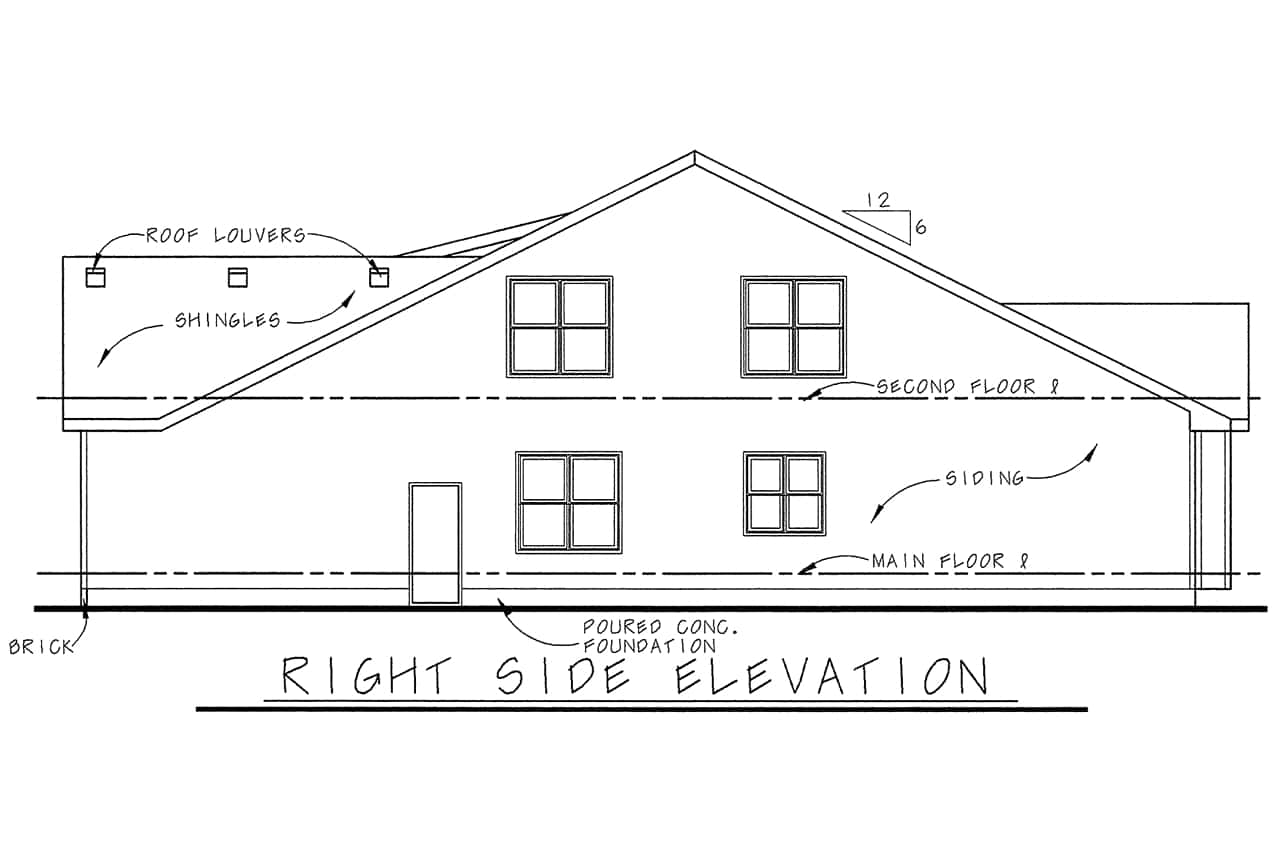

- Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
- Foundations. Foundations are fully engineered for each design, whether slab or basement.

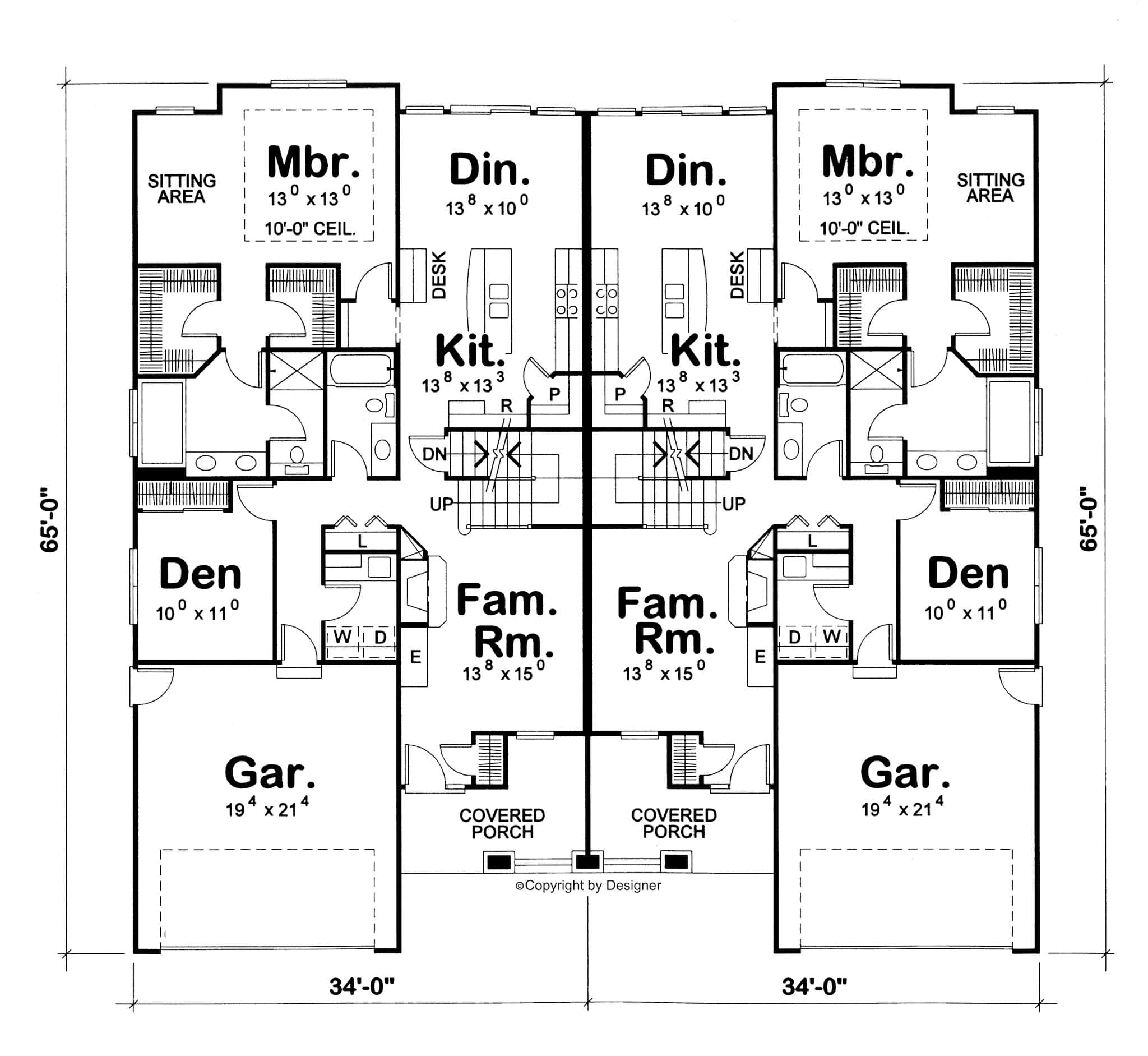

- Main Level Floor Plan

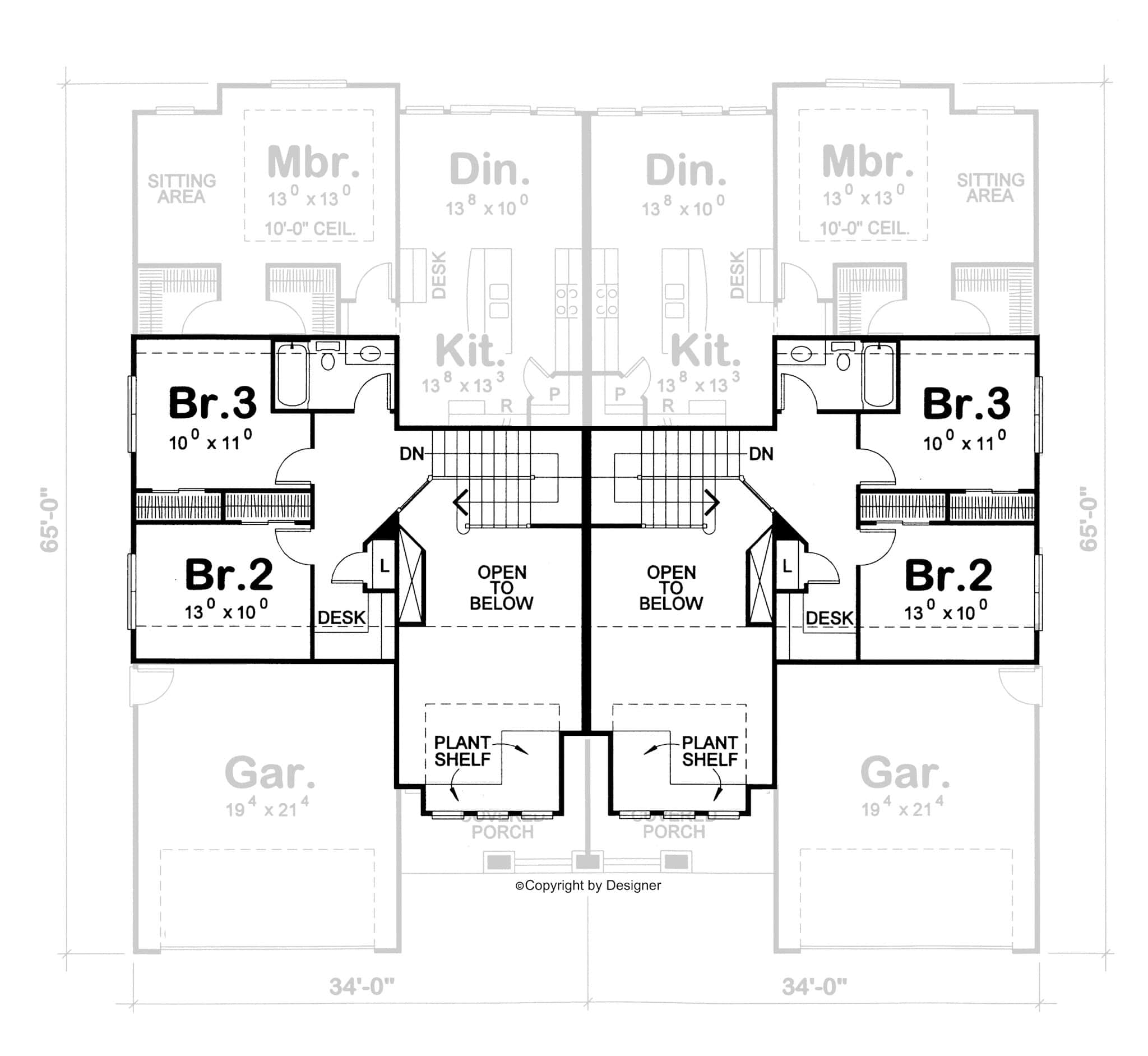

- Second Level Floor Plan
- Electrical layout
- Wall & Stair Sections
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Roof Pitch
Ceiling Height
Special Feature
Garage Type
Fireplaces
Exterior Wall Framing
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
This multi-family plan has two identical units. Each unit has 2,045 living square feet, 3 bedrooms, 3 bathrooms, and 2 garage spaces.
PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
