5-Bedroom, 5699 Sq Ft Colonial Plan with Split Master Bedroom
Related House Plans
| 5699 SQUARE FEET | 5 BEDROOMS | 4 FULL BATH | 3 HALF BATH |
| 2 FLOOR | 94' 0" WIDTH | 59' 0" DEPTH | 3 GARAGE BAY |

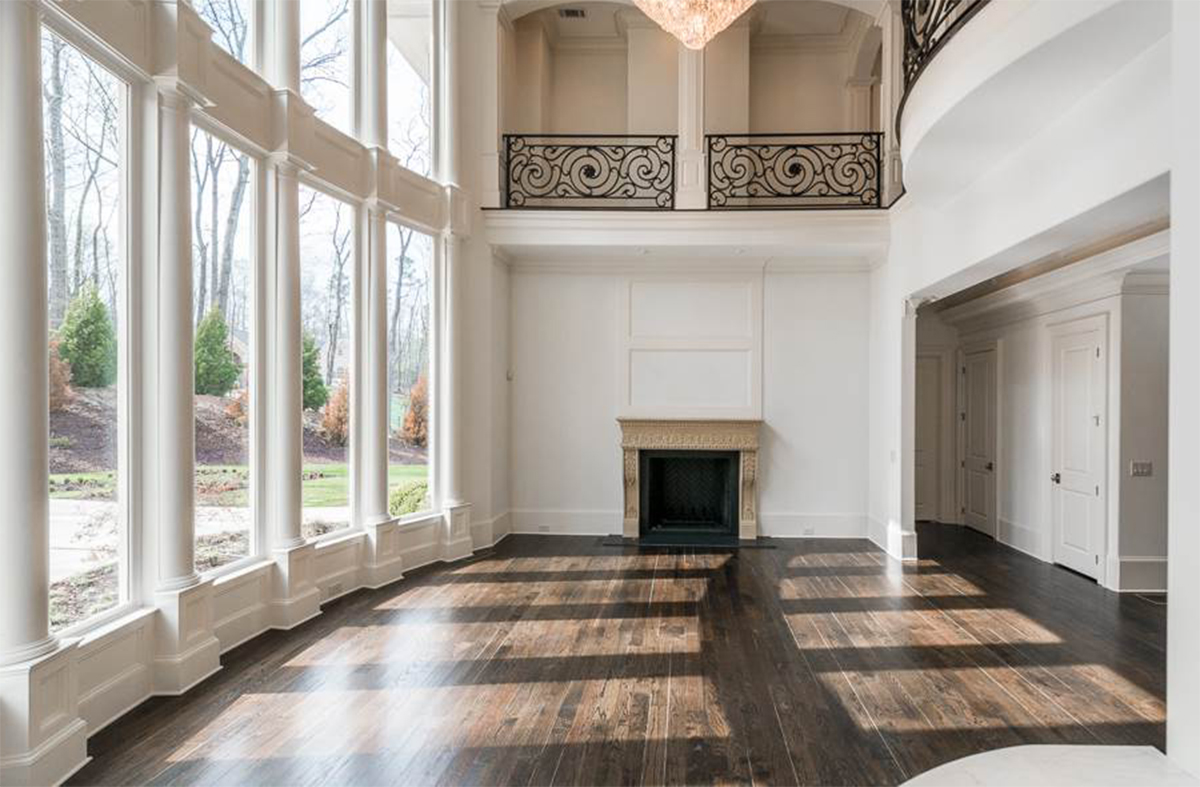

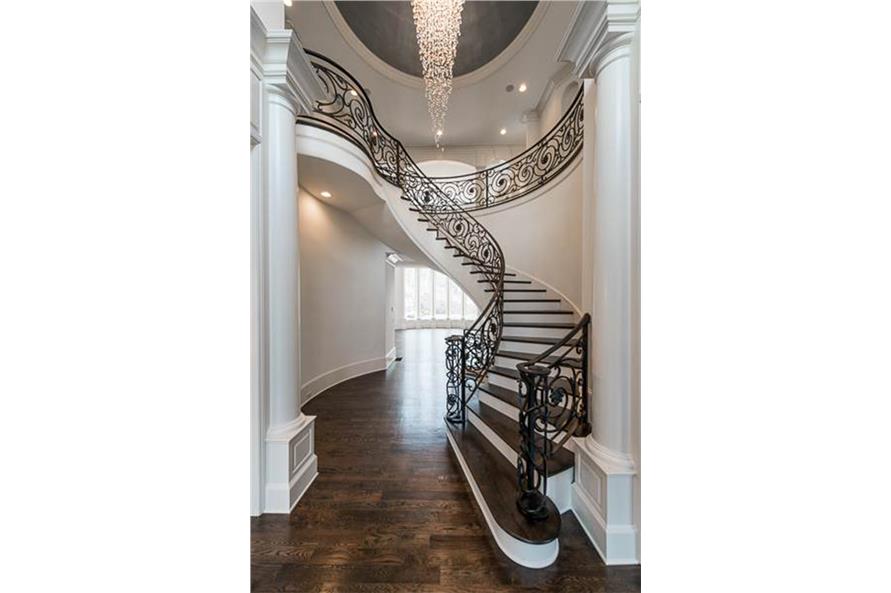

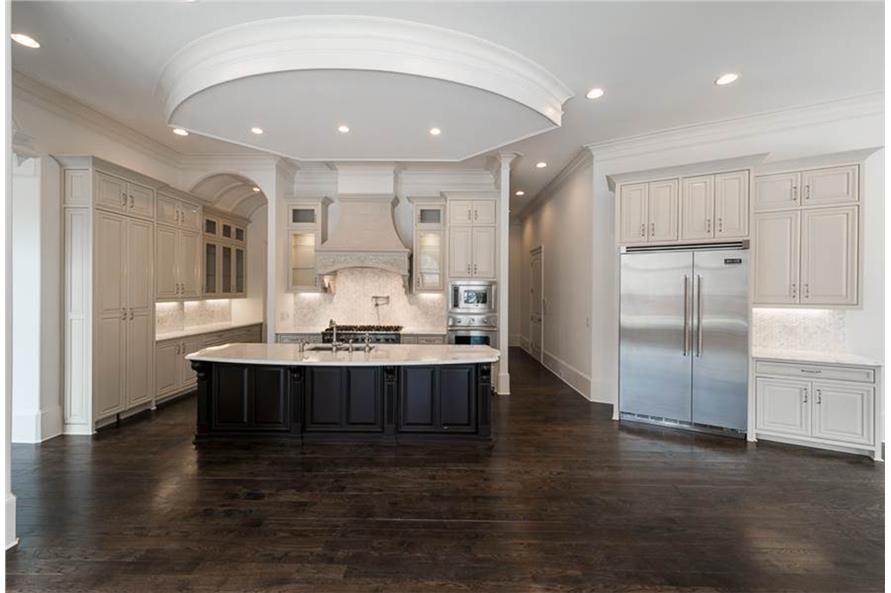

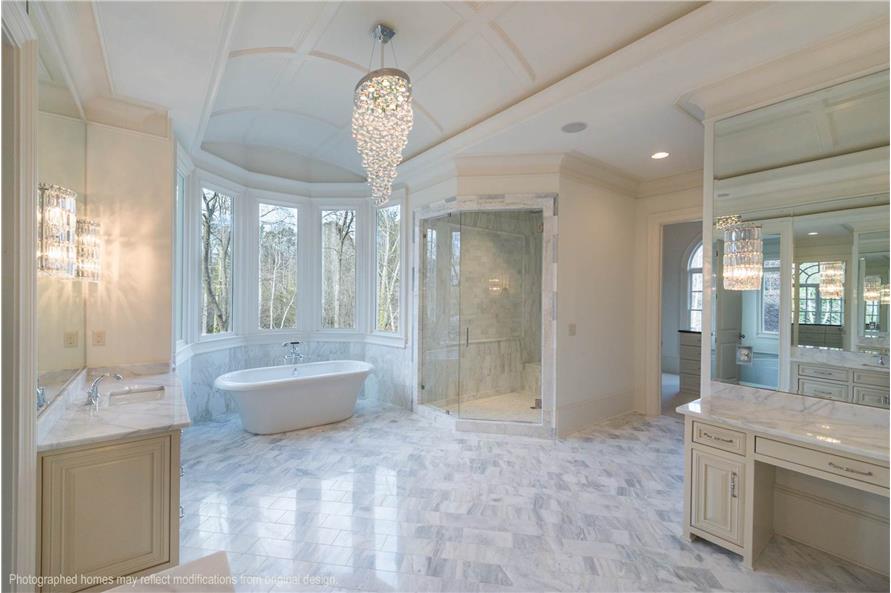

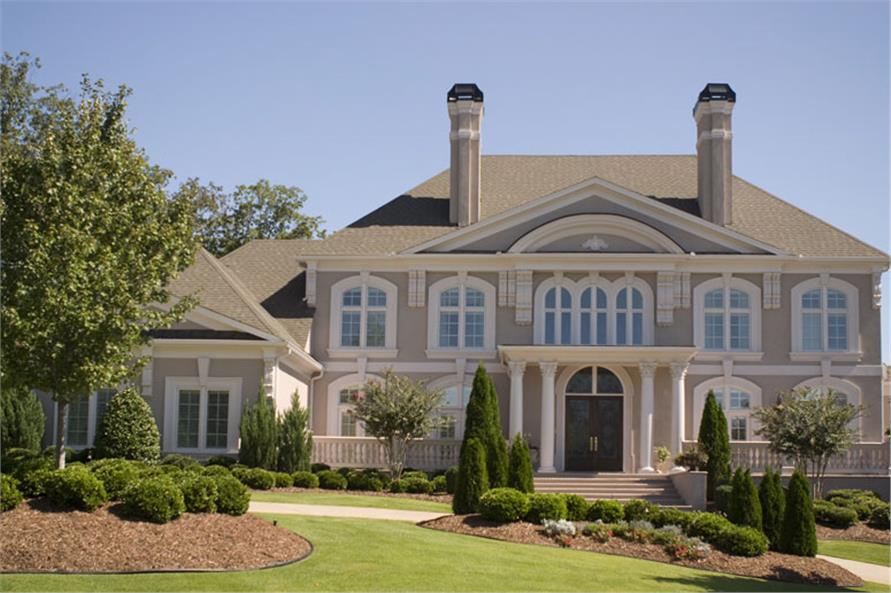

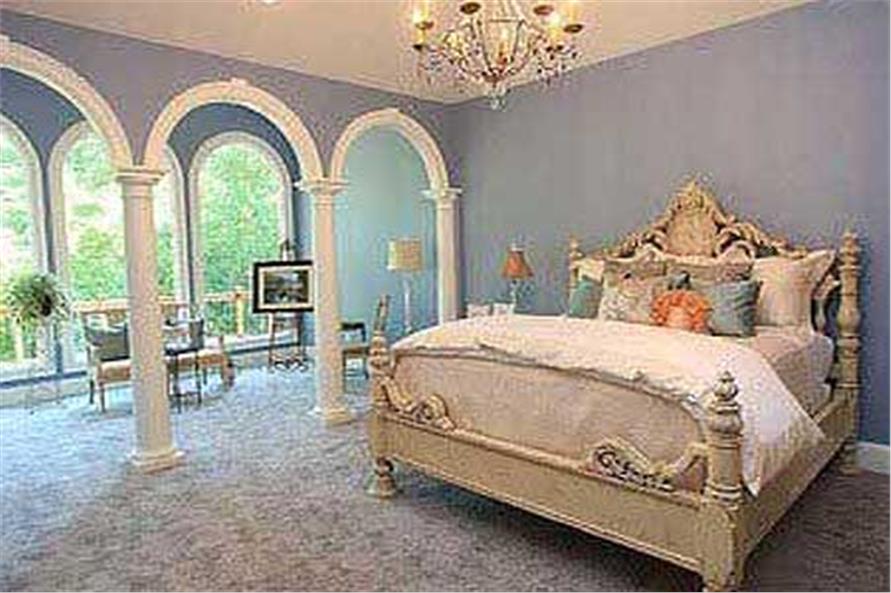

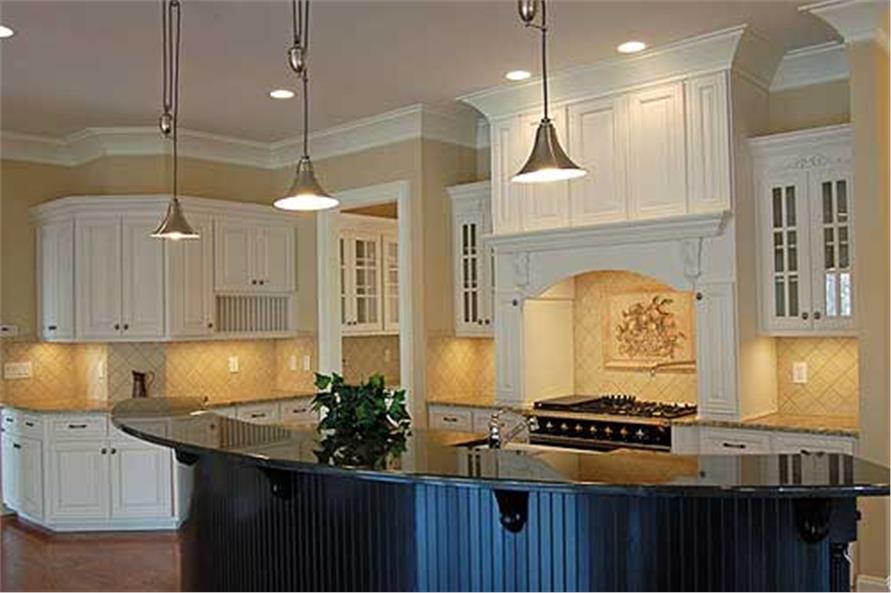

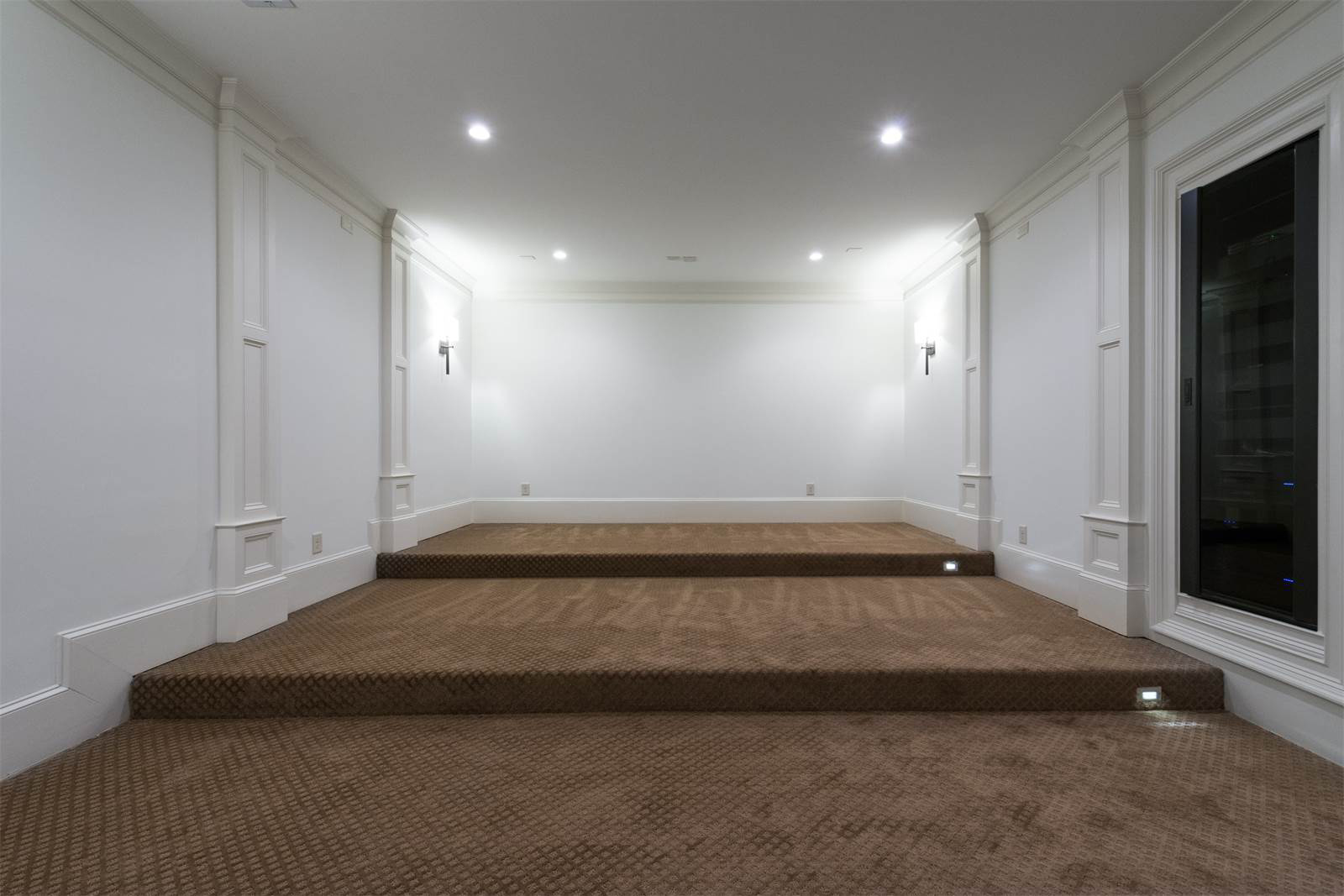

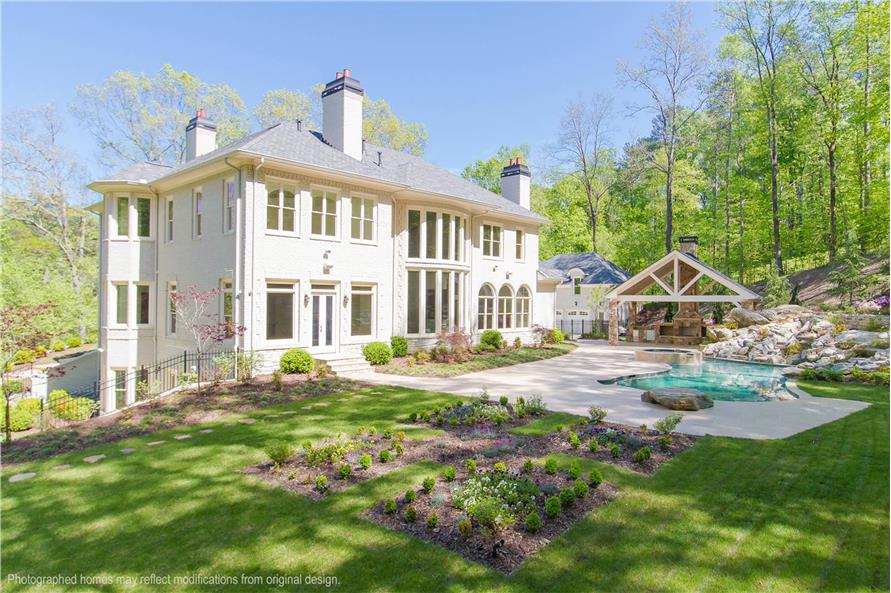

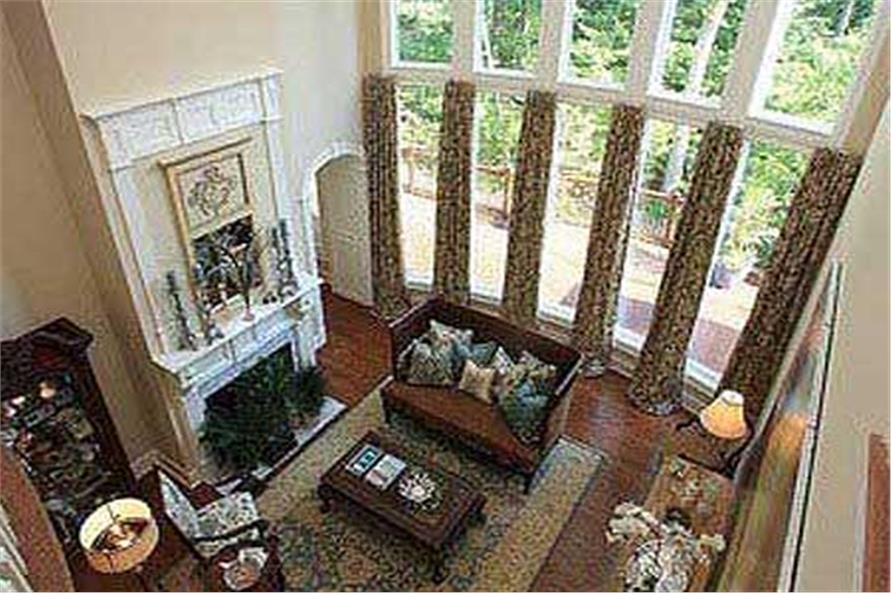

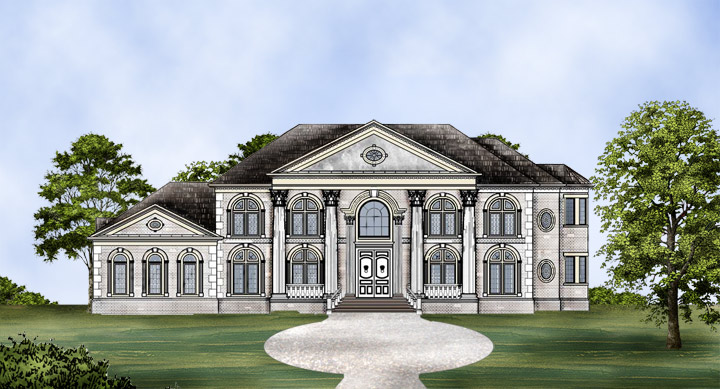

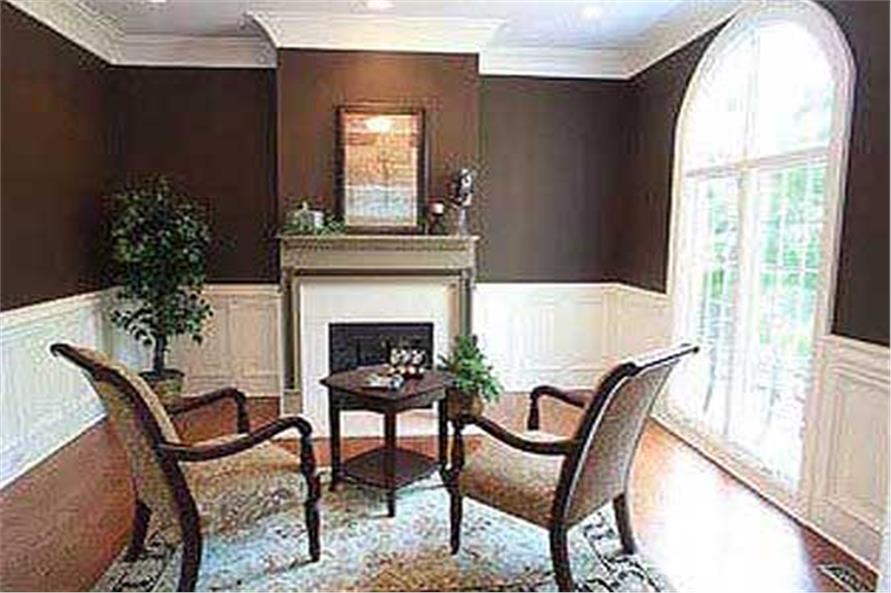

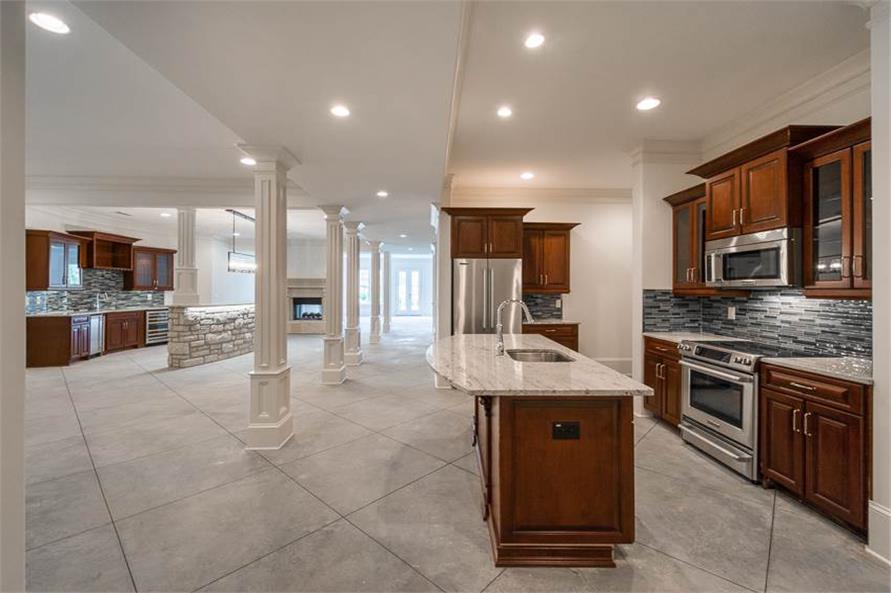

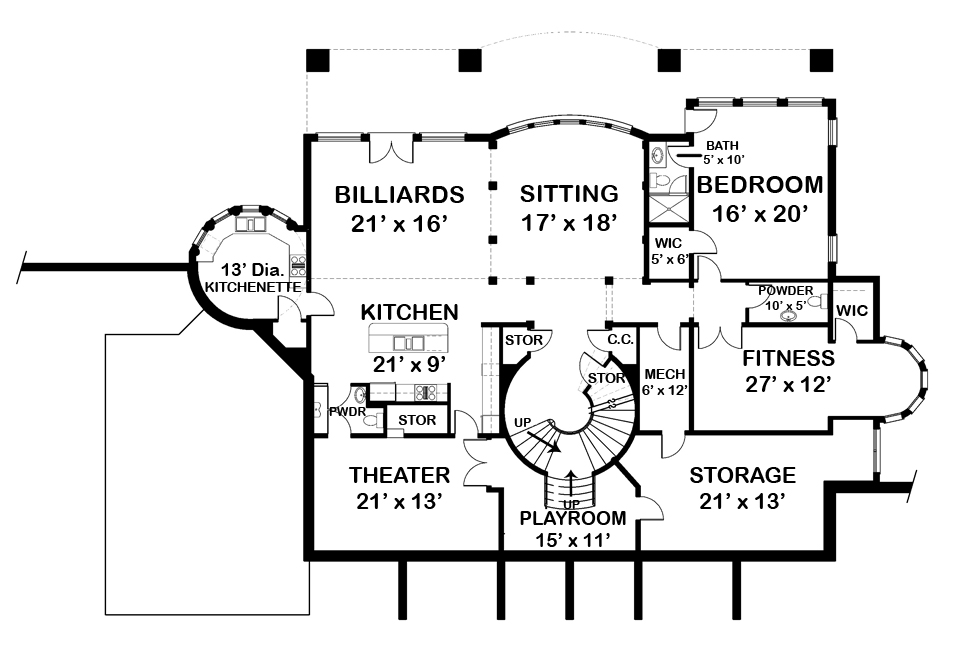

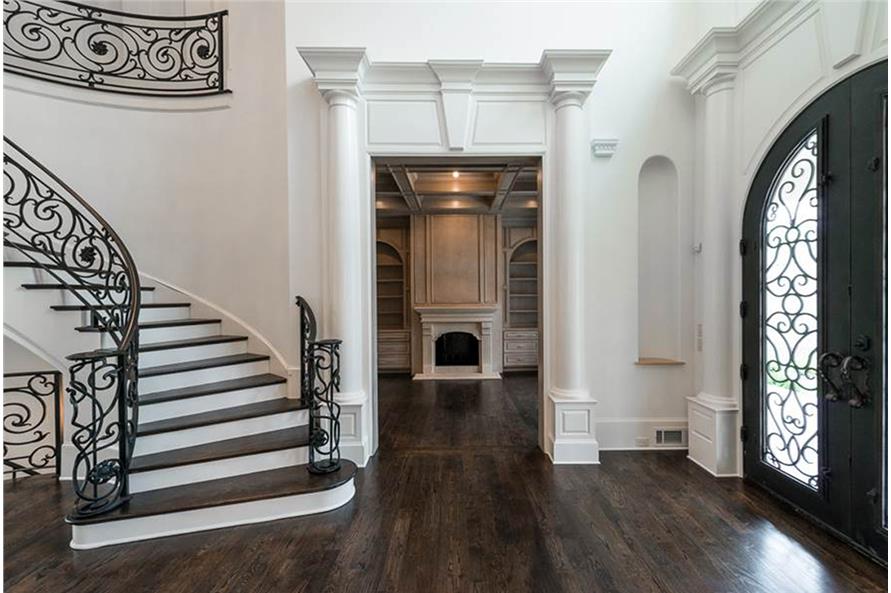

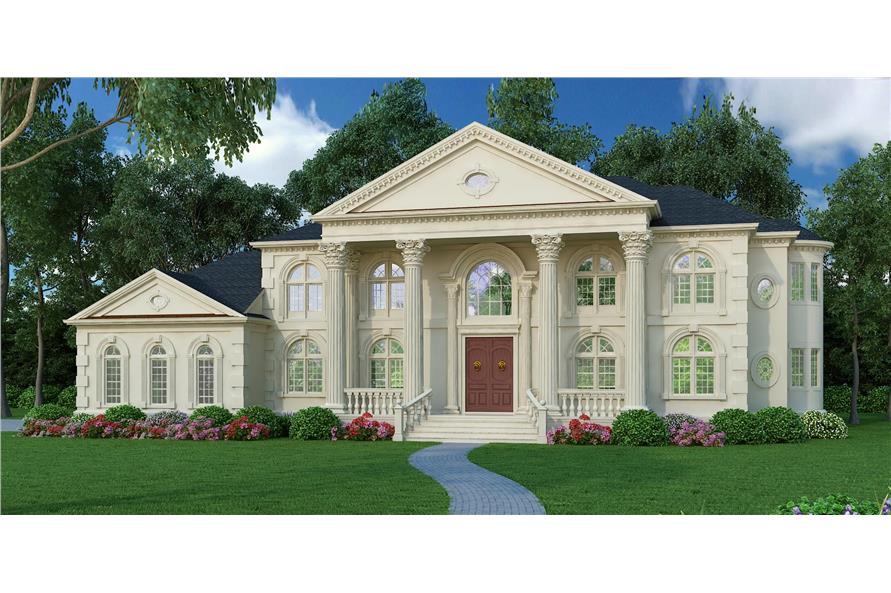

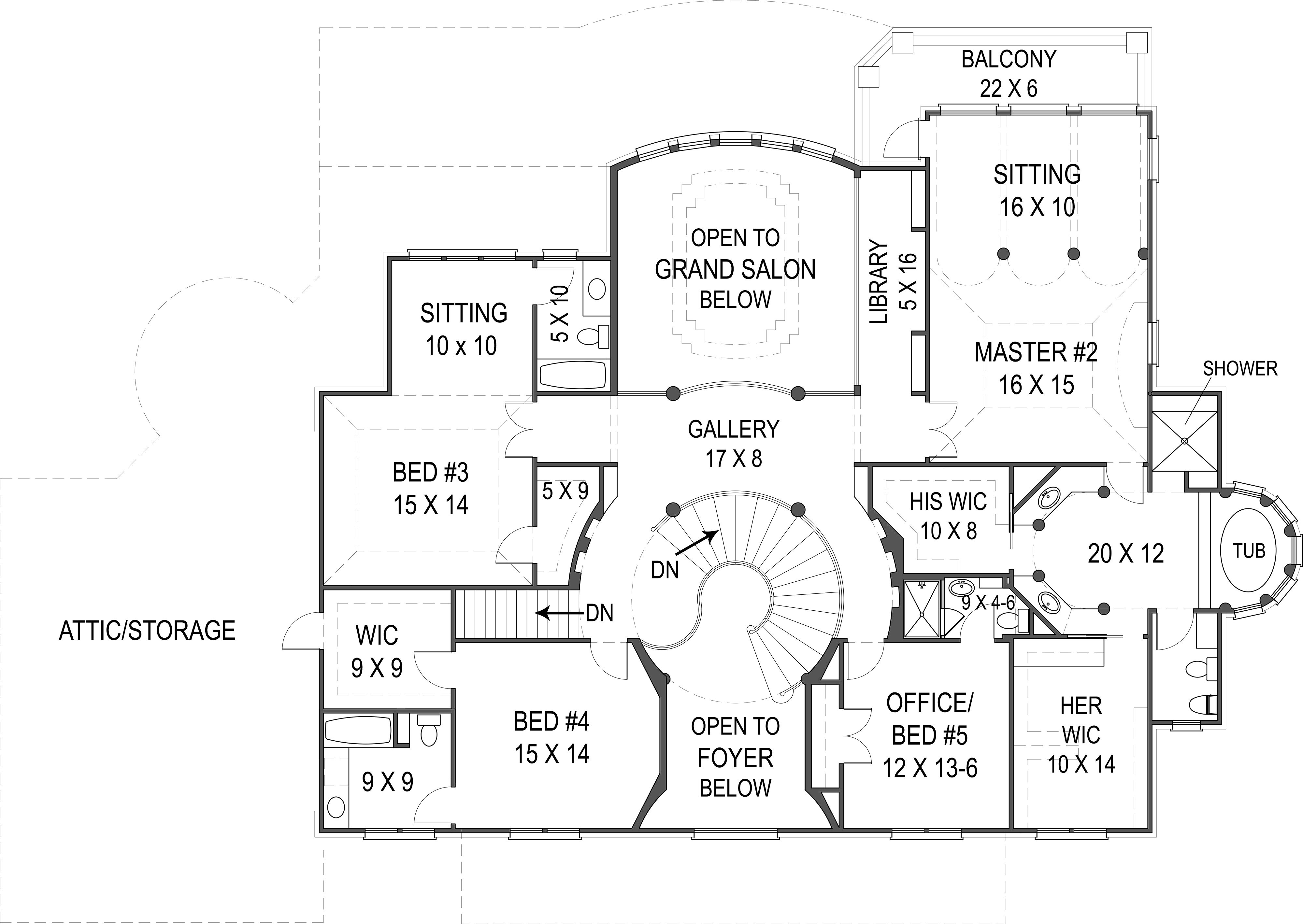

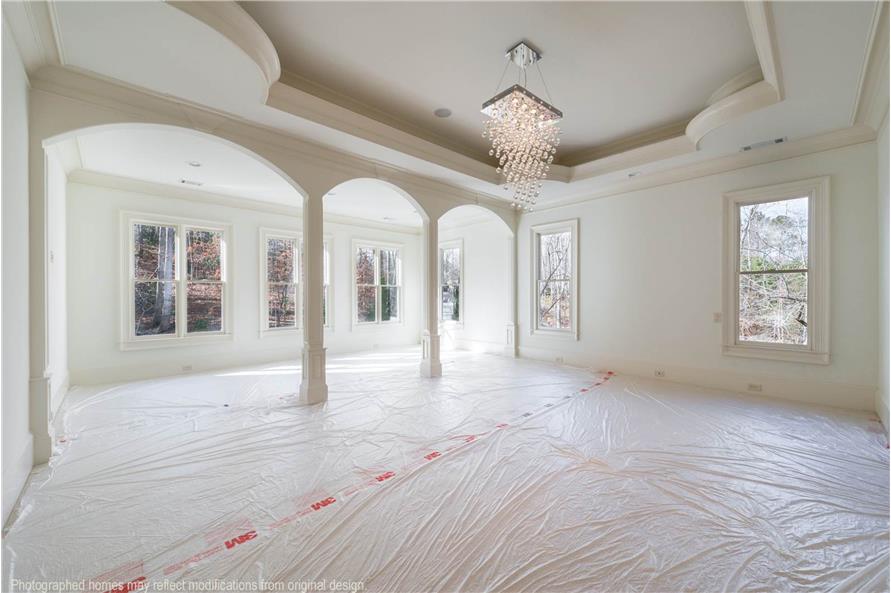

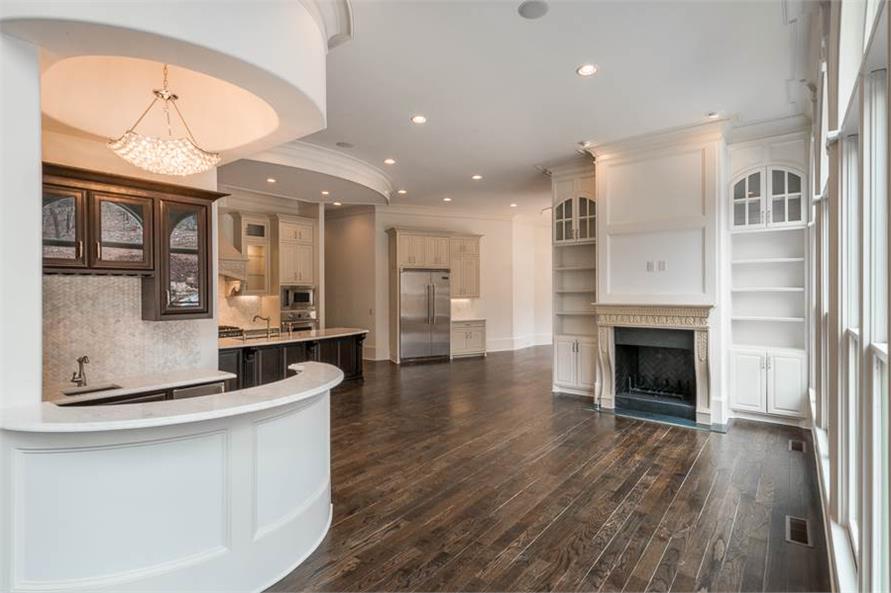

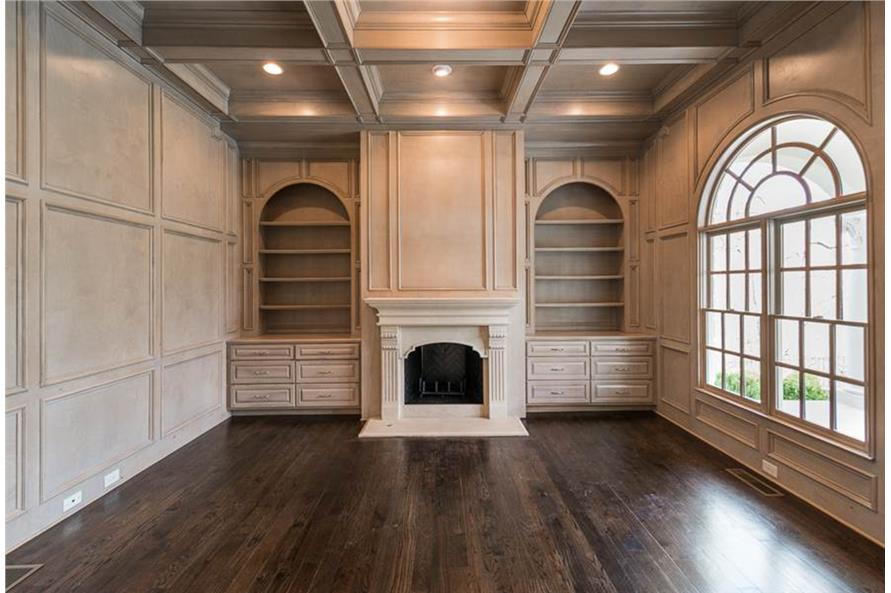

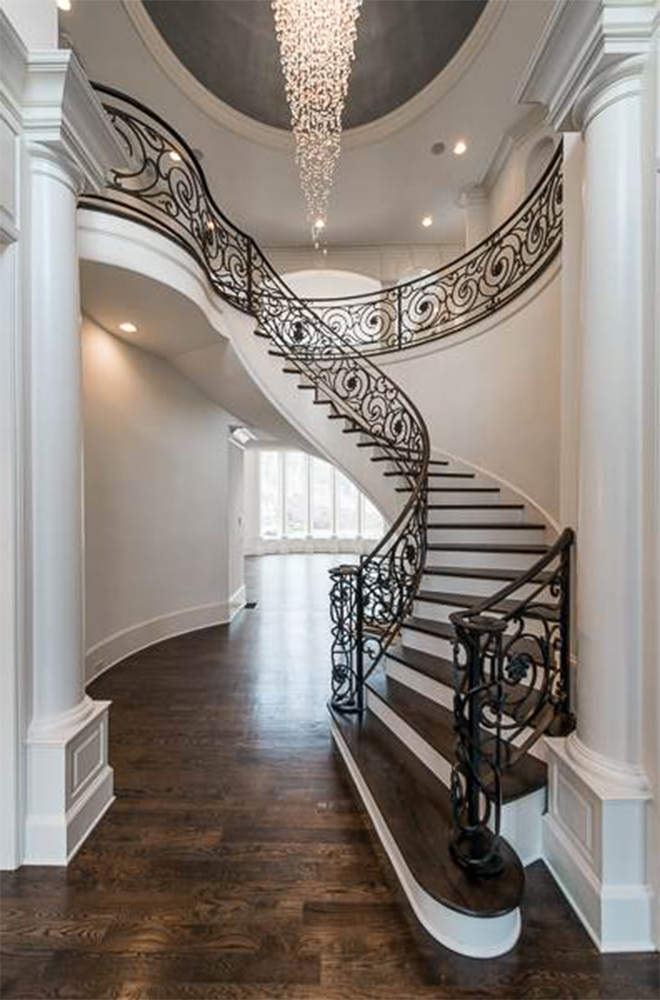

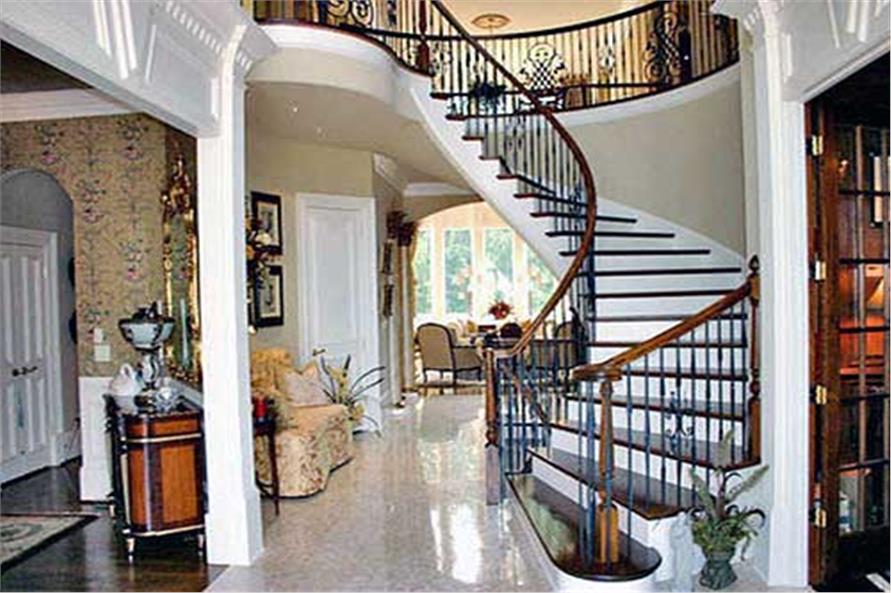

You'll find this home to be suffused with old-world appeal. Modified Palladian windows crown the entrance within a magnificent portico, providing the perfect embellishment to a handsome stucco or brick facade. French doors grace the front of the home, opening to a hushed library on the right, and an elegant formal dining room on the left. A grand circular staircase uncoils in the foyer. The rear floor hosts a vast master suite, grand salon, keeping room, and a deck. The second floor boasts a second master suite with sitting area and private balcony and oversized walk-in closets, three additional bedrooms and two more full baths. The basement has a billiard room, circular kitchenette, kitchen, sitting room, full bedroom with bath and walk-in closet, theatre, play room, fitness room, two half baths and plenty of storage.
Each plan set includes the following:
- Foundation Plan
- Floor plans
- Electrical layout
- Exterior elevations
- Cross-section
- Typical Call detail
- Typical footing detail
- Miscellaneous details
- Window/Door sizes
- Roof plan
These items are NOT included:
- Framing.
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

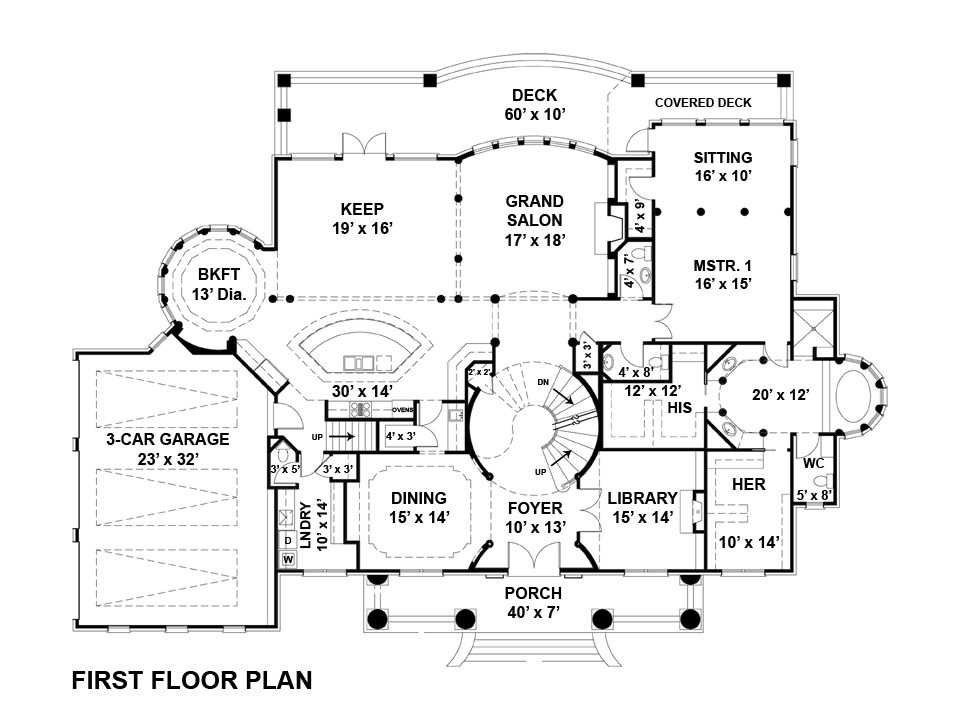

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Ceiling Height
Special Feature
Garage Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
