4-Bedroom, 3287 Sq Ft Luxury Plan with Peninsula/Eating Bar
Related House Plans
| 3287 SQUARE FEET | 4 BEDROOMS | 3 FULL BATH | 1 HALF BATH |
| 2 FLOOR | 55' 0" WIDTH | 54' 0" DEPTH | 2 GARAGE BAY |
Each plan set includes the following:
- General notes and specifications

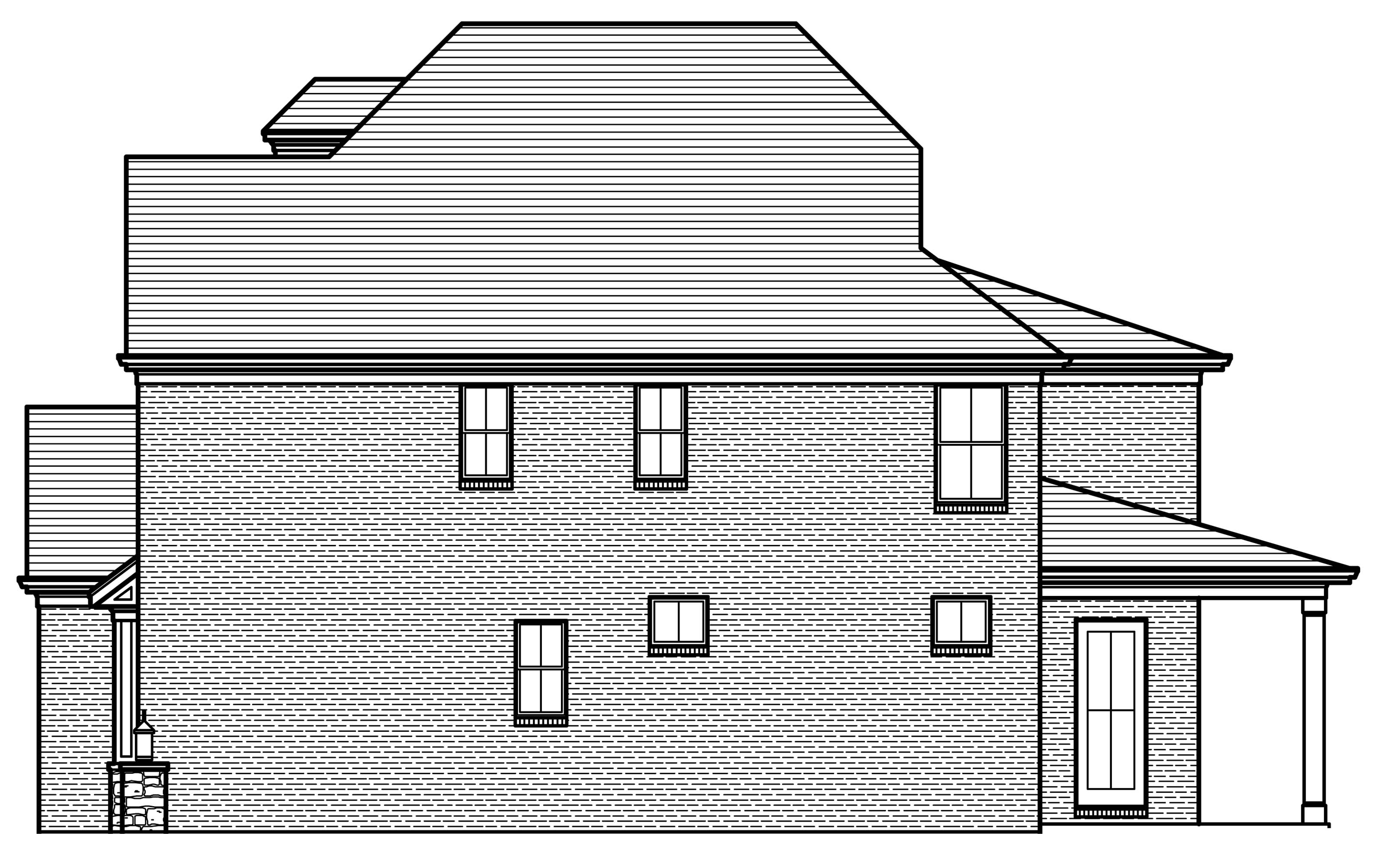

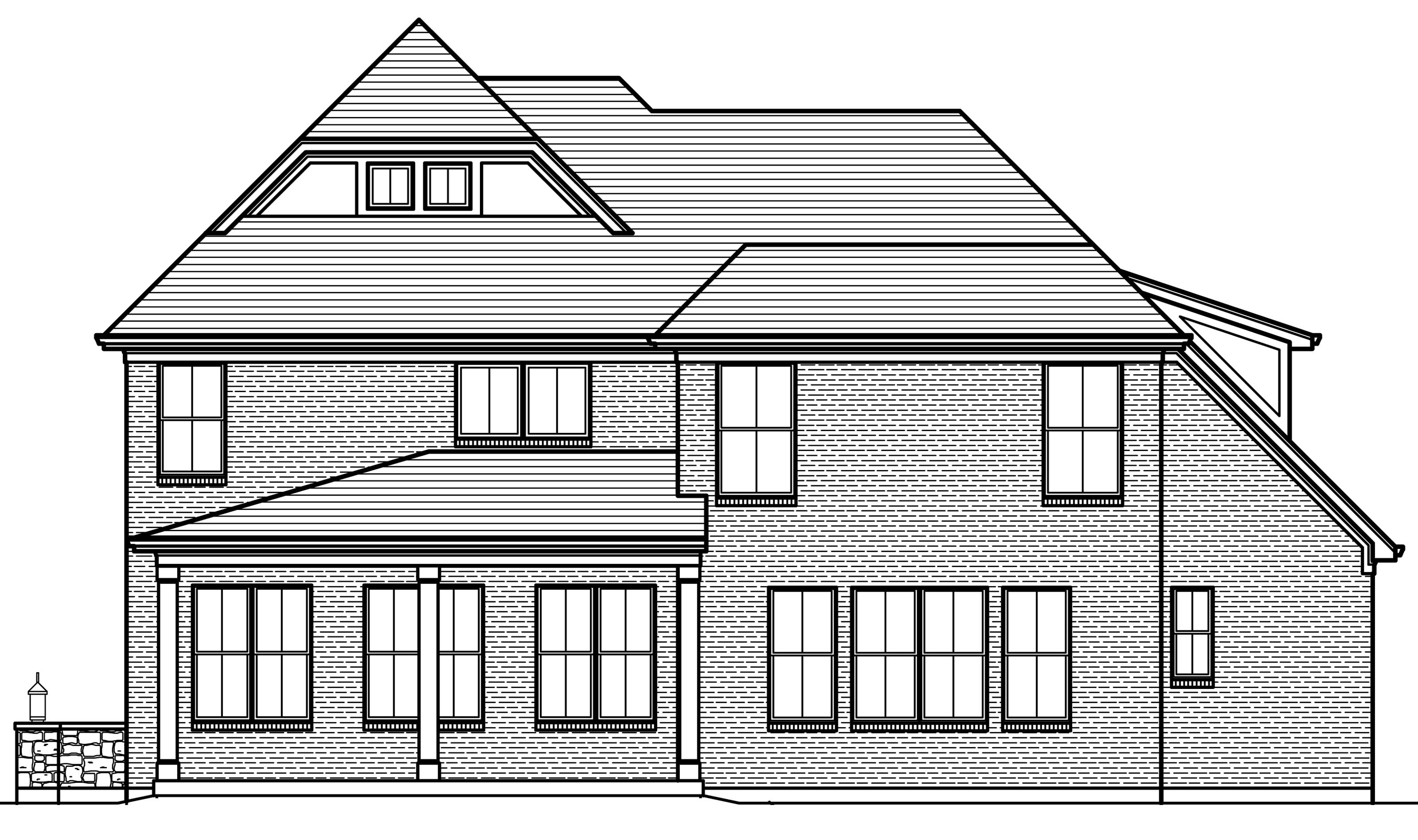

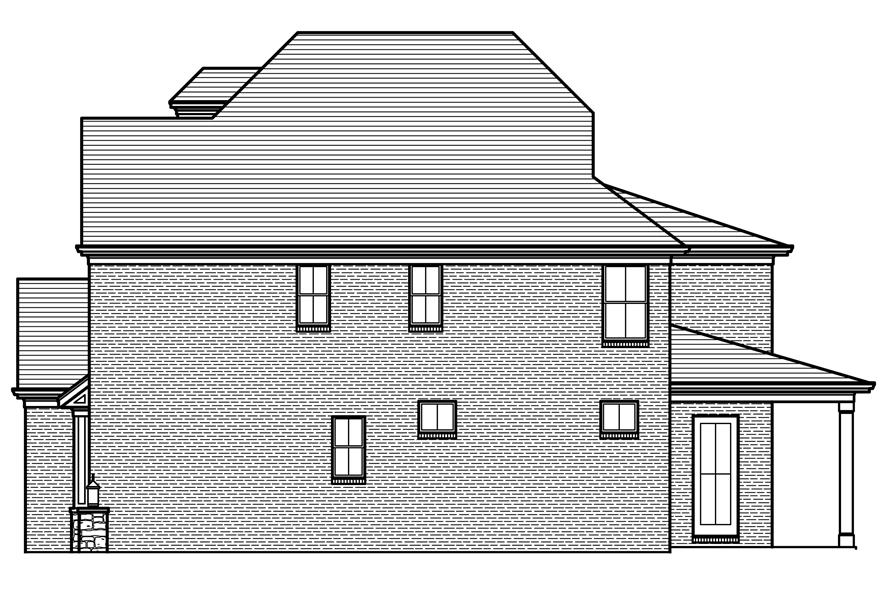

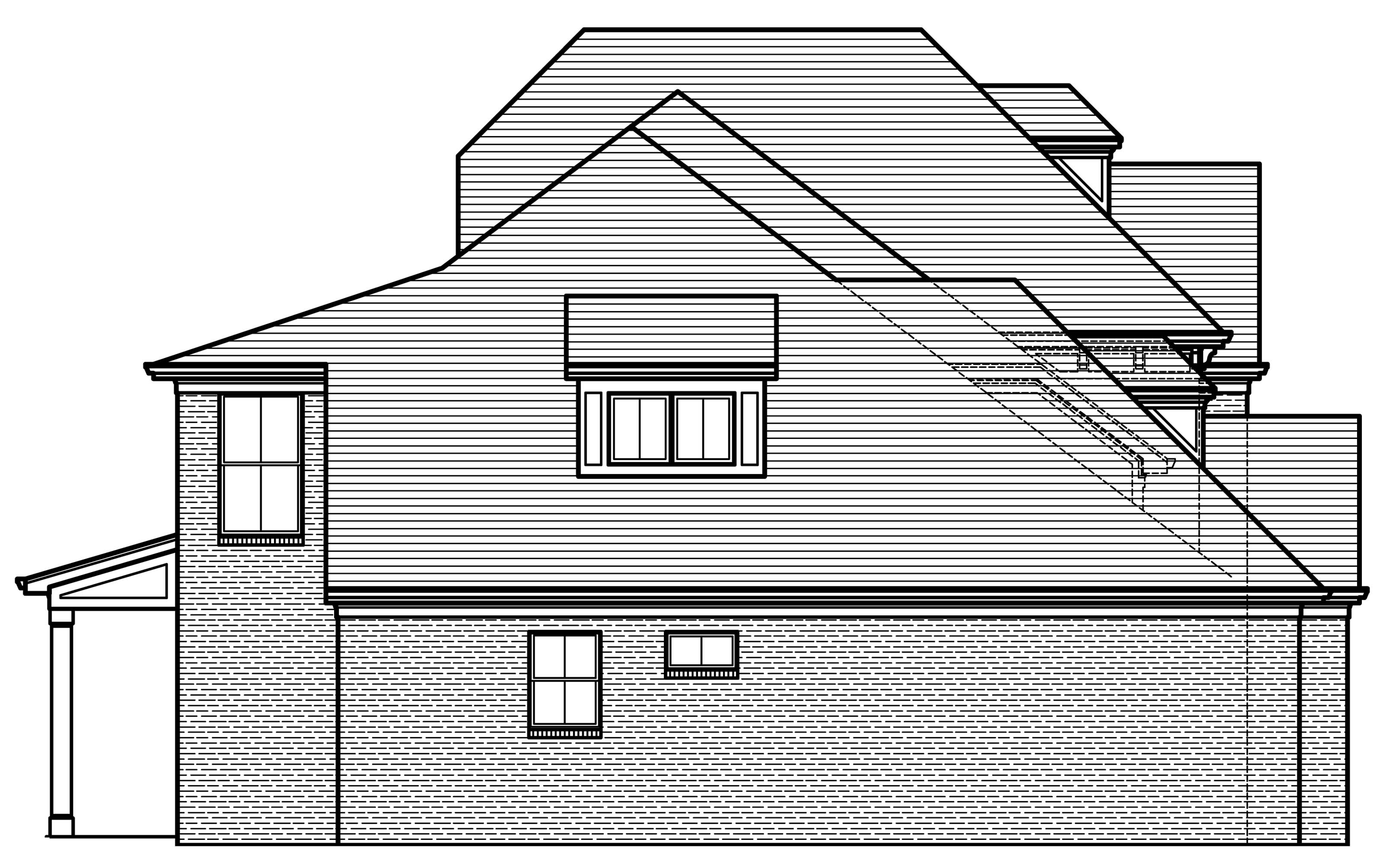

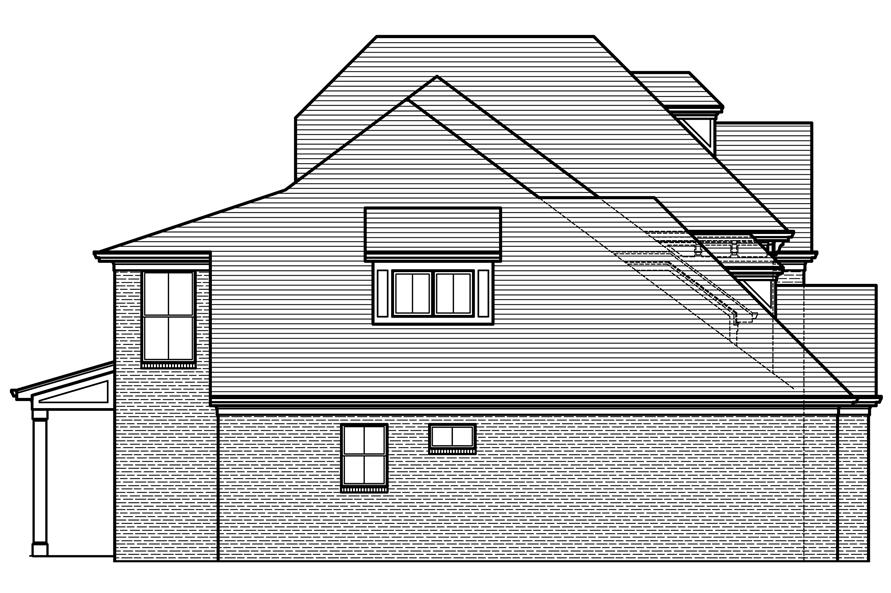

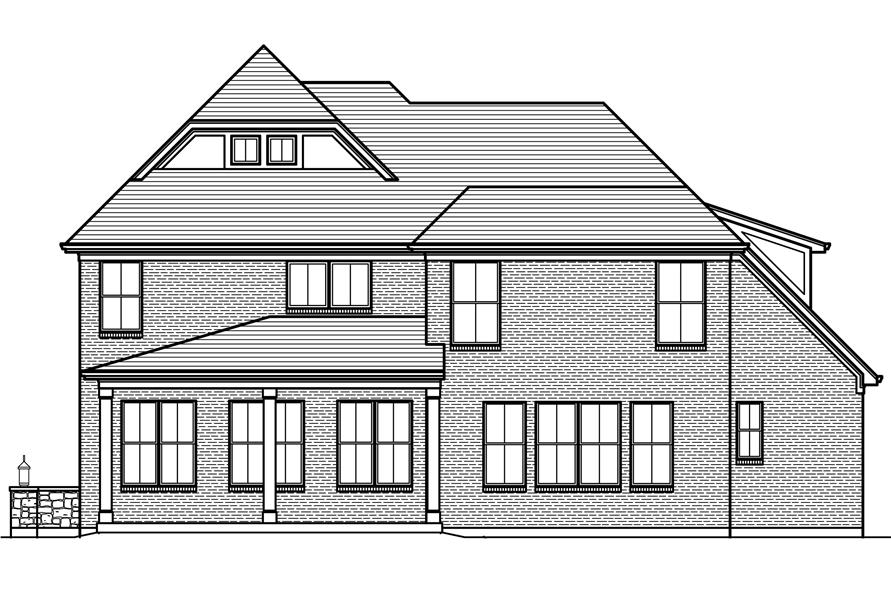

- Front, rear and side elevations (1/4" scale)

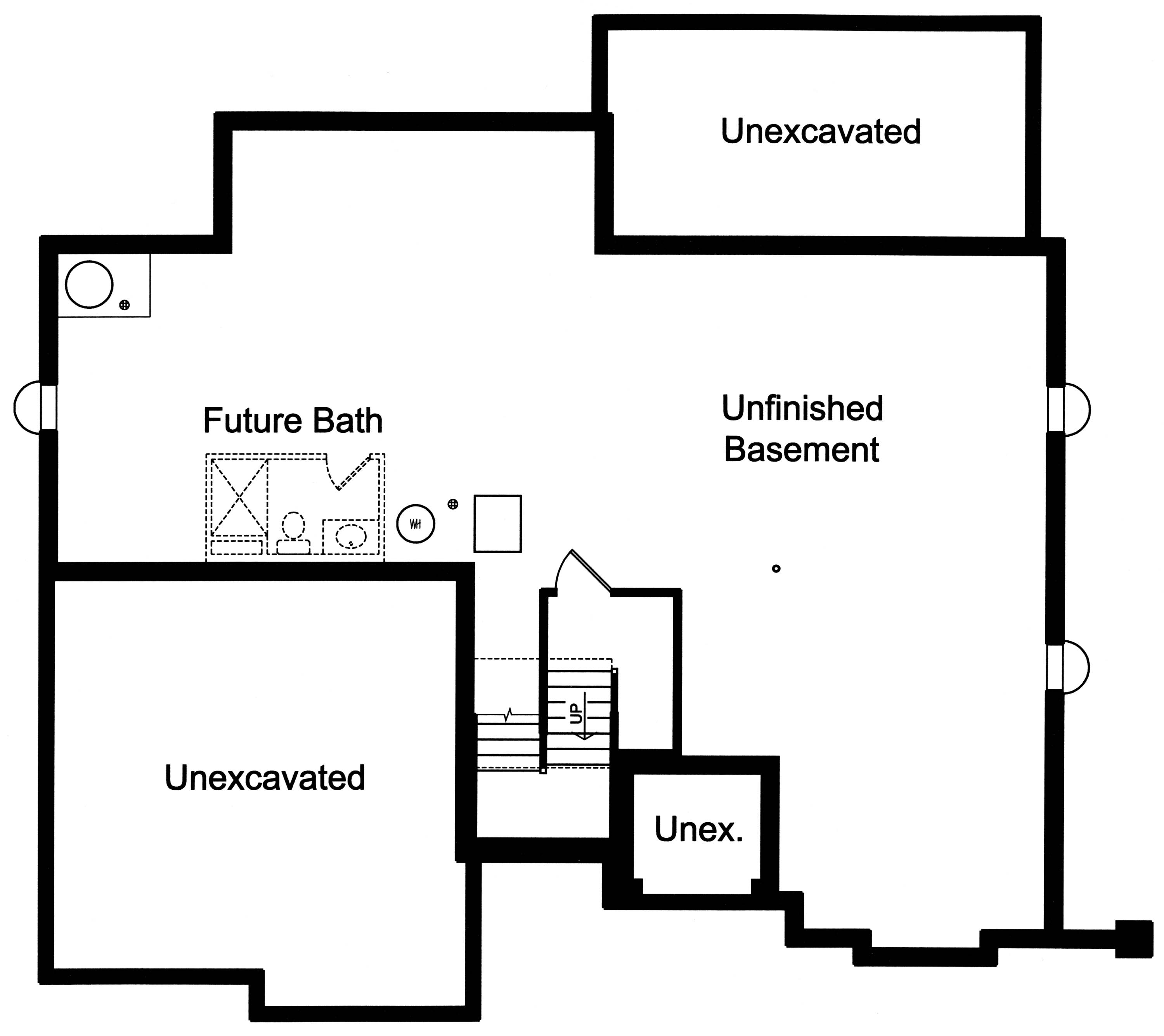

- Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
- Reinforced foundation and footing details

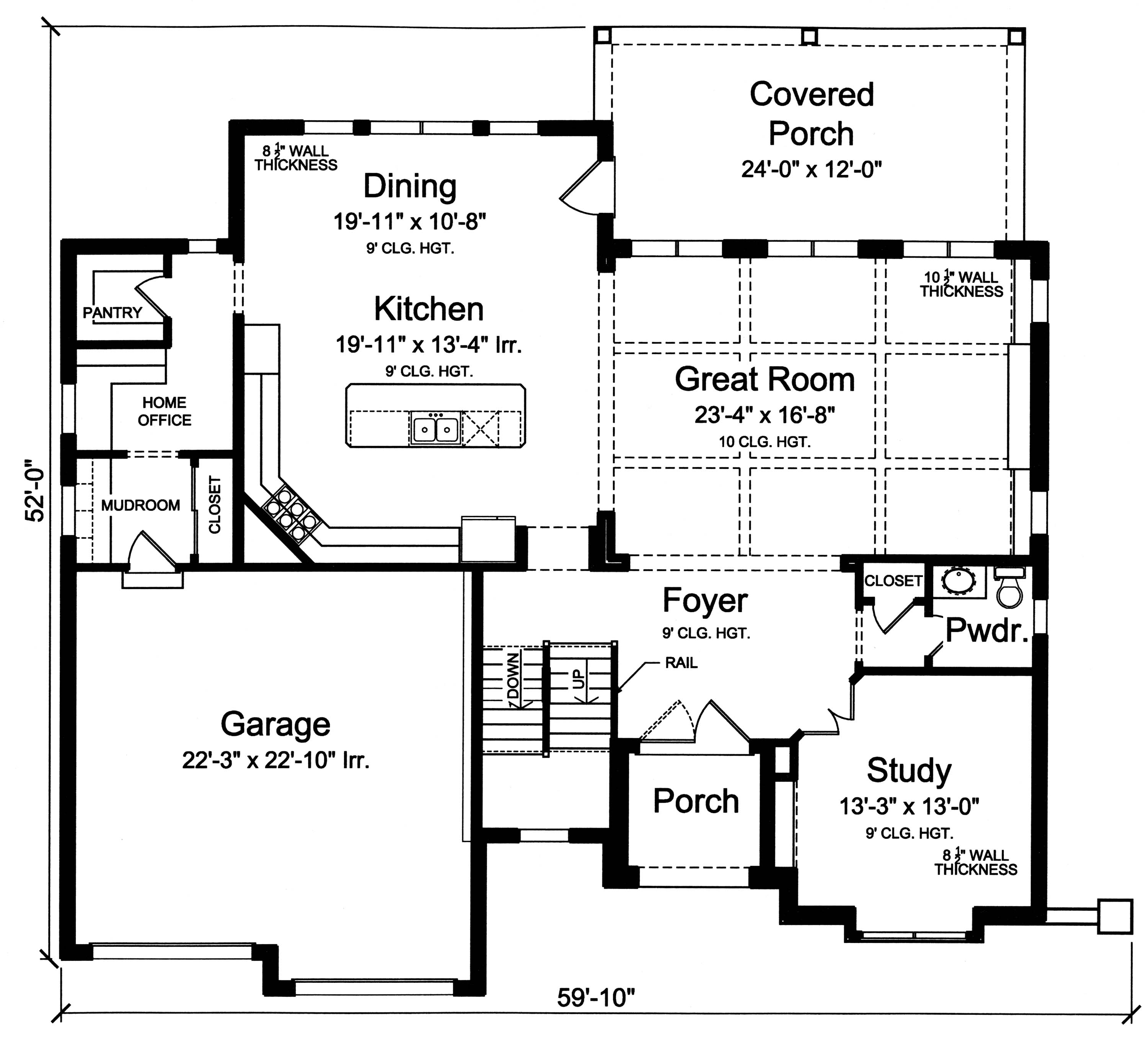

- First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
- Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction method
- Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
