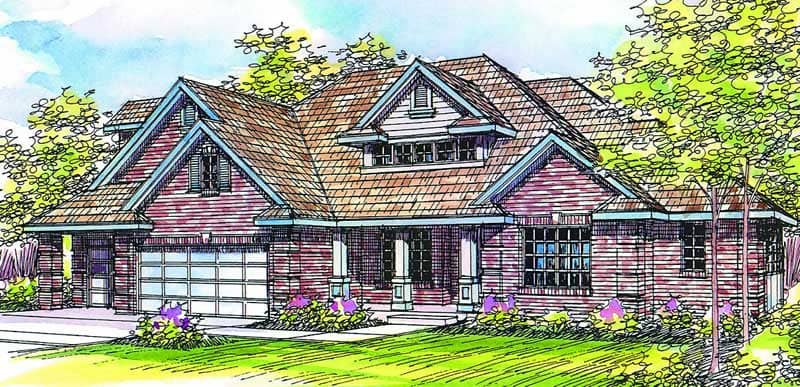

Main image for house plan # 3120

About Plan # 108-1497

About Plan # 108-1497

2485 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 74' 0" WIDTH 56' 0" DEPTH 3 GARAGE BAY
This is a magnificent single story craftsman style house plan with 2485 total living square feet. The see-through fireplace in this craftsman home plan warms both the dining room and the vaulted great room. The large kitchen has two islands, the pantry and nook, and is open to the great room. The front room off of the foyer could be used as a home office or a guest room.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

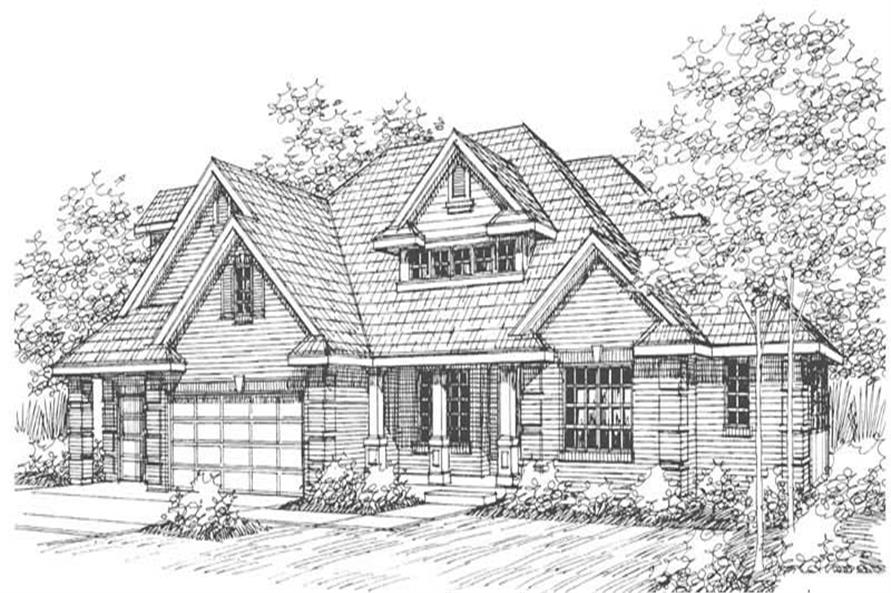

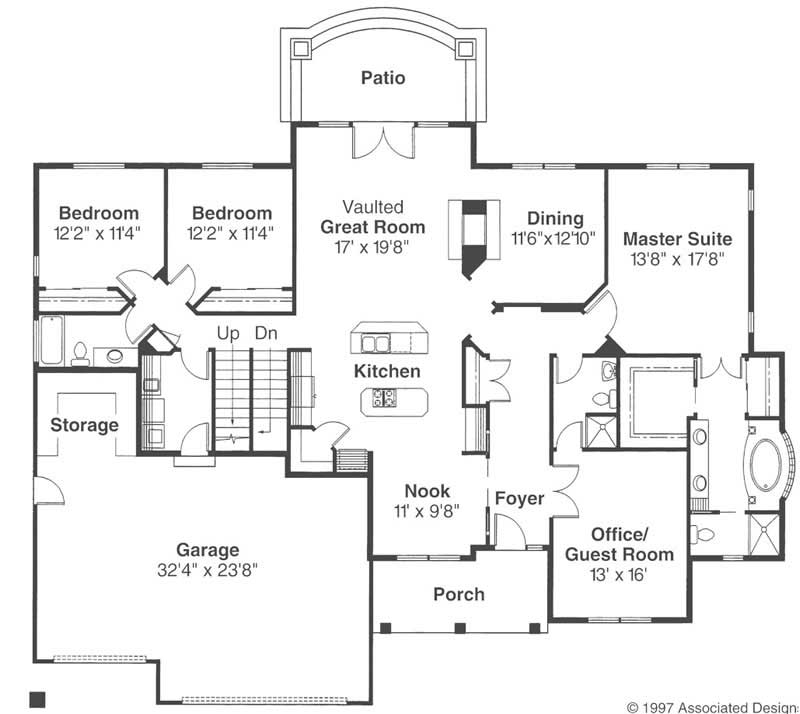

Home Plan: #108-1497 Floor Plan First Story - hearthside first floor Floor Plan First Story of Craftsman Plan #108-1497

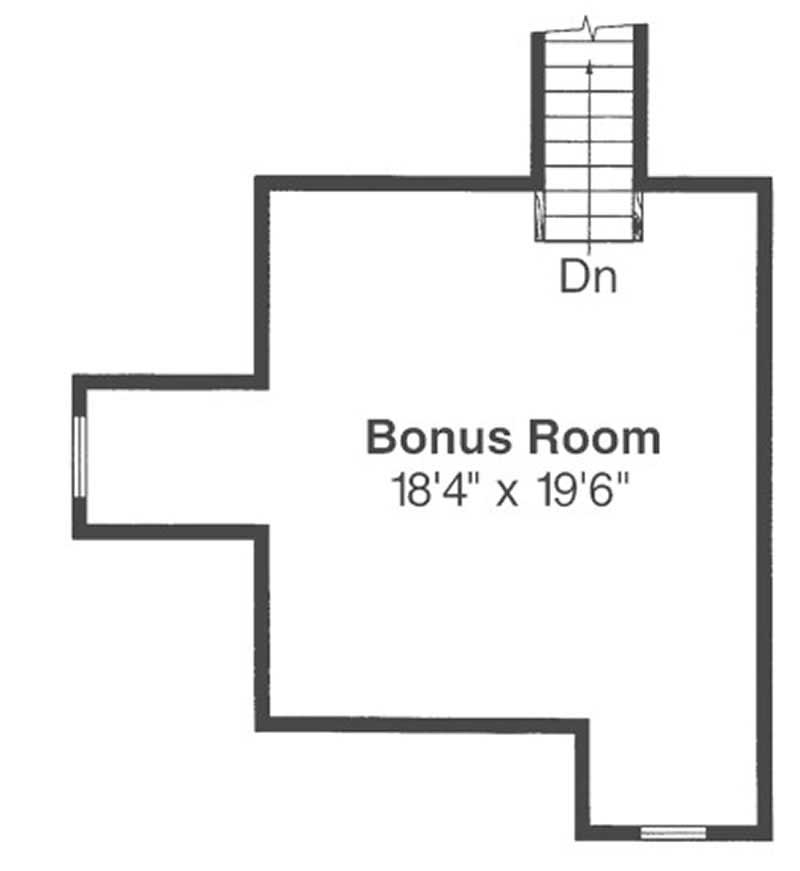

#108-1497 Floor Plan Second Story - hearthside second floor Floor Plan Second Story of Craftsman Plan #108-1497
Home Plan: #108-1497 Floor Plan First Story - hearthside first floor Floor Plan First Story of Craftsman Plan #108-1497
#108-1497 Floor Plan Second Story - hearthside second floor Floor Plan Second Story of Craftsman Plan #108-1497
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1497
Floors:
2
Bedrooms:
4
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
2485
Main Floor:
2485
Unfinished Sq Ft:
Bonus Room:
459
Garage :
803

Dimensions

Width:
74' 0"
Depth:
56' 0"
Ridge Height:
30.2' 0"

Architectural Styles

Craftsman
Transitional

Exterior Wall Material

Vinyl Siding

Roof Pitch

10/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Guest Room
Home Office

Garage Type

Attached Garage

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete...
...Read More

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
