Main image for house plan # 3941
Main image for house plan # 3941

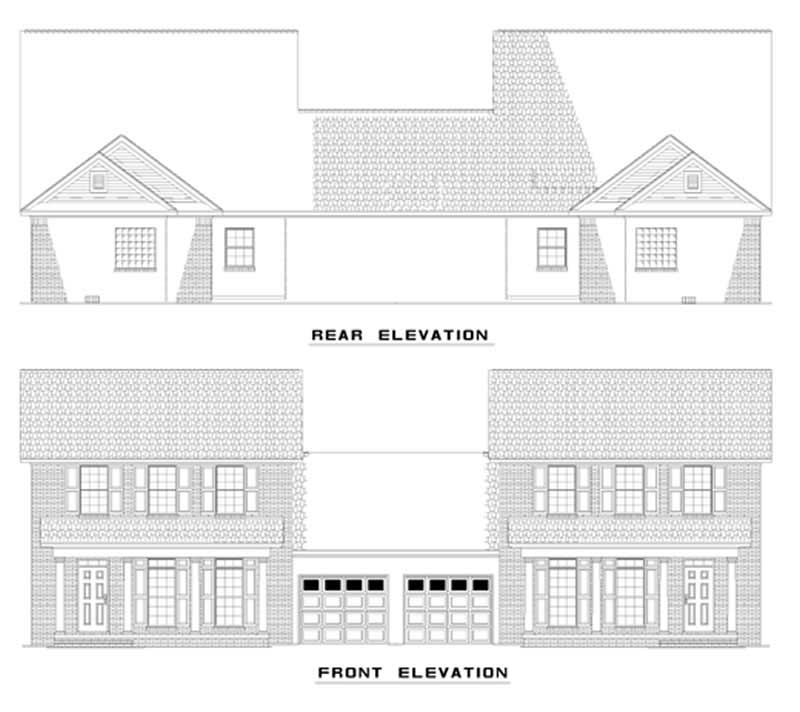

Home Plan Rear Elevation of this 6-Bedroom,1589 Sq Ft Plan -153-1624
Floor Plan First Story of Multi-Unit Plan #153-1624

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #153-1624

Sq Ft
1589
Sq Ft
Bedrooms
6
Bedrooms
Bathroom
4
Baths
Half Baths
2
Half Baths
Bedrooms
2
Cars
Bedrooms
2
Stories
Bedrooms
74' 0'
Width
Bedrooms
59
Depth
From$1350What's included
STEP 1Bedrooms
STEP 2Bedrooms
STEP 3Bedrooms

Subtotal:$0
Plan Collection

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Floor Plans

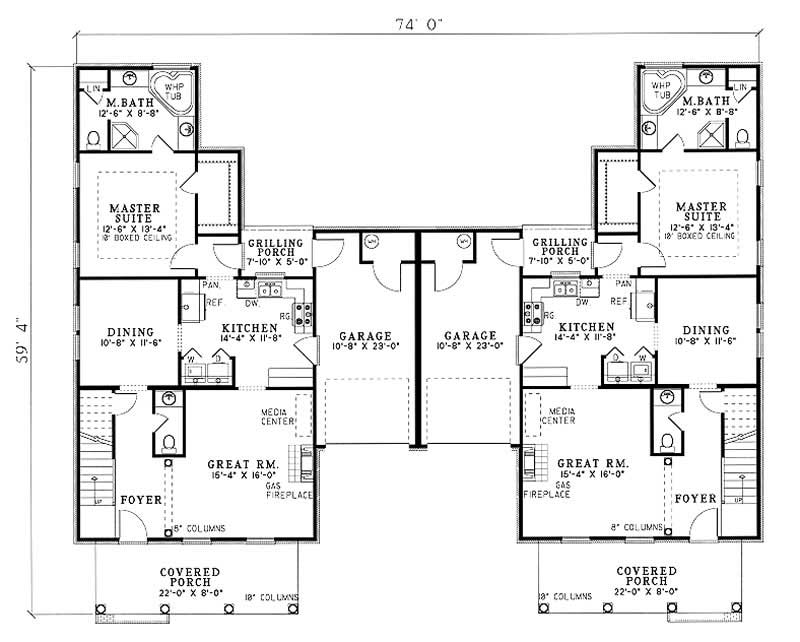

Main Floor Plan
Main Floor Plan

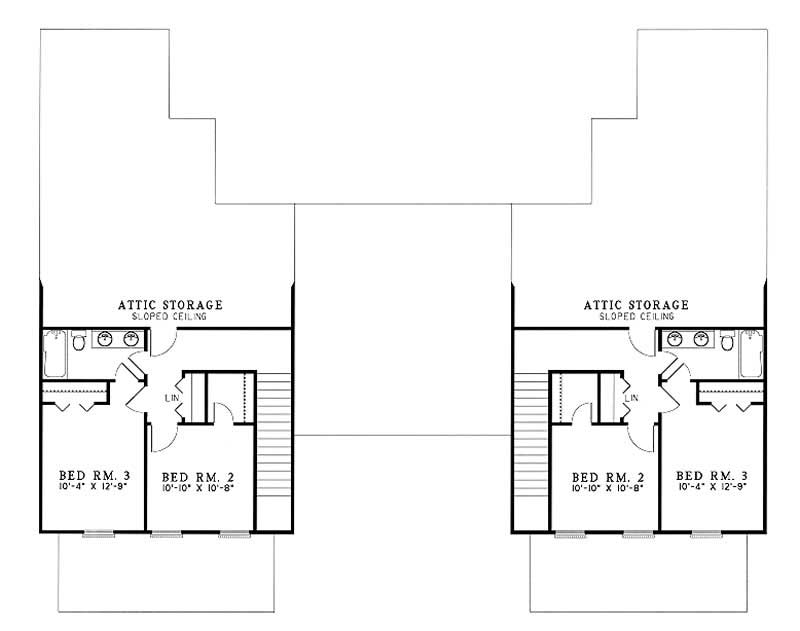

Upper Level Floor Plan
Upper Level Floor Plan
Plan Collection

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available. The plans do not come with ICF specifications. If ICF construction method is desired, the CAD plan can be purchased and then forwarded to the ICF dealer and they’ll do a takeoff to assist with that specific projec

House Plan Description

This duplex includes a luxurious interior layout perfect for privacy as well as entertaining. Upon entering the foyer youll notice columns lining the Great room entry, a built-in media center and a cozy gas fireplace. A centrally located kitchen enjoys a view of the grilling porch and quietly leads you to the private master suite. This glorious suite has a ten foot boxed ceiling and a bathroom with separate vanities, corner whirlpool tub, separate shower, and a large linen closet. The upstairs includes a full bathroom, two bedrooms and an abundance of attic storage.

Home Details

Summary
Plan #:153-1624
Floors:2
Bedrooms:6
Full Baths:4
Half Baths:2
Garage:
Square Footage
Heated Area:1589 Sq. Ft.
First Floor:1106 Sq. Ft.
Second Floor:483 Sq. Ft.
Unheated Area:
Garage:490 Sq. Ft.
Dimensions
Depth:59' 4''
Ridge Height:26-8' 0''
Architectural Styles
Roofing Type
Gable
Ceiling Height
9 Foot Ceiling
Special Feature
Fireplace
Garage Type
Attached Garage

What’s Included

Most plan sets include the following:

icon text-secondary-400 included floorplan

icon text-secondary-400 included 4 side exterior elevations,

icon text-secondary-400 included electrical plan,

icon text-secondary-400 included birds-eye view of the roof,

icon text-secondary-400 included foundation plan,

icon text-secondary-400 included and some miscellaneous details. Please Note We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!

What’s Not Included

These items are  NOT included:

icon text-secondary-400 includedArchitectural or Engineering Stamp - handled locally if required.

icon text-secondary-400 includedSite Plan - handled locally when required.

icon text-secondary-400 includedMechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

icon text-secondary-400 includedPlumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

icon text-secondary-400 includedEnergy calculations - handled locally when required.
