2-Bedroom, 1002 Sq Ft Craftsman Plan with Sundeck
Related House Plans
| 1002 SQUARE FEET | 2 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 52' 0" WIDTH | 38' 4" DEPTH | 2 GARAGE BAY |
This design includes many requested features, and is a two car garage version of one of our most popular houses. The plan features 9' ceilings, two large bedrooms, two baths (one with oversized jet tub, and one with tub/shower combination), two raised bars for informal visiting with friends and family, a sunroom, separate laundry, linen, pantry, gas logs and plenty of built-ins. These features make this a very functional and fun home to live in!
Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:

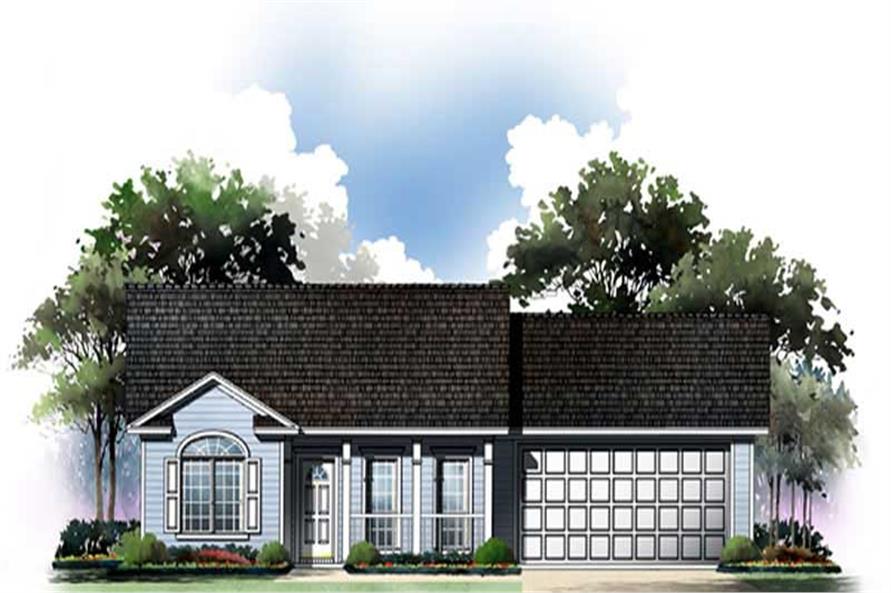

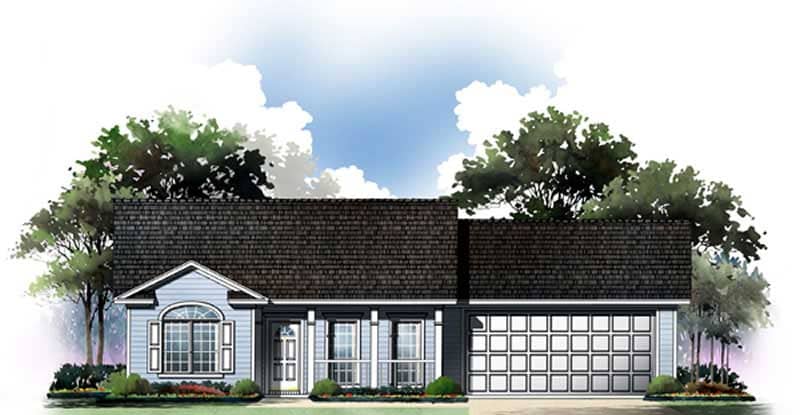

- Cover page with rendering
- foundation plan with typical details
- floor plans with ceiling framing notes
- four exterior views of exterior
- roof plan, and rafter layout plan
- full cross section through house, and typical wall sections
- stair section (if there are stairs)
- Bonus room/garage section if there is a bonus room/garage
- Interior cabinet drawings
- Misc. structural details
- Electrical plan with lighting, outlets, switches, etc..
Not Included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

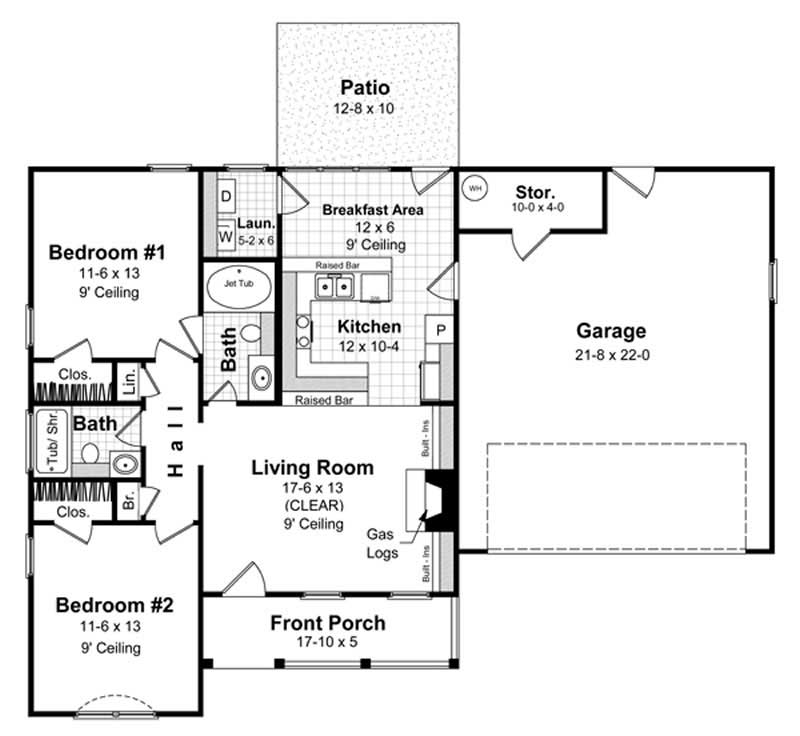

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roof Pitch
Ceiling Height
Special Feature
Garage Type
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
