Duple with 3 Bedrooms in Unit 1 and 2 Bedrooms in Unit 2
Related House Plans
| 1126 SQUARE FEET | 3 BEDROOMS | 1 FULL BATH | 1 HALF BATH |
| 2 FLOOR | 44' 0" WIDTH | 26' 6" DEPTH | 0 GARAGE BAY |

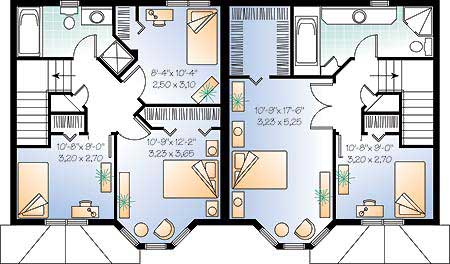

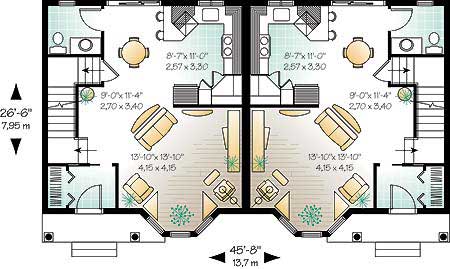

For each unit: 1st level: entry hall with coat closet, kitchen / breakfast area, dining room, family room, half-bath, laundry area. 2nd level: 2 or 3 bedroom option, full bathroom. Full bathroom. Abundant windowing, walk-in closet in master bedroom (option 2 bedrooms only).
Each plan set includes the following:

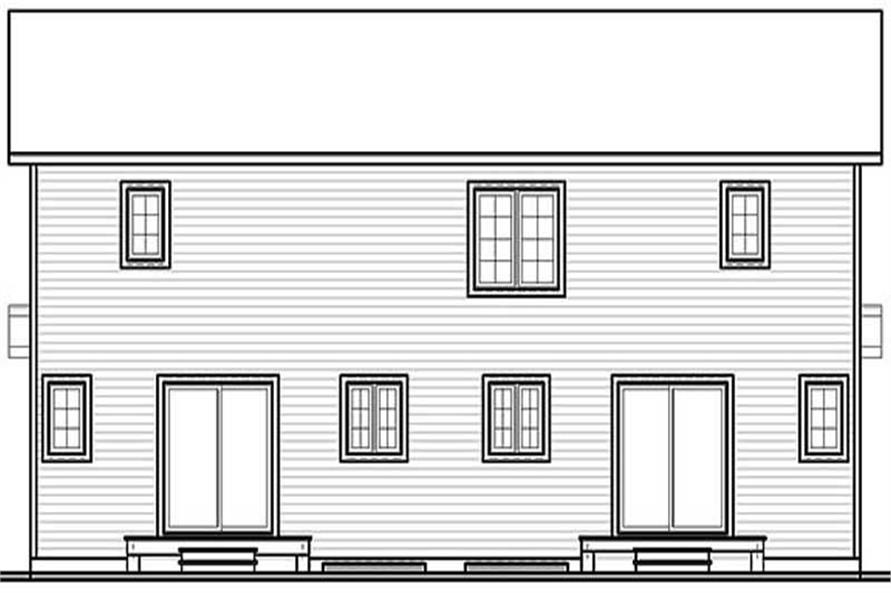

- Exterior elevations
- Foundation plan
- Main floor plan
- Upper floor plan (if applicable)
- Roof plan
- Truss diagrams & building sections
- Construction details
- Typical wall section
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- No Electrical
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roof Pitch
Ceiling Height
Special Feature
Exterior Wall Framing
Building Lot Type
Additional Notes from Designer
Note: Total living square feet for both units is 2252.
This designer's plans take 7-10 additional business days regardless of the type of delivery (express, email, etc). Please keep this in mind when ordering. BCIN is available for this designer - please submit a modification request for cost and time frame. PLEASE NOTE! This designer's plans do NOT come with an electrical layout. They will provide an electrical layout for an additional fee.
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
