About Plan # 116-1005

About Plan # 116-1005

1345 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
1 FLOOR 45' 0" WIDTH 30' 0" DEPTH 2 GARAGE BAY

Home Plan 116-1005, is a Retro-Modern designed to promote the open feel of a loft residence, but with the privacy and outdoor experience of a single-family dwelling. The plan is airy and bright with hardwood floors, glass walls, and multiple levels to provide subtle divisions between room functions.

Each plan set includes the following:

  • Floor plans
  • Exterior elevations
  • Building sections
  • Foundation plan
  • Floor & Roof structure layouts
  • Wall section
  • Notes
  • Electrical layout (switches, outlets)
  • Unlimited license

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

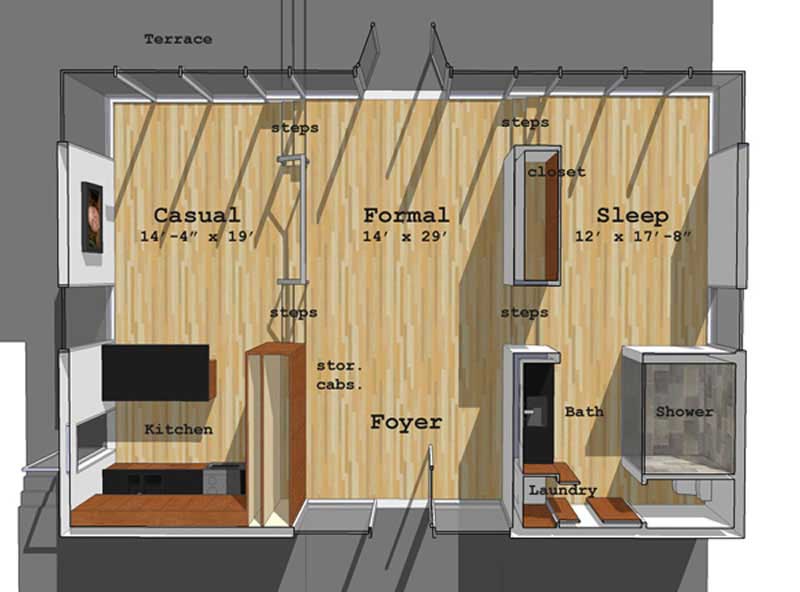

Home Plan: #116-1005 Floor Plan First Story - main Floor Plan First Story of Modern Plan #116-1005
#116-1005 Floor Plan First Story - master bath Floor Plan First Story of Modern Plan #116-1005
Home Plan: #116-1005 Floor Plan First Story - main Floor Plan First Story of Modern Plan #116-1005
#116-1005 Floor Plan First Story - master bath Floor Plan First Story of Modern Plan #116-1005
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 116-1005
Floors:
1
Bedrooms:
1
Full Baths:
1

Square Footage

Heated Sq Feet:
1345
Main Floor:
1345
Garage:
650
Unfinished Sq Ft:

Dimensions

Width:
45' 0"
Depth:
30' 0"
Ridge Height:
16' 0"

Architectural Styles

Contemporary
Modern
Coastal

Exterior Wall Material

Stucco
Rock/Stone

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

CAD files for this plan will be delivered in both DXF (AutoCad readable) and Sketchup Pro formats.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
