Name: 3-Bedroom, 1432 Sq Ft Multi-Level Plan with Eat-In Kitchen
Brand: The Plan Collection
SKU: 147-1023
Price: 924 USD
Availability: InStock

About House Plan #147-1023

1432

Sq Ft

3

Bedrooms

2

Baths

0

Half Baths

2

Cars

2

Stories

47' 0'

Width

26

Depth

From$924What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

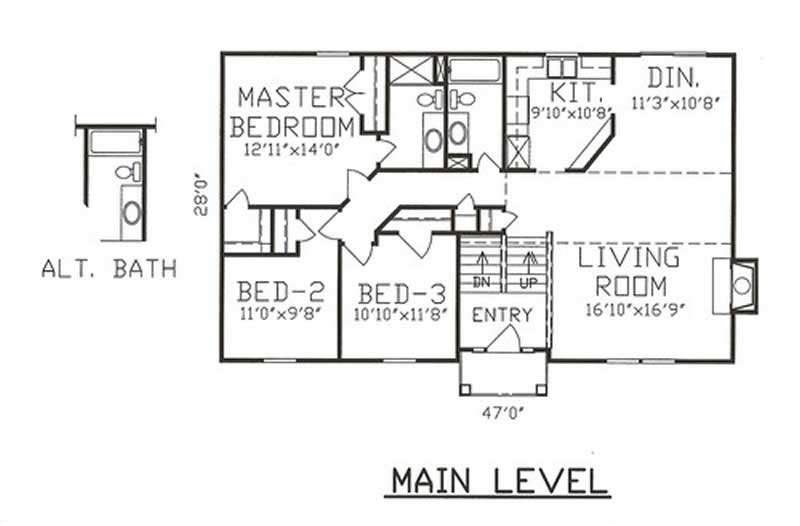

Floor Plan First Story

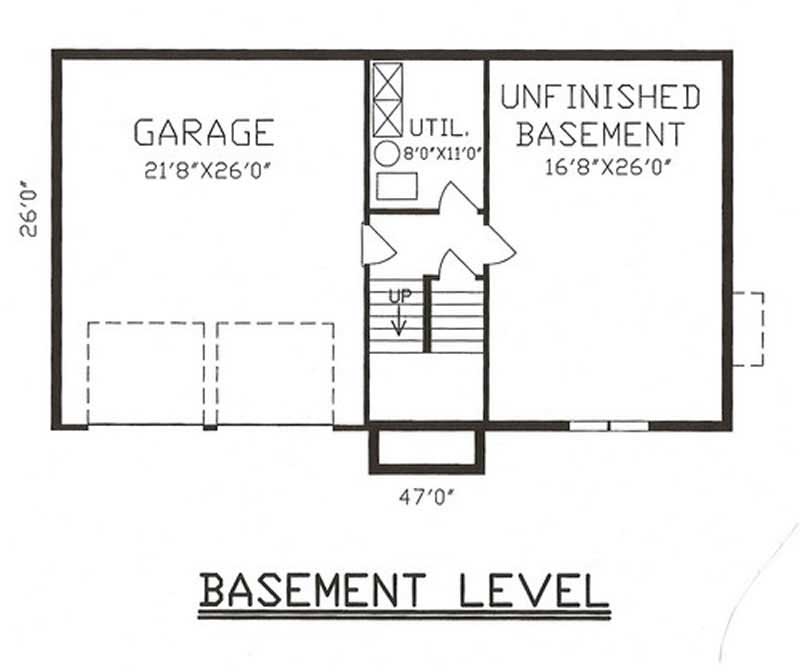

Floor Plan Basement

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE!! Mirror Reverse ONLY available if purchasing a PDF. Right Reading Reverse ONLY available if purchasing a CAD!

House Plan Description

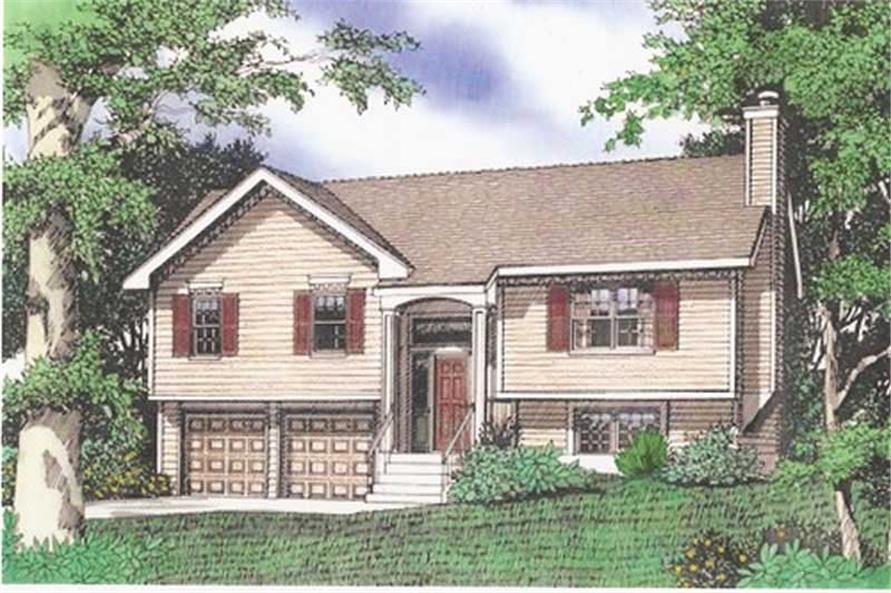

This charming Multi-Level style home plan with Country influences (House Plan #147-1023) has 1432 square feet of living space. The 2 story floor plan includes 3 bedrooms and 2 full bathrooms. The split-level design separates the sleeping and entertainment areas of the floor plan.

Home Details

Summary

Plan #:147-1023

Floors:2

Bedrooms:3

Full Baths:2

Half Baths:0

Garage:

Square Footage

Heated Area:1432 Sq. Ft.

First Floor:1308 Sq. Ft.

Second Floor:124 Sq. Ft.

Unheated Area:

Basement:436 Sq. Ft.

Garage:572 Sq. Ft.

Dimensions

Ridge Height:26' 0''

Architectural Styles

Country Split-Level Small House Plans

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

6/128/12

Ceiling Height

8 Foot Ceiling

Special Feature

FireplaceFamily RoomOpen Floor Plan

Garage Type

Attached GarageUnder Main Floor Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Nook/Breakfast Area

Porches and Exterior Features

Portico

Master Suite Features

Main Floor MasterMaster BathroomWalk In Closet

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Foundation Plan

Floor plans

Roof plan

Exterior Elevations

Cross Sections & typical details

Interior elevations as needed

Door & Window schedule

Electrical layout

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
