3-Bedroom, 1586 Sq Ft Modern Craftsman Plan with Courtyard
Related House Plans
| 1586 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 1 HALF BATH |
| 2 FLOOR | 25' 0" WIDTH | 49' 0" DEPTH | 0 GARAGE BAY |

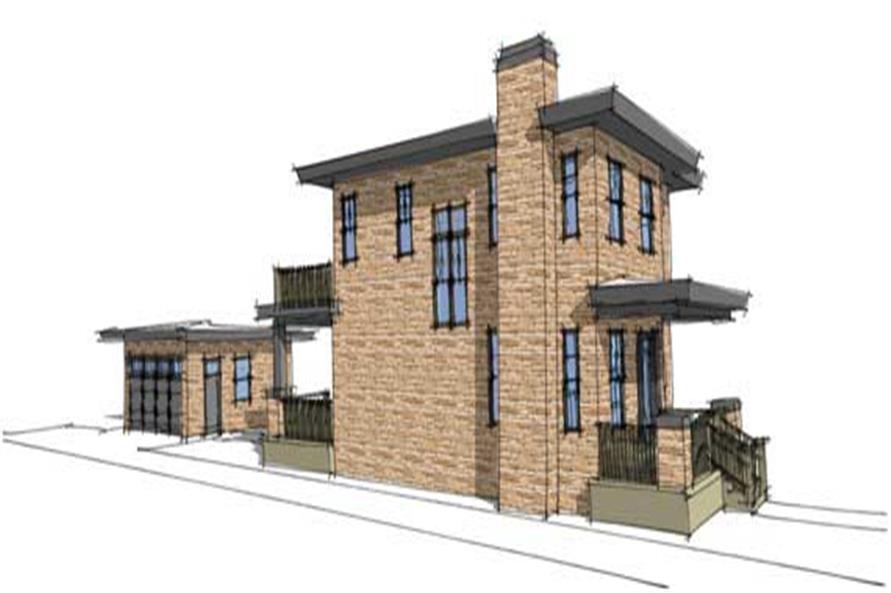

This home is a modern craftsman interpretation. It is designed for a small lot. It provides all the comforts of a larger home in a small, comfortable space. The downstairs is an open plan with separate living, dining, family and breakfast nook. The living features a fireplace and is open to the stairwell. The dining has a built-in china display cabinet and bar. The family room and kitchen are designed for entertaining. Front and back porches provide space for outdoor living. Upstairs, the master suite is comfortable with access to the private sundeck, modern bathroom with soaking tub, and walk-in closet. The secondary bedrooms each have walk-in closets. This home is constructed using wood frame walls and engineered floor and roof trusses.
Each plan set includes the following:
- Floor plans
- Exterior elevations
- Building sections
- Foundation plan
- Floor & Roof structure layouts
- Wall section
- Notes
- Electrical layout (switches, outlets)
- Unlimited license
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

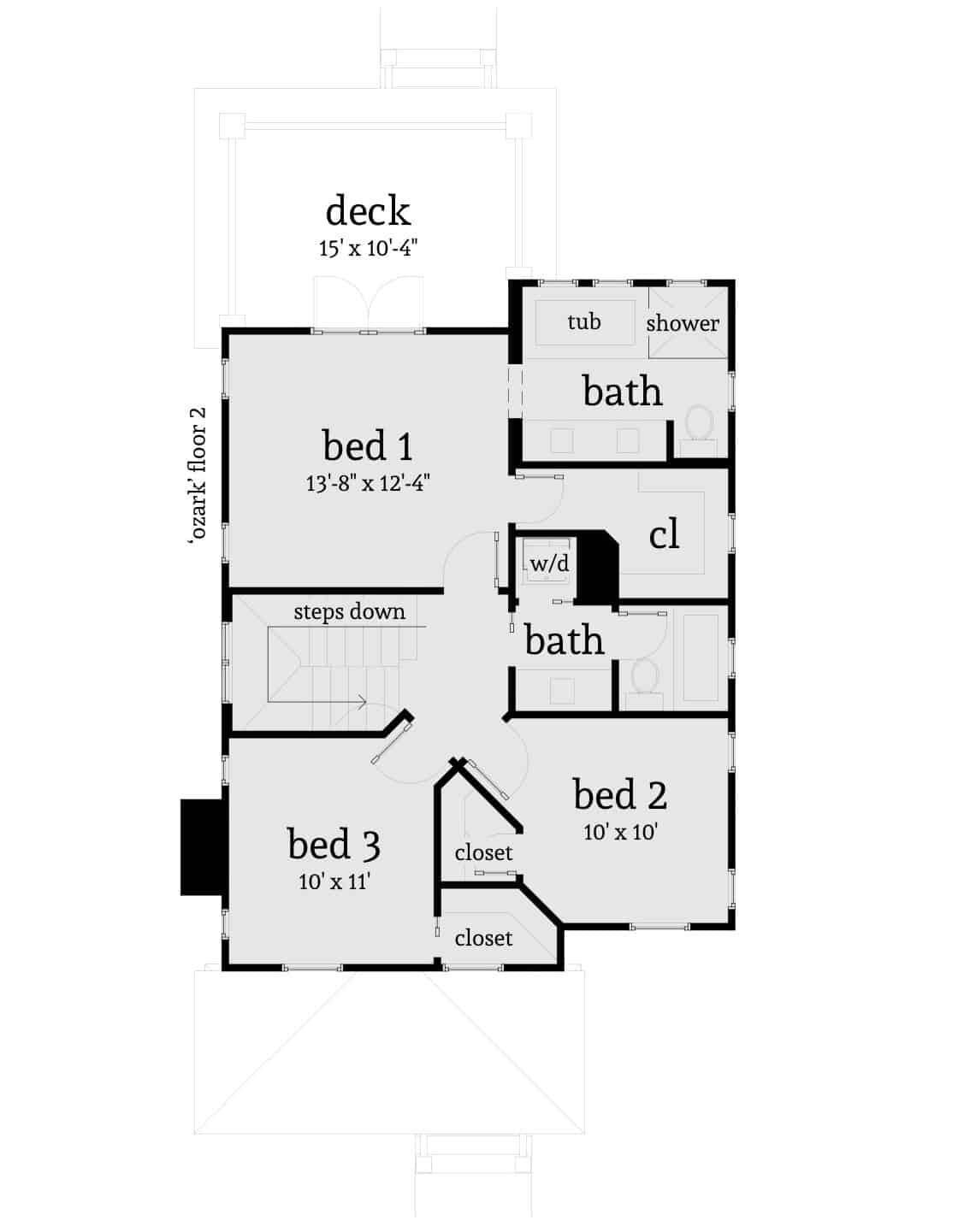

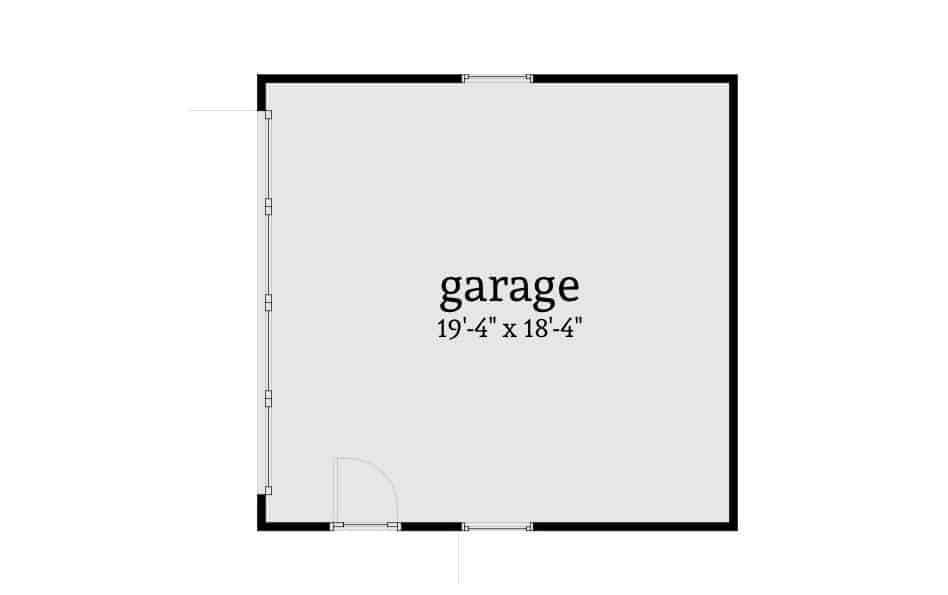

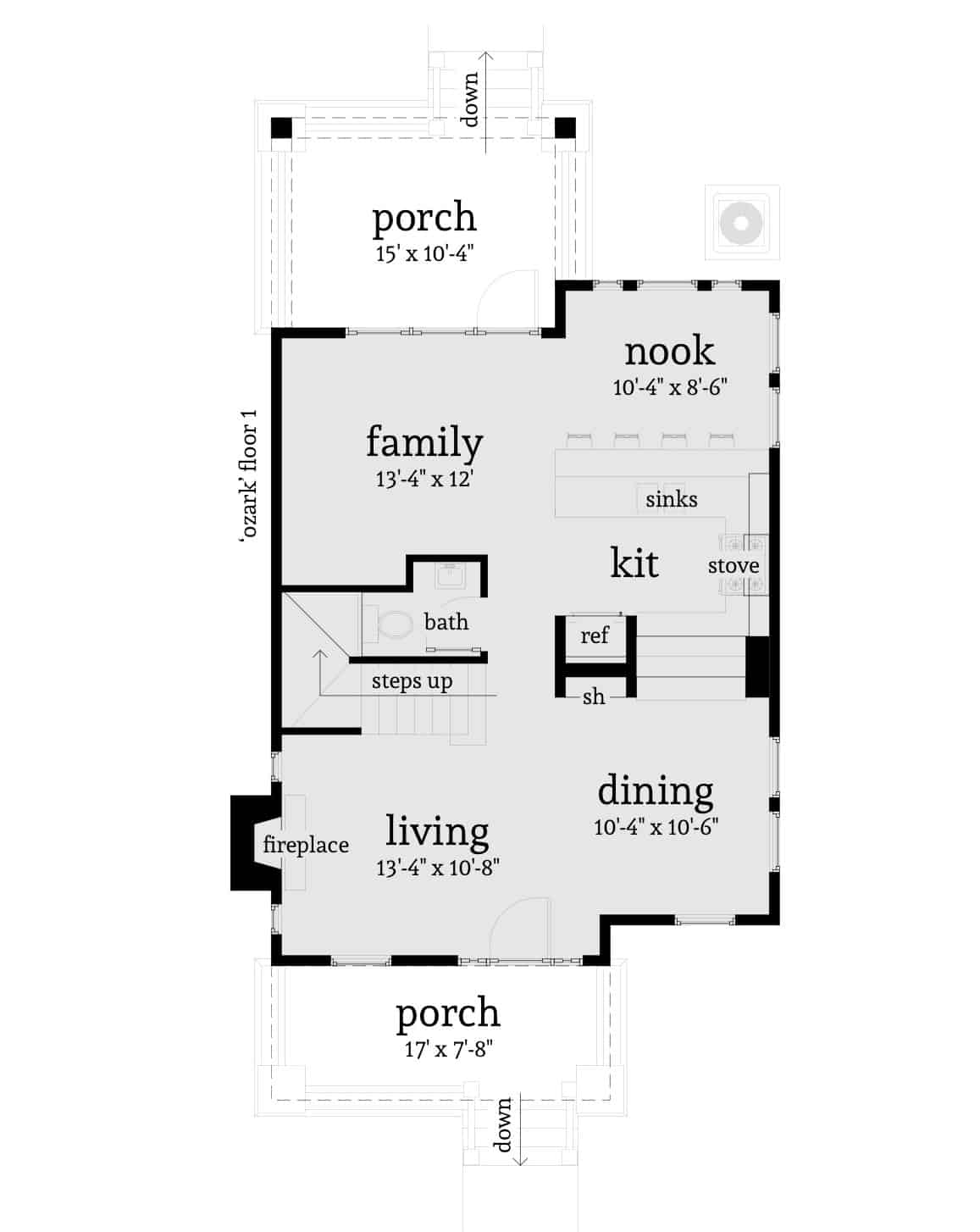

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Ceiling Height
Special Feature
Garage Type
Exterior Wall Framing
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
