3-Car, Garage w/Apartments
Related House Plans
| 1668 SQUARE FEET | 0 BEDROOMS | 0 FULL BATH | 0 HALF BATH |
| 2 FLOOR | 40' 0" WIDTH | 26' 0" DEPTH | 3 GARAGE BAY |
This garage plan offers a great layout which provides for maximum flexibility. On the first floor, you'll enjoy the ample space provided for your two vehicles as well as a third space under the covered carport. The separate storage area is perfect for locating lawn equipment, tools, etc. Upstairs you'll find much more usable space, including 8 ft. ceilings in the center of the room, which can be used for additional "attic overflow" and/or much needed workspace. Great addition to any home!
Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:
- Cover page with rendering
- foundation plan with typical details
- floor plans with ceiling framing notes

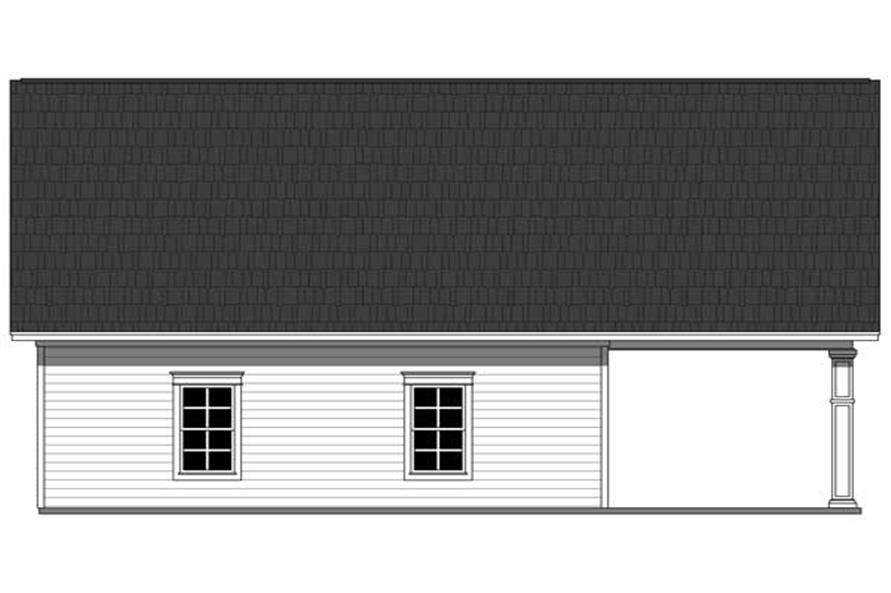

- four exterior views of exterior
- roof plan, and rafter layout plan
- full cross section through house, and typical wall sections
- stair section (if there are stairs)
- Bonus room/garage section if there is a bonus room/garage
- Interior cabinet drawings
- Misc. structural details
- Electrical plan with lighting, outlets, switches, etc..
Not Included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

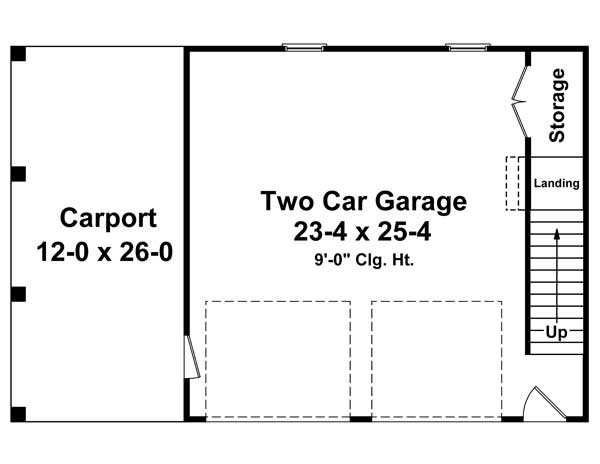

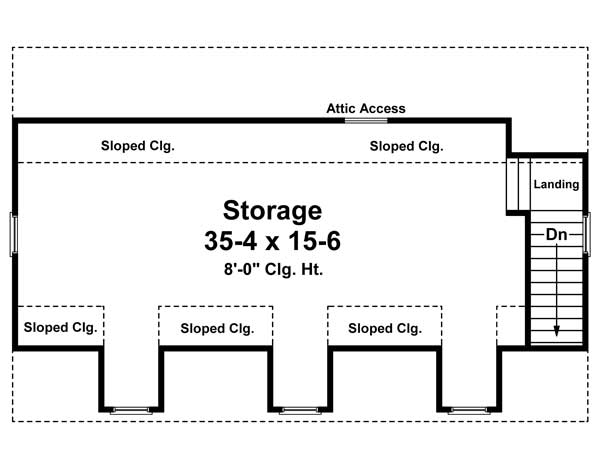

FLOOR PLANS Flip Images
