4-Bedroom, 1740 Sq Ft French Plan with Covered Front Porch
Related House Plans
| 1740 SQUARE FEET | 4 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 2 FLOOR | 50' 0" WIDTH | 53' 0" DEPTH | 2 GARAGE BAY |

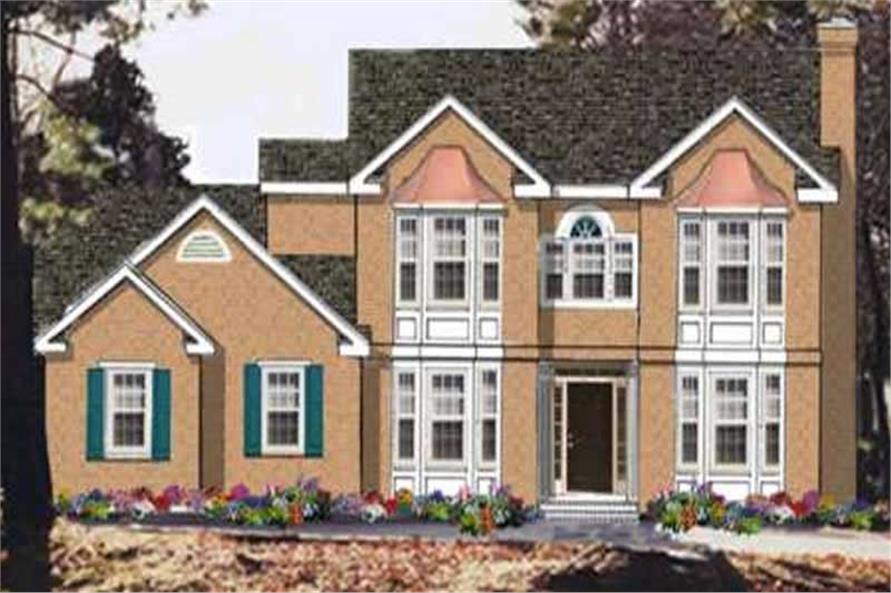

Elegant bay windows embellish the rich brick exterior of this distinguished Colonial home. The living room is warmed by a fireplace and separated from the family room by a decorative wood partition. The family room ceiling slopes to nearly 17 feet, while French doors open to a backyard terrace. The adjoining island kitchen features a circular dinette surrounded by windows.
- 8'-1" at flat ceilings.
- Family room sloped ceiling 9'-6" to 17'
- Master bedroom partial cathedral ceiling, from 8' to 10'
Each plan set includes the following:
- Elevations
- Sections - Include structural design & specifications
- Kitchen cabinet elevations
- Floor Plan
- Roof Plan
- Typical wall section
- Construction & Specification notes
- Special detail sections
- Plumbing riser diagram
- Window and door sizes
- Structural design joists and beams
- Electrical Layout
- Special Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and location
- Energy calculations - handled locally when required.
Write Your Own Review

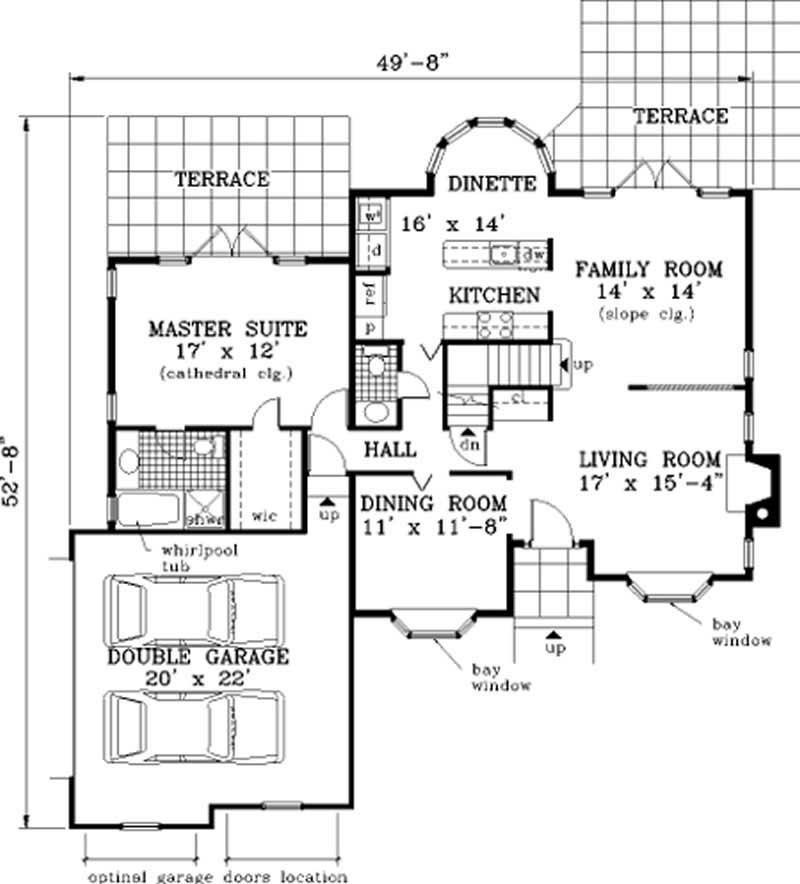

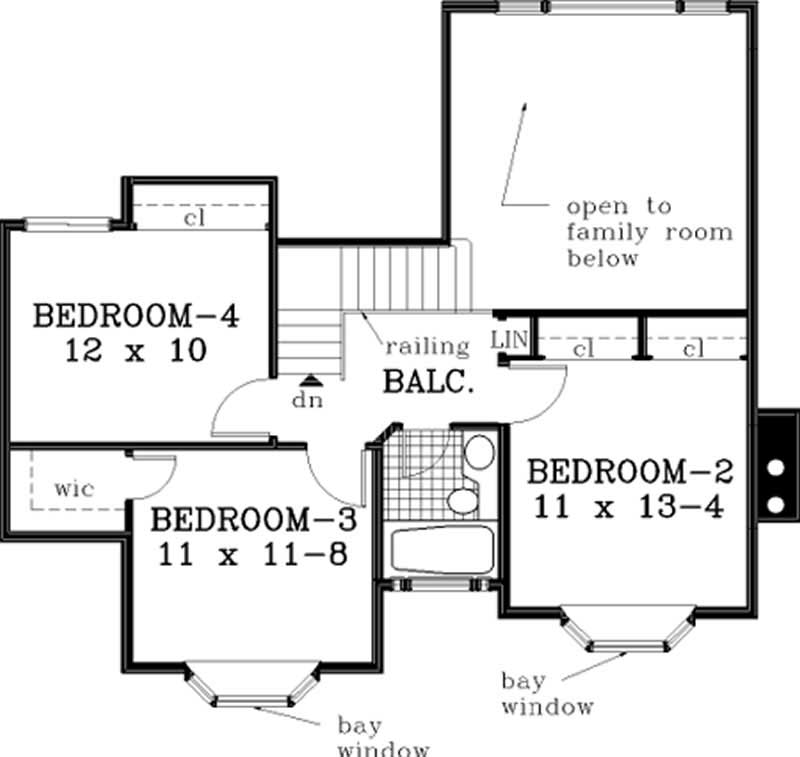

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Special Feature
Garage Type
Exterior Wall Framing
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
