Name: 3-Bedroom Per Unit Multi-Level Duplex Plan with Flexible Lower Level
Brand: The Plan Collection
SKU: 157-1013
Price: 970 USD
Availability: InStock

About House Plan #157-1013

1772

Sq Ft

3

Bedrooms

1

Baths

0

Half Baths

1

Cars

2

Stories

20' 0'

Width

34

Depth

From$970What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

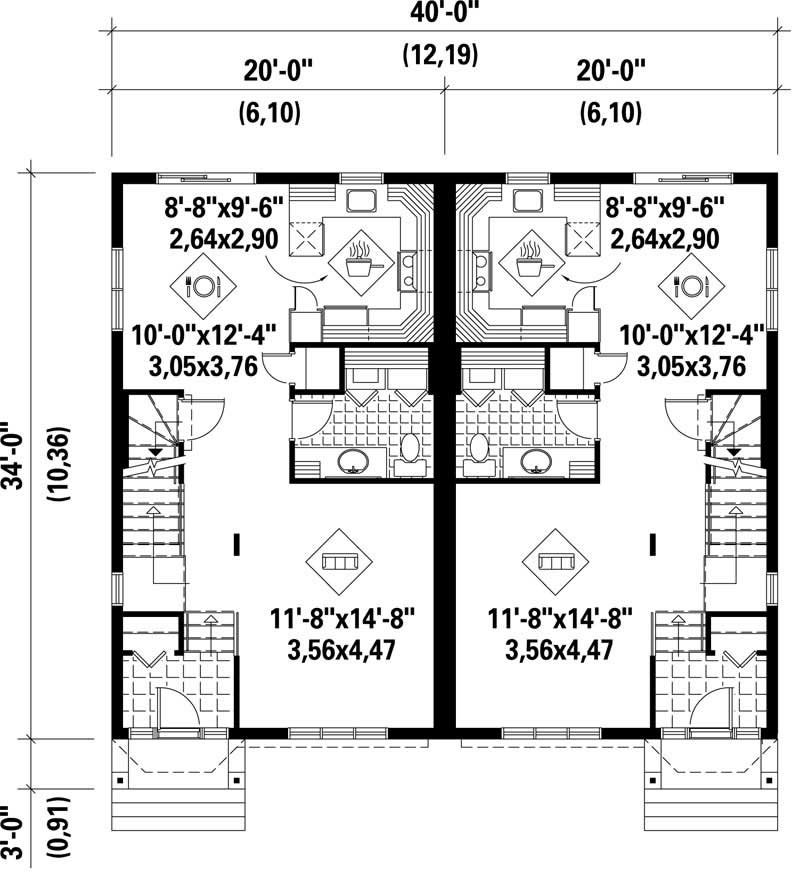

MAIN LEVEL FLOOR PLAN

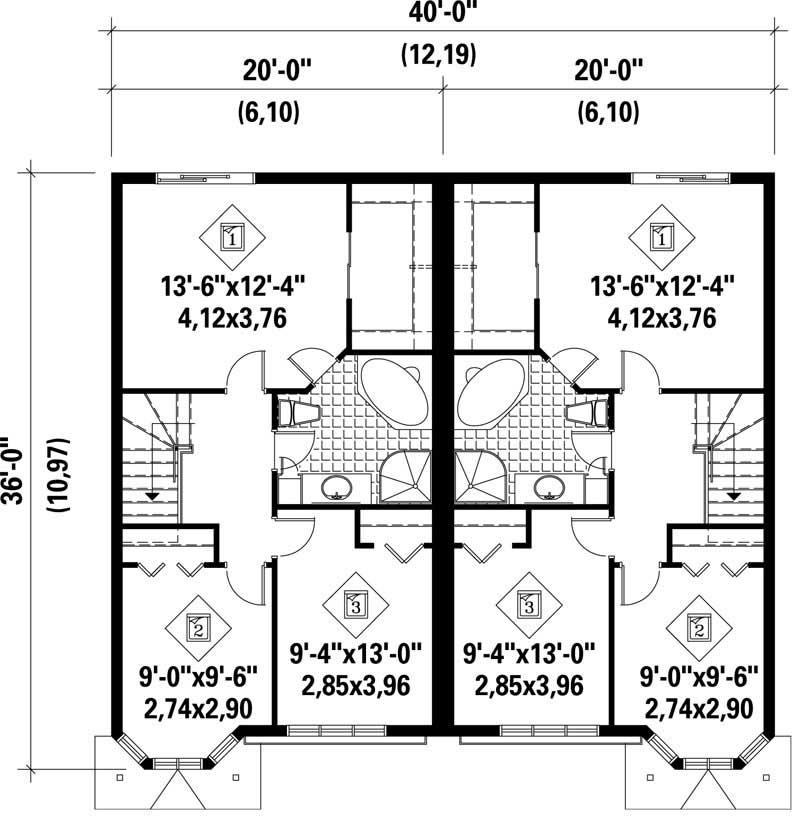

SECOND LEVEL FLOOR PLAN

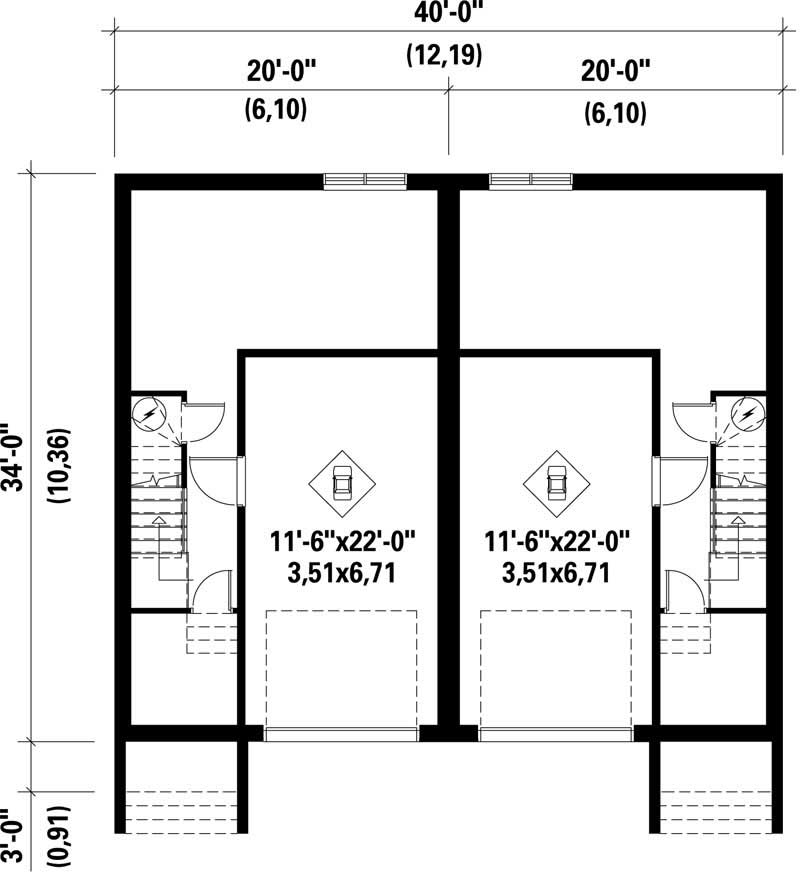

GARAGE FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

Please Note that the designer's office will be closed for Christmas and New Year's Day from 12/21/2024 to 1/5/2025, inclusive. Any orders or modification requests submitted during this time will be processed when the designer resumes office on 1/6/2025. This designer doesn't offer electrical layouts with their plans! For our Ontario customers - BCIN is available for this designer's plans. Please submit a modification request to receive a free quote.

House Plan Description

House plan features and specifications represent one unit. This 1,772-square-foot split-level house plan offers a well-balanced layout ideal for families. With three bedrooms and one full bath, the design maximizes living space across multiple levels, creating distinct zones for living, dining, and relaxation. A spacious Great Room connects to the dining area and kitchen, while the unfinished lower level provides room to grow—perfect for a home office, gym, or extra storage. The exterior features classic curb appeal with a front-facing garage and covered entry.

Home Details

Summary

Plan #:157-1013

Floors:2

Bedrooms:3

Full Baths:1

Half Baths:0

Garage:

Square Footage

Heated Area:1772 Sq. Ft.

First Floor:1772 Sq. Ft.

Unheated Area:

Garage:560 Sq. Ft.

Dimensions

Architectural Styles

Duplex/Multi-Unit Split-Level Traditional

Garage Type

Attached GarageFront Entry

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Exterior elevations

Foundation plan

Floor plans

Cross sections

Staircase section

Roof truss drawings

Specifications

Construction details

Size of structural elements (posts, beams, concrete pads, etc.)

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
