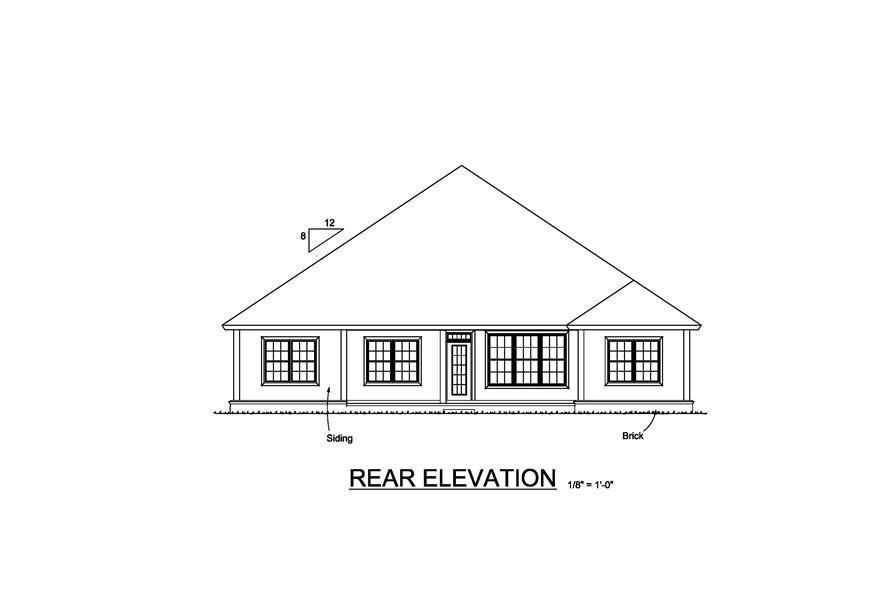

178-1223: Home Plan Rear Elevation
178-1223: Home Exterior Photograph-Front View
178-1223: Home Exterior Photograph-Side View
178-1223: Home Exterior Photograph-Front View
178-1223: Home Exterior Photograph-Front View
178-1223: Home Other Image-3D Floor Plan
5-Bedroom, 1996 Sq Ft Texas Style Home Plan - 178-1223 - Main Exterior

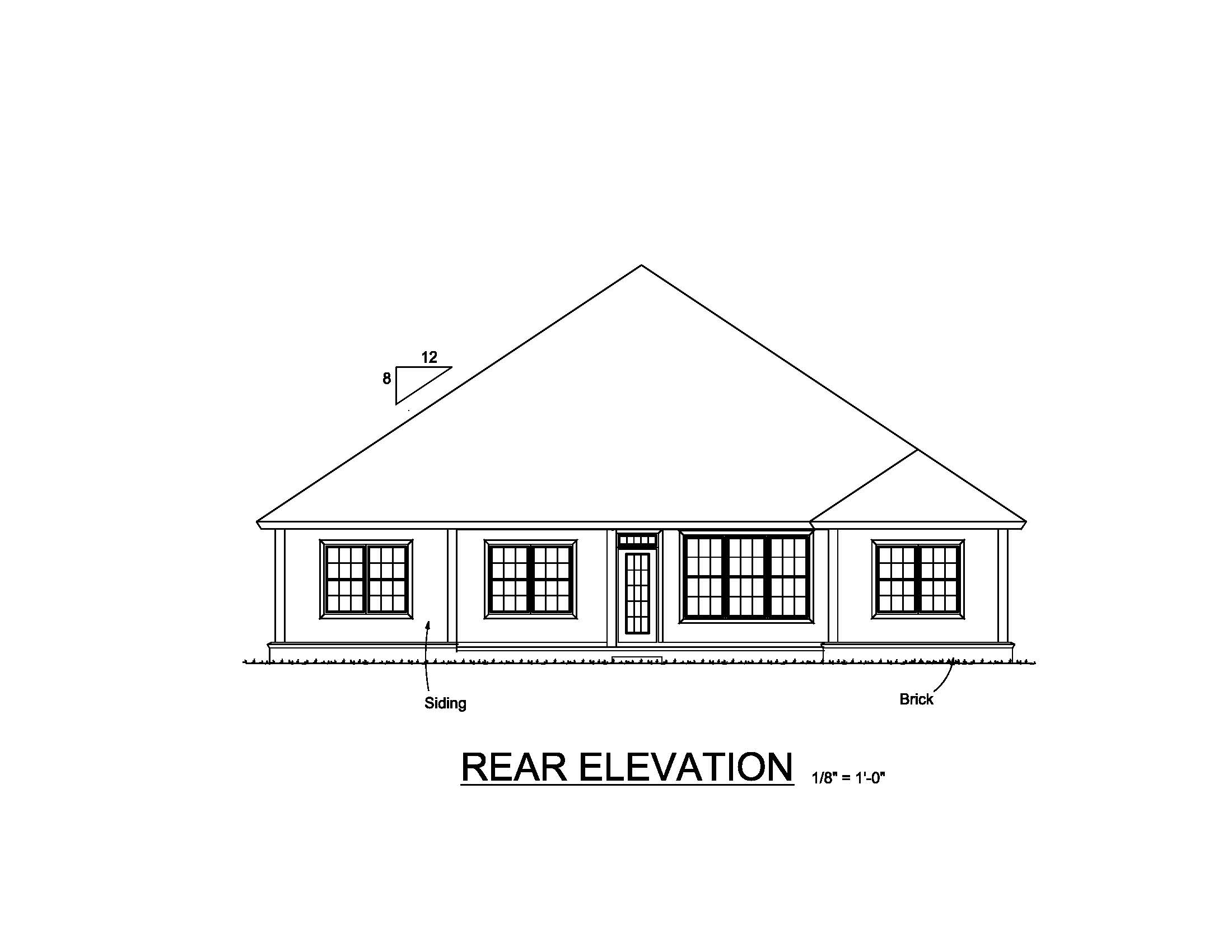

178-1223: Home Plan Rear Elevation
178-1223: Home Exterior Photograph-Front View
178-1223: Home Exterior Photograph-Side View
178-1223: Home Exterior Photograph-Front View
178-1223: Home Exterior Photograph-Front View
178-1223: Home Other Image-3D Floor Plan

About Plan # 178-1223

About Plan # 178-1223

1996 SQUARE FEET 5 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 52' 0" WIDTH 64' 0" DEPTH 3 GARAGE BAY

This Texas style ranch home with Craftsman influences (House Plan #178-1223) has 1996 square feet of living space. The 1 story floor plan includes 5 bedrooms.

Each plan set includes the following:

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)
  • Second-floor plan (if applicable) with the same info as shown on first-floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges & valleys.
  • Foundation plan
  • Full building section

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

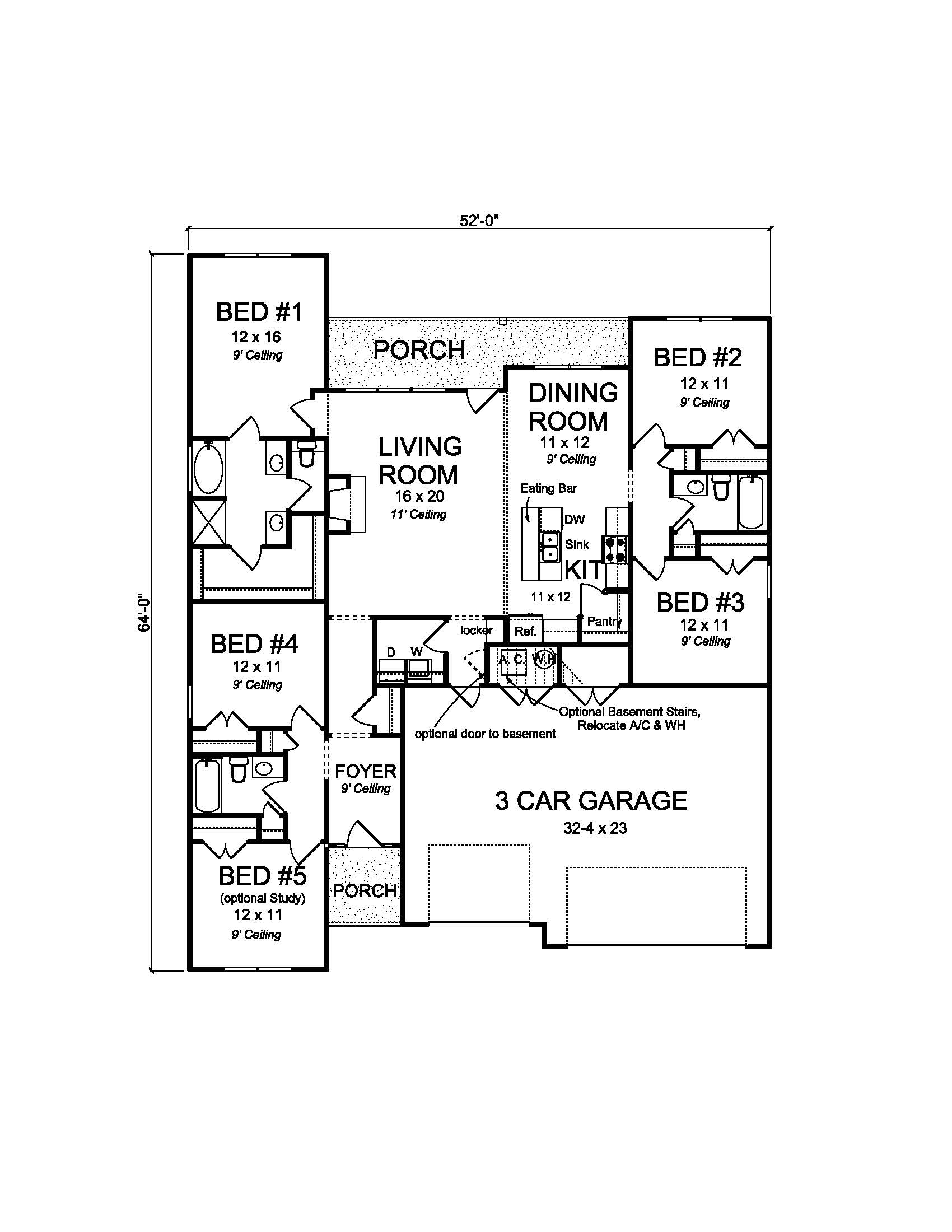

Home Plan: #178-1223 Floor Plan First Story - main level Floor Plan First Story of Texas Style Plan #178-1223
Home Plan: #178-1223 Floor Plan First Story - main level Floor Plan First Story of Texas Style Plan #178-1223
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 178-1223
Floors:
1
Bedrooms:
5
Full Baths:
3
Garage :
3

Square Footage

Heated Sq Feet:
1996
Main Floor:
1996
Unfinished Sq Ft:
Garage :
797
Porch :
194

Dimensions

Width:
52' 0"
Depth:
64' 0"
Ridge Height:
23' 0"

Architectural Styles

Ranch
Traditional
Craftsman
Texas Style
Cottage

Exterior Wall Material

Vinyl Siding
Brick
Wood Siding

Roofing Type

Gable

Roofing Material

Wood Shakes

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling
11 Foot Ceiling

Special Feature

Fireplace
Main Level Laundry
Color Photos
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

Please Note: This plan comes standard with a Construction License that gives the original purchaser the right to build the plan as many times as you like. PLEASE NOTE!! When purchasing a CAD file, the designer will also send the PDF. Duplex and Triplex Plans are Slab & 2x4 ONLY!! If you need to change either, please send in a modification request.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.

Package & Price Help
Select Plan Package
Select Foundation
  {{addOnOption.Cost | currency:"$"}}
{{addOnOption.Cost | currency:"$"}}
{{addOnOption.InventoryOptionName}}
  {{addOnOption.Cost | currency:"$"}}
{{addOnOption.InventoryOptionName}}
  {{addOnOption.Cost | currency:"$"}}

How much will this plan cost to build?

- OR -

Modify this plan

This plan can be customized
Contact us for free quote

Modify this plan

This plan can be customized
Contact us for free quote
