4-Bedroom, 2324 Sq Ft Spanish Mediterranean Plan with 3-Car Garage
Related House Plans
| 2324 SQUARE FEET | 4 BEDROOMS | 3 FULL BATH | 1 HALF BATH |
| 2 FLOOR | 48' 0" WIDTH | 56' 0" DEPTH | 3 GARAGE BAY |

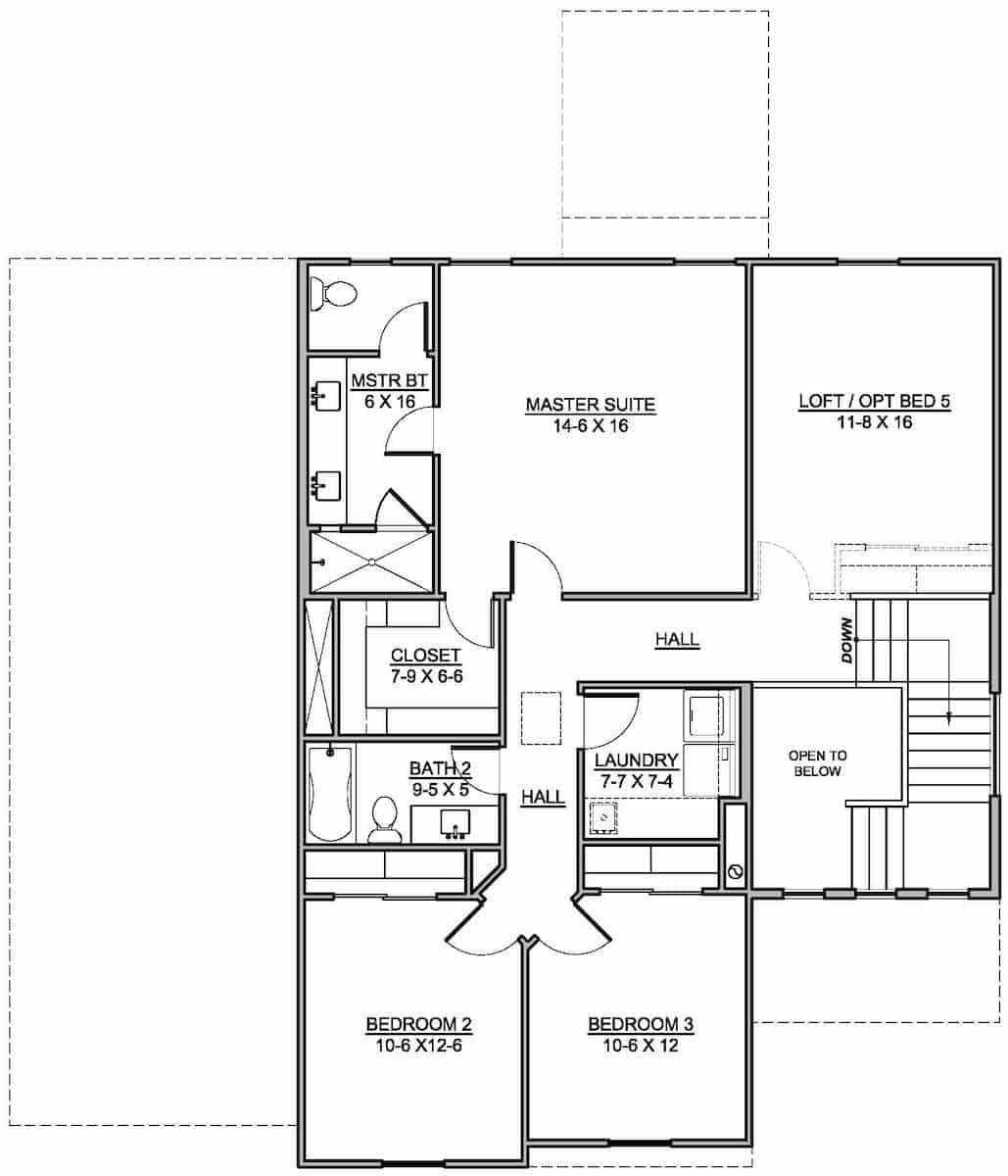

Here's something for those looking for a perfect house with superb design both inside and out to suit a growing family. This lovely Mediterranean style home with Spanish influences has 2324 square feet of living space. There's a mini bedroom suite on the main level –perfect for elderly guests – and on the upper level the master suite, two additional bedrooms with shared bath, a convenient laundry room, and a loft that could be extra sleeping space for guests if you need the room. The magnificent home's 2- story floor plan includes a large walk-in kitchen pantry, mud room with lockers, and other wonderful amenities for the whole family to enjoy.
Each plan set includes the following:
- Cover sheet with Rendering on front
- General IRC notes page

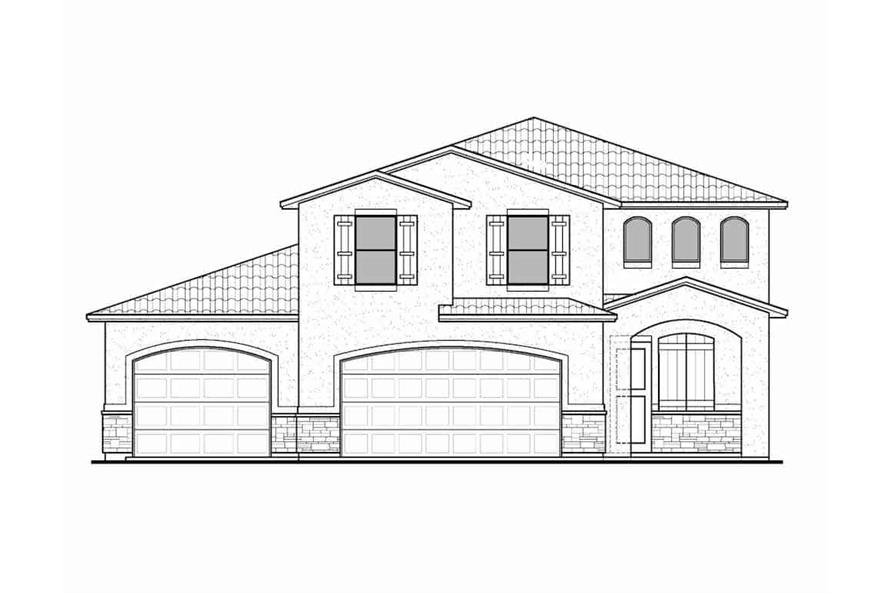

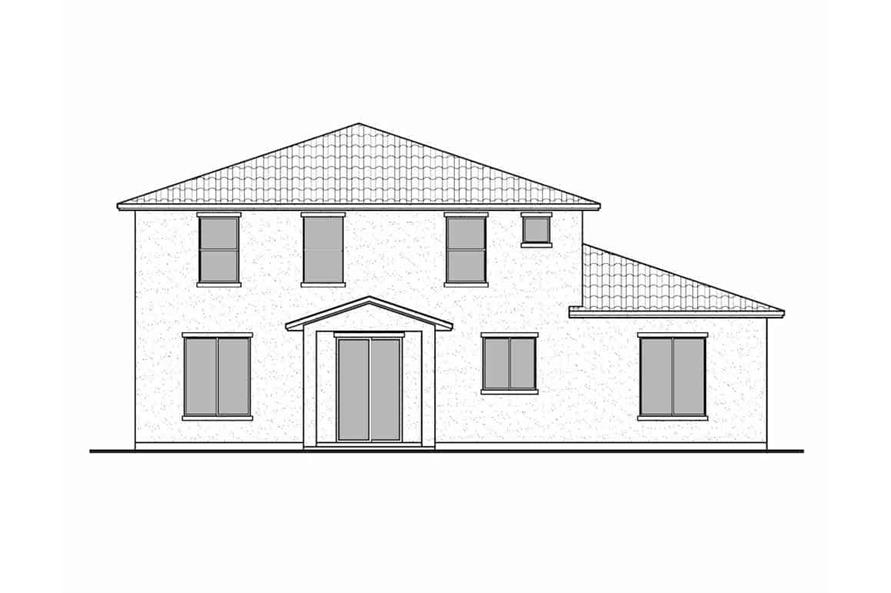

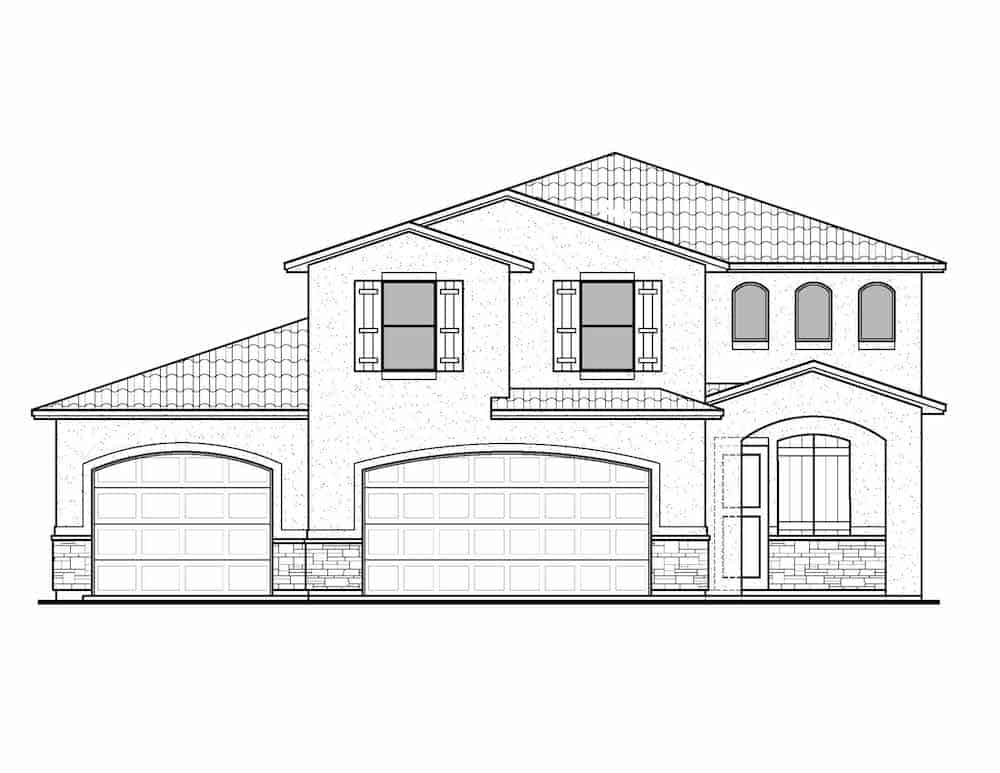

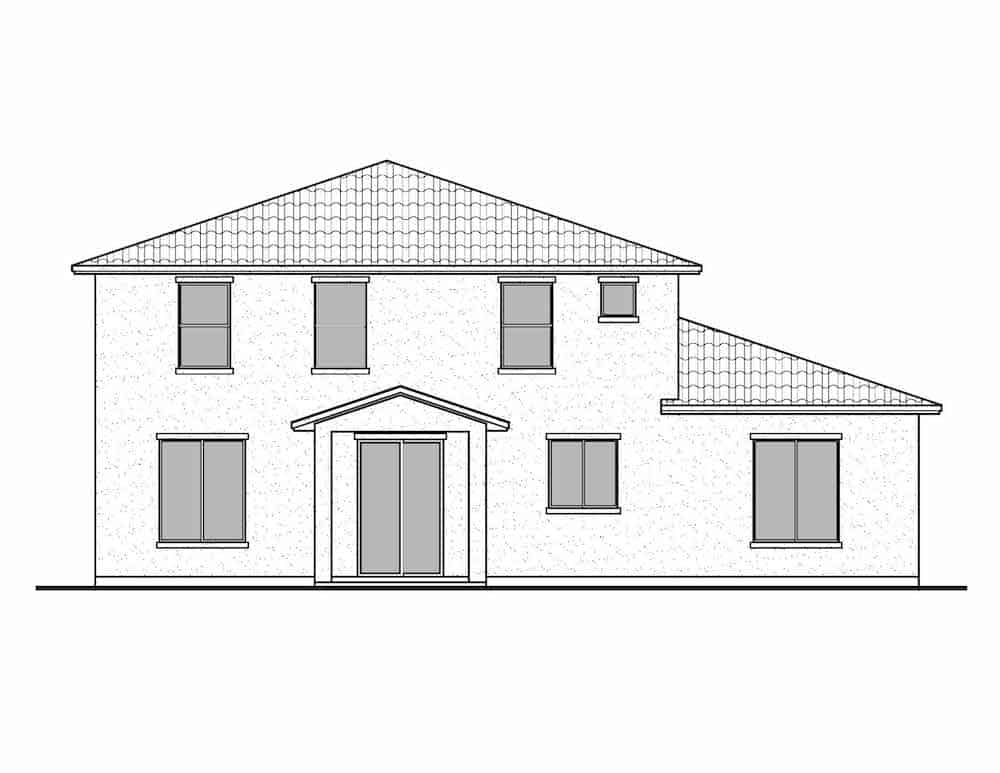

- Front & Rear Elevation Page

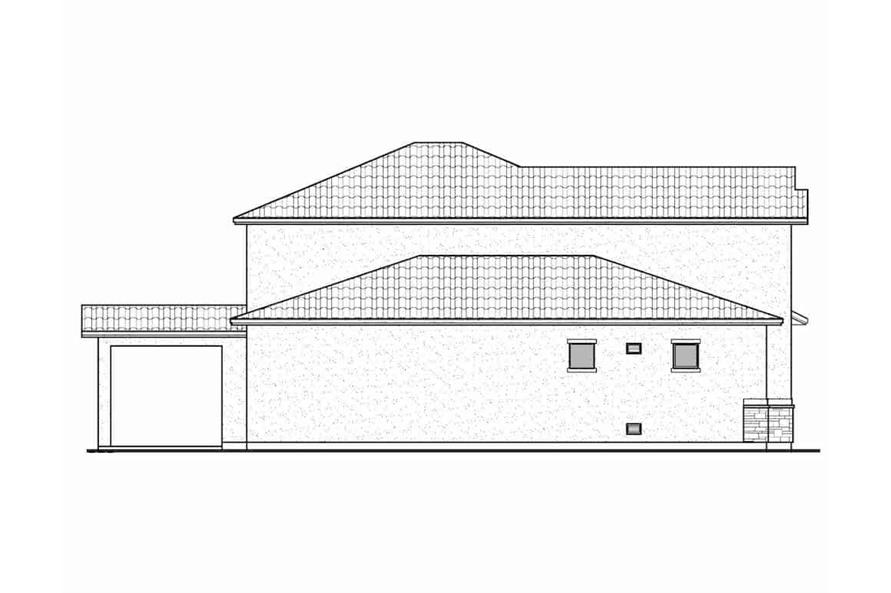

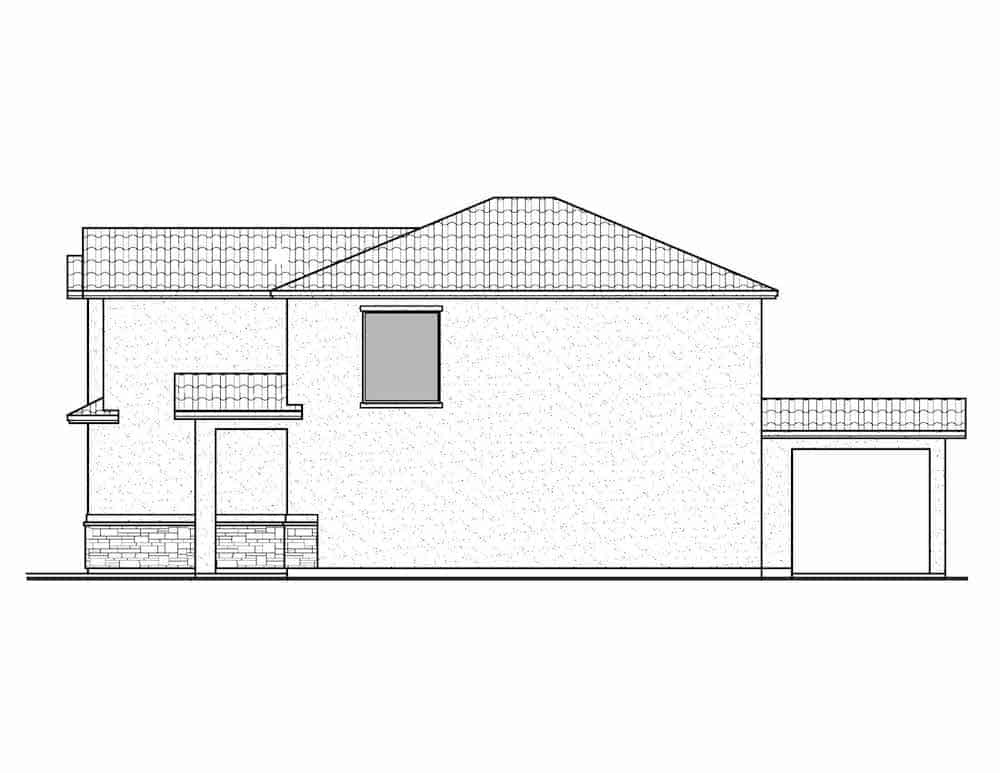

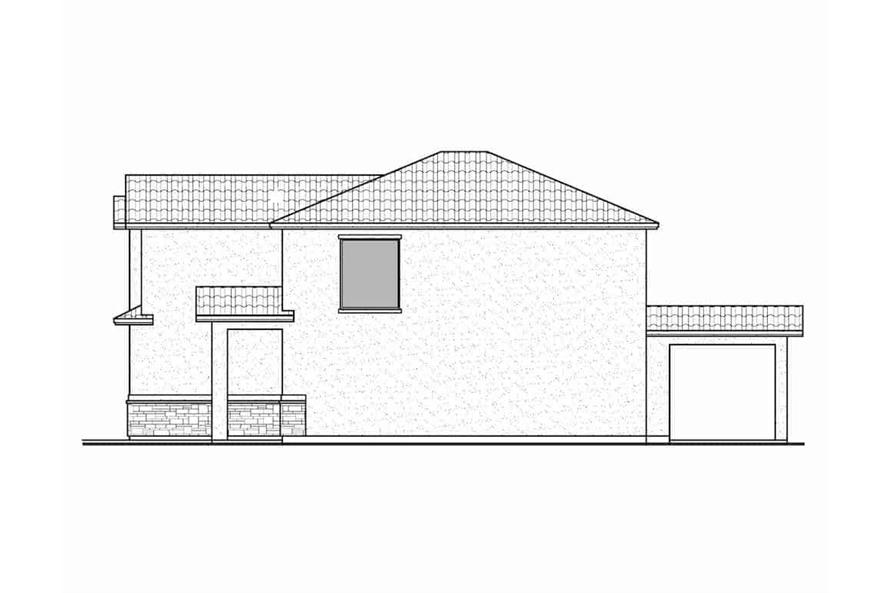

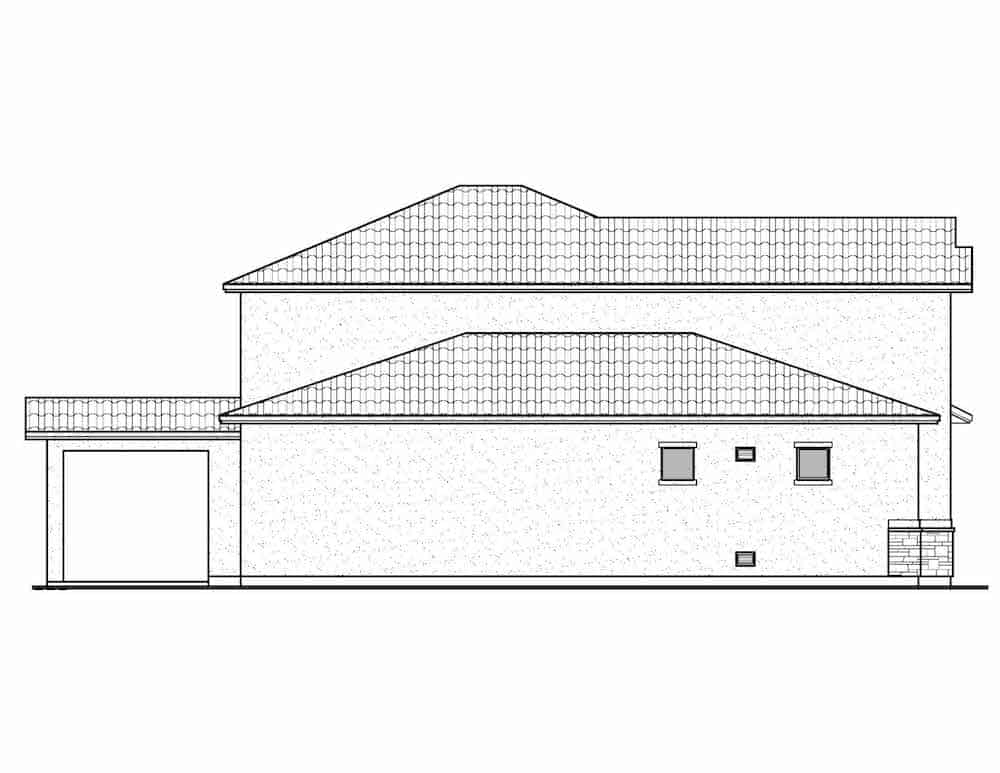

- Left / Right elevation page
- Monolithic foundation plan
- Main Floor Plan – Wood Frame
- Roof slope and drainage Plan
- Roof Framing Plan (Truss)
- Building Section (wood frame)
- Main Electrical Plan
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

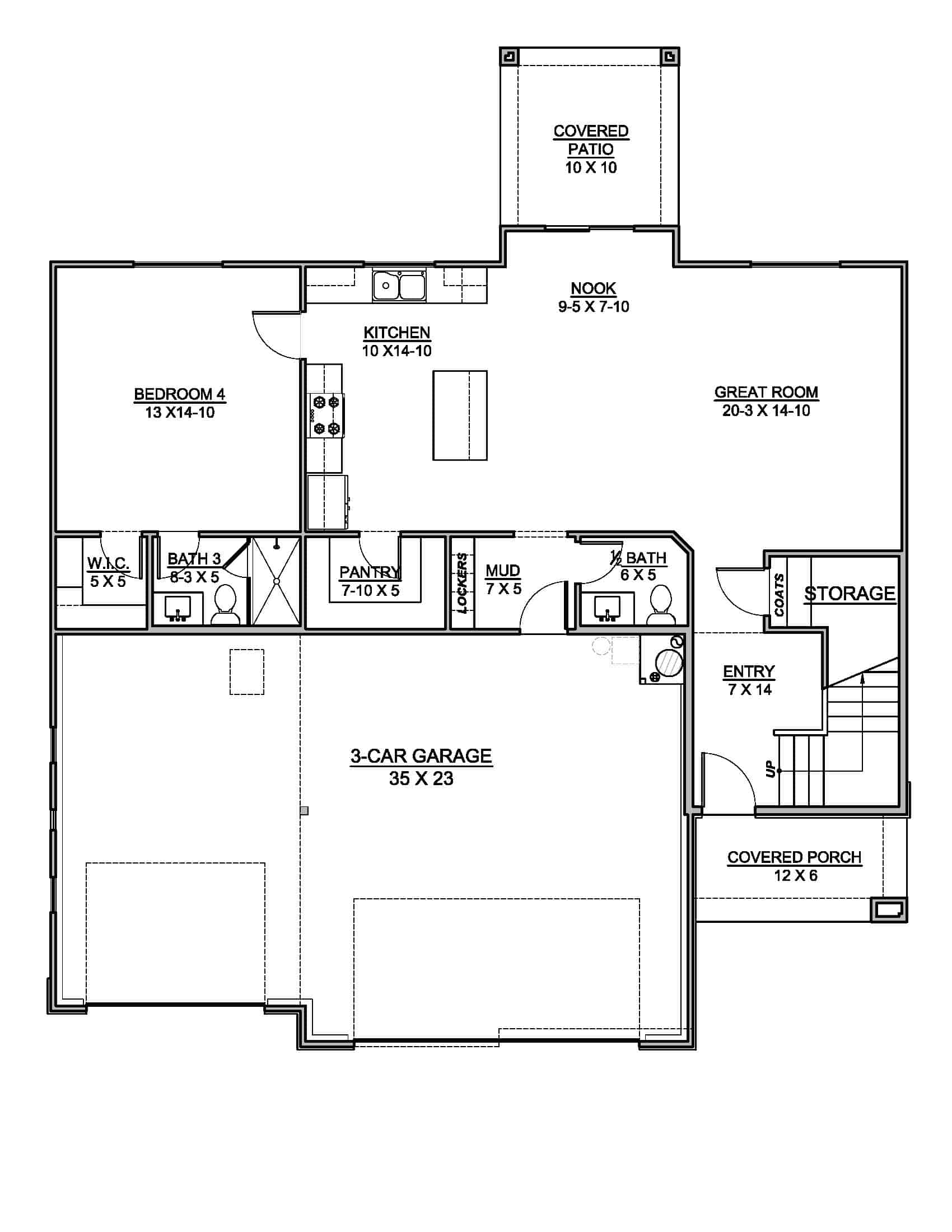

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Roof Pitch
Ceiling Height
Special Feature
Garage Type
Exterior Wall Framing
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
