3-4 Bedroom, 2464 Sq Ft (5984 Total) Barndominium Plan with 9-Stall Stable
Related House Plans
| 2464 SQUARE FEET | 3 BEDROOMS | 4 FULL BATH | 1 HALF BATH |
| 2 FLOOR | 88' 0" WIDTH | 40' 0" DEPTH | 0 GARAGE BAY |

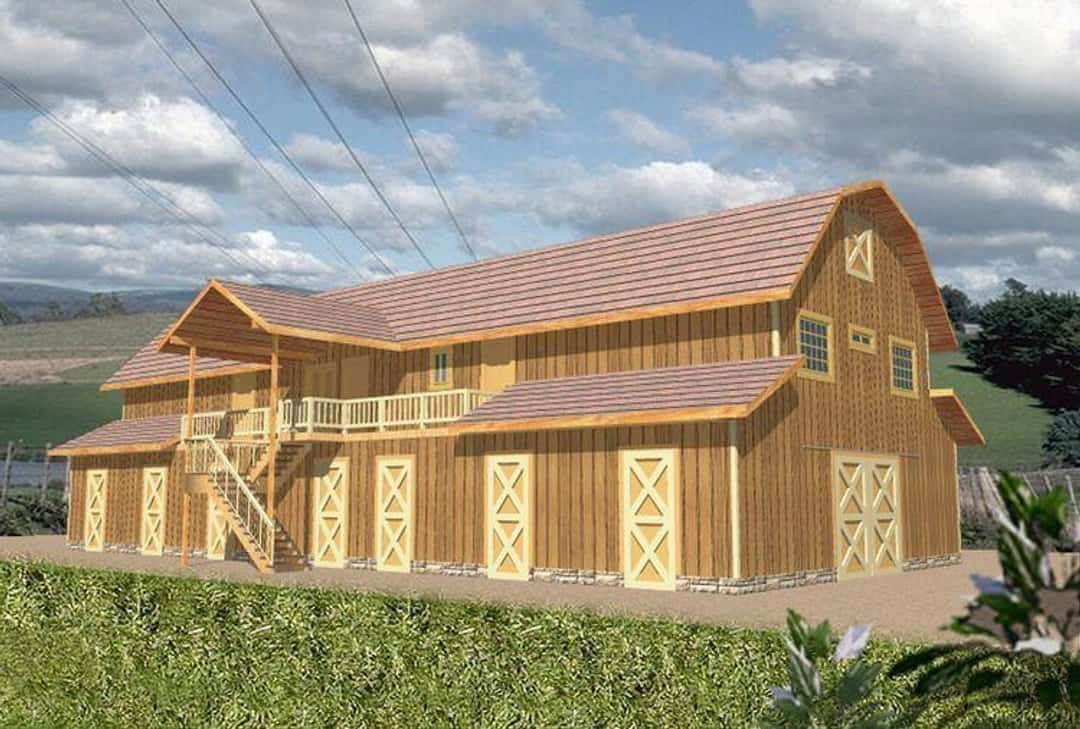

This barndominium has 2464 living sq ft (5984 total under the roof). The 2-story floor plan includes a stable with 9 horse stalls & two living units above.

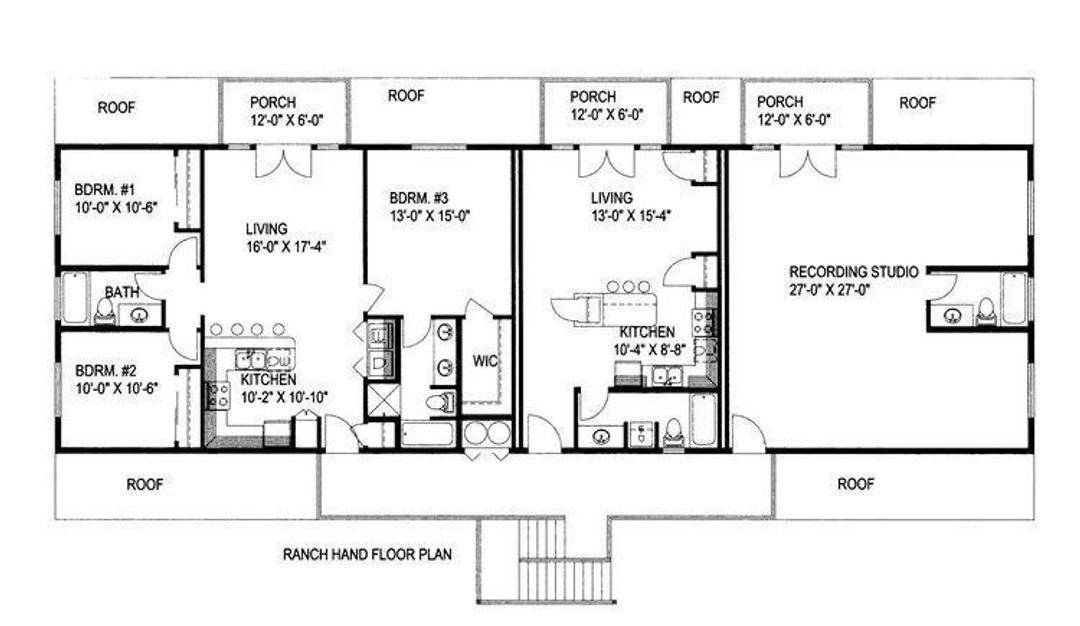

- Primary unit has three bedrooms, two bathrooms, a living area, a kitchen with a peninsula, and a covered deck.
- The second unit is a studio apartment with a living/sleeping space and covered deck, a kitchen with an island, and a full bath.
- Completing the upper floor is the large "recording studio" with a full bath and a covered deck. This space could be used as a bonus room, workshop, home office, game room, or media center.

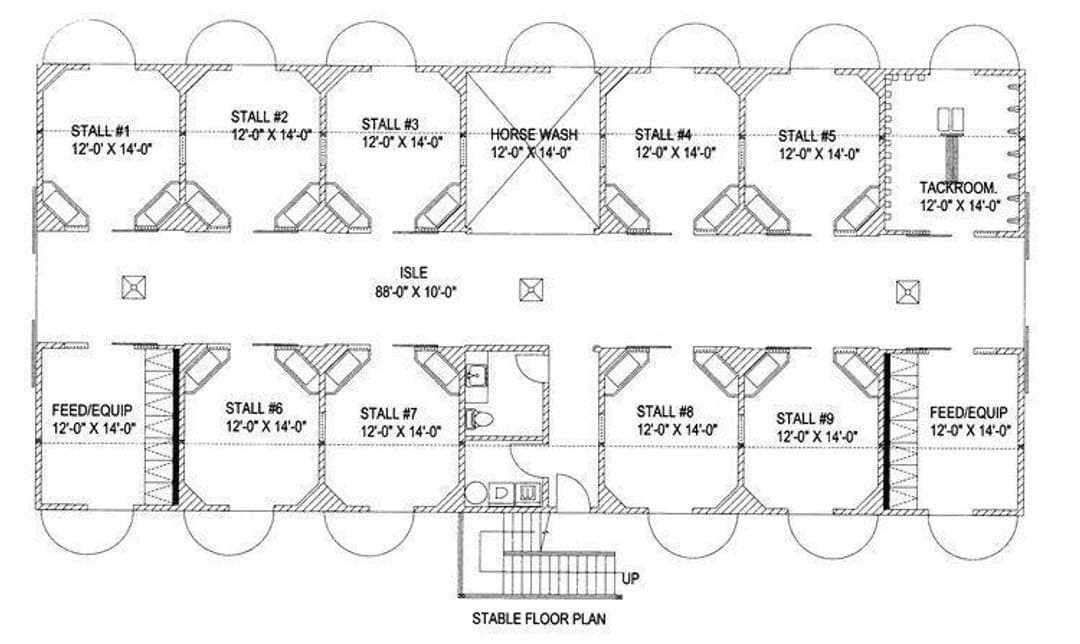

- On the main level is a stable with nine horse stalls, a tack room, two rooms for feed/equipment, a horse wash space, and a half bath.
Each plan set includes the following:
- Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
- Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.
- Foundation plan: shows footing, stem wall, and slab placement, including all connection details.
- Floor and roof framing plans show truss/rafter placements, including all beams/connection details.
- Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.
- Electrical layout
- General notes/details to cover the entirety of the project
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
