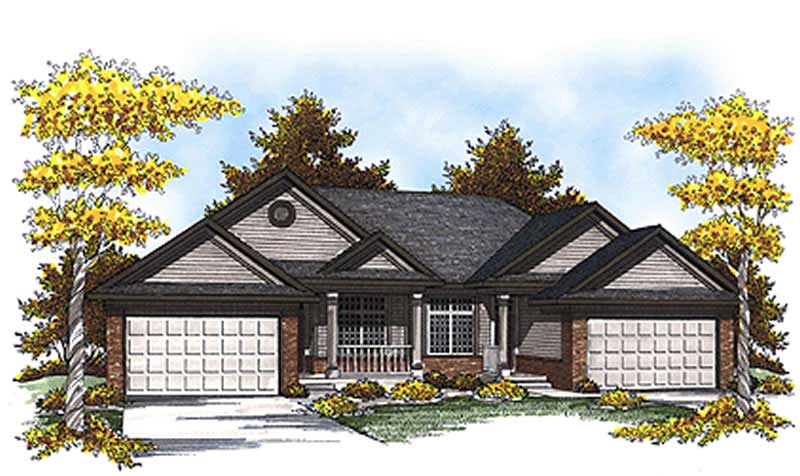

Front elevation of Duplex/Multi-Unit home (ThePlanCollection: House Plan #101-1030)

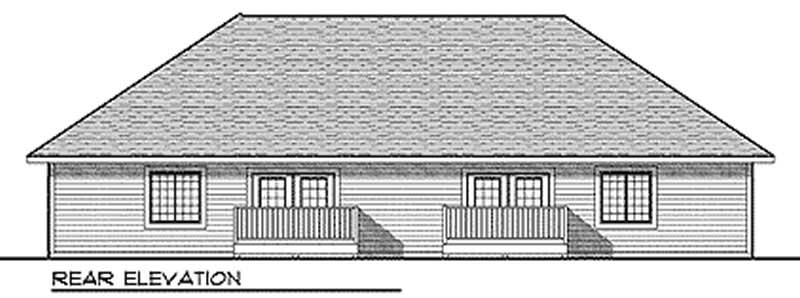

101-1030: Home Plan Rear Elevation
2-Bedroom, 1252 Sq Ft Duplex Home Plan - 101-1030 - Main Exterior
101-1030: Home Plan Rear Elevation

About Plan # 101-1030

About Plan # 101-1030

2504 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 68' 0" WIDTH 55' 0" DEPTH 4 GARAGE BAY

This country-style duplex has a total of 2504 living square feet, 4 bedrooms, and 4 baths. Each individual unit has 2 bedrooms and 2 baths with 1252 living square feet. Other amenities for each unit include a 2-car garage and 144 square feet of porch/deck space

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

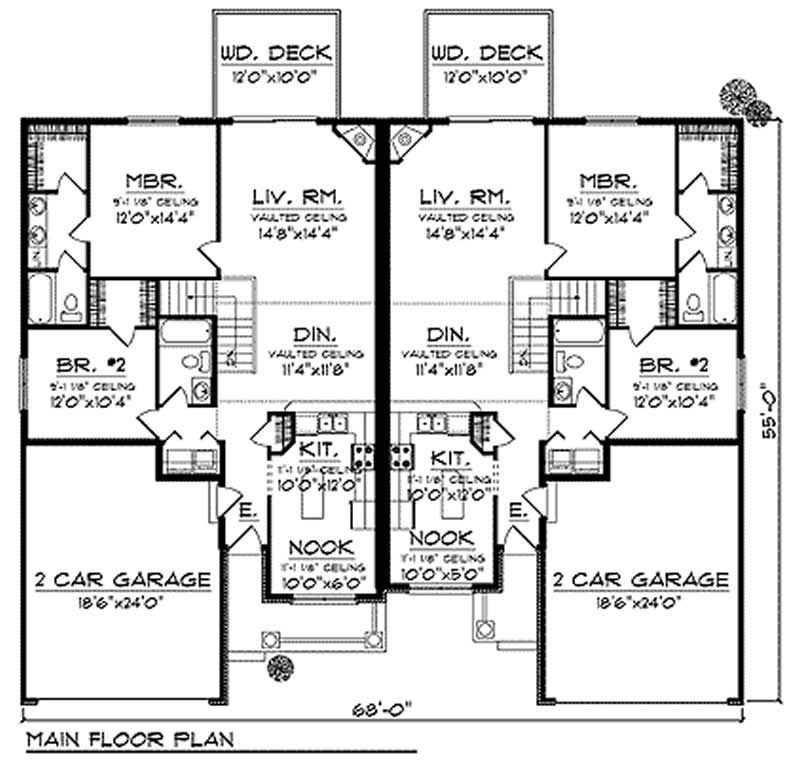

Home Plan: #101-1030 Floor Plan First Story - main level Main Level of Duplex/Multi-Unit Plan #101-1030
Home Plan: #101-1030 Floor Plan First Story - main level Main Level of Duplex/Multi-Unit Plan #101-1030
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 101-1030
Floors:
1
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
2504
Main Floor:
2504
Unfinished Sq Ft:
Porch :
288

Dimensions

Width:
68' 0"
Depth:
55' 0"
Ridge Height:
21' 10"

Architectural Styles

Colonial
Country
Duplex/Multi-Unit
Traditional

Exterior Wall Material

Brick

Roof Pitch

6/12
8/12

Ceiling Height

9 Foot Ceiling
11 Foot Ceiling

Special Feature

Dining Room
Main Level Laundry
Storage
Vaulted Ceilings

Garage Type

Front Entry

Exterior Wall Framing

2x6

Kitchen Features

Nook/Breakfast Area

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Additional Notes from Designer

Note: Width, depth, and pitch are for both units together. The gross living square feet for both units combined is 2504 square feet.

Each individual unit has 1252 living square feet, 144 outdoor square feet, 2 bedrooms, 2 baths, and a 2-car garage.
