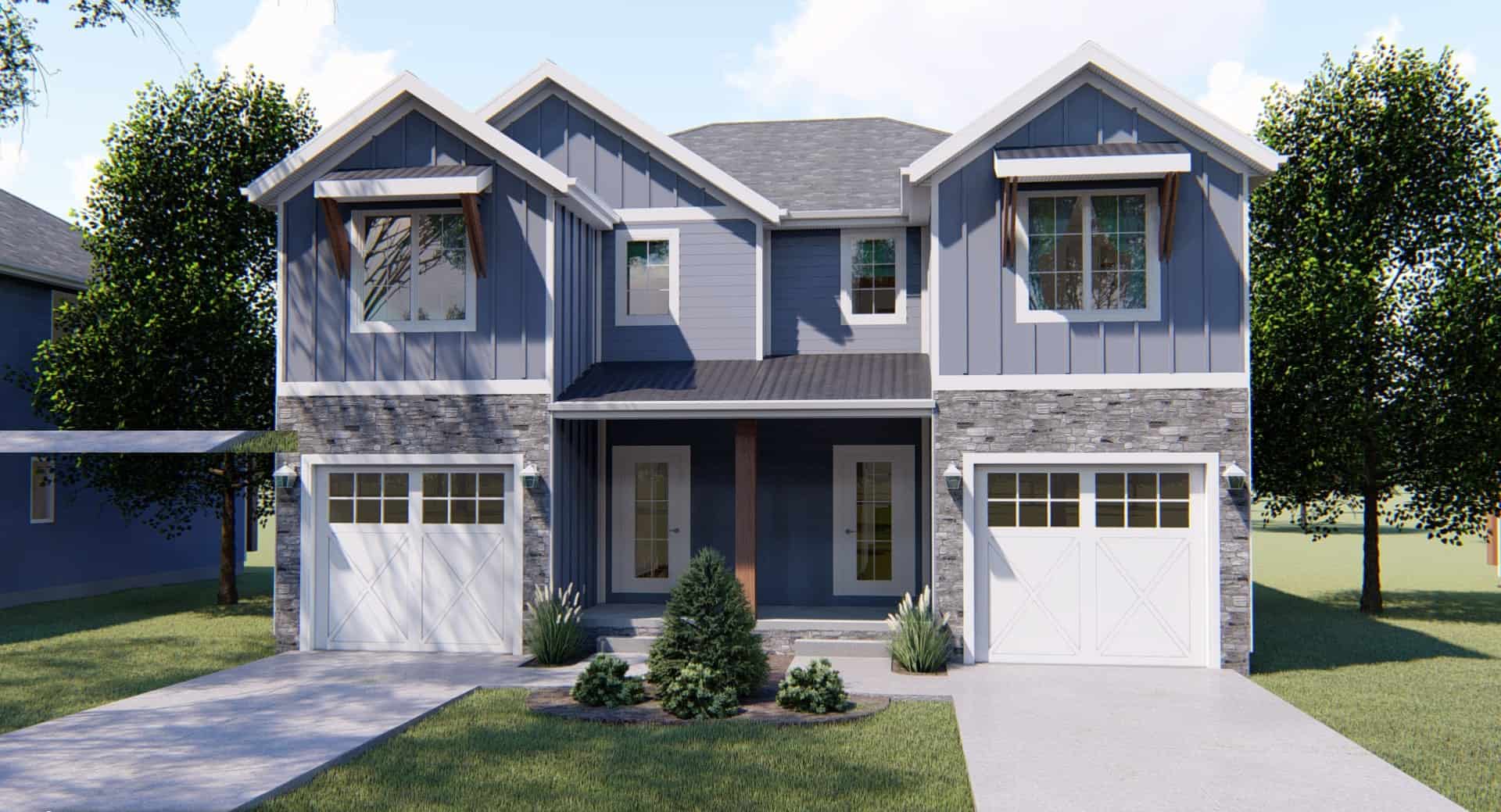

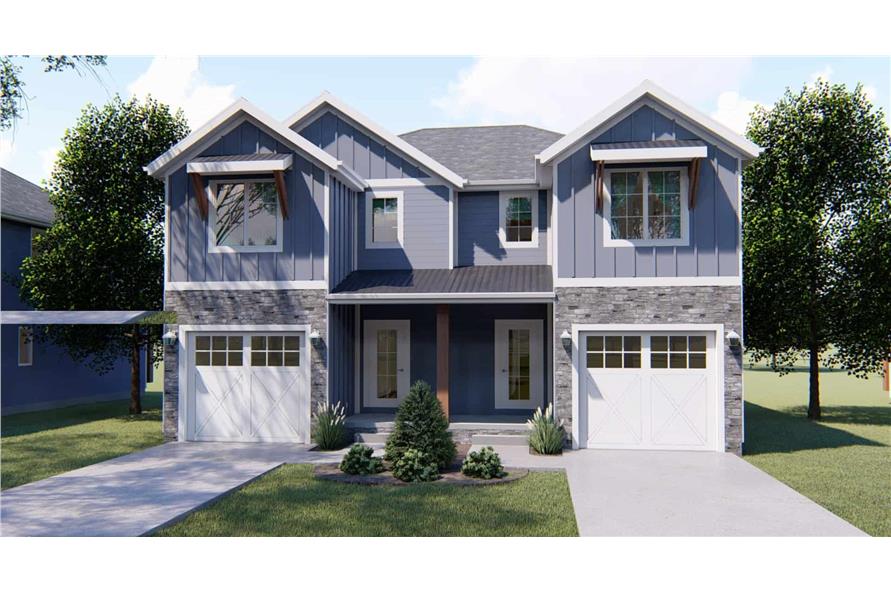

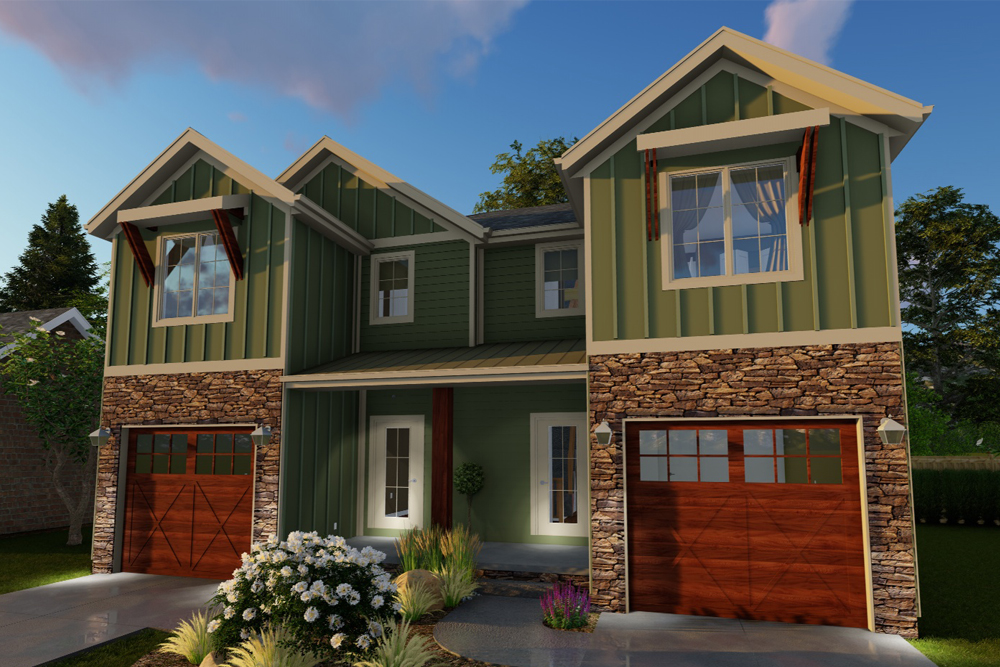

Craftsman Duplex with 3 Bedrooms & 1489 Sq Ft Per Unit
Related House Plans
| 2978 SQUARE FEET | 6 BEDROOMS | 2 FULL BATH | 2 HALF BATH |
| 2 FLOOR | 40' 0" WIDTH | 52' 0" DEPTH | 2 GARAGE BAY |

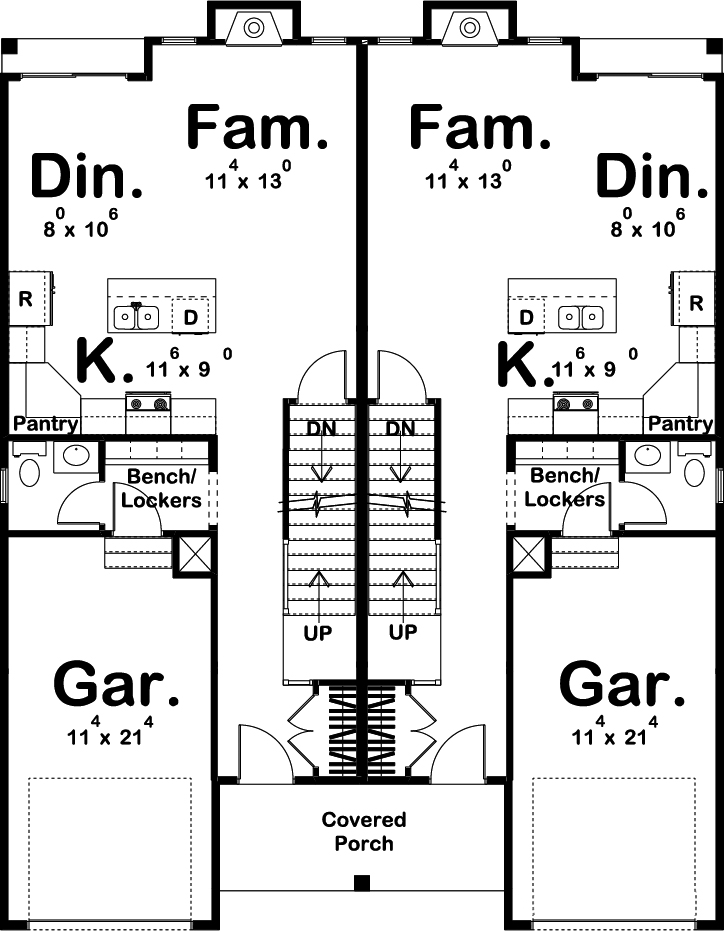

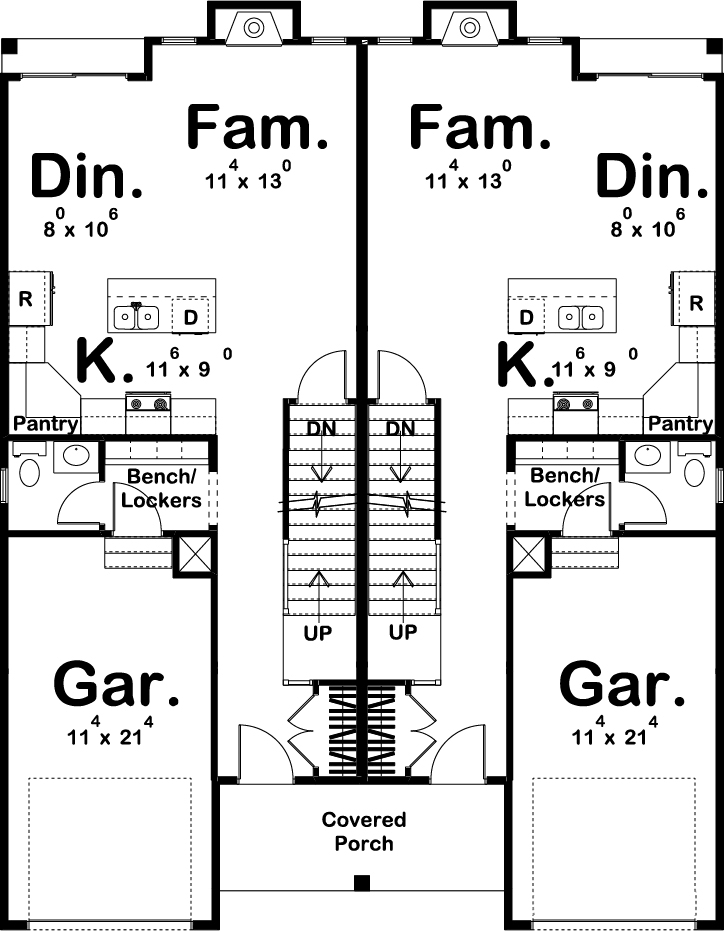

This remarkable duplex design is ideal for a narrow lot at only 40-feet wide. Each of the two units enjoys an open floor plan on the main level (657 square feet) creating a larger feel. Upstairs (832 square feet), each unit has three bedrooms. The total heated/cooled square footage of each unit is 1489 square feet.
Fireplace and sliding glass doors to the backyard create a warm and inviting main floor.
The L-shape kitchen is open and boasts an island.
The mudroom to the garage has a bench and lockers.

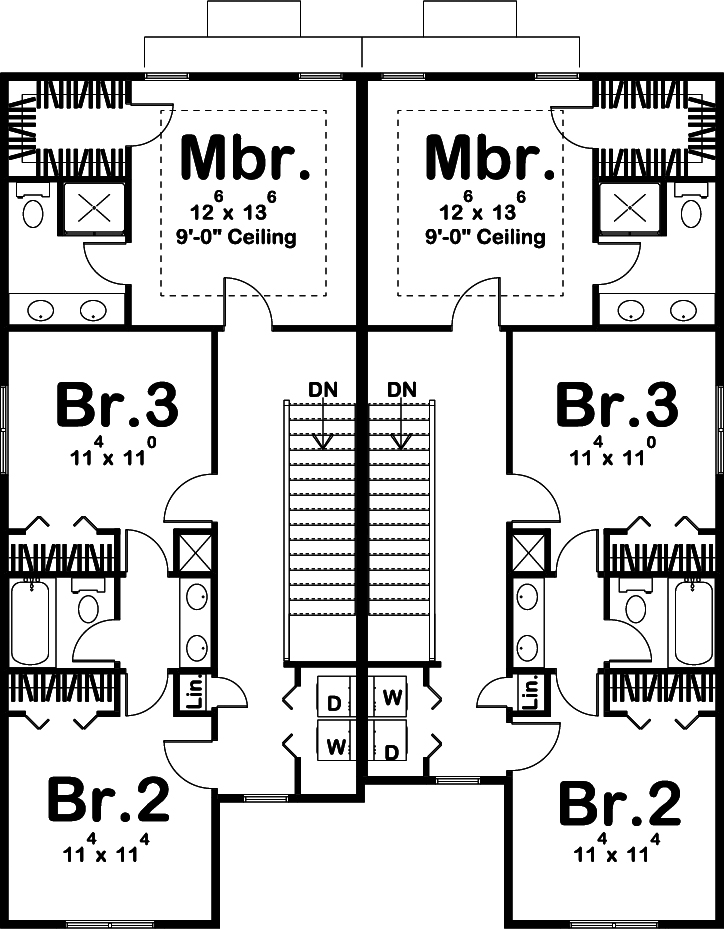

The master suite has a 9-foot tray ceiling as well as a ensuite bathroom with double sinks.
Bedroom #2 and #3 share a Jack-and-Jill bathroom.
Each plan set includes the following:
- Cover Sheet: Shows the front elevation and typical notes and requirements.
- Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
- Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
- Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
- Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
- Roof Plan
- Typical wall section
- Typical stair section
- Cabinets are shown on all plans.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
