3141 Sq Ft Duplex with 3-Bedroom, 2-Bath Units
Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.
About House Plan #142-1503
How much will it cost to build?
Estimate your costs based on your location and materials.
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Floor Plans
Share Plans
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Additional Notes from Designer
On some plans, Basement Foundations, Walkout Basement Foundations, & 2x6 Conversions could take up to ONE WEEK to produce. Materials Lists could take up to FOUR WEEKS to produce and they will be for the ORIGINAL plan! Any modifications will NOT be reflected on the Materials List. NOTE FROM DESIGNER: If you purchase a CAD, you will automatically receive the unlimited build license - no need to purchase separately!
House Plan Description

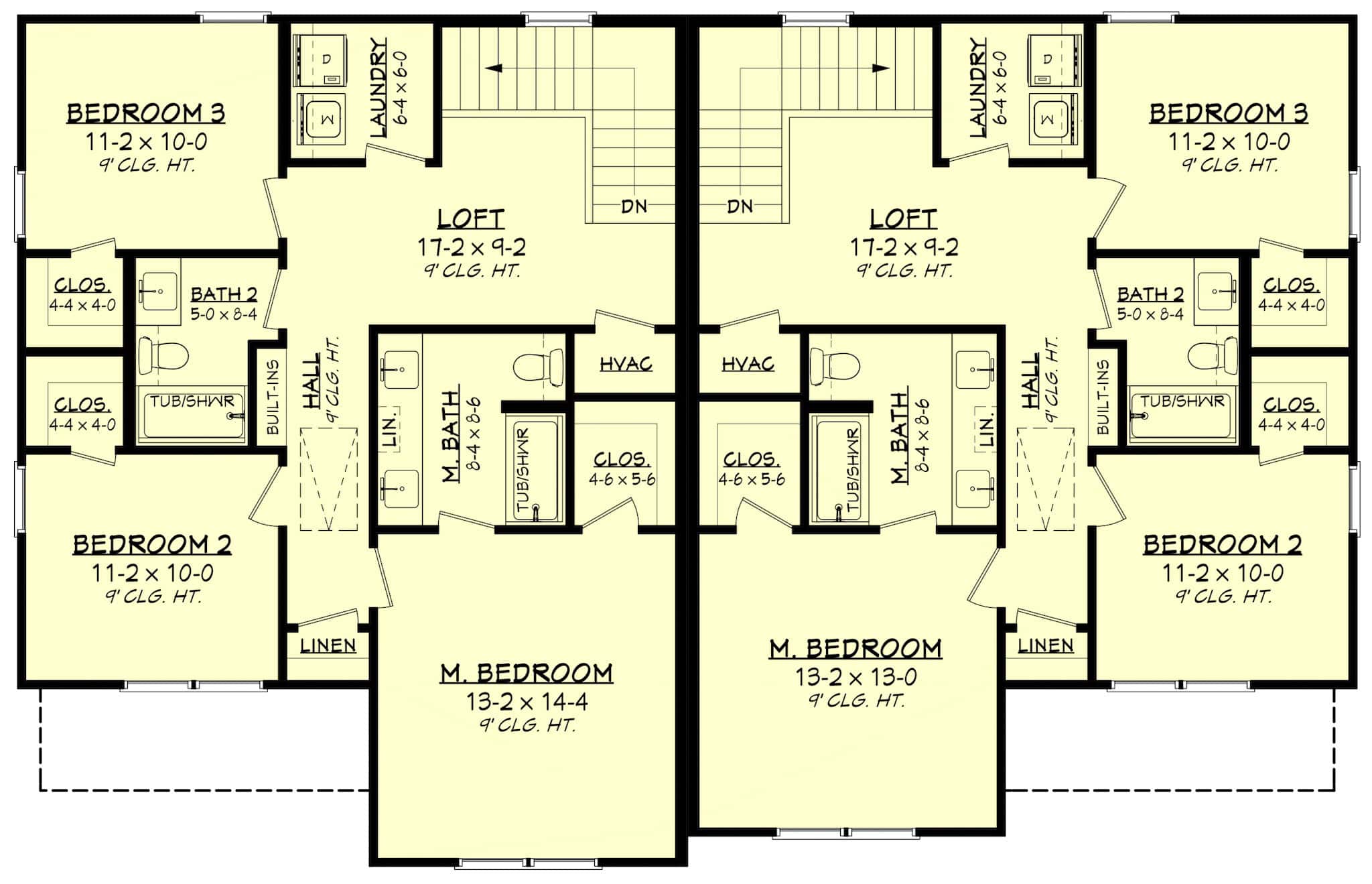

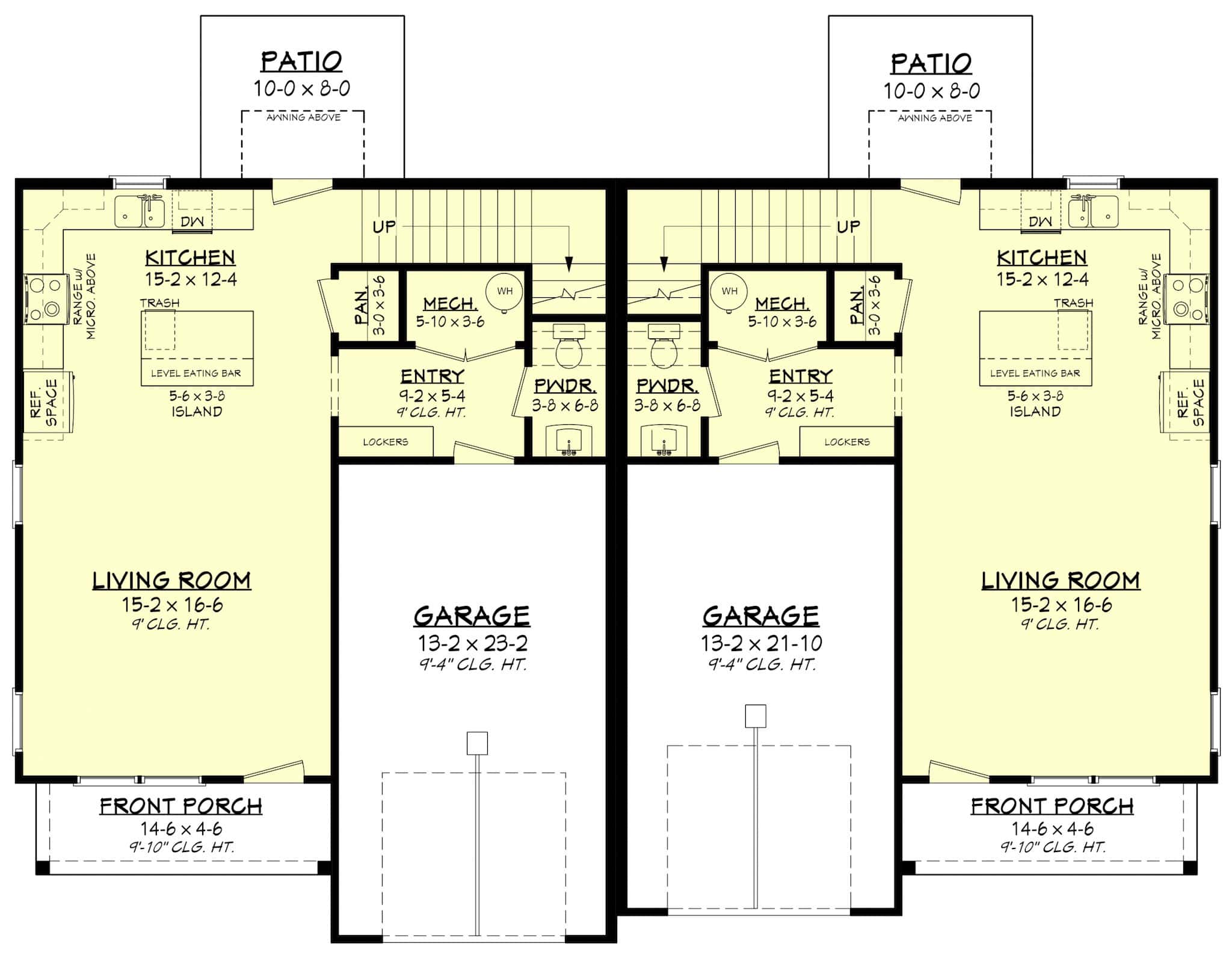

This efficient 2-unit duplex includes an oversized one-car garage, open kitchen and living area, and a first-floor half bath with lockers. The second floor has 3 beds, 2 baths, a loft, laundry space, and a luxurious main suite per unit. The left unit is 1580 and the right unit is 1561. The second floor on the left unit is slightly larger due to the garage being pulled out a little.The total heated sq ft for both units is 3141 sq ft.
Home Details
How much will it cost to build?
Estimate your costs based on your location and materials.
What’s Included
Cover sheetFoundation planDimensional floor planExterior viewsRoof planElectrical layoutWall section(s)Building section(s)Cabinet elevationsWhat’s Not Included
Architectural or Engineering Stamp - handled locally if required.Site Plan - handled locally when required.Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.Energy calculations - handled locally when required.No FramingAdditional Information
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
