3-Bedroom, 3219 Sq Ft Log Cabin Plan with Vaulted Ceiling
Related House Plans
| 3219 SQUARE FEET | 3 BEDROOMS | 3 FULL BATH | 0 HALF BATH |
| 2 FLOOR | 67' 6" WIDTH | 69' 0" DEPTH | 0 GARAGE BAY |

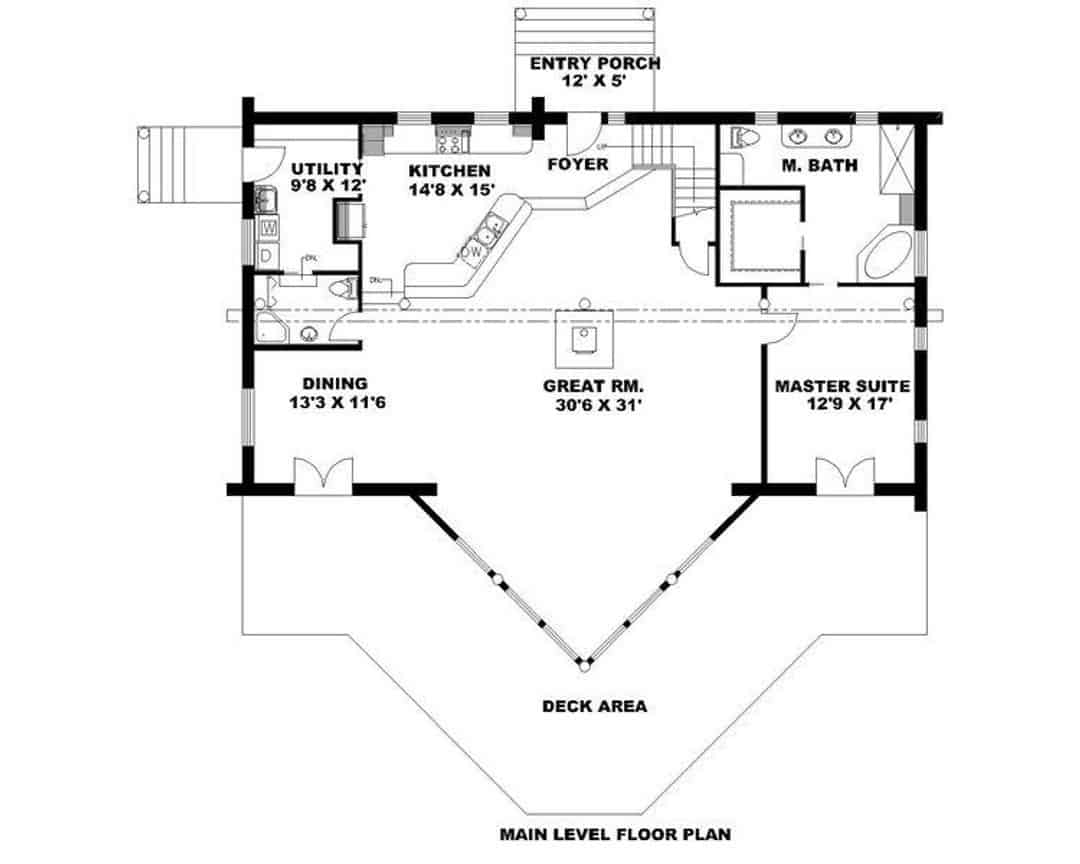

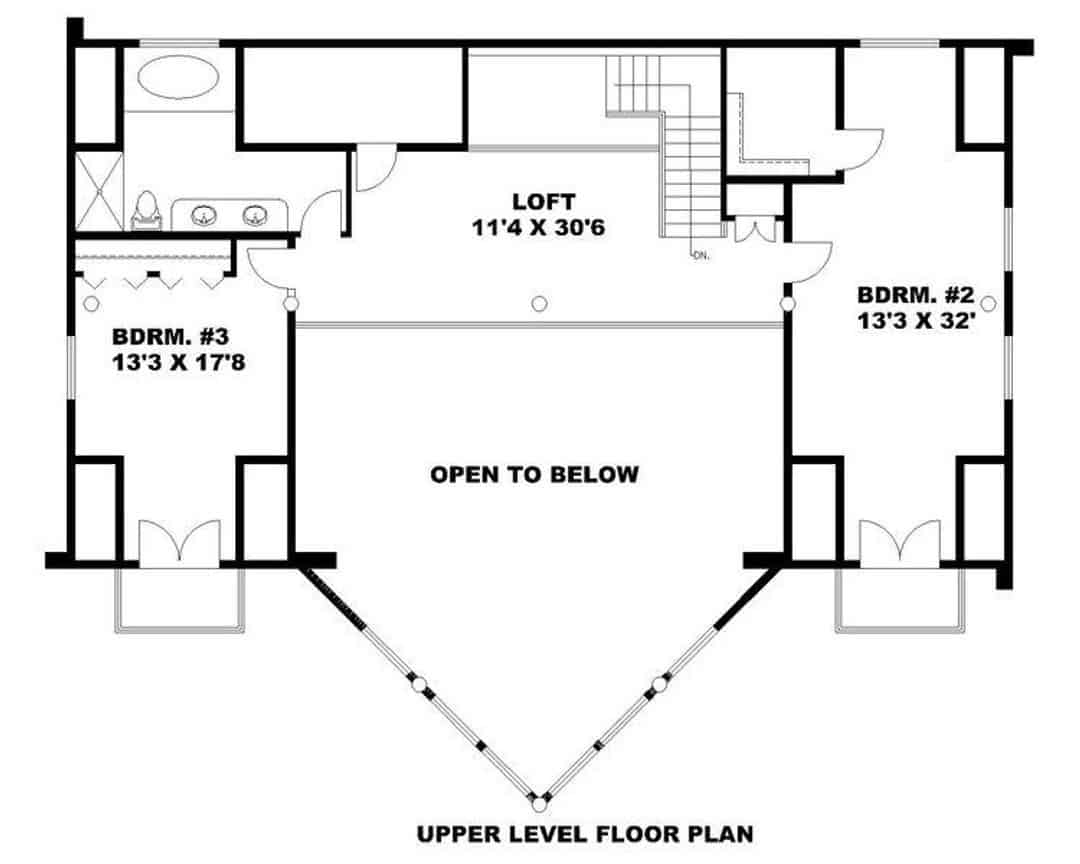

This stunning log cabin uses butt & pass construction and has a wonderful sense of space and roominess. On the main level, the Great Room is very open, yet warm and cheery. It is well lit by huge windows looking out onto the deck, and heated by a central wood stove. Upstairs, there is a loft looking over the Great Room plus two bedrooms, each with its own private balcony.
Each plan set includes the following:

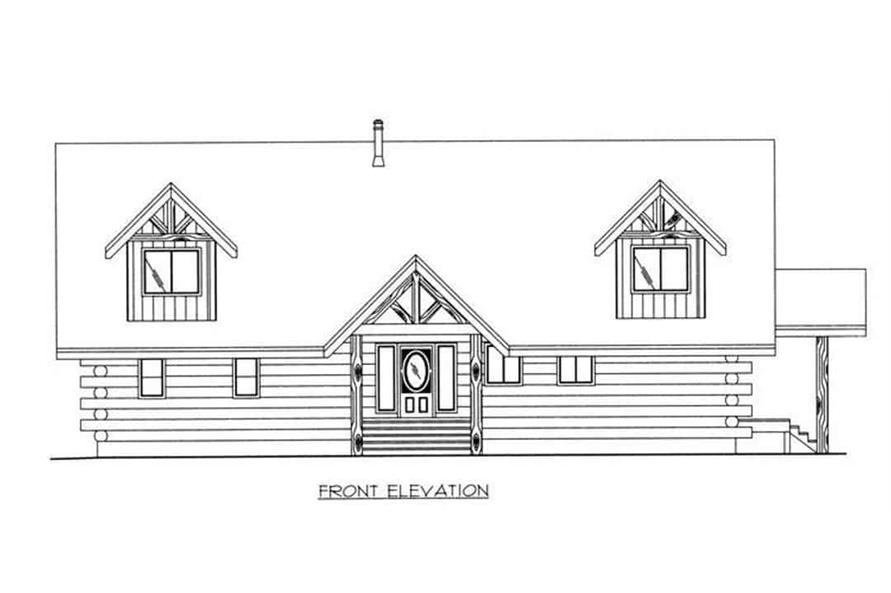

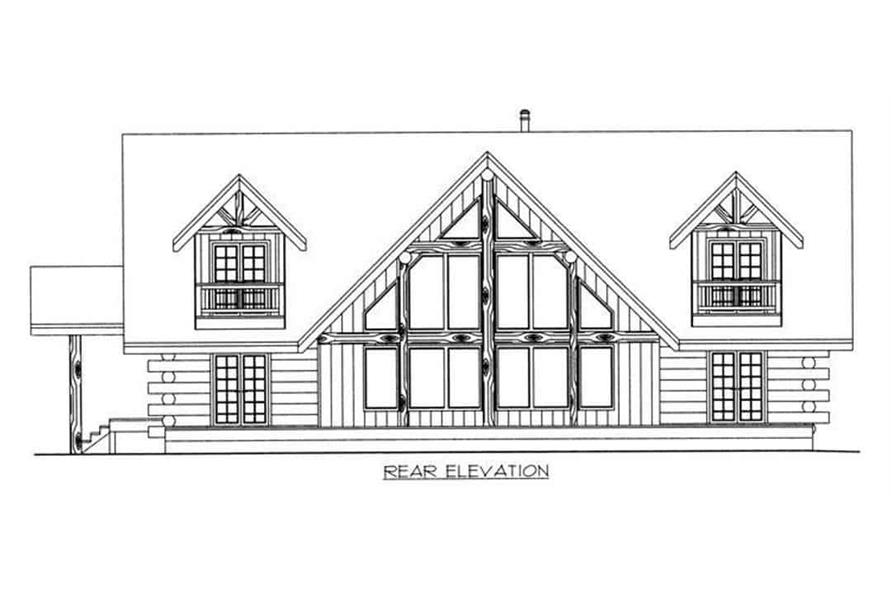

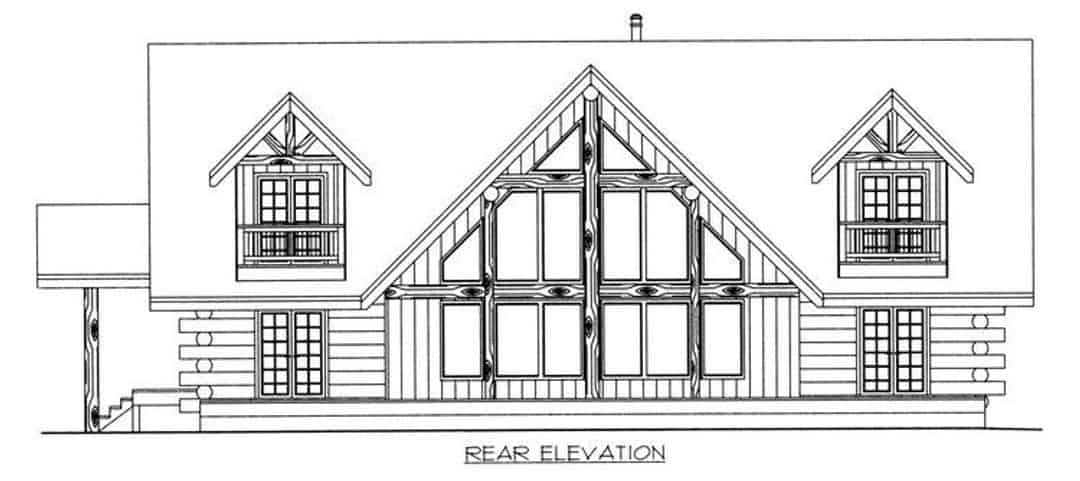

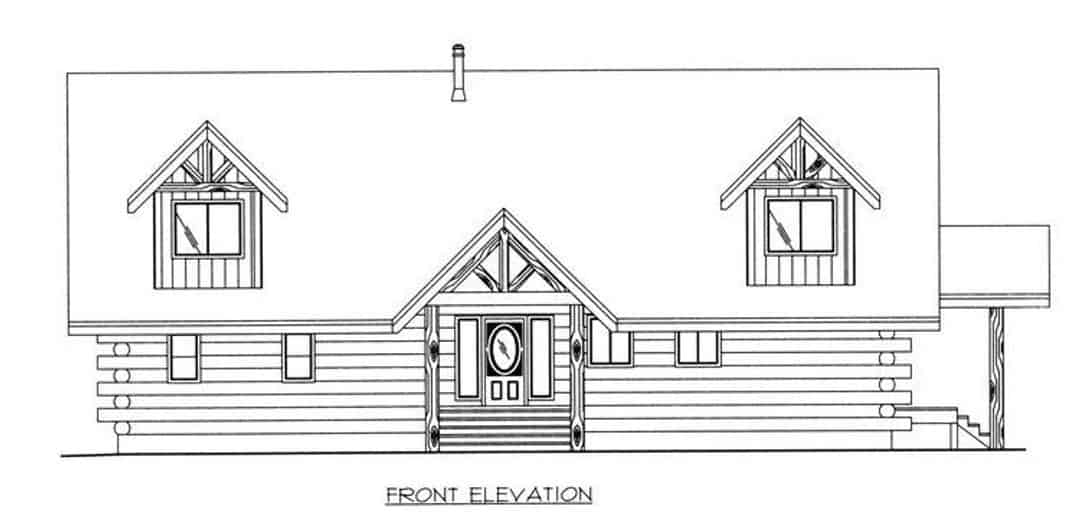

- Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
- Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.
- Foundation plan: shows footing, stem wall, and slab placement, including all connection details.
- Floor and roof framing plans show truss/rafter placements, including all beams/connection details.
- Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.
- Electrical layout
- General notes/details to cover the entirety of the project
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Roof Pitch
Special Feature
Fireplaces
Exterior Wall Framing
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
