5-Bedroom, 3419 Sq Ft Luxury Plan with Kitchen Island
Related House Plans
| 3419 SQUARE FEET | 5 BEDROOMS | 5 FULL BATH | 0 HALF BATH |
| 2 FLOOR | 72' 10" WIDTH | 69' 10" DEPTH | 3 GARAGE BAY |
Each plan set includes the following:
-
floorplan
-

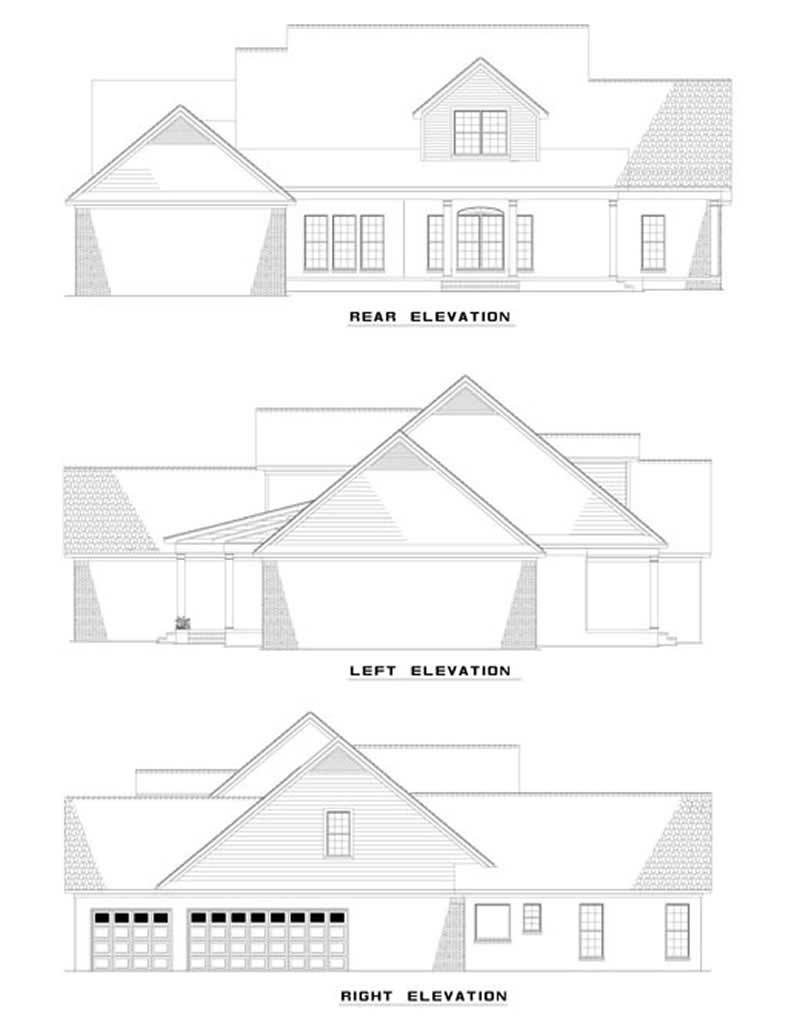

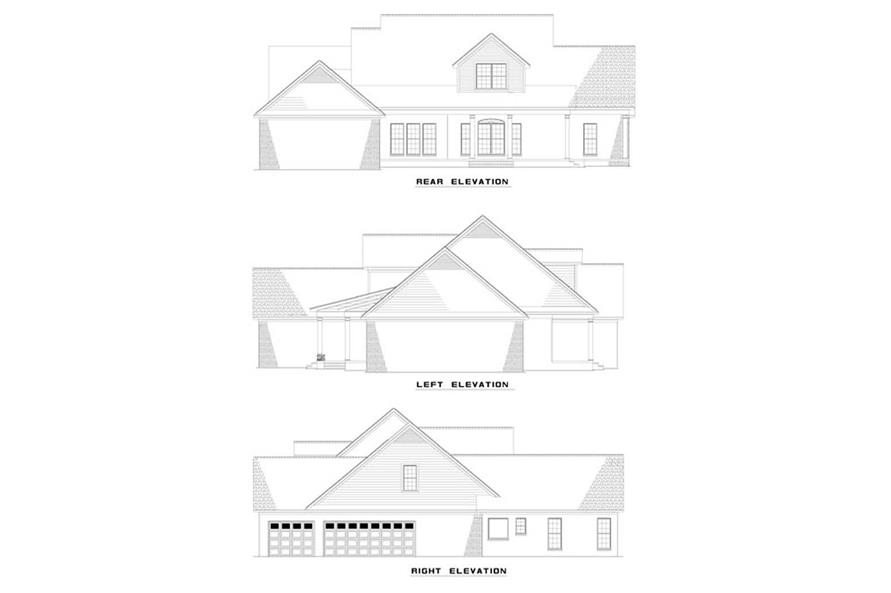

4 side exterior elevations,
-
electrical plan,
-
birds-eye view of the roof,
-
foundation plan,
-
and some miscellaneous details.
Please Note
We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!
