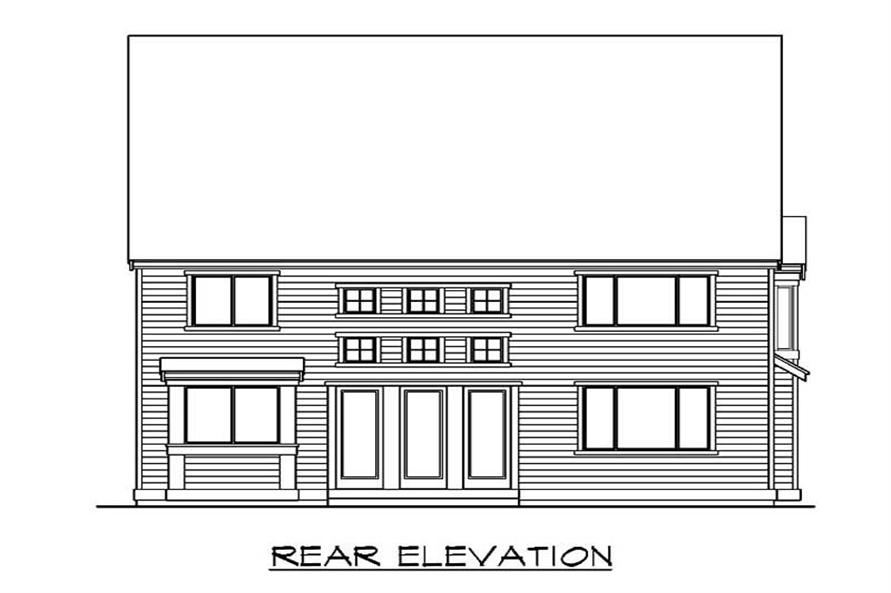

Rear Elevation
4-Bedroom, 3550 Sq Ft Tudor House Plan - 115-1401 - Front Exterior
Rear Elevation

About Plan # 115-1401

About Plan # 115-1401

3550 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 40' 0" WIDTH 60' 0" DEPTH 3 GARAGE BAY
This beautiful tudor is related to plan # SPS 3455A. You'll notice strong exterior differences, but only mild floor plan differences. This is a lovely example of the classic tudor and should delight all who see it.

Each plan set includes the following:

  • Cover Sheet
  • Schedule Sheet
  • Detail Sheet
  • Foundation Plan Sheet
  • Floor Plan/Floor Framing Sheet(s)
  • Roof Framing Plan Sheet
  • Elevation Sheet
  • Building Section Sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

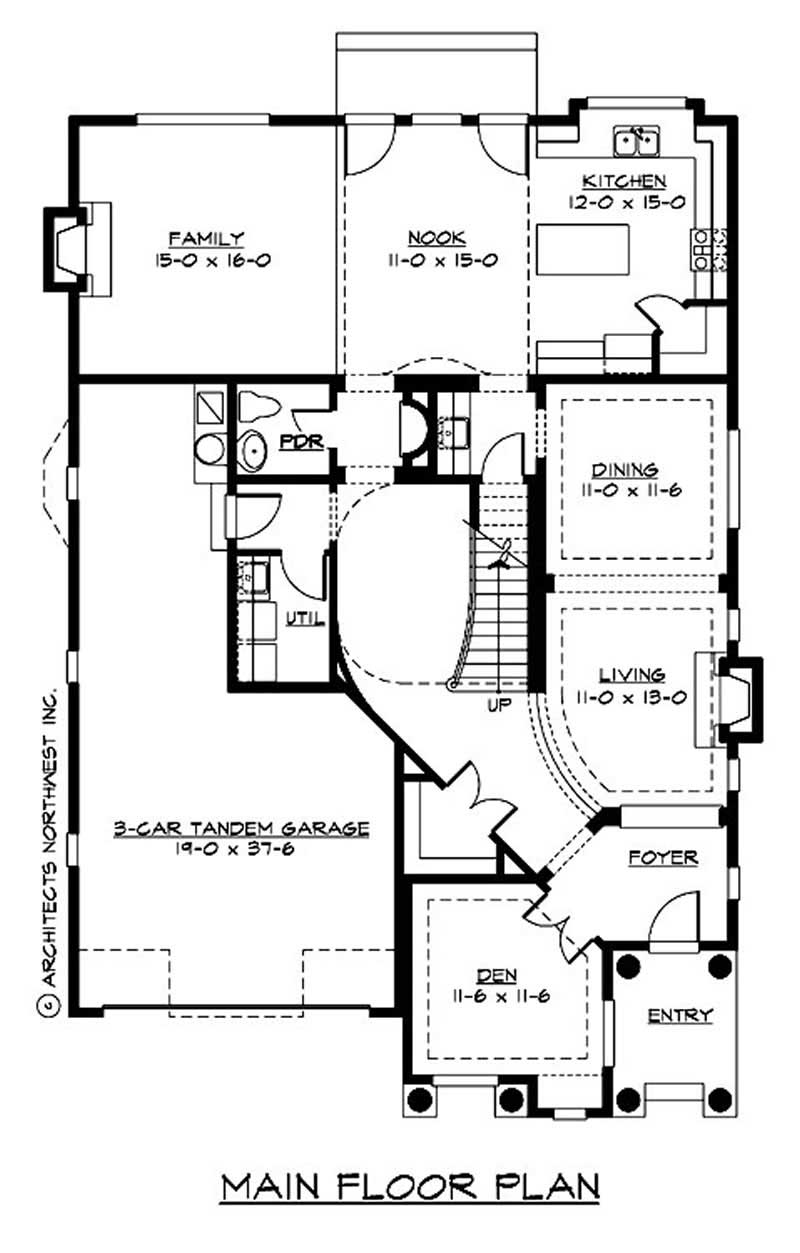

Home Plan: #115-1401 Floor Plan First Story - first story Floor Plan First Story of Tudor Plan #115-1401

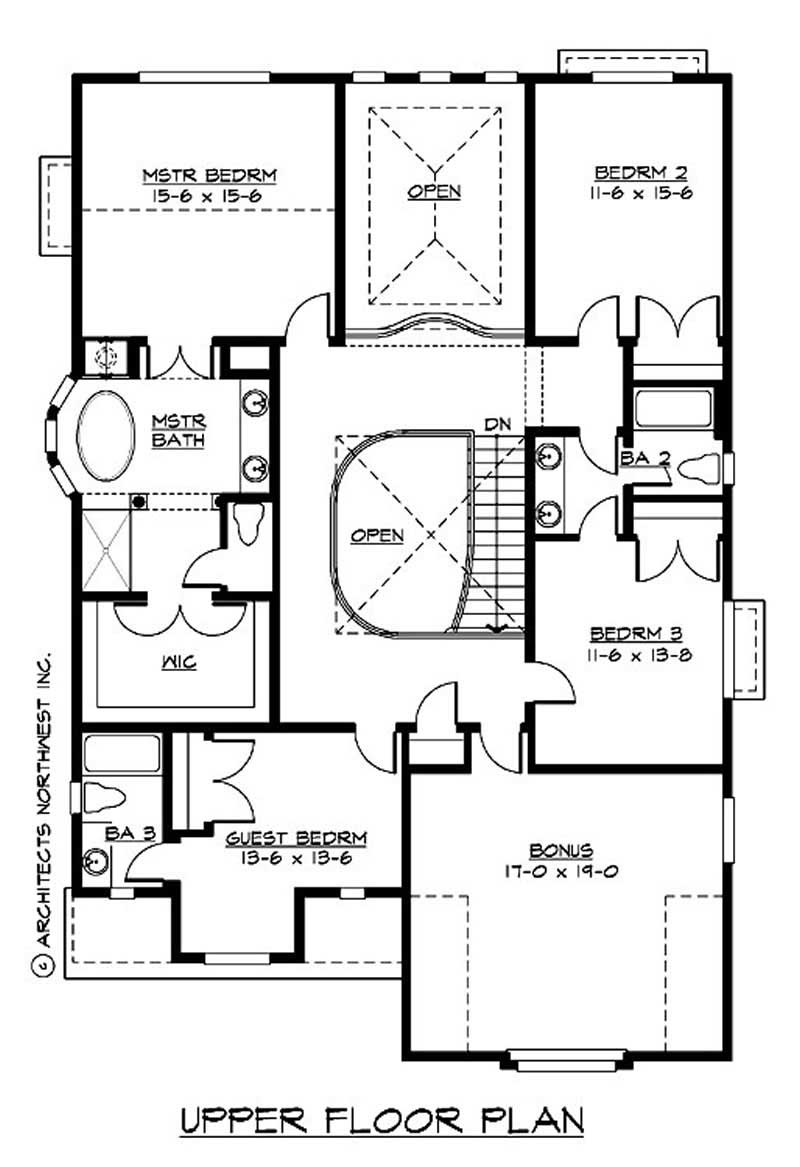

#115-1401 Floor Plan Second Story - second story Floor Plan Second Story of Tudor Plan #115-1401
