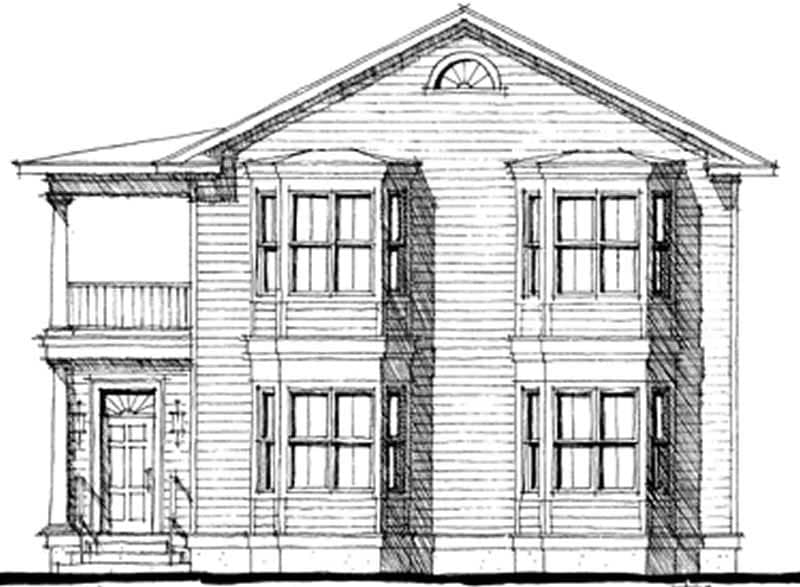

Front elevation of Colonial home (ThePlanCollection: House Plan #116-1054)

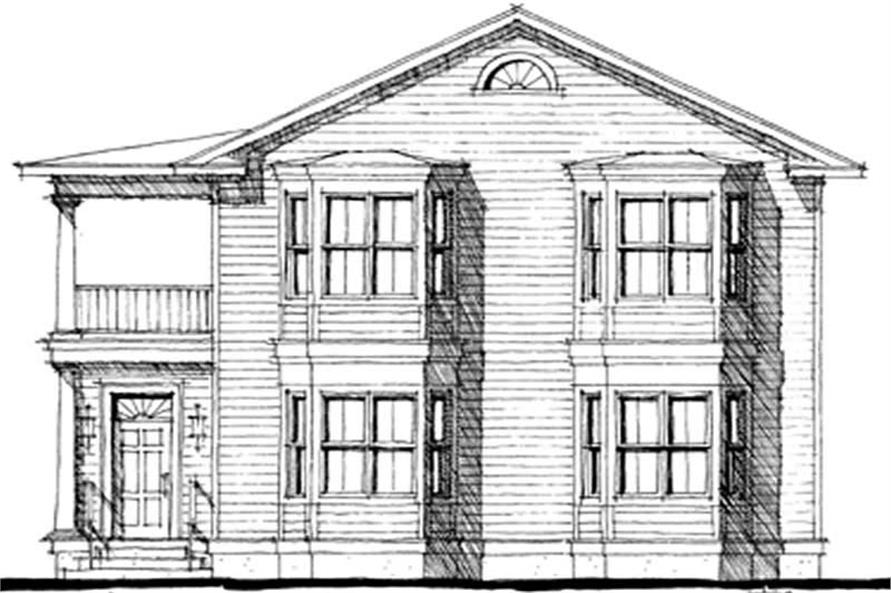

6-Bedroom, 3694 Sq Ft Colonial Home Plan - 116-1054 - Main Exterior

About Plan # 116-1054

About Plan # 116-1054

3694 SQUARE FEET 6 BEDROOMS 5 FULL BATH 0 HALF BATH
2 FLOOR 42' 0" WIDTH 81' 0" DEPTH 2 GARAGE BAY

This unique home has so many elements of the classic, Colonial-style homes found in Southern urban areas like Charleston or Savannah. The Charleston-style side porch runs along most of the side of the home and guides you to the impressive 2-story foyer. On one side is the formal living room while on the other is the open-designed dining area. Pass through an arched doorway to the kitchen with its peninsula with an eating bar and breakfast nook. From the breakfast nook, there is access to the side porch (and the attached rear-entry garage) as well as the rear porch.

Completing the first floor is the grand master suite. Enter through a pair of double doors and then into the master bedroom with its stepped ceiling. The master bath includes his-and-her sinks, a large tub, a separate shower, and a water closet. There is plenty of storage with his-and-her closets, a linen closet, and a cedar closet.

Head up the staircase to the second floor. The focal point here is the spacious gathering room with access to the second-floor porch. There are four primary bedrooms on the second floor. Most with walk-in closets and their own full bathrooms. An in-law suite above the garage provides the 5th bedroom/living quarters for a total of six bedrooms in the home.

Each plan set includes the following:

  • Floor plans
  • Exterior elevations
  • Building sections
  • Foundation plan
  • Floor & Roof structure layouts
  • Wall section
  • Notes
  • Electrical layout (switches, outlets)
  • Unlimited license

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

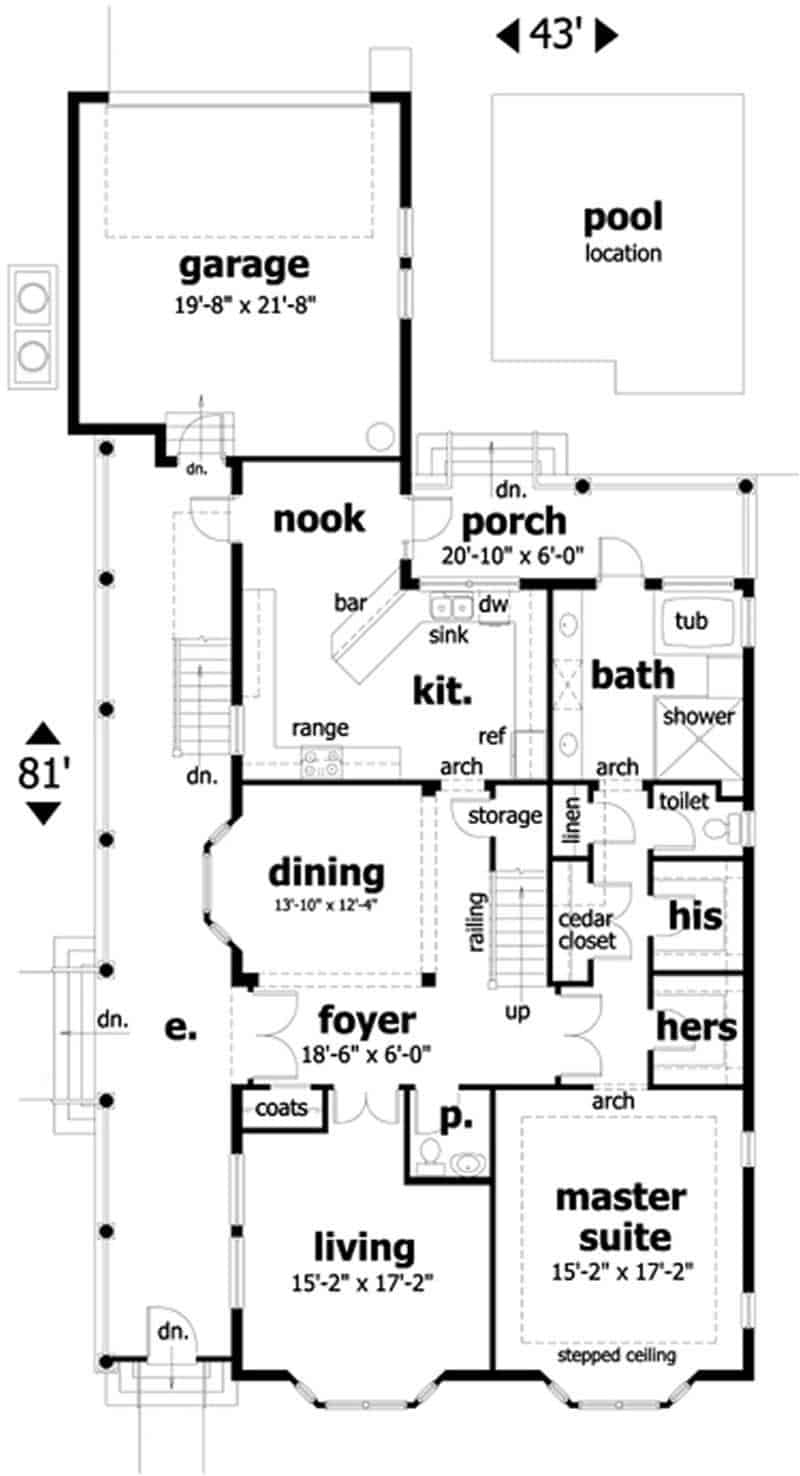

Home Plan: #116-1054 Floor Plan First Story - first story Floor Plan Main Level of Colonial Plan #116-1054

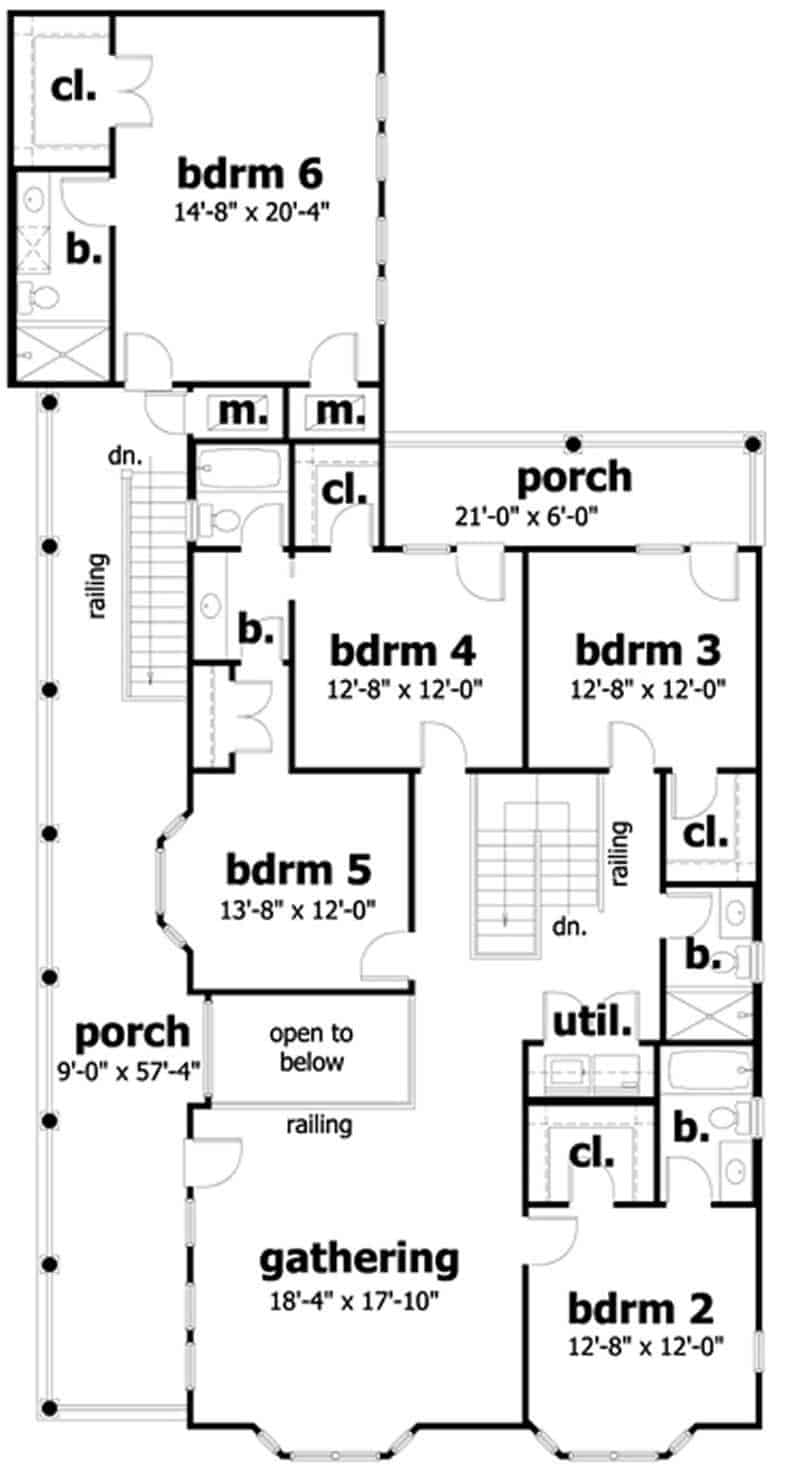

#116-1054 Floor Plan Second Story - second story Floor Plan Upper Level of Colonial Plan #116-1054
Home Plan: #116-1054 Floor Plan First Story - first story Floor Plan Main Level of Colonial Plan #116-1054
#116-1054 Floor Plan Second Story - second story Floor Plan Upper Level of Colonial Plan #116-1054
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 116-1054
Floors:
2
Bedrooms:
6
Full Baths:
5

Square Footage

Heated Sq Feet:
3694
Main Floor:
1686
Upper Floor:
2008
Garage:
461
Unfinished Sq Ft:

Dimensions

Width:
42' 0"
Depth:
81' 0"
Ridge Height:
33' 0"

Architectural Styles

Colonial
Traditional
Historic

Roofing Material

Asphalt Shingles

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling

Special Feature

Mother in law apartment
Main Level Laundry
Balcony

Garage Type

Rear Entry

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Additional Notes from Designer

CAD files for this plan will be delivered in both DXF (AutoCad readable) and Sketchup Pro formats.
