4-Bedroom, 3882 Sq Ft Spanish Plan with Peninsula/Eating Bar
Related House Plans
| 3882 SQUARE FEET | 4 BEDROOMS | 4 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 162' 0" WIDTH | 85' 0" DEPTH | 3 GARAGE BAY |
Home plan number 20147 is a single story, Hacienda style home with a total square footage of 3,882. There are 4 bedrooms and 4 and 1/2 bathrooms, along with a split entry, rear loading, 3 car garage. The master bedroom includes a sitting area and seperate cloests. Plan number 20147 has a covered front porch and rear porch. Special features include a breezeway, hobby room, motor court, outdoor fireplace and a porte cochere. Other features include a foyer, buffet, gallery, home office, metal roof and mud entry.
Each plan set includes the following:
- Exterior,

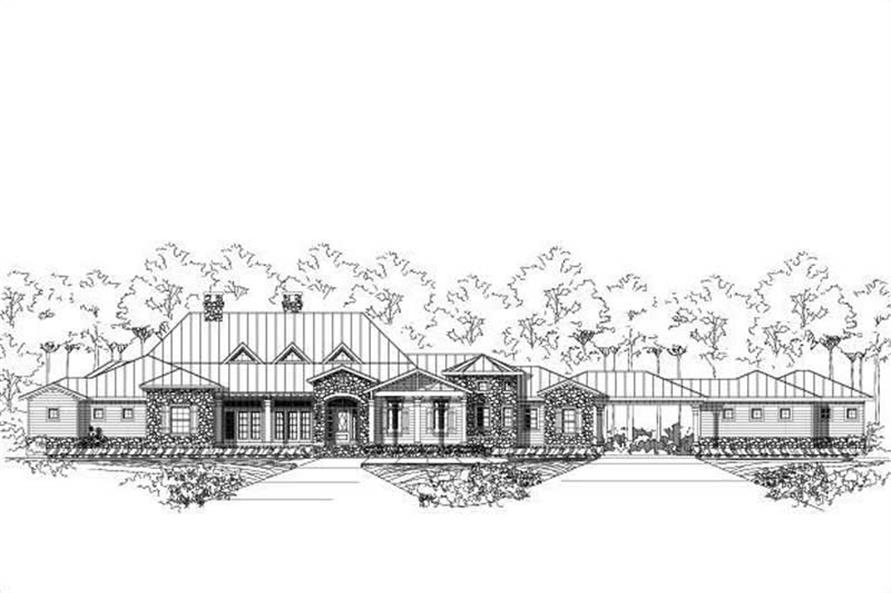

- Elevations
- Floor Plans
- Electrical Layout
- Building Sections
- Roofing Plan
- Interior Elevations
- General Details
- Wall Sections
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

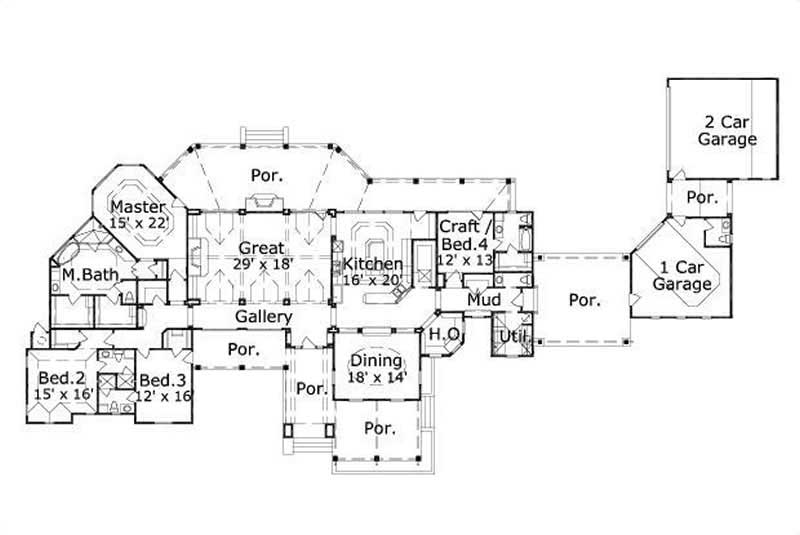

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Ceiling Height
Special Feature
Porches and Exterior Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
