1-Bedroom, 400 Sq Ft Cottage Studio with Raised Bar
Related House Plans
| 400 SQUARE FEET | 1 BEDROOMS | 1 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 20' 0" WIDTH | 20' 0" DEPTH | 0 GARAGE BAY |
With a focus on simplicity and utility, this Cottage style plan captures the essence of a Guest House with minimal yet functional design elements. Spanning 400 square feet, it includes a full kitchen and convenient washer and dryer facilities. Additionally, it boasts an open floor plan highlighting a studio living space. Consider this floor plan for its efficient use of space and practical amenities, making it ideal for guests or as a cozy retreat.
Each plan set includes the following:
- Cover sheet with Rendering on front
- General IRC notes page

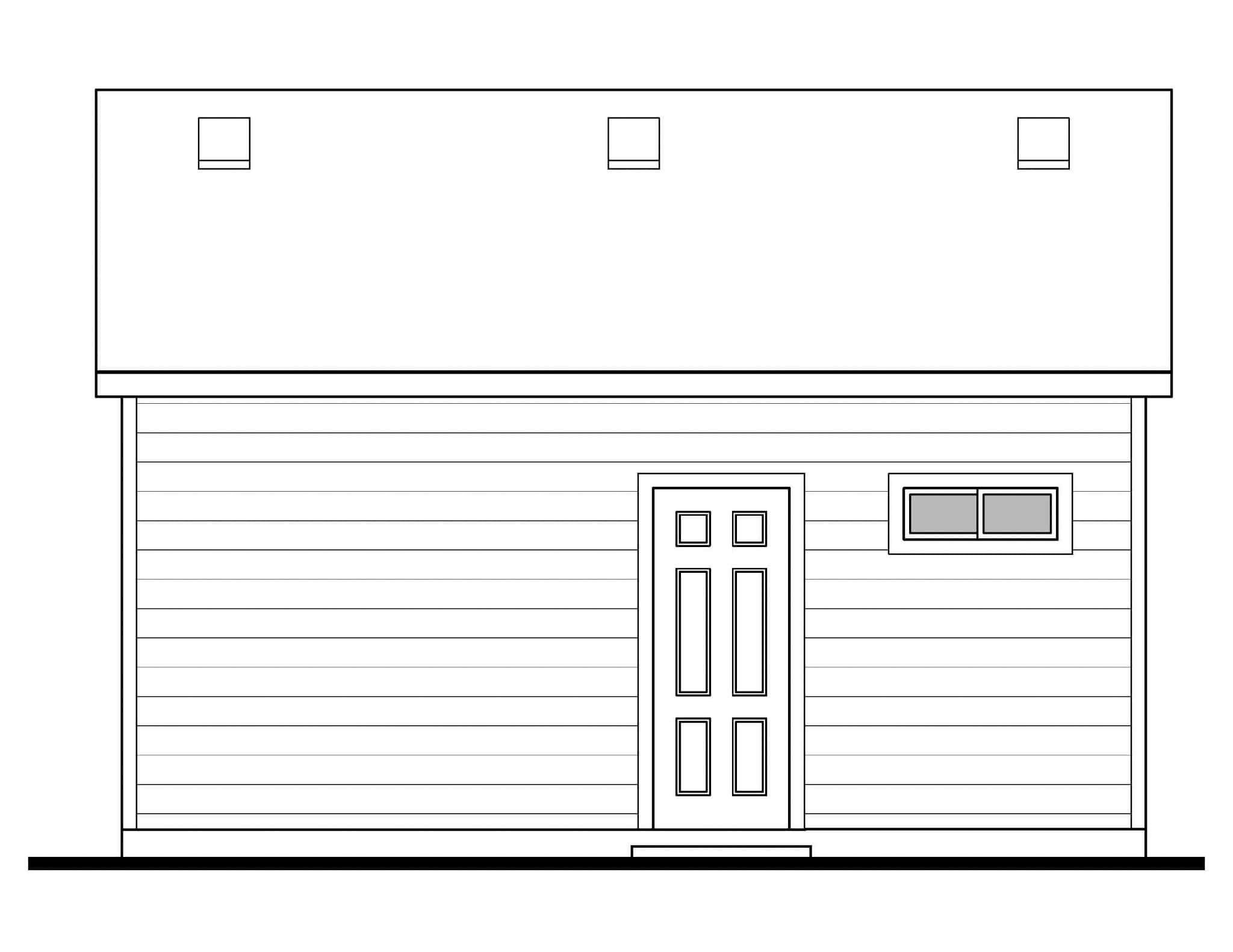

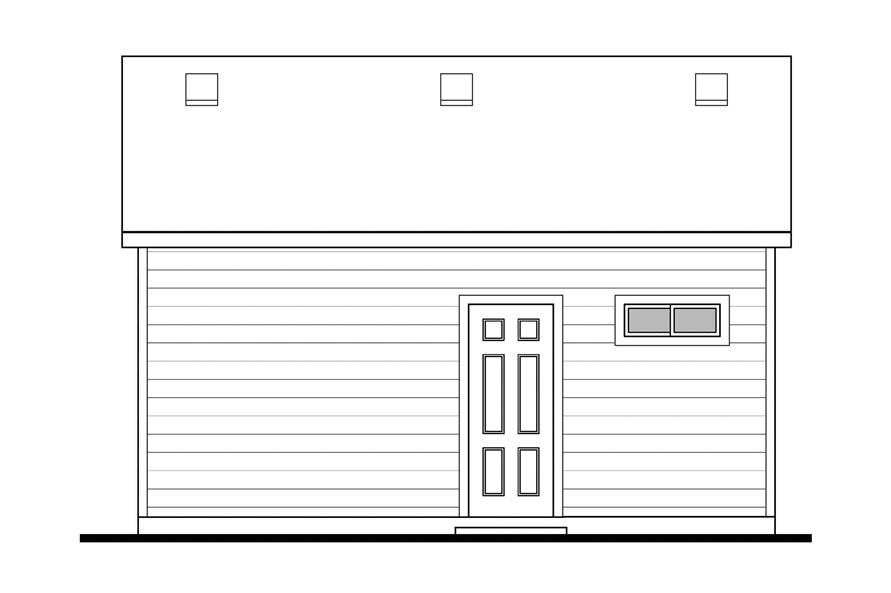

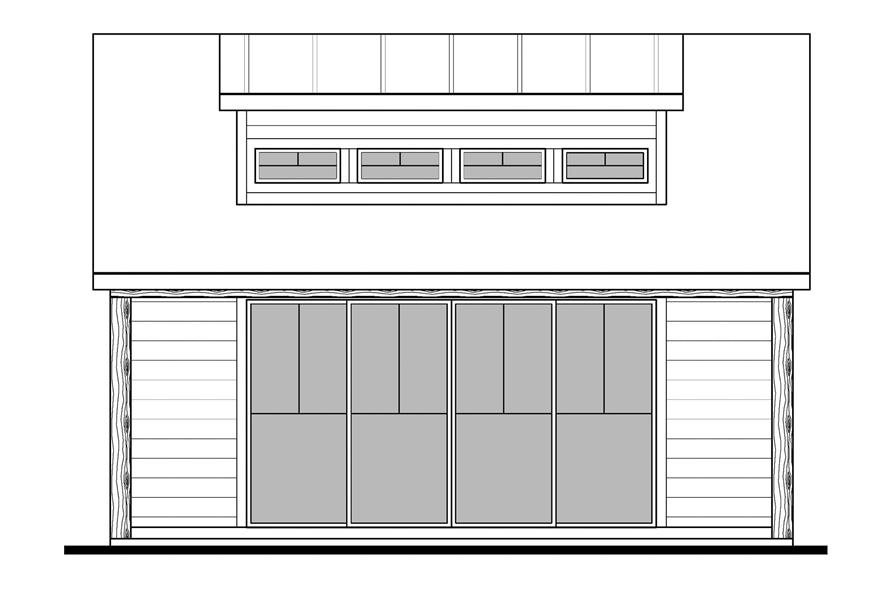

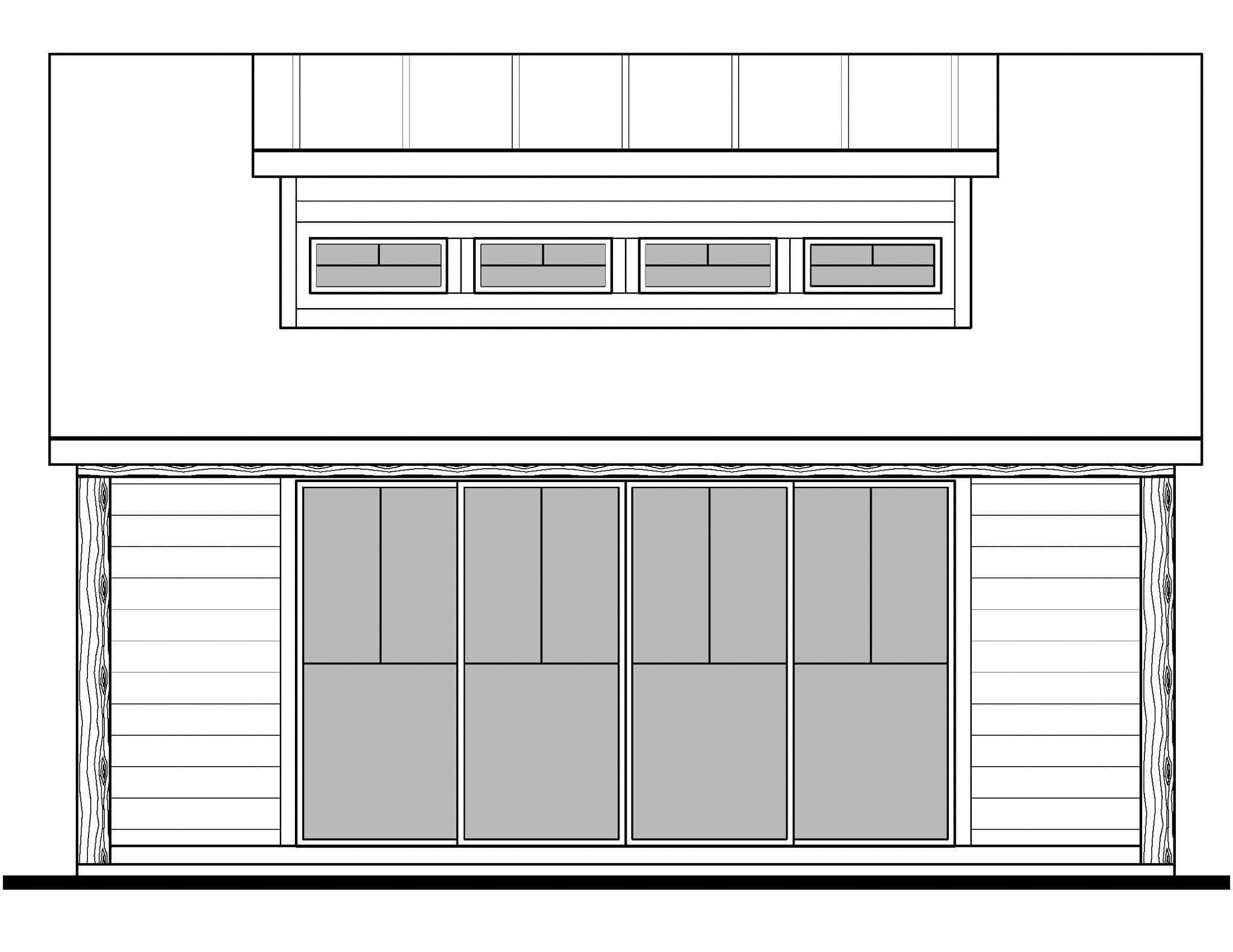

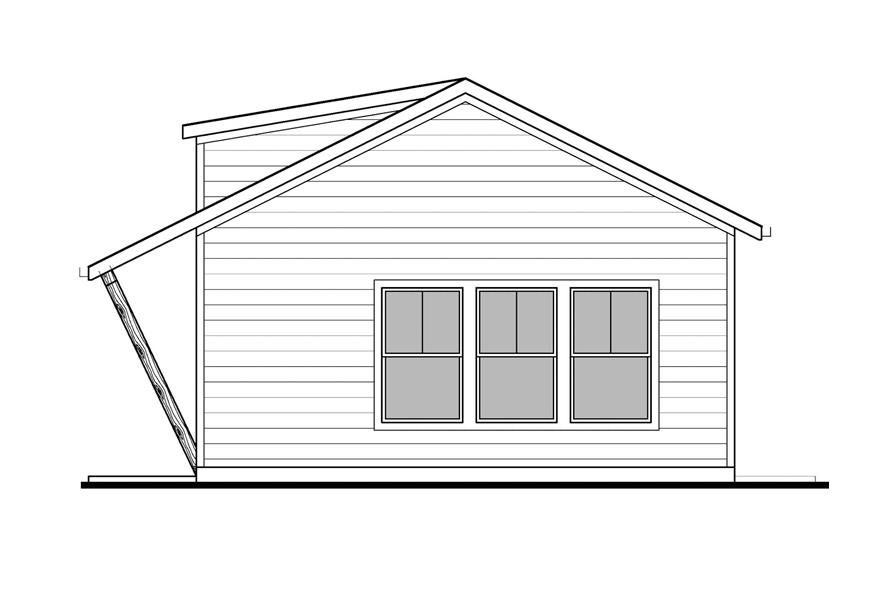

- Front & Rear Elevation Page

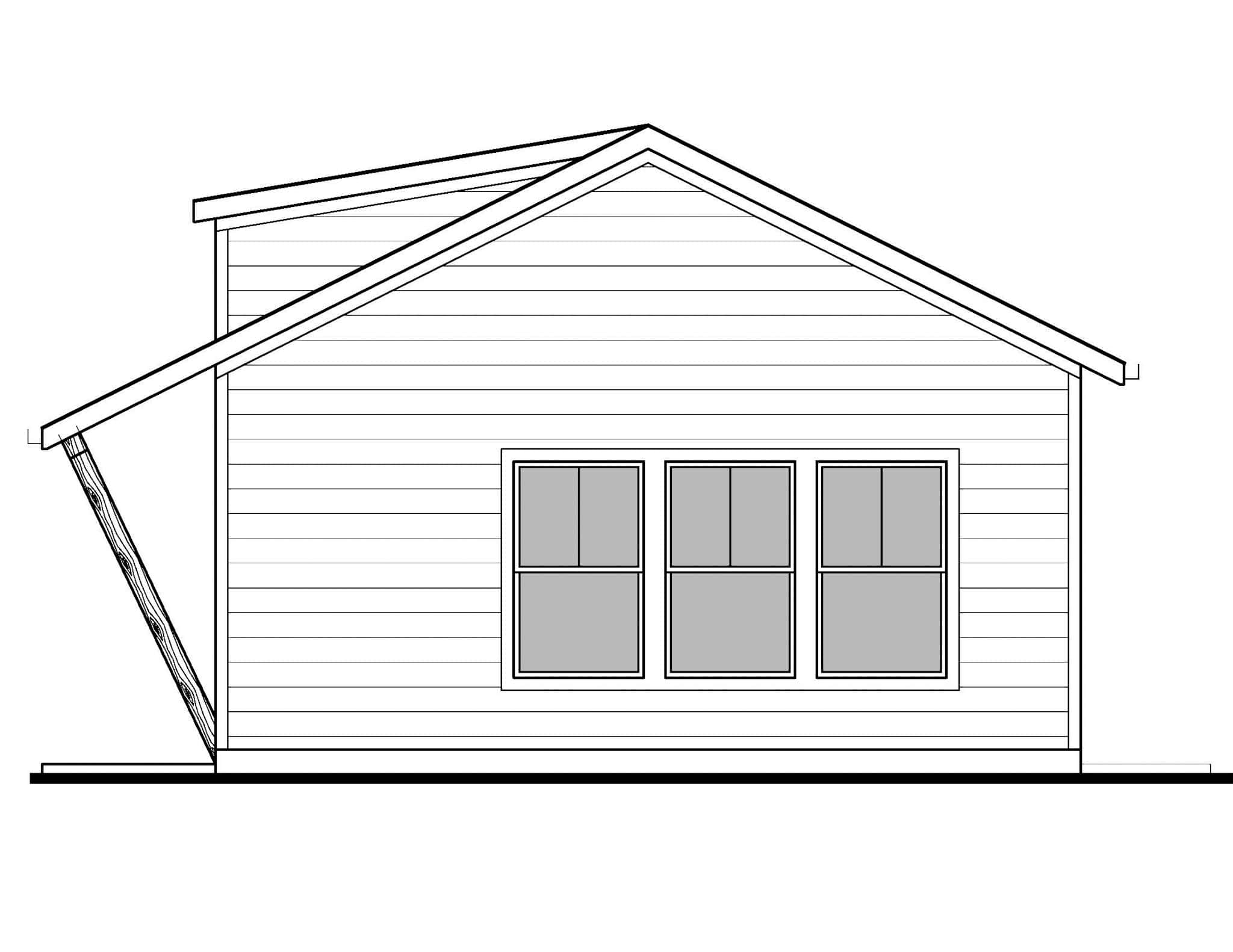

- Left / Right elevation page
- Monolithic foundation plan
- Main Floor Plan – Wood Frame
- Roof slope and drainage Plan
- Roof Framing Plan (Truss)
- Building Section (wood frame)
- Main Electrical Plan
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

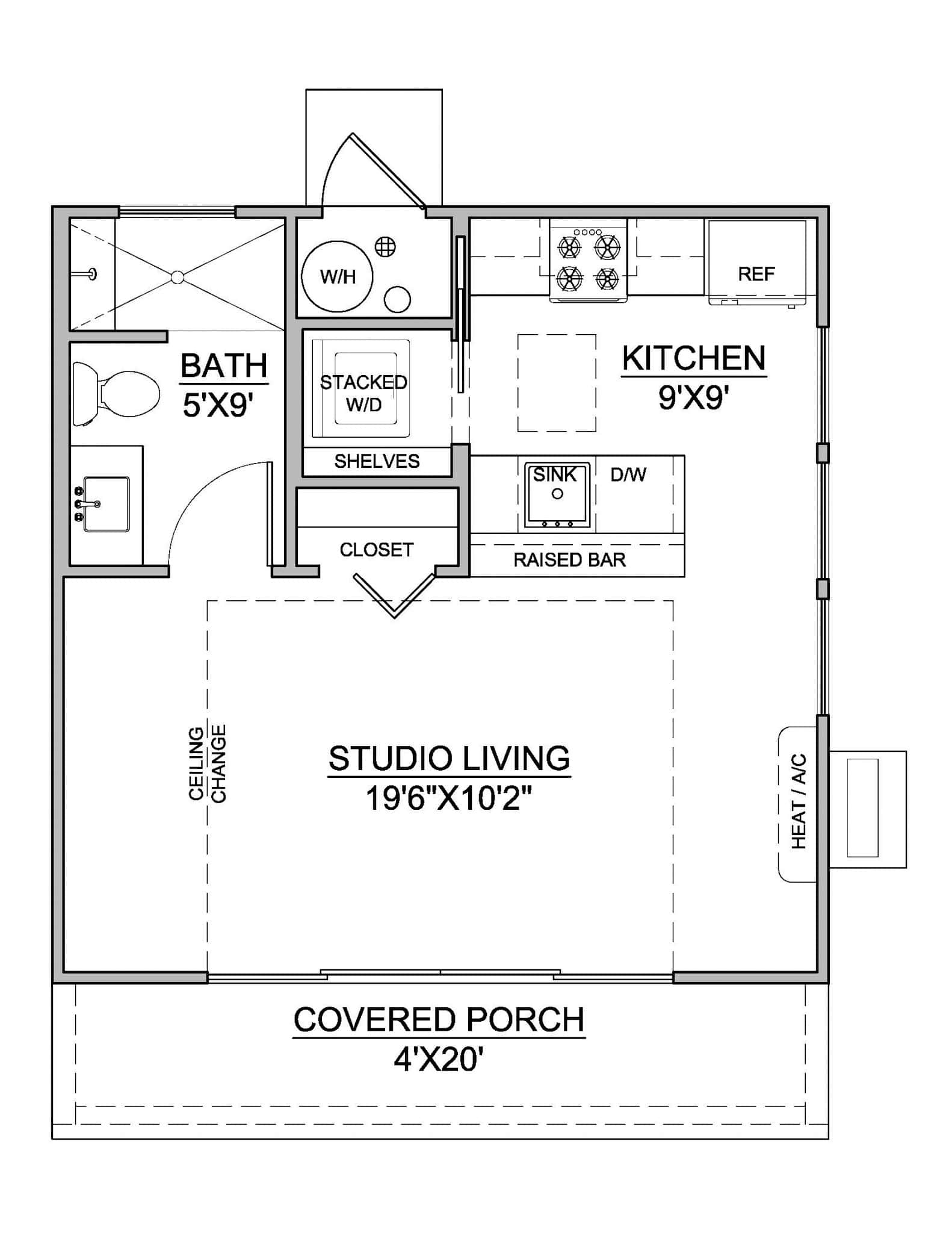

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Roof Pitch
Ceiling Height
Special Feature
Exterior Wall Framing
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
