4-Bedroom, 4003 Sq Ft Transitional Plan with Recreation Room
View VideoImages/Plans copyrighted by designer. Photos may reflect homeowner modifications.
About House Plan #196-1843
How much will it cost to build?
Estimate your costs based on your location and materials.
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Floor Plans
Share Plans
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Additional Notes from Designer
NOTE FROM DESIGNER REGARDING PLAN PURCHASES: 80% of a 5 set purchase price can be applied to any PDF or CAD license upgrade. Additionally, 80% of PDF Study purchase price can be applied to any CAD or PDF license upgrade.
House Plan Description

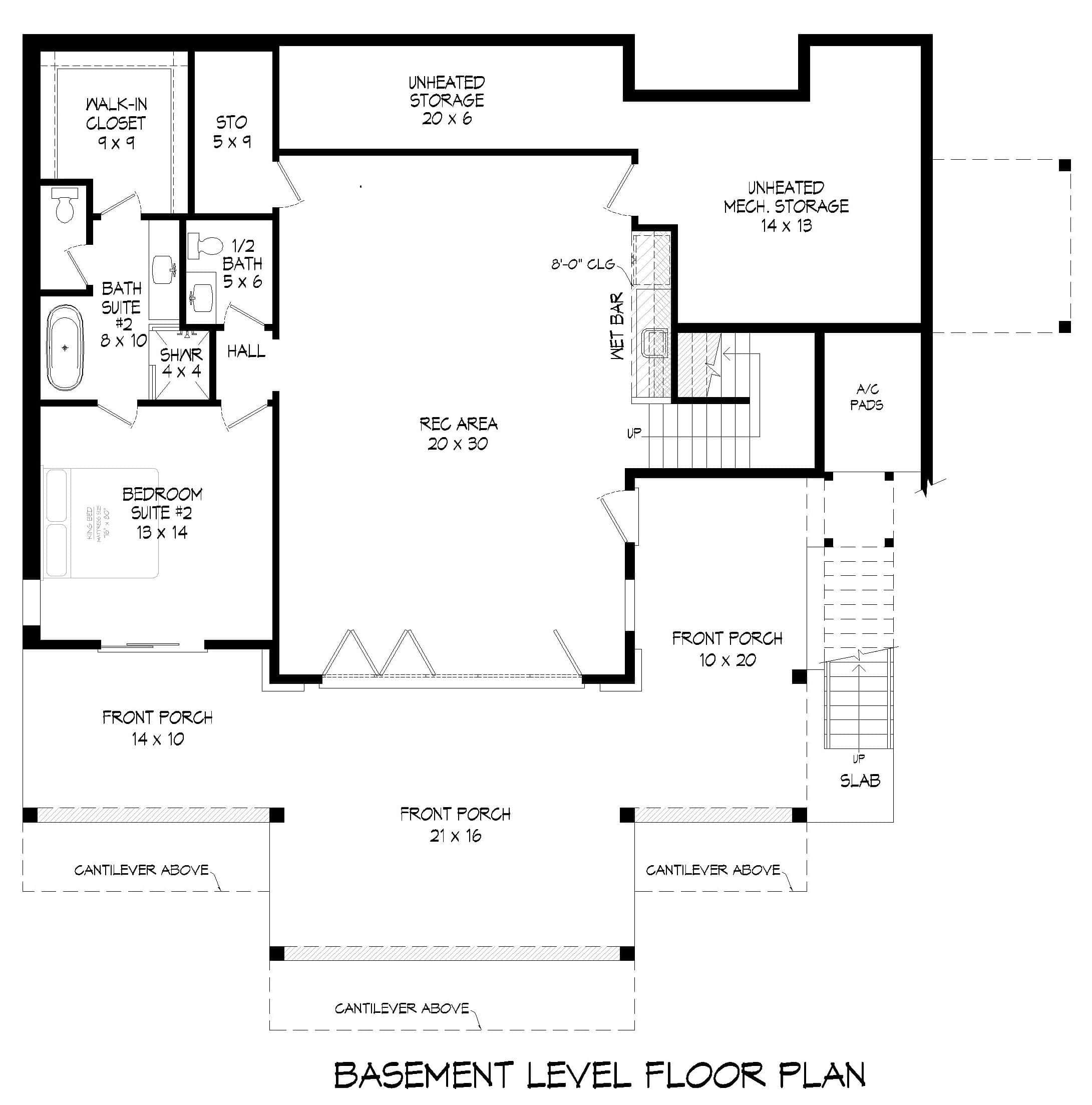

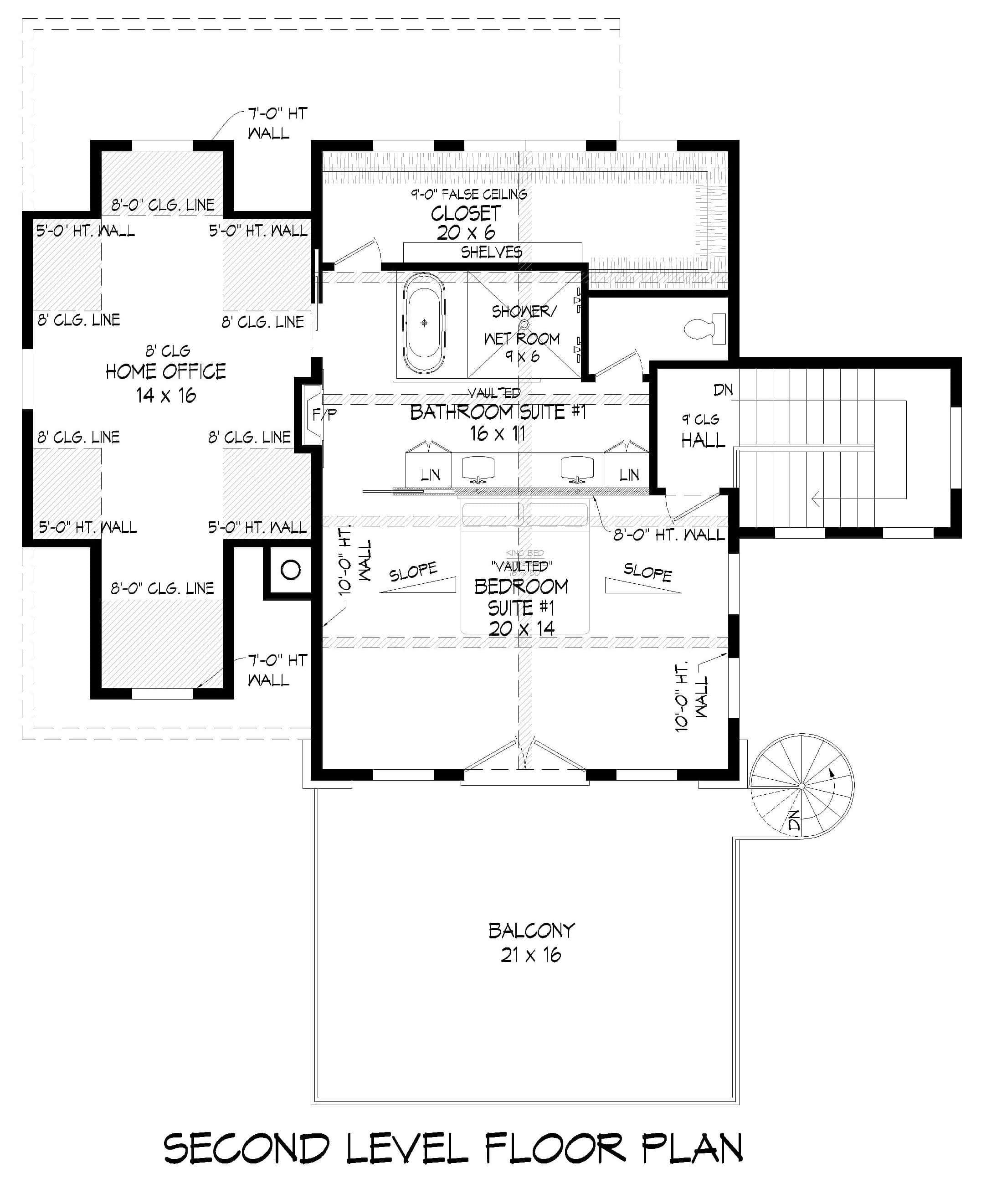

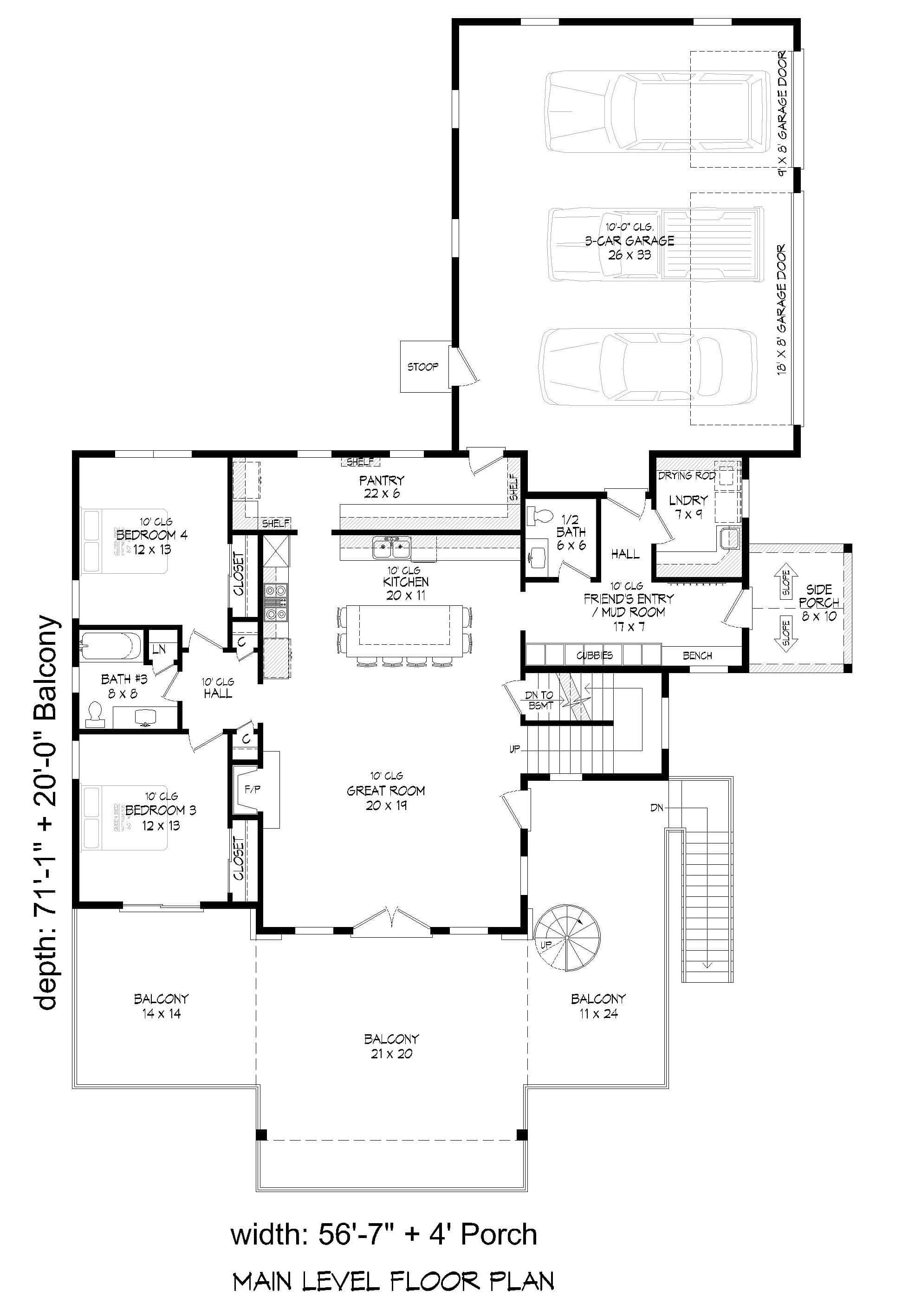

Embrace this 4003 sq ft home with a recreation room and second primary suite in the basement, 15lbs snow load rating, walkout basement, Second floor master, 9' in the ceilings and 10' ceilings on the main level, vaulted ceilings on the 2nd floor and 3 car garage. The primary roof pitch is 8:12 and the secondary roof pitch is 12:12. It is specified for a truss roof framing. The width is 56'-7'' +4' Porch and a depth of 71'-1 + 20'-0'' Balcony.
Home Details
How much will it cost to build?
Estimate your costs based on your location and materials.
What’s Included

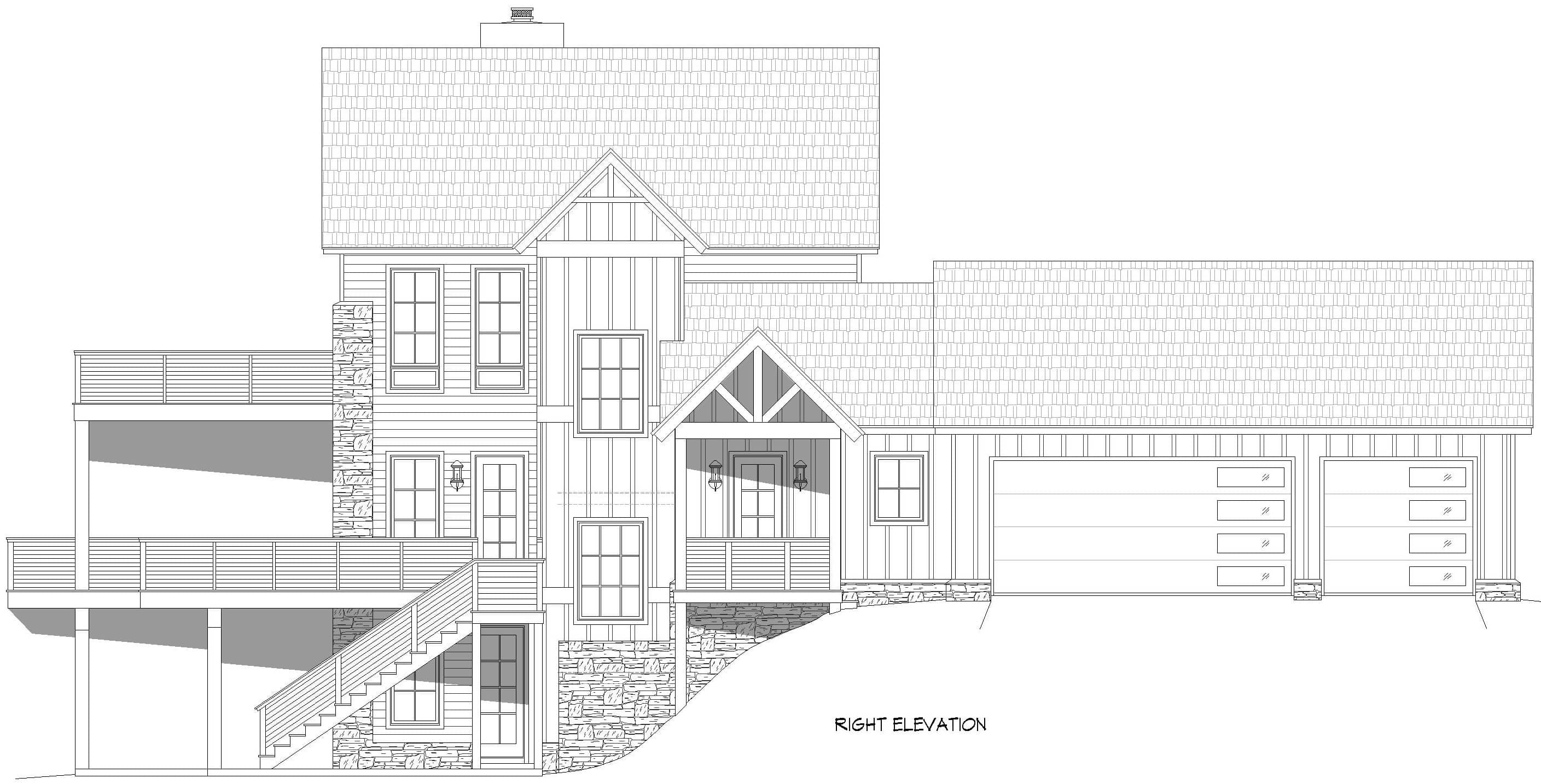

Floor Plans: Floor plan drawings indicating dimensions for constructionRoof Plan: Drawings indicating roof slopes and unique conditionsExterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trimBuilding Sections: Drawings cut through important locations in the structureConstruction Details: Drawings showing specific construction of building elements at a large scaleElectrical Plans: Basic electrical layout (suggested locations of fixtures, switches, and outlets)Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structureA building license: A single-use license for construction at one location onlyOur plans are designed to meet national building codesWhat’s Not Included
We do not guarantee our plans will meet all local building requirements or building codes influenced by local geographic or climatic factors. It is the responsibility of the owner or builder to ensure these plans comply with city, county, municipal, and/or state/provincial building codes.Your plans will not be sealed or stamped by an engineer or architect. It is the owner’s (or builder’s) responsibility to hire a local professional to review and seal or stamp the plans if required by the building department. This must be handled by an engineer or architect licensed in the state/province where the plan is to be built.Additional Information
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
