3-Bedroom, 4230 Sq Ft Mediterranean Plan with Split Master Bedroom
Related House Plans
| 4230 SQUARE FEET | 3 BEDROOMS | 3 FULL BATH | 1 HALF BATH |
| 1.5 FLOOR | 92' 0" WIDTH | 82' 0" DEPTH | 4 GARAGE BAY |
This lovely Mediterranean style home with Southwest influences (House Plan #100-1324) has 4230 square feet of living space. The 1.5 story floor plan includes 3 bedrooms.
Each plan set includes the following:
- Cover Sheet: Shows the front elevation and typical notes and requirements.
- Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements

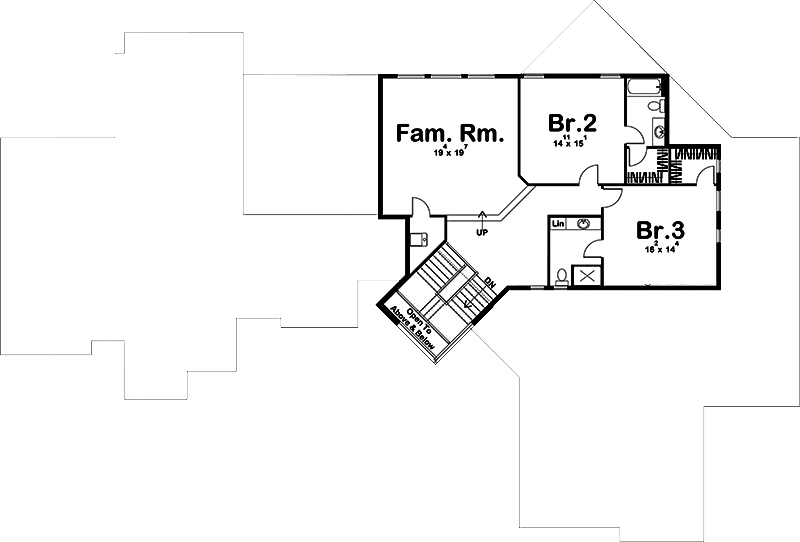

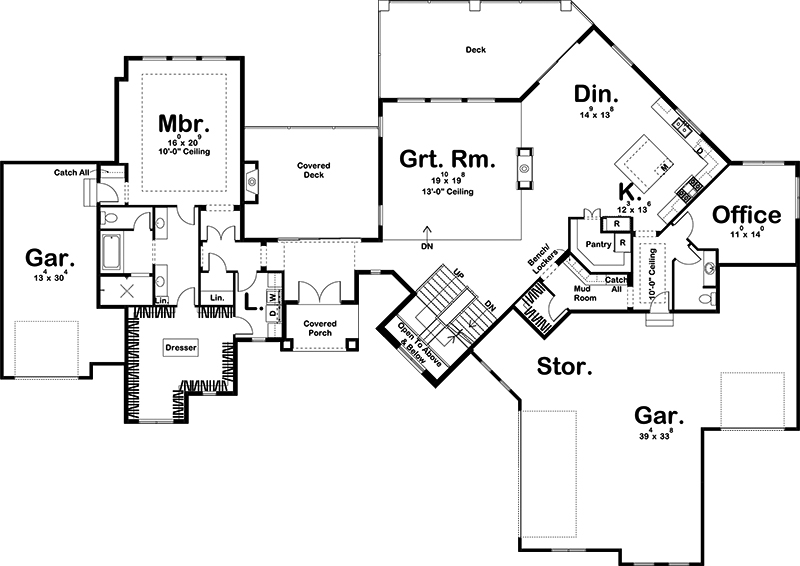

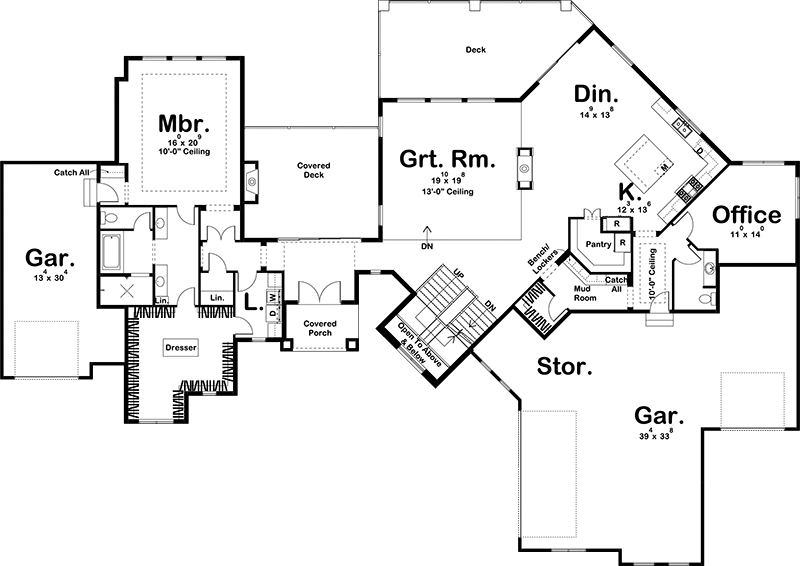

- Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
- Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
- Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
- Roof Plan
- Typical wall section
- Typical stair section
- Cabinets are shown on all plans.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
