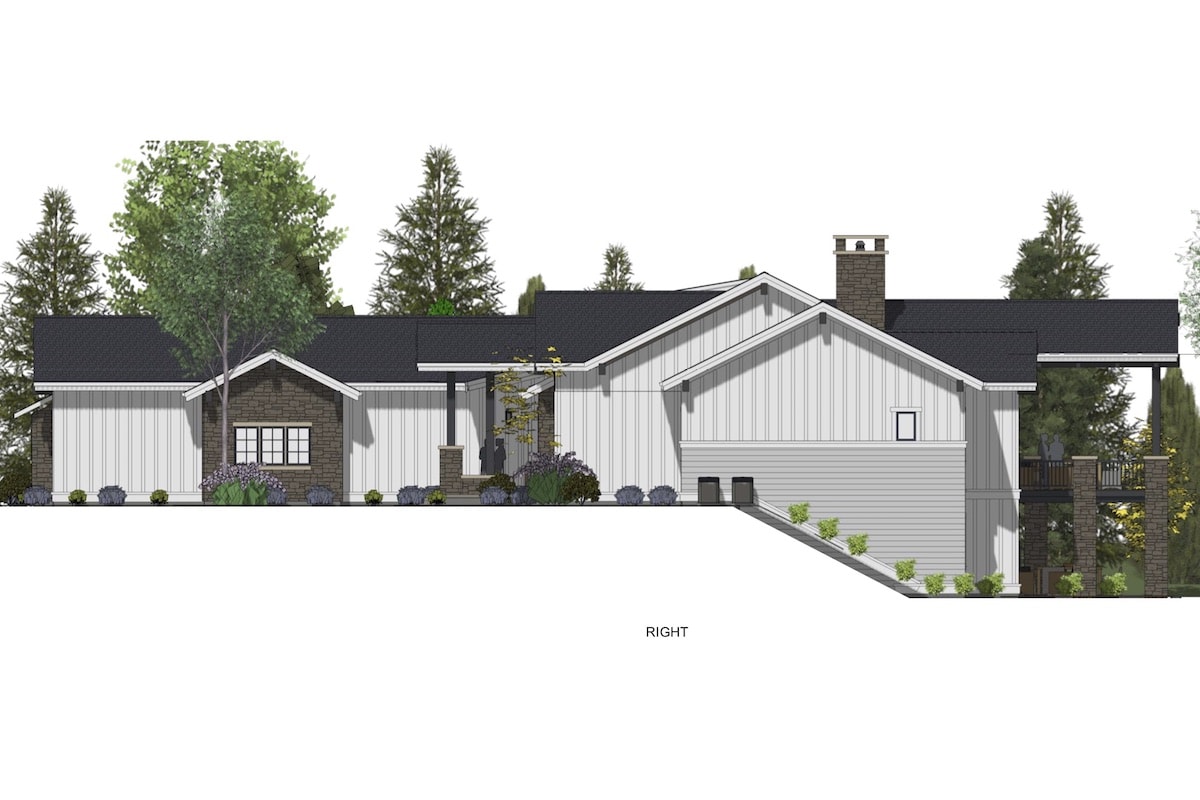

194-1027: Home Plan Right Elevation
194-1027: Home Other Image-Rear View
194-1027: Home Other Image-Front View
194-1027: Home Other Image-Side View

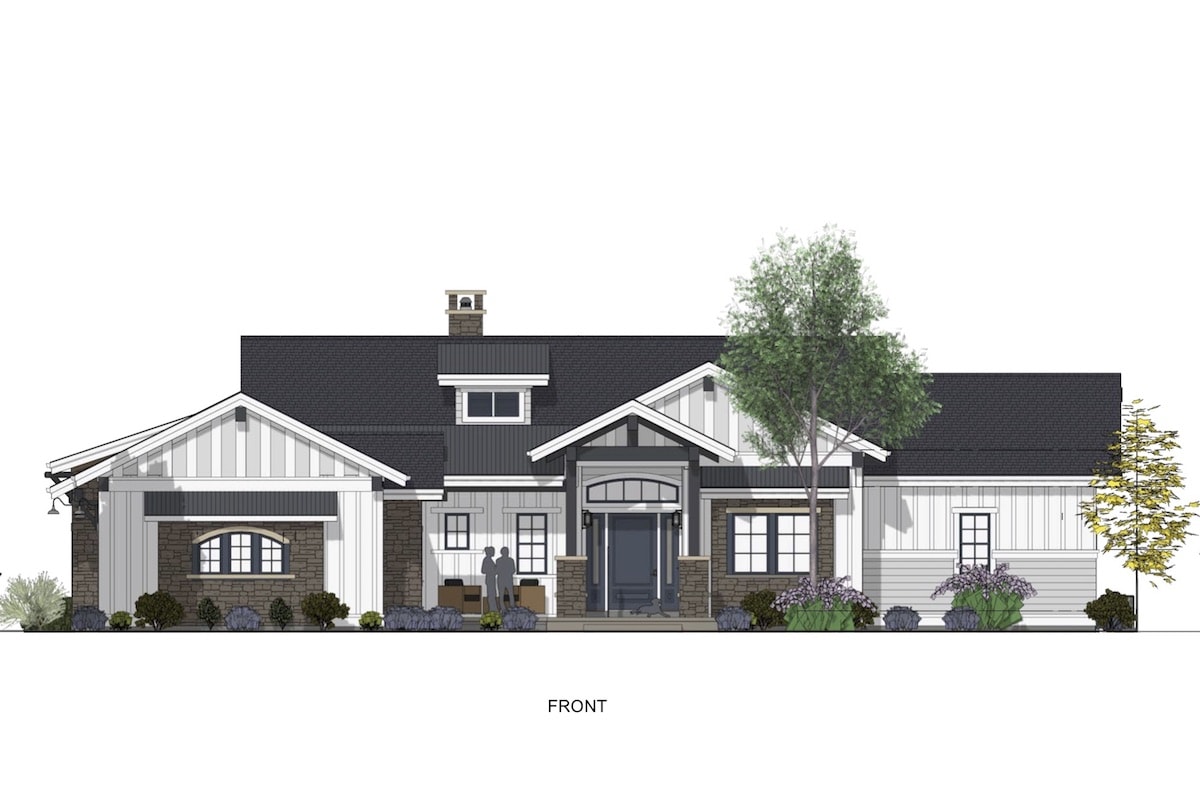

194-1027: Home Plan Front Elevation

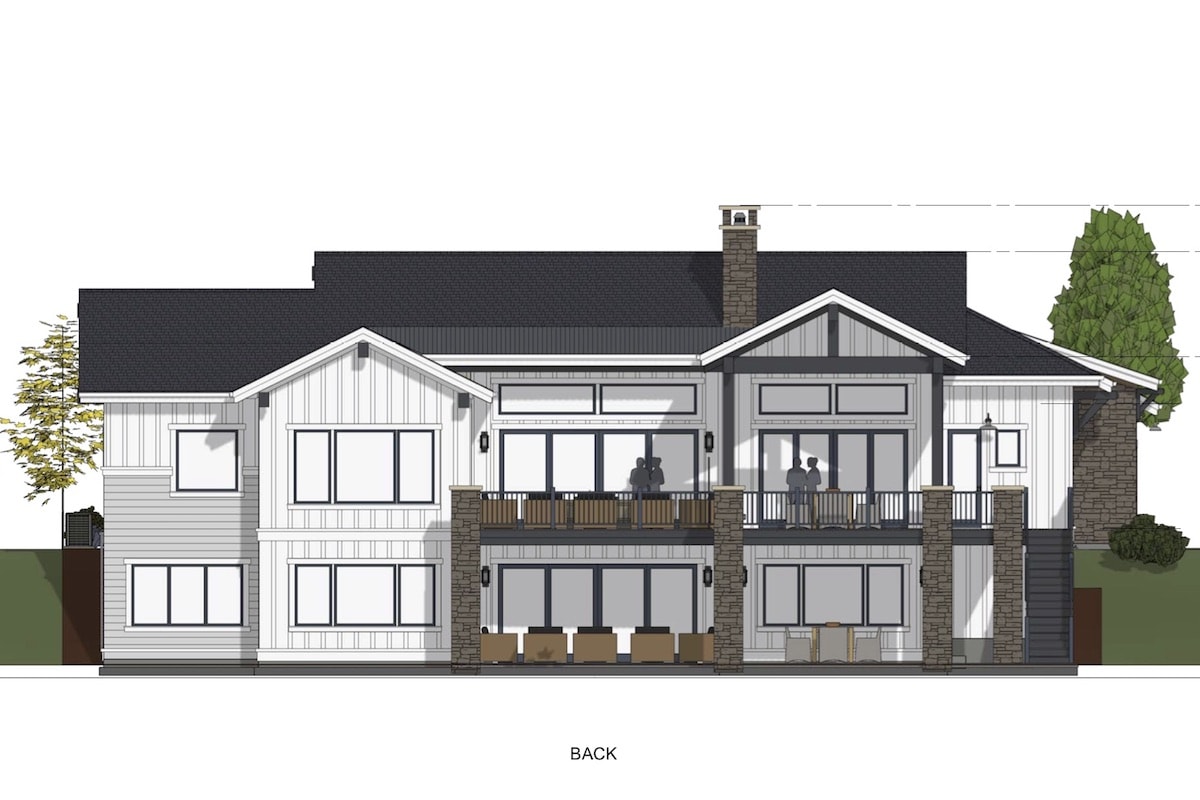

194-1027: Home Plan Rear Elevation
4-Bedroom, 4846 Sq Ft Ranch House Plan - 194-1027 - Front Exterior
194-1027: Home Plan Right Elevation
194-1027: Home Other Image-Rear View
194-1027: Home Other Image-Front View
194-1027: Home Other Image-Side View
194-1027: Home Plan Front Elevation
194-1027: Home Plan Rear Elevation

About Plan # 194-1027

About Plan # 194-1027

4846 SQUARE FEET 4 BEDROOMS 4 FULL BATH 1 HALF BATH
1 FLOOR 83' 0" WIDTH 115' 6" DEPTH 4 GARAGE BAY

This sprawling ranch home with a finished walk-out basement option (House Plan #194-1027) has 4846 square feet of living space. With the finished walk-out basement, the floor plan includes 4 bedrooms and 4.5 baths.

Each plan set includes the following:

  • Cover Sheet - project statistics, including square footage, 3D images (typically), general notes, and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts, joist direction, and often electrical outlets, switches, and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations, and other general notes.
  • Upper-Level Plan (if needed) - same information as Main Level.
  • Main Level Electrical Plan - electrical outlets, switches, and light locations shown.
  • Upper-Level Electrical Plan (if needed) - electrical outlets, switches, and light locations shown. (sometimes just the lighting is shown)
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions, and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

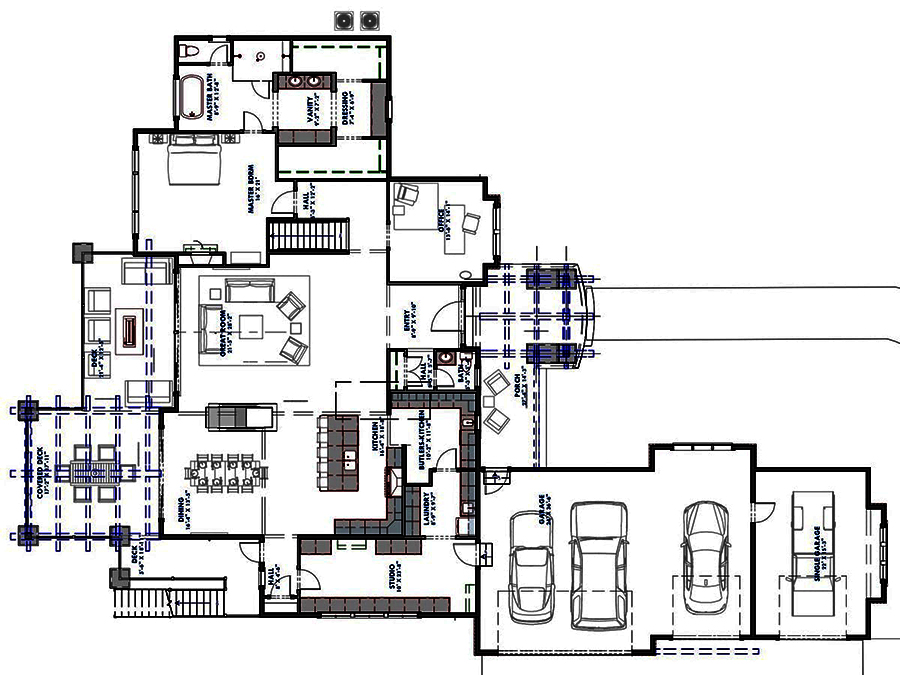

Home Plan: #194-1027 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #194-1027

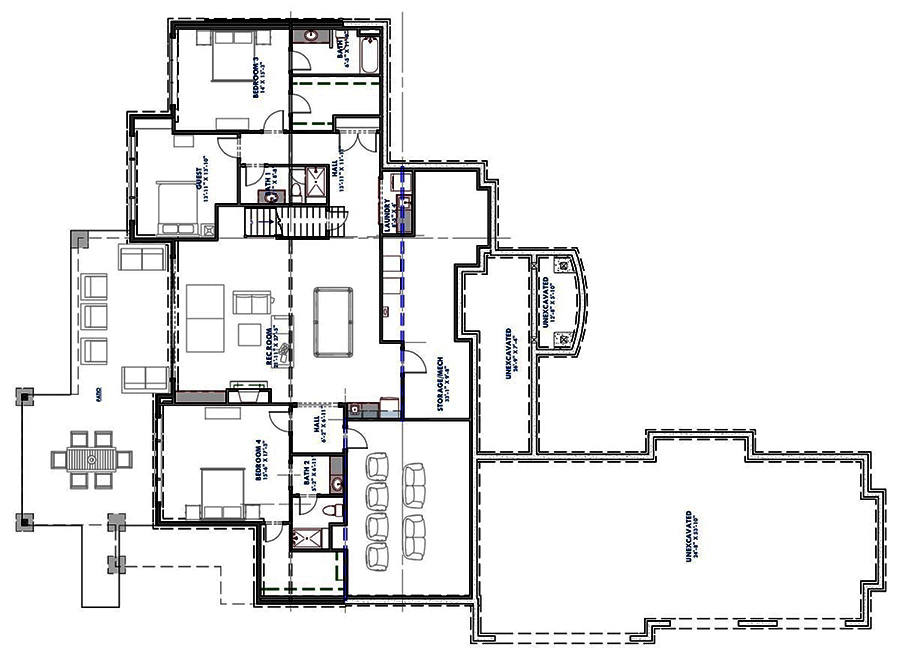

#194-1027 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #194-1027
Home Plan: #194-1027 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #194-1027
#194-1027 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #194-1027
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 194-1027
Floors:
1
Bedrooms:
4
Full Baths:
4
Half Baths:
1
Garage :
4

Square Footage

Heated Sq Feet:
4846
Main Floor:
2293
Lower Floor:
2553
Unfinished Sq Ft:
Lower Floor:
319
Garage :
1230
Porch :
1712

Dimensions

Width:
83' 0"
Depth:
115' 6"
Ridge Height:
22' 4"

Architectural Styles

Country
Ranch
Contemporary
Craftsman

Exterior Wall Material

Vinyl Siding
Rock/Stone
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

2/12
6/12

Ceiling Height

10 Foot Ceiling

Special Feature

Dining Room
Home Office
Main Level Laundry
Storage

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Kitchen Features

Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer
