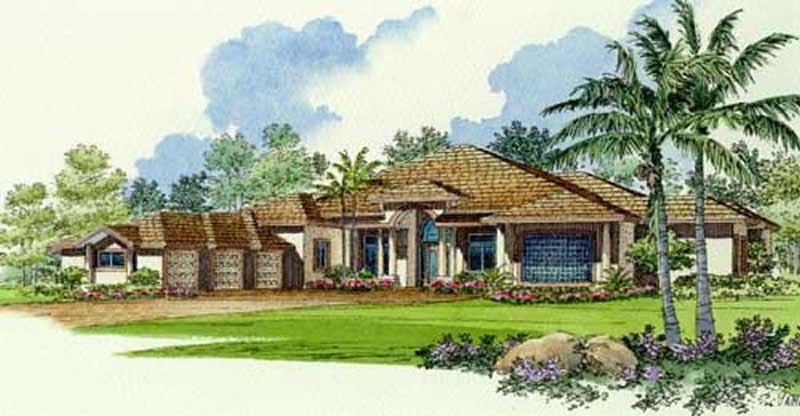

6-Bedroom, 4945 Sq Ft Coastal Plan with Nook/Breakfast Area
Related House Plans
| 4945 SQUARE FEET | 6 BEDROOMS | 4 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 94' 9" WIDTH | 127' 6" DEPTH | 3 GARAGE BAY |
House Plan Features: Concrete block exterior construction, Covered Entry with round columns Foyer open to Living Room French doors to Study Master Suite with French doors, Sitting Room with Patio access, and Exercise Room Master Bath with Dressing area, two walk-in closets, whirlpool tub, split vanities and walk-in shower Kitchen with island range and ample cabinets Family Room open to Cafe with Rear Covered Patio access All secondary bedrooms with private bath access
Each plan set includes the following:
- Floor plan
- Kitchen & Bath layout
- Exterior elevations
- Sections
- Structural plans
- Foundation plan
- Roof plan
- Mechanical layout
- Electrical layout
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

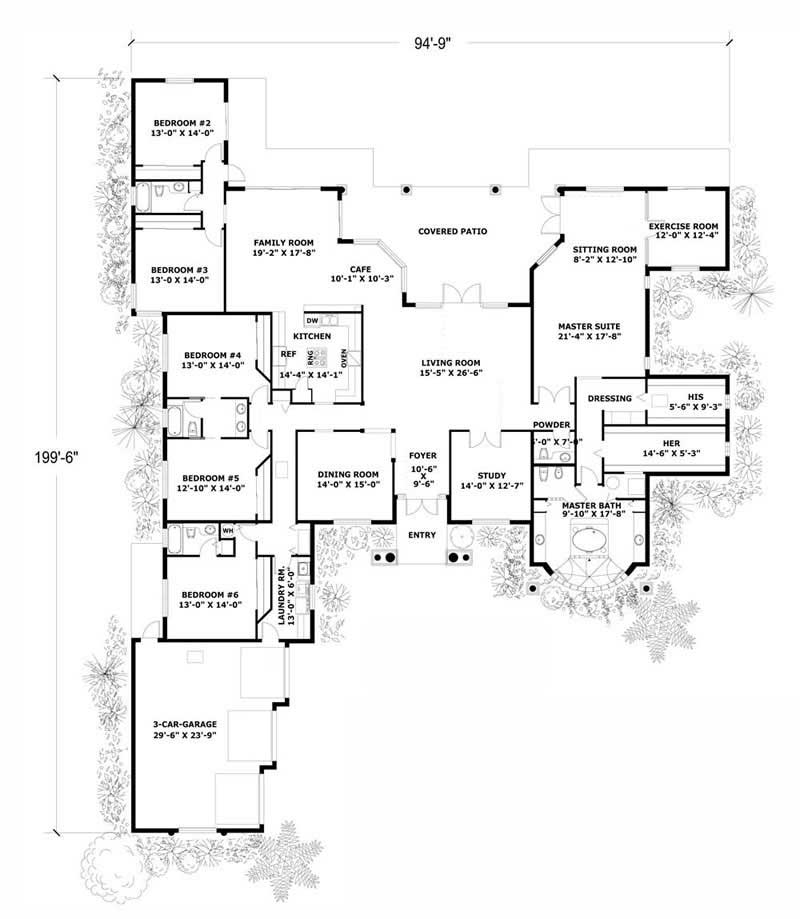

FLOOR PLANS Flip Images
