3-Bedroom, 5925 Sq Ft Modern Plan with Private Deck

Each plan set includes the following:

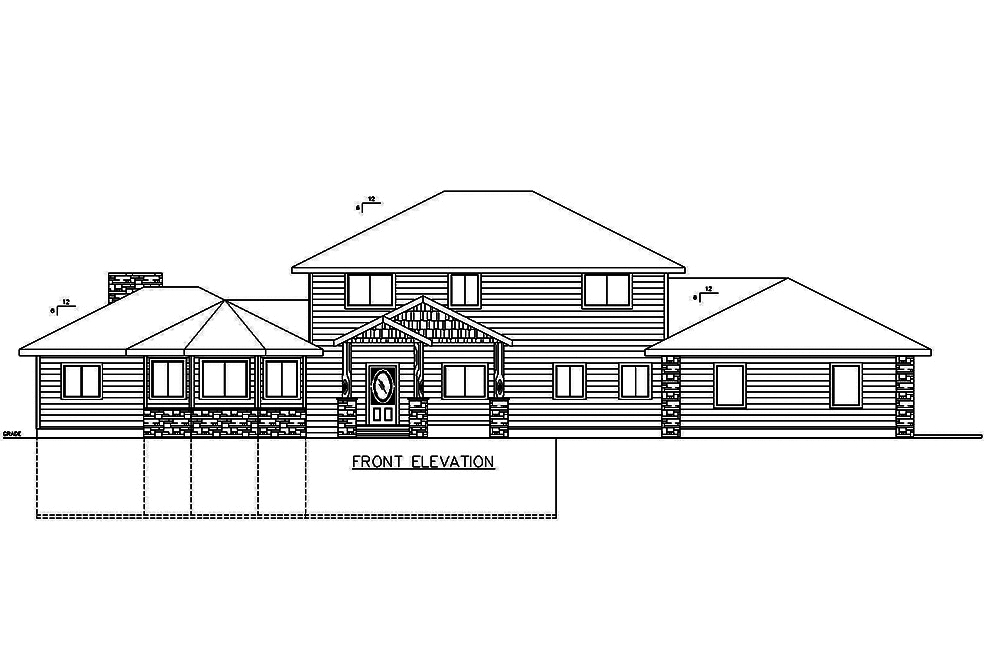

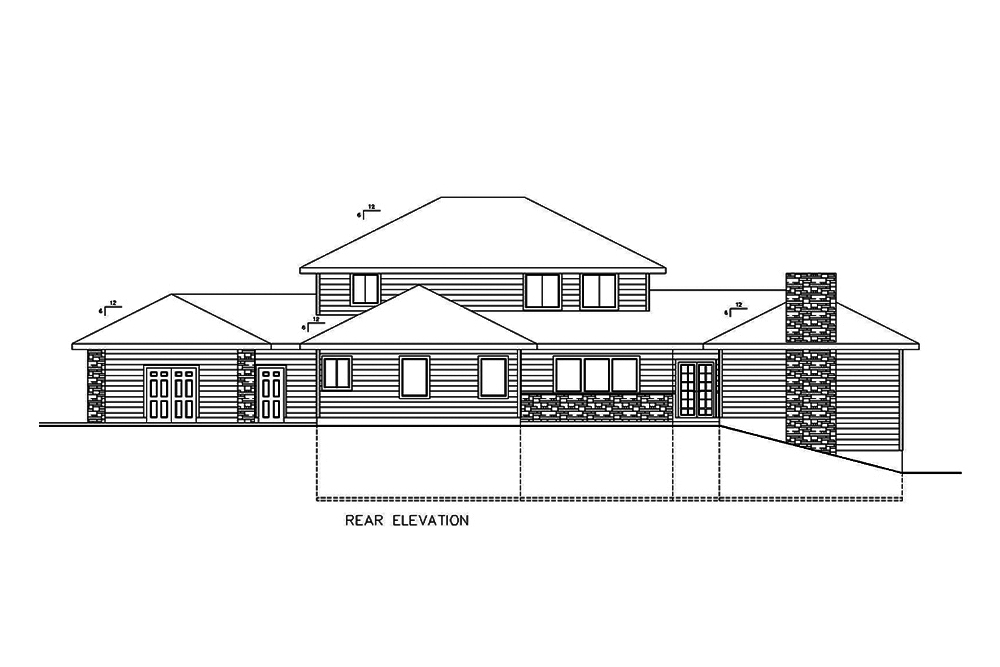

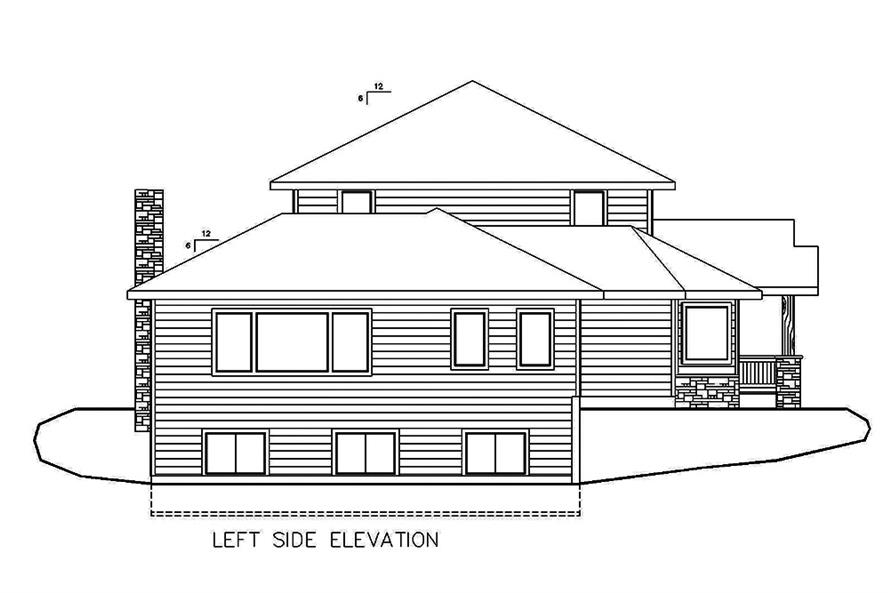

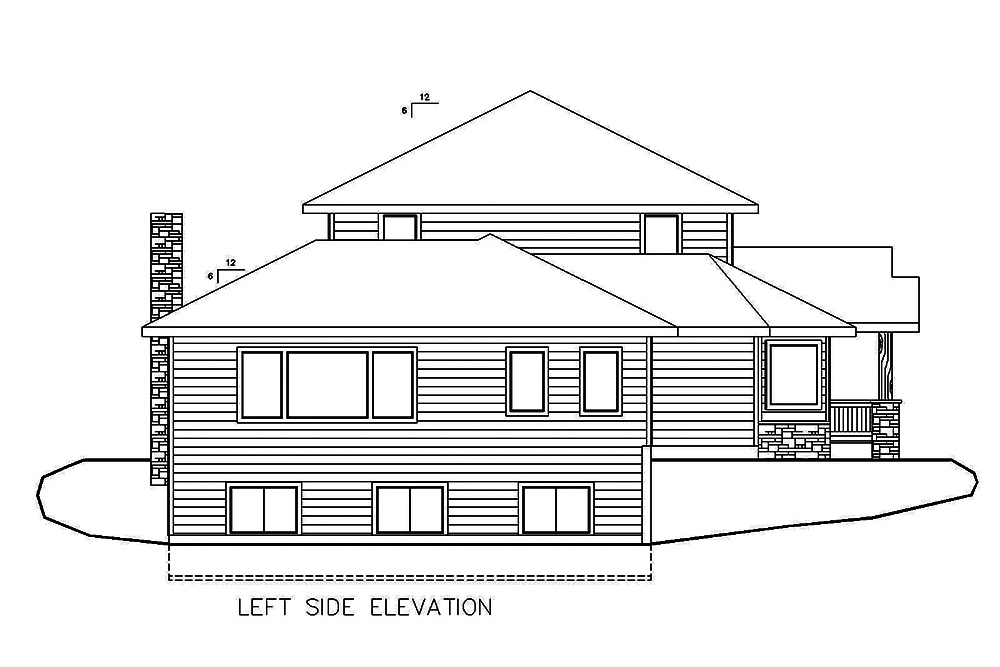

• Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.

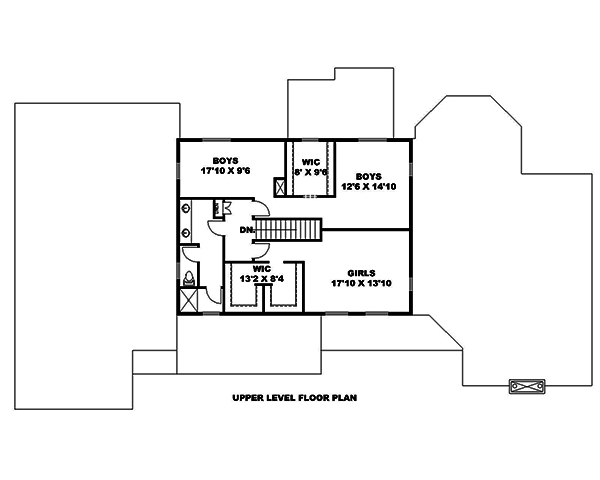

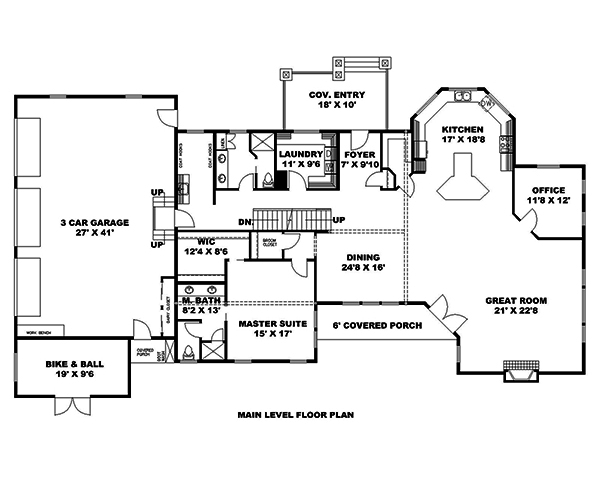

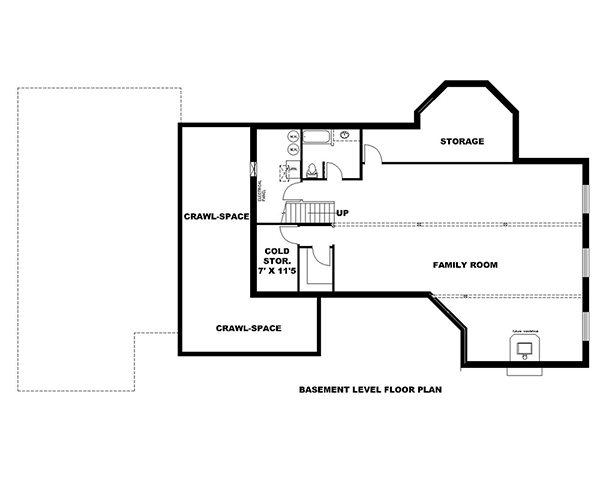

• Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.
• Foundation plan: shows footing, stem wall, and slab placement, including all connection details.
• Floor and roof framing plans show truss/rafter placements, including all beams/connection details.
• Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.
• Electrical layout
• General notes/details to cover the entirety of the project

These items are NOT included:

• Architectural or Engineering Stamp - handled locally if required.
• Site Plan - handled locally when required.
• Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
• Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
• Energy calculations - handled locally when required.
