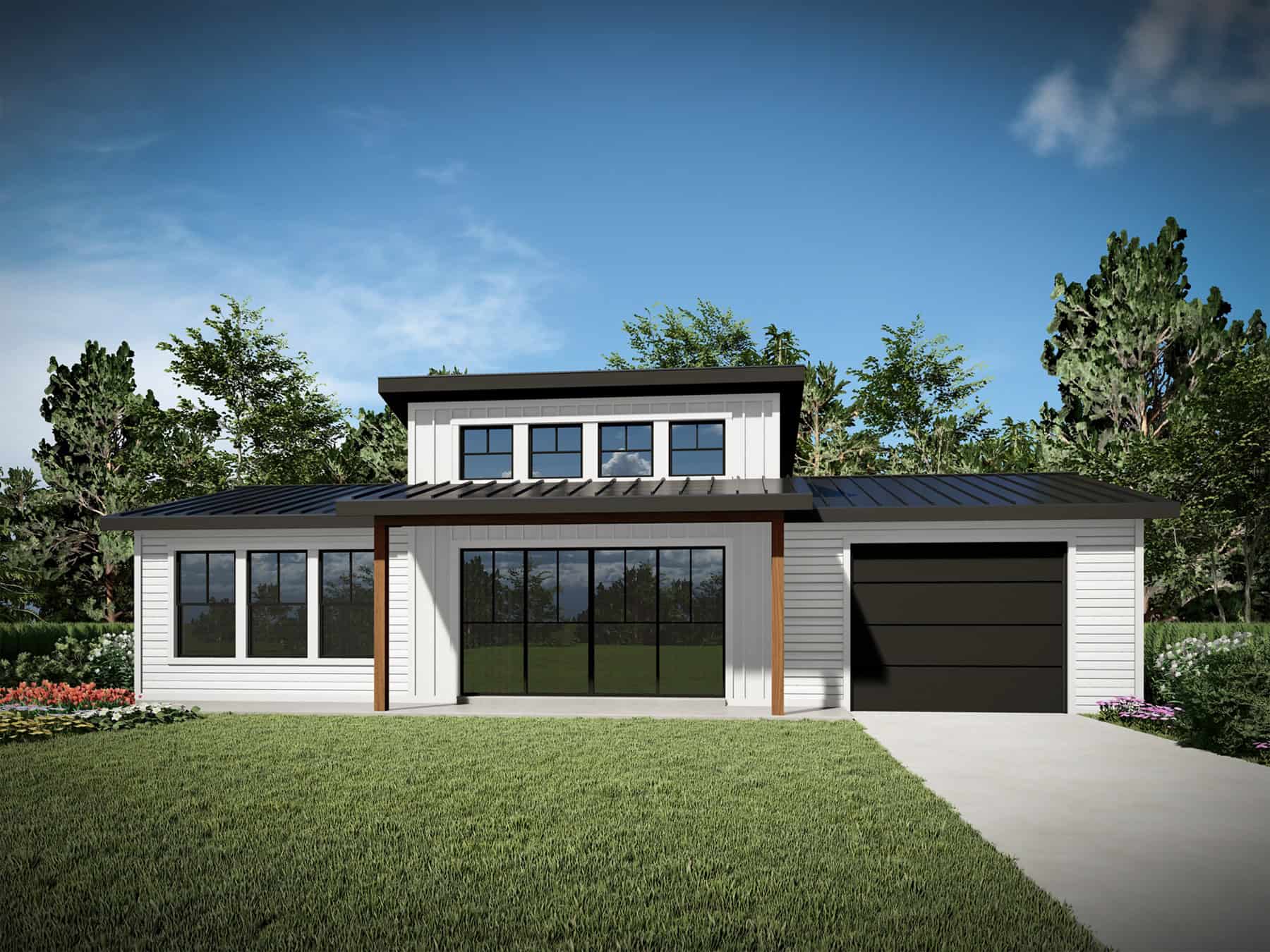

1-Bedroom, 660 Sq Ft, Tiny Contemporary ADU Plan with Dining Nook Area
Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.
About House Plan #208-1042
How much will it cost to build?
Estimate your costs based on your location and materials.
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.

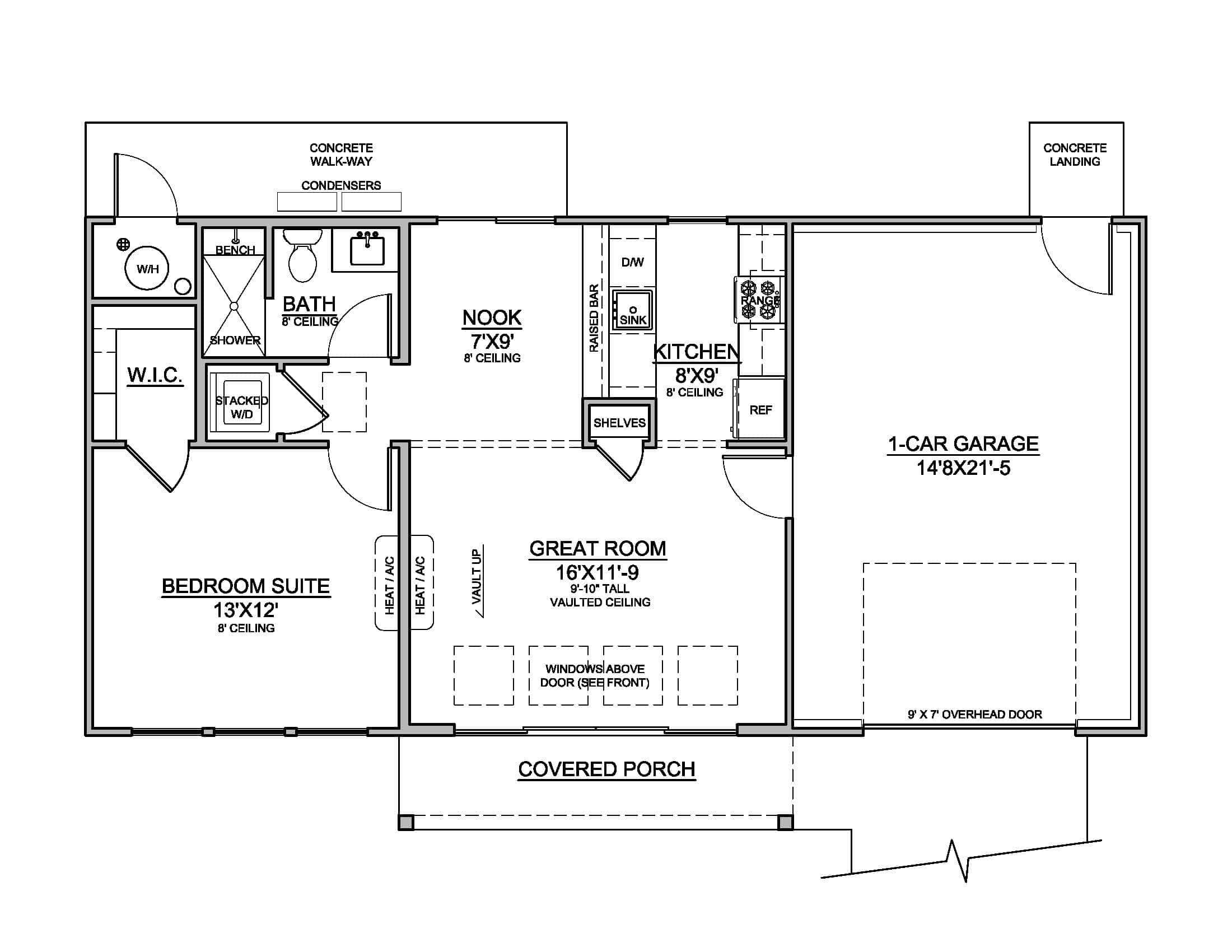

Floor Plans
Share Plans
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Additional Notes from Designer
PLEASE NOTE: This designer's 5 sets, 8 sets & CADs all come with a PDF as well.
NOTE: Porch sq ft figures may include any deck sq ft as well.
House Plan Description
This 660 sq ft Mid-Century Modern ADU blends sophistication with practicality, showcasing a 13' tall vaulted great room that creates an open, airy feel. Featuring a spacious bedroom with walk-in closet, a full kitchen with dining nook, and independent mini-split HVAC systems for comfort, this unit also includes a one-car garage and dedicated utility closet, making it ideal for modern living or investment.
Home Details
How much will it cost to build?
Estimate your costs based on your location and materials.
What’s Included
Cover sheet with Rendering on frontGeneral IRC notes pageFront & Rear Elevation PageLeft / Right elevation pageMonolithic foundation planMain Floor Plan – Wood FrameRoof slope and drainage PlanRoof Framing Plan (Truss)Building Section (wood frame)Main Electrical PlanWhat’s Not Included
Architectural or Engineering Stamp - handled locally if required.Site Plan - handled locally when required.Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.Energy calculations - handled locally when required.Additional Information
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
