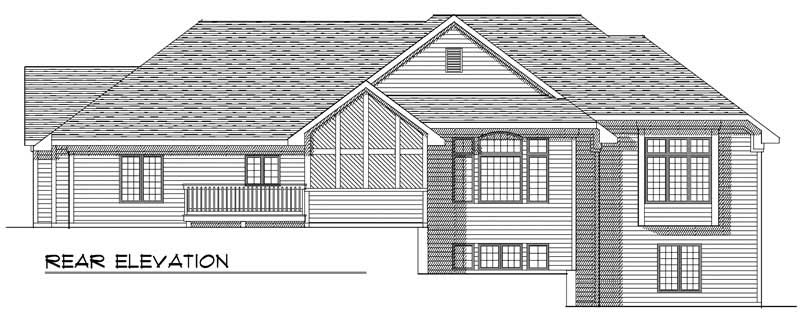

REAR ELEVATION

About Plan # 101-1850

About Plan # 101-1850

3578 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 82' 4" WIDTH 71' 0" DEPTH 3 GARAGE BAY
This handsome split-level home has a lot to offer the active family. On the main level the country-sized island kitchen adjoins an informal eating area that opens into the screen porch. This porch, connected to a rear deck, guarantees that lots of time will be spent outdoors barbecuing or lounging. Meals can also be served in the elegant formal dining room. There are two bedrooms located on this floor; a third can be found on the lower level. The master suite is filled with amenities; a tub surrounded by windows, twin sinks, and two walk-in closets. Also on this floor, enjoy a great room with a fireplace and built-in cabinets, a three-car garage, and a large laundry area. Downstairs, you will find a lower-level recreation room that provides space for indoor activities, an office perfect for working from home, and a vast storage area, as well as an area that can be developed for additional needs.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

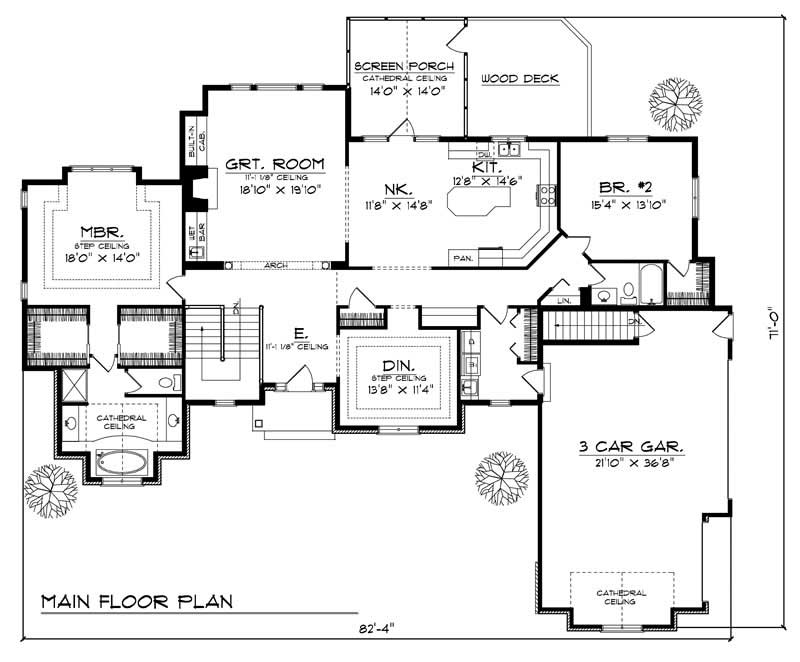

Home Plan: #101-1850 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #101-1850

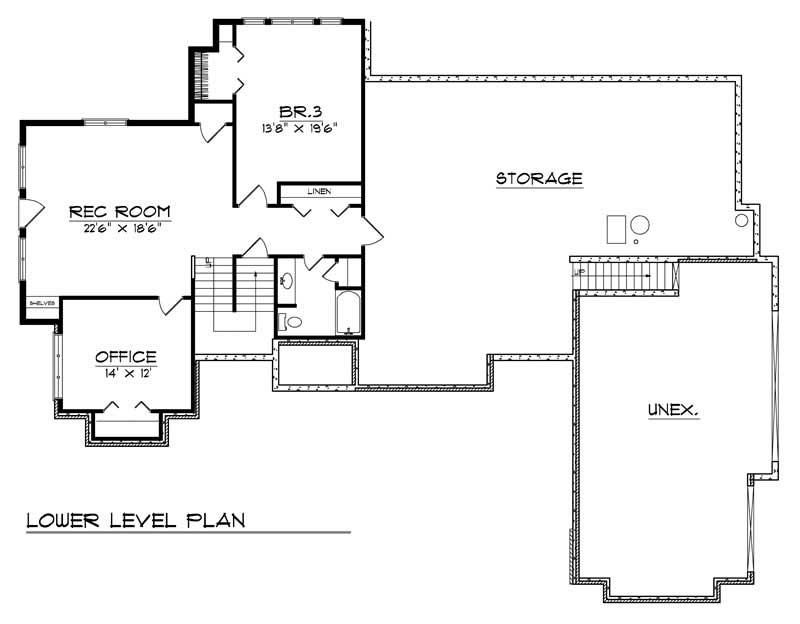

#101-1850 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #101-1850
Home Plan: #101-1850 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #101-1850
#101-1850 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #101-1850
