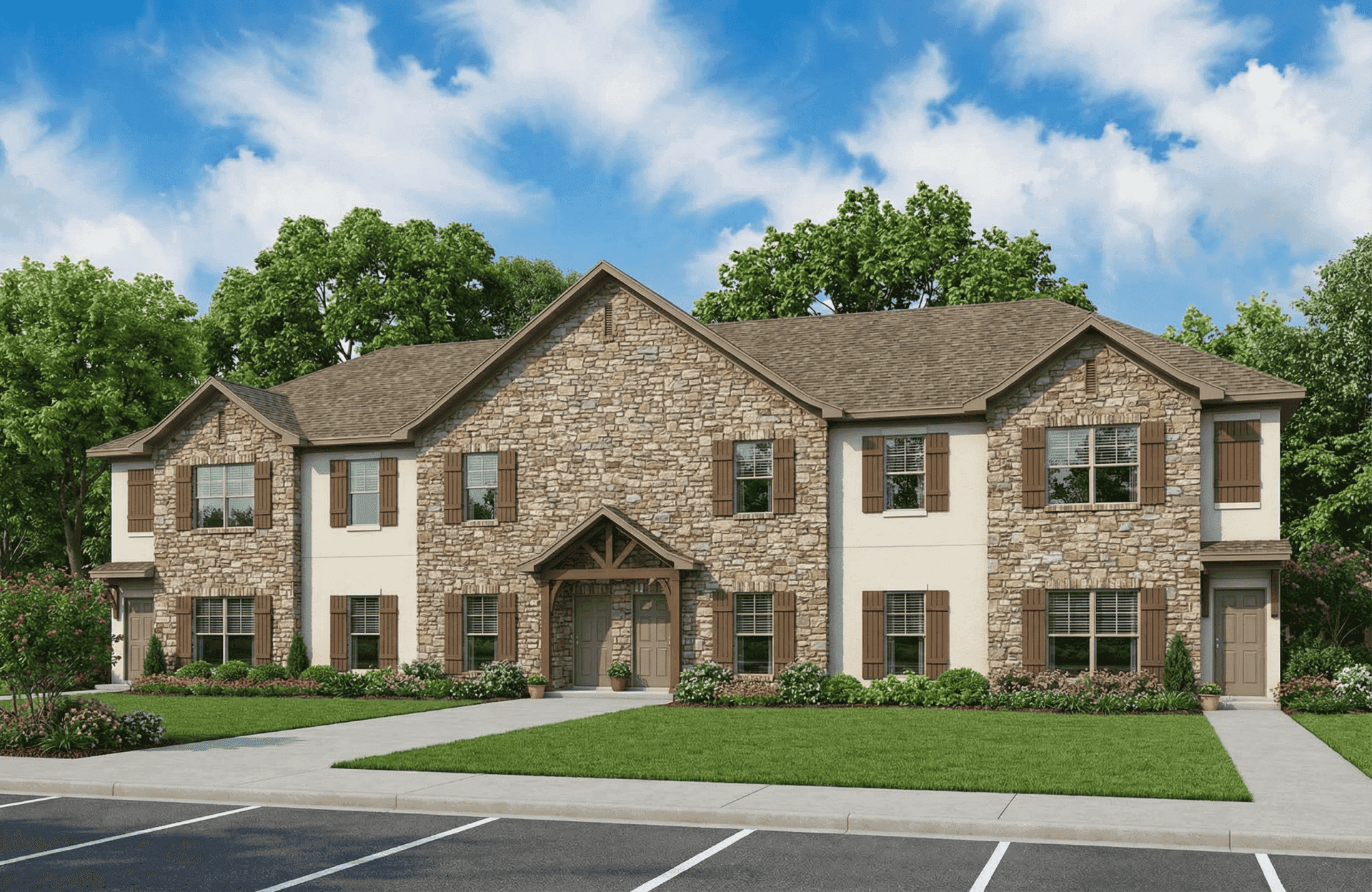

4-Unit, Small Apartment Complex Plan
Related House Plans
| 1541 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 1 HALF BATH |
| 2 FLOOR | 90' 0" WIDTH | 30' 0" DEPTH | 0 GARAGE BAY |

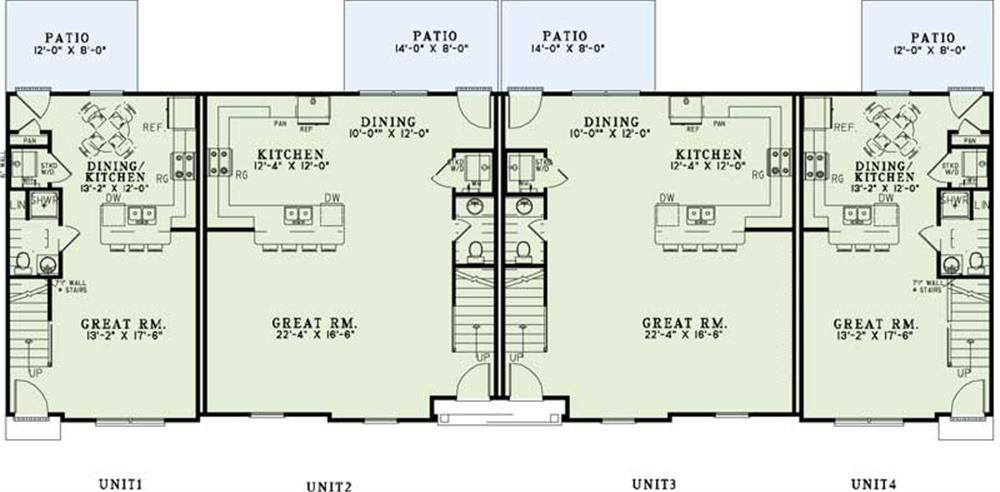

This multi-unit floor plan has four units each Unit #1 and #4 each have 2 bedrooms and 2 baths. Unit #2 and #3 each have 3 bedrooms and 2.5 baths. Each unit has a private patio space.
Floor Plan Specifications:
Heat/Cooled Main Floor Units 1 & 4: 529 square feet
Heat/Cooled Main Floor Units 2 & 3: 787 square feet
Heat/Cooled Upper Floor Units 1 & 4: 483 square feet
Heat/Cooled Upper Floor Units 2 & 3: 754 square feet
Heat/Cooled Total Units 1 & 4: 1012 square feet
Heat/Cooled Total Units 2 & 3: 1541 square feet
Each plan set includes the following:
-
floorplan
-

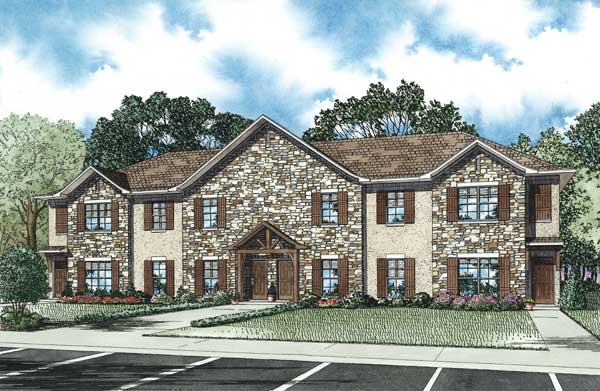

4 side exterior elevations,
-
electrical plan,
-
birds-eye view of the roof,
-
foundation plan,
-
and some miscellaneous details.
Please Note
We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Roof Pitch
Ceiling Height
Special Feature
Exterior Wall Framing
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
