Ranch Duplex with 3 Bedrooms, 1780-1798 Sq Ft Per Unit
Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.
About House Plan #153-1799
How much will it cost to build?
Estimate your costs based on your location and materials.
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Floor Plans
Share Plans
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Additional Notes from Designer
Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!!
Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available.
The plans do not come with ICF specifications. If ICF construction method is desired, the CAD plan can be purchased and then forwarded to the ICF dealer and they’ll do a takeoff to assist with that specific projec

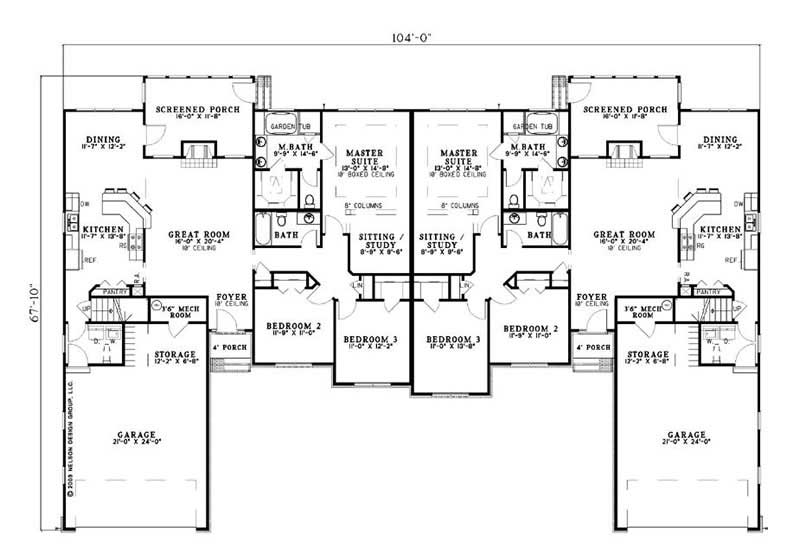

Unit 1 has 1780 living square feet. Unit 2 has 1798 living square feet (Bedroom #3 in Unit 2 is slightly larger).
House Plan Description

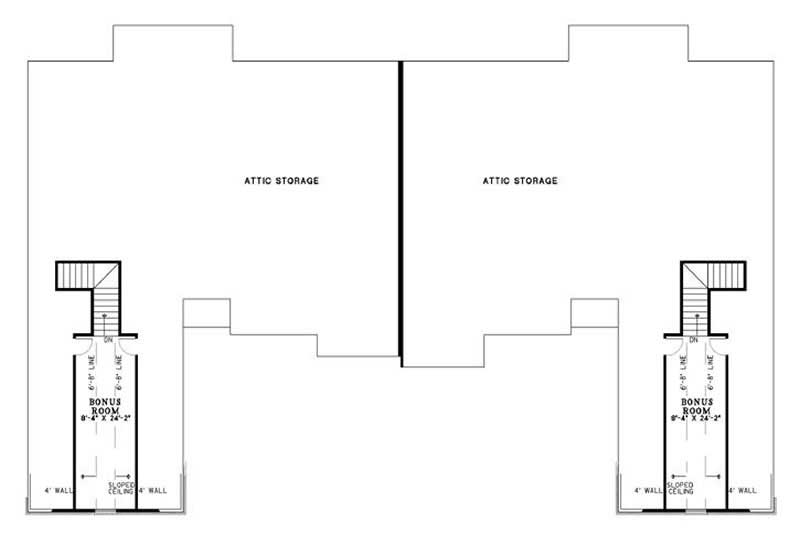

Duplex Sq. ft. 1780 Unit 1 1798 sq. ft. Unit 2 4 ft covered Porch Foyer with 10 ft ceiling Great room with 10 ft ceiling, fireplace and open to Dining room Kitchen open to the dining room with snack bar dining room accesses Rear Screened Porch Master suite with 10 ft box ceiling and private Sitting/Study Area Master bath with garden tub, split vanities and walk-in closet Ample storage throughout Upper floor Bonus room with sloped ceilings. Because the bedrooms of this house plan are located close to each other, it is an ideal home plan for young families.
Home Details
How much will it cost to build?
Estimate your costs based on your location and materials.
What’s Included
floorplan
4 side exterior elevations,
electrical plan,
birds-eye view of the roof,
foundation plan,
and some miscellaneous details.
Please Note
We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!
What’s Not Included
Architectural or Engineering Stamp - handled locally if required.Site Plan - handled locally when required.Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.Energy calculations - handled locally when required.Additional Information
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
