3-Bedroom, 1469 Sq Ft Craftsman Plan with Split Master Bedroom
Related House Plans
| 1469 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 52' 0" WIDTH | 56' 0" DEPTH | 3 GARAGE BAY |
This splendid Ranch home with Craftsman style characteristics is sure to grab your attention. The charming, wide, covered front porch; forward-facing gables,; multi-pane windows; and stone wainscoting and porch column bases give an interesting, homey character to the house. The very livable 1-story floor plan has 1469 square feet of fully conditioned living space with an unfinished daylight basement that you may finish at your option for an additional 1352 square feet of living space. For those who don't want or need a basement foundation, there are available slab and crawlspace foundations from which to choose.
Each plan set includes the following:

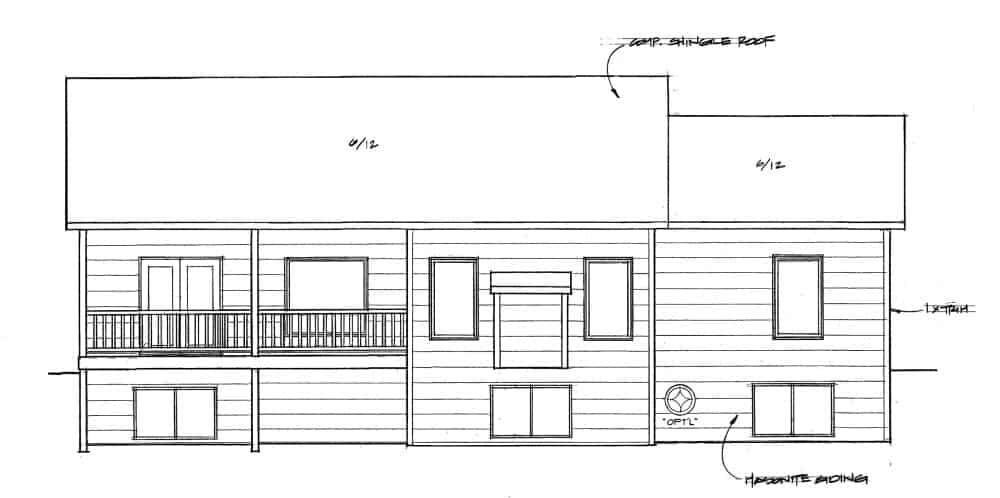

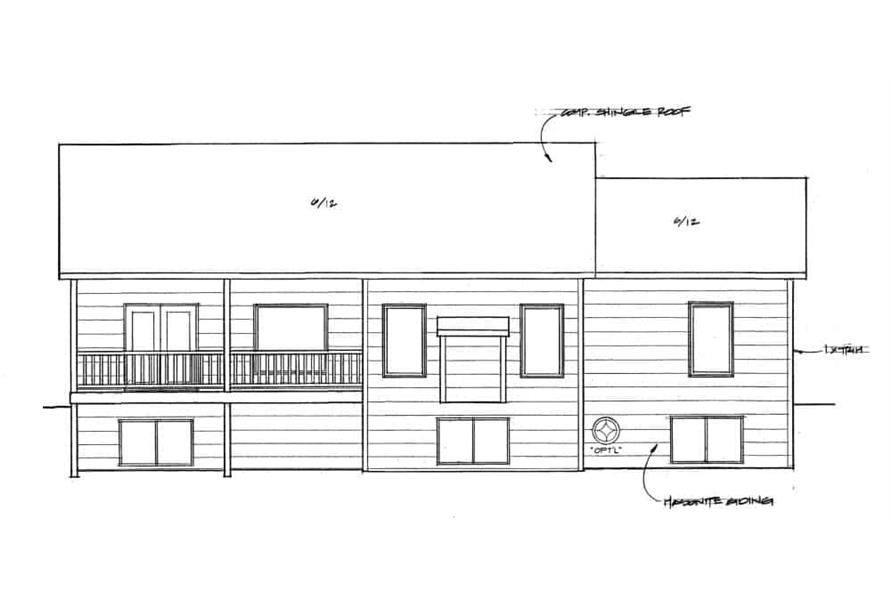

- Front, Side & Rear Elevations
- Floor Plan
- Foundation Plan
- Roof Plan (Birdseye view)
- Electrical Layout (location of outlets, switches - it does not have wiring schematics)
- Cabinet Details
- Wall Section
- Stair Details
- Building Cross Section
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

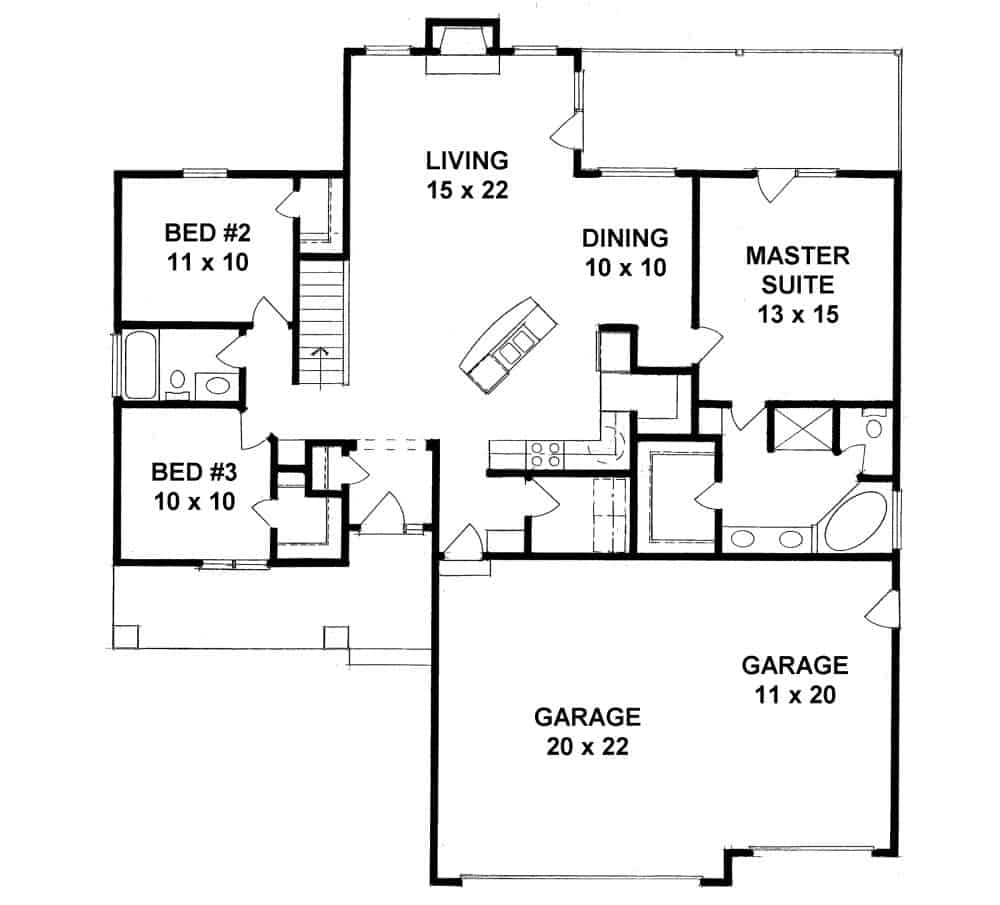

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Roof Pitch
Ceiling Height
Special Feature
Garage Type
Fireplaces
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
