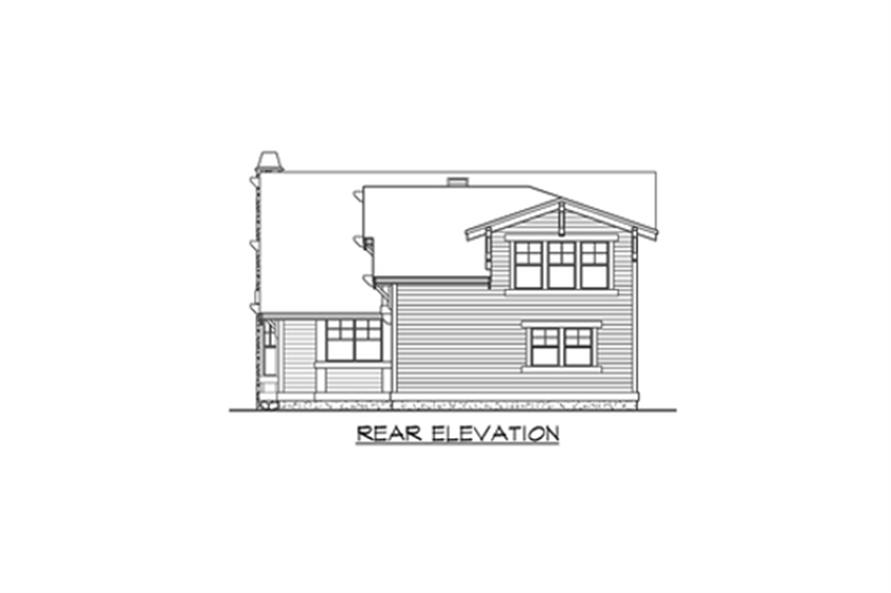

115-1434: Home Plan Rear Elevation

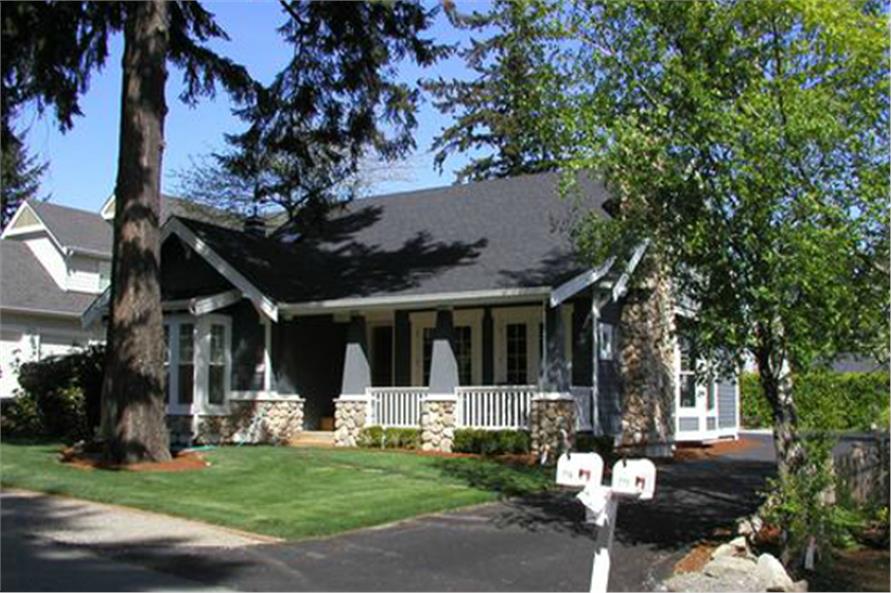

115-1434: Home Exterior Photograph-Front View
115-1434: Home Other Image-Front View
115-1434: Home Other Image-Front View
5-Bedroom, 2570 Sq Ft Bungalow Home Plan - 115-1434 - Main Exterior
115-1434: Home Plan Rear Elevation
115-1434: Home Exterior Photograph-Front View
115-1434: Home Other Image-Front View
115-1434: Home Other Image-Front View

About Plan # 115-1434

About Plan # 115-1434

2570 SQUARE FEET 5 BEDROOMS 3 FULL BATH 0 HALF BATH
1.5 FLOOR 40' 0" WIDTH 83' 0" DEPTH 2 GARAGE BAY

This is a classic Craftsman-style bungalow house plan. This plan makes great use of its space, packing 5 good sized bedrooms into this modest-sized home. From the curb, the graceful porch with its columns and the distinctive rooflines make this a remarkable example of Craftsman design. Step in through the front door into the foyer. The wide opening to the right eases you into the living room with the fireplace as the focal point and vaulted ceilings creating a much larger feel. Designed for a narrow lot, the living room is open to the dining room and the kitchen. The bay window in the dining room is a nice touch. The kitchen's peninsula helps to divide the activity of food preparation from the rest of the home -- without isolating the chef. At the rear of the home is the utility room with laundry, the 2-car garage, and access to the 2nd floor.

On the first floor are three bedrooms. Bedroom #2 and #3 share a hall bathroom. The master suite completes the first floor. It boasts a vaulted ceiling, a walk-in closet, and a master bathroom with a two-sink vanity, large tub, shower, and water closet.

Upstairs are Bedroom #4 and #5, which share a hall bathroom. The bonus space could be converted into a number of options, including an office or in-law suite.

Each plan set includes the following:

  • Cover Sheet
  • Schedule Sheet
  • Detail Sheet
  • Foundation Plan Sheet
  • Floor Plan/Floor Framing Sheet(s)
  • Roof Framing Plan Sheet
  • Elevation Sheet
  • Building Section Sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

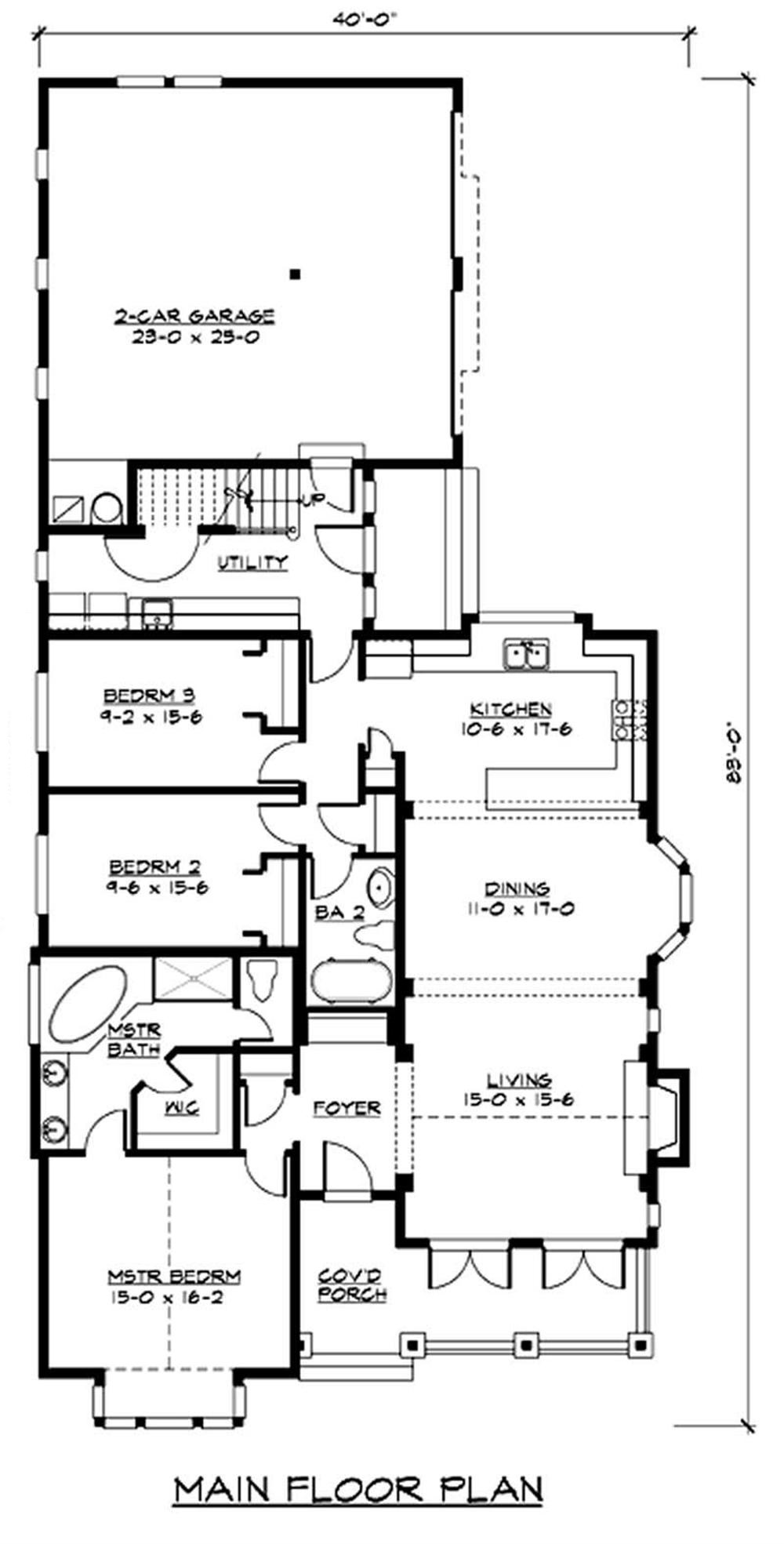

Home Plan: #115-1434 Floor Plan First Story - first floor Floor Plan First Story of Craftsman Plan #115-1434

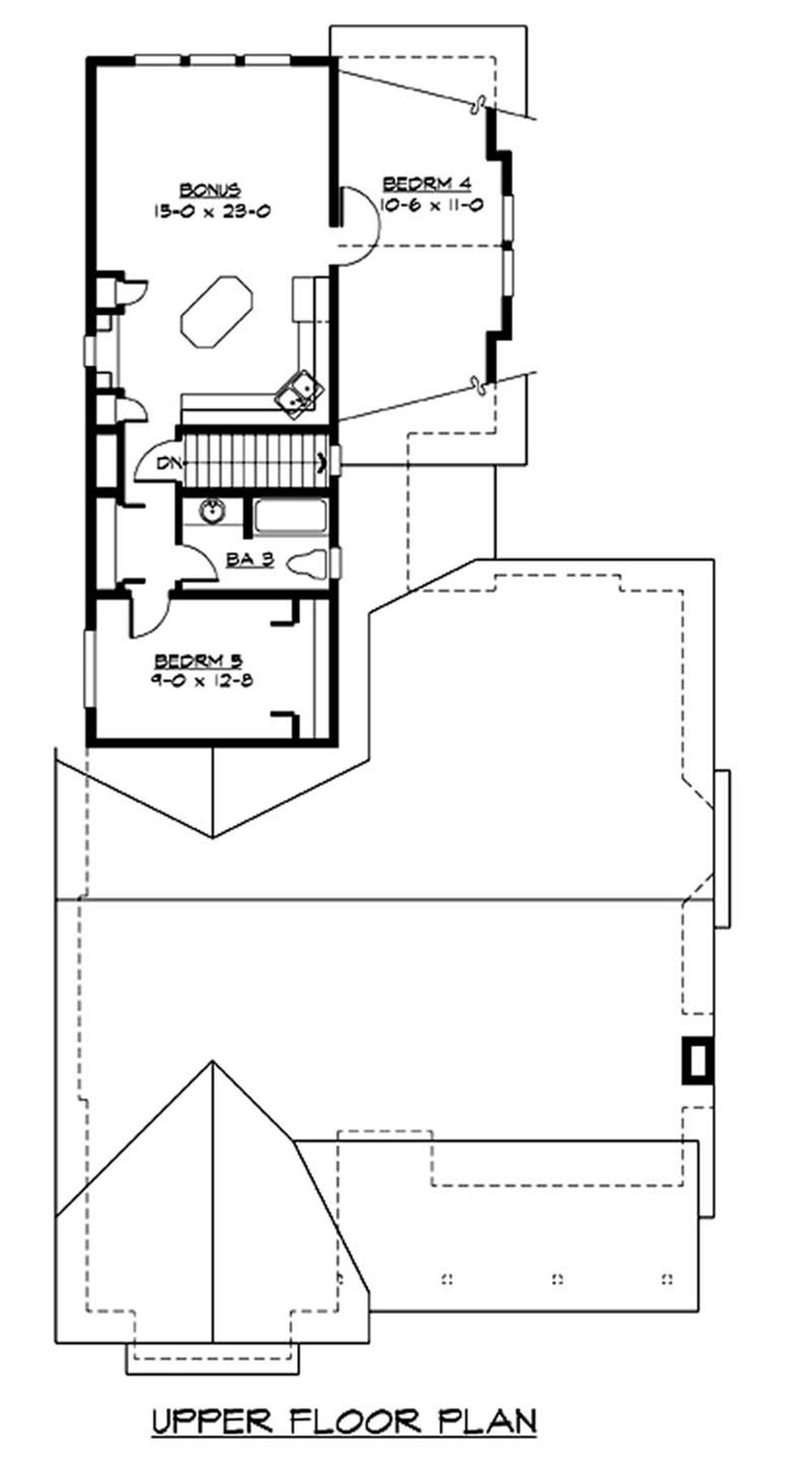

#115-1434 Floor Plan Second Story - second floor Floor Plan Second Story of Craftsman Plan #115-1434
Home Plan: #115-1434 Floor Plan First Story - first floor Floor Plan First Story of Craftsman Plan #115-1434
#115-1434 Floor Plan Second Story - second floor Floor Plan Second Story of Craftsman Plan #115-1434
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
