3-Bedroom, 1603 Sq Ft European Plan with Private Deck
Related House Plans
| 1603 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 50' 0" WIDTH | 65' 0" DEPTH | 2 GARAGE BAY |
The open nature of this home's floorplan is designed to meet the needs of many homeowners and builders who are looking to build on a relatively narrow lot. The focal point of the great room is the entertainment center. The open area boasts a raised bar for conversations with family and friends while isolating them away from the work triangle. The master suite has great amenities with a trayed ceiling, large garden tub, oversized shower, linen, large closet, and is located next to the flex space that may serve as an office, nursery, or hobby room. A spaciouse patio lends itself to grilling out, sunbathing, and visiting with friends. Large garage features well-sized storage space. A plan that meets the needs of the busy family!
Each plan set includes the following elements, but the presentation of these elements may vary depending on the size and complexity of the home and the style of the individual design:
- Cover page with rendering
- foundation plan with typical details
- floor plans with ceiling framing notes
- four exterior views of exterior
- roof plan, and rafter layout plan
- full cross section through house, and typical wall sections
- stair section (if there are stairs)
- Bonus room/garage section if there is a bonus room/garage
- Interior cabinet drawings
- Misc. structural details
- Electrical plan with lighting, outlets, switches, etc..
Not Included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

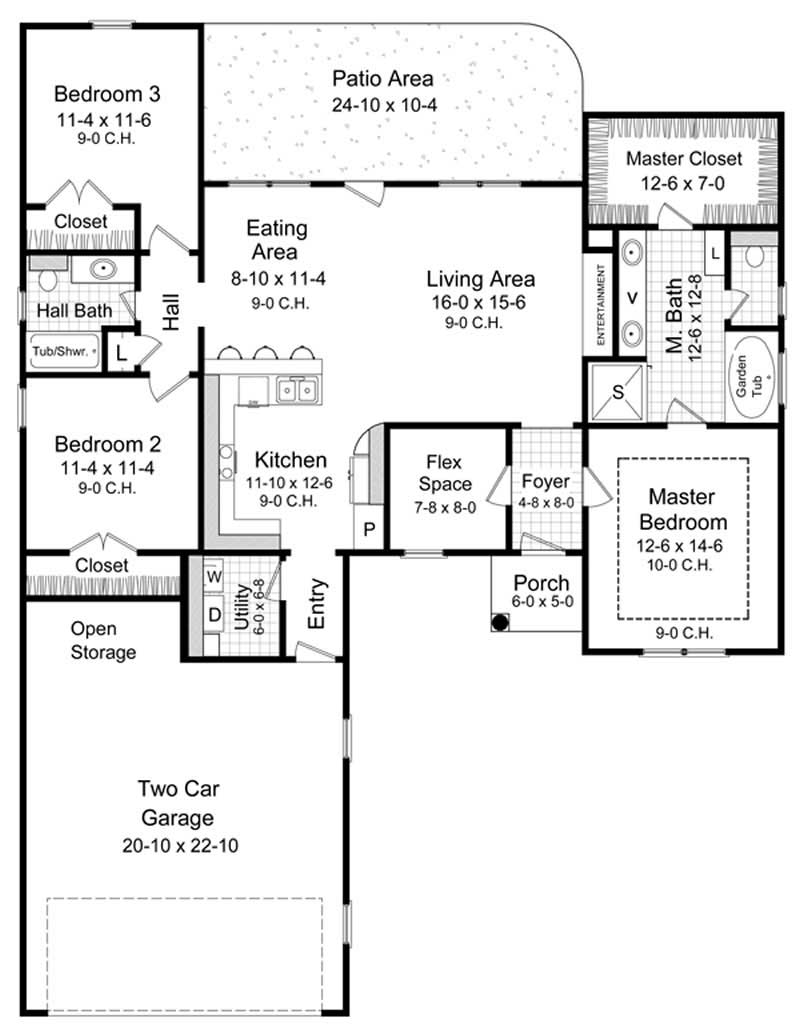

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roof Pitch
Ceiling Height
Special Feature
Garage Type
Building Lot Type
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
