3-Bedroom, 1527 Sq Ft Ranch Plan with Family Room
Related House Plans
| 1527 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 52' 0" WIDTH | 59' 0" DEPTH | 2 GARAGE BAY |
The bright and airy interior of this cleverly designed one-story home gives it plenty of appeal. Just off the foyer, the elegant family room gains character and natural light from four tall windows topped by an attractive half-round transom. The U-shaped kitchen features an eating bar shared with the cozy dinette, which includes access to the outdoors. To the rear of the home, the formal dining room has sliding glass doors to a backyard terrace. The sleeping quarters are nicely removed to one side of the home for privacy. The master bedroom features a private bath, a walk-in closet and sliding glass doors to a private terrace.
Each plan set includes the following:
- Elevations
- Sections - Include structural design & specifications
- Kitchen cabinet elevations
- Floor Plan
- Roof Plan
- Typical wall section
- Construction & Specification notes
- Special detail sections
- Plumbing riser diagram
- Window and door sizes
- Structural design joists and beams
- Electrical Layout
- Special Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and location
- Energy calculations - handled locally when required.
Write Your Own Review

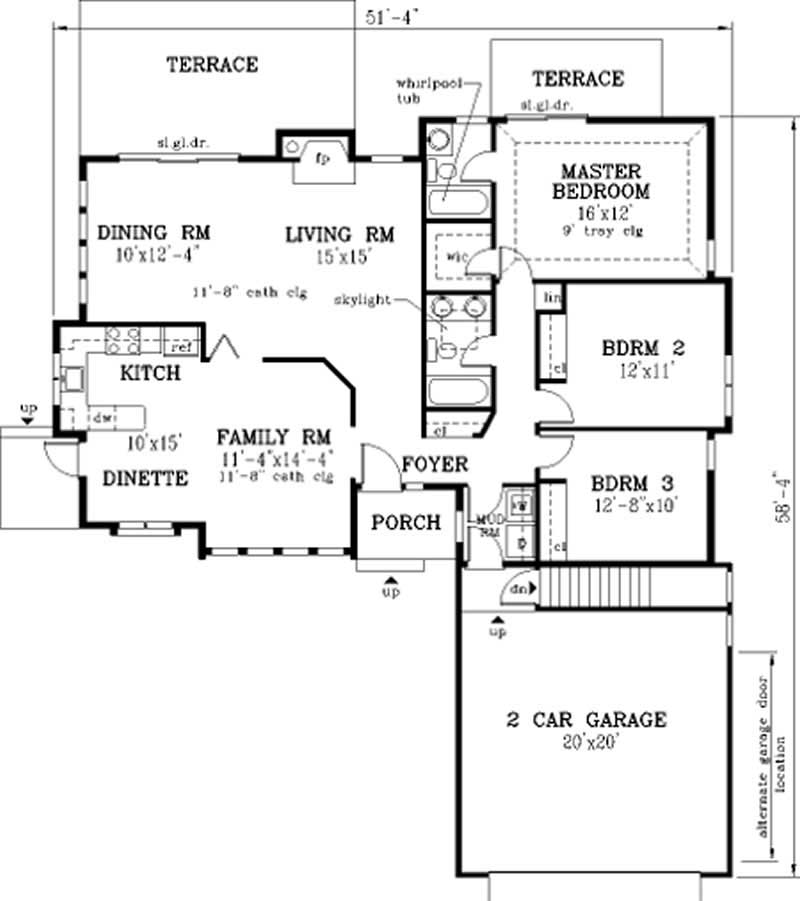

FLOOR PLANS Flip Images
