1-Bedroom, 1004 Sq Ft Ranch Plan with Open Floor Plan
Related House Plans
| 1004 SQUARE FEET | 1 BEDROOMS | 1 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 39' 10" WIDTH | 34' 6" DEPTH | 2 GARAGE BAY |
This Ranch style house with a Country-inspired exterior will surely capture your attention with its open floor concept. The flow of sunlight directly illuminates the common area through the window views surrounding the room. The amazing home's 1-story floor plan has 1004 square feet of heated and cooled living space that is utilized and maximized in every available square inch. Enjoy these amenities:
• Huge walk-in pantry
• Spacious walk-in closets
• Fireplace in the Great Room
• A loft
• Lots of storage space
Each plan set includes the following:

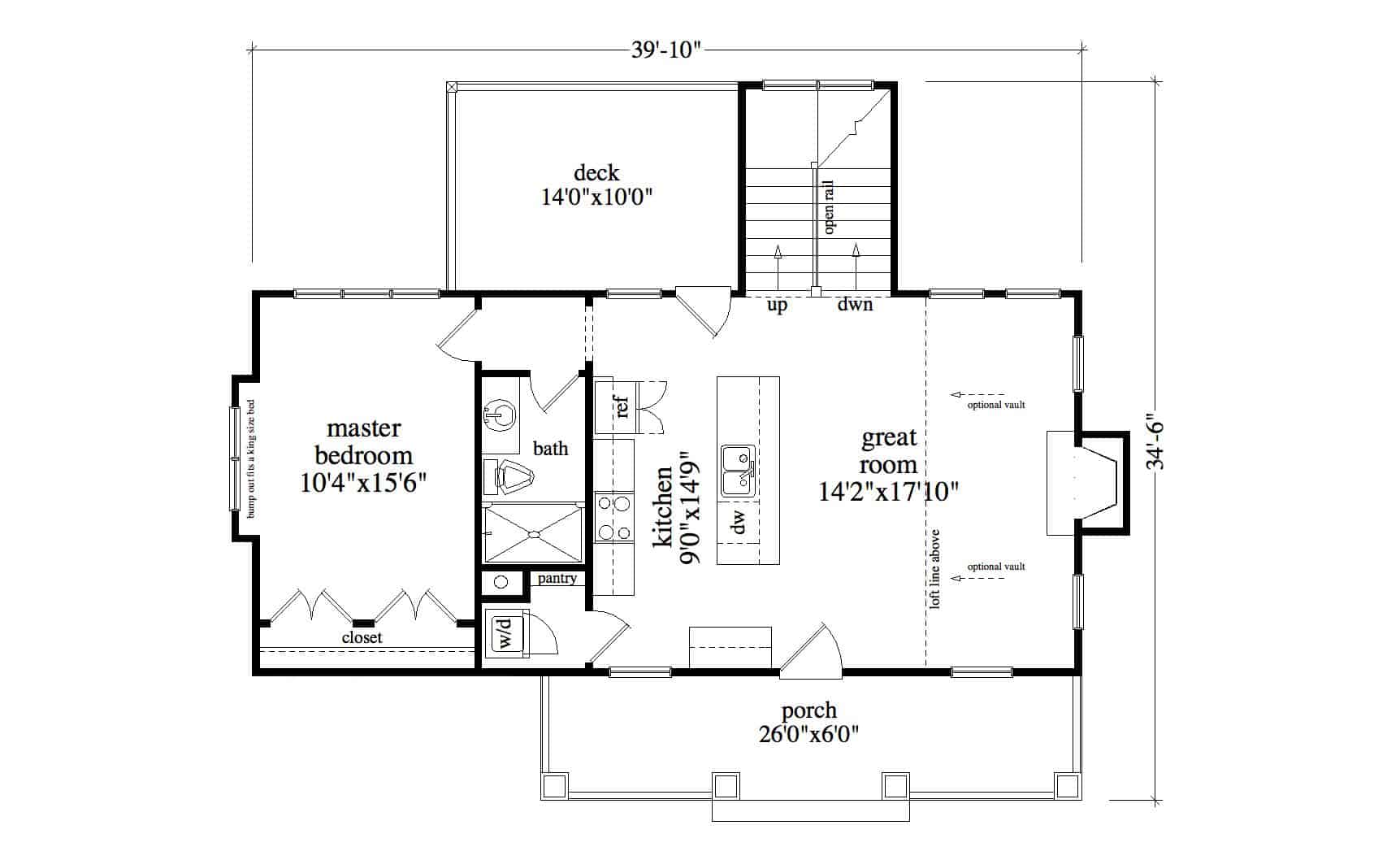

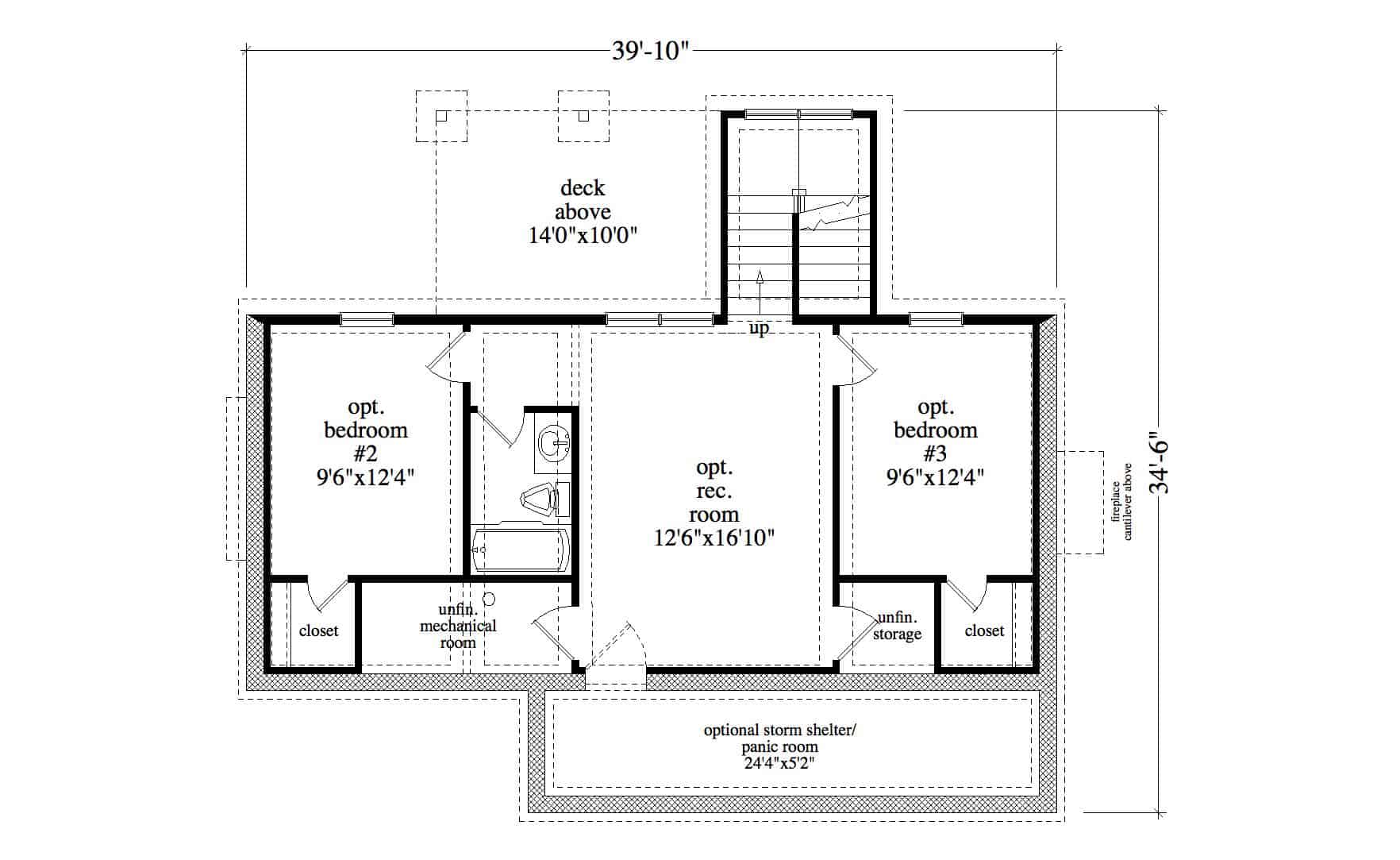

- FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.

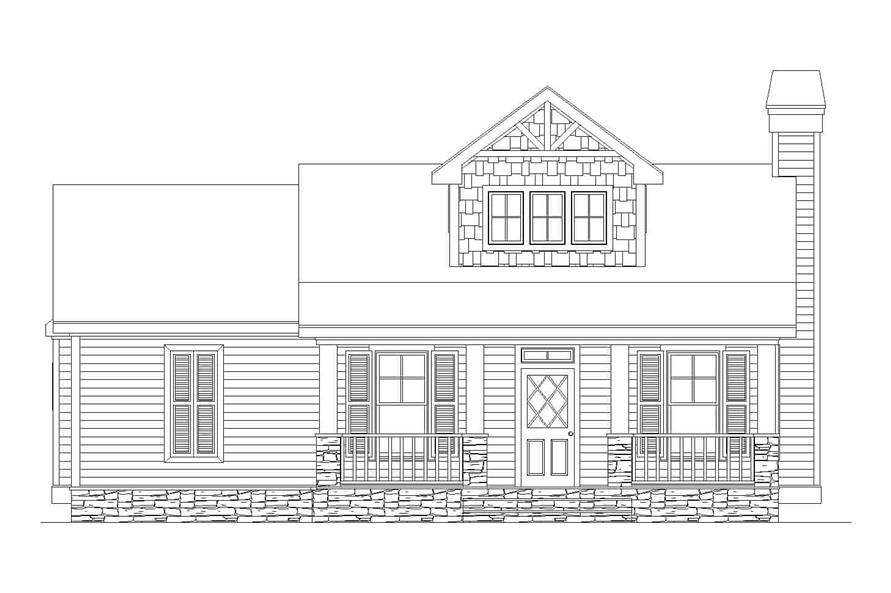

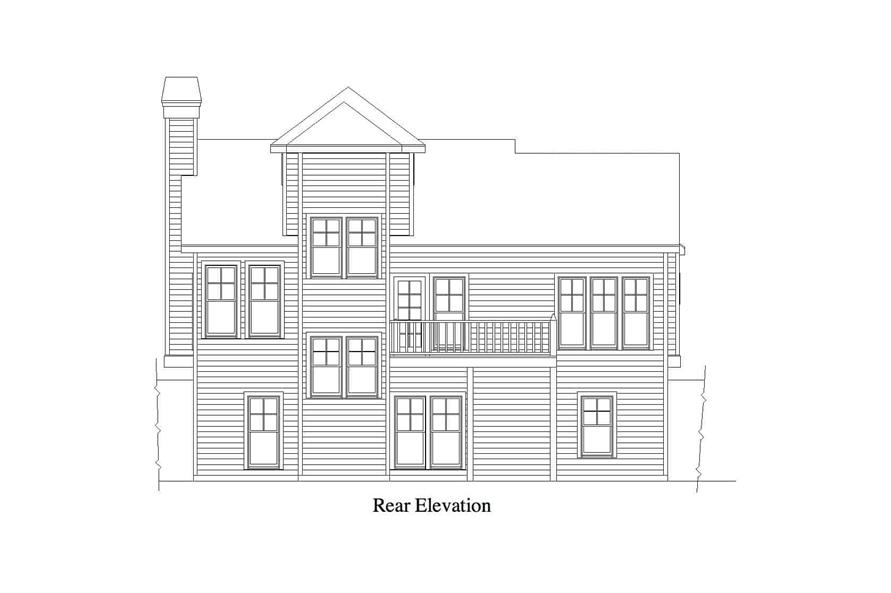

- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
- CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Electrical Layout (location of light fixtures, switches, and fans) - Although may be available for an additional charge.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
