duplex Ranch with 2 Bedrooms, 1220 Living Sq Ft Per Unit
Related House Plans
| 1220 SQUARE FEET | 2 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 84' 8" WIDTH | 39' 10" DEPTH | 1 GARAGE BAY |
Duplex Plan -- 1220 sq. ft. each unit. Both units have a Front Covered Proch with box columns. The Great Rooms have vaulted ceilings, and open to the dining area and a U-shaped kitchen. Laundry rooms are located in the transition/mud room between the Garage and Kitchen and allow a full-size washer and dryer. Plans show an 8X8 Patio for those who desire it. The Master Suites are complete with walk-in closets, Master Baths with two vanities, and full-size tubs. The Second Bedrooms are spacious and close to the home's main Bathrooms. They have ample closet and living space.
For a similar Multi-Unit House Plan, check out this House Plan
Each plan set includes the following:
-
floorplan
-
4 side exterior elevations,
-
electrical plan,
-
birds-eye view of the roof,
-
foundation plan,
-
and some miscellaneous details.
Please Note
We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

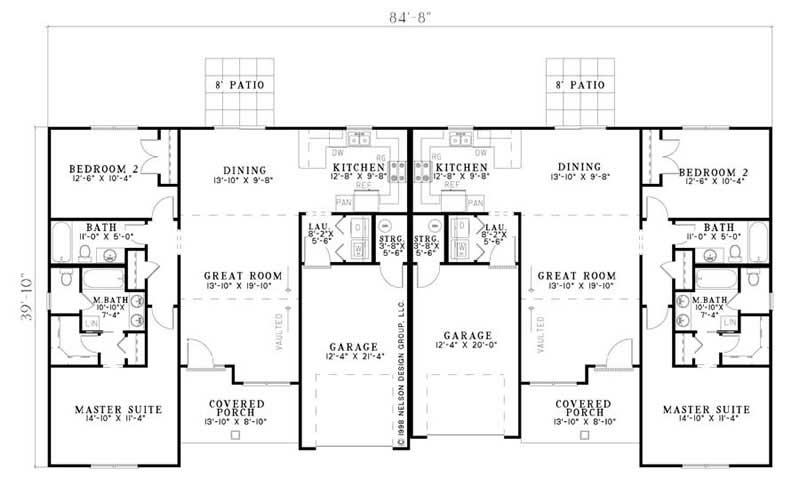

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Roof Pitch
Ceiling Height
Garage Type
Exterior Wall Framing
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
