About Plan # 193-1230

About Plan # 193-1230

1591 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 42' 4" WIDTH 63' 10" DEPTH 2 GARAGE BAY

The clean lines of this Craftsman ranch make it elegant and stunning. A pleasant entry portico welcomes you, and you'll be delighted by its attractive features. The lovely 1-story floor plan has 1591 square feet of heated and cooled living space and 3 bedrooms. You'll enjoy these excellent amenities:

• Fireplace in the Great Room and owners' suite
• Vaulted ceiling
• Walk-in kitchen pantry
• Mudroom
• Lots of storage space

Each plan set includes the following:

  • Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer framing, plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
  • No Framing

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

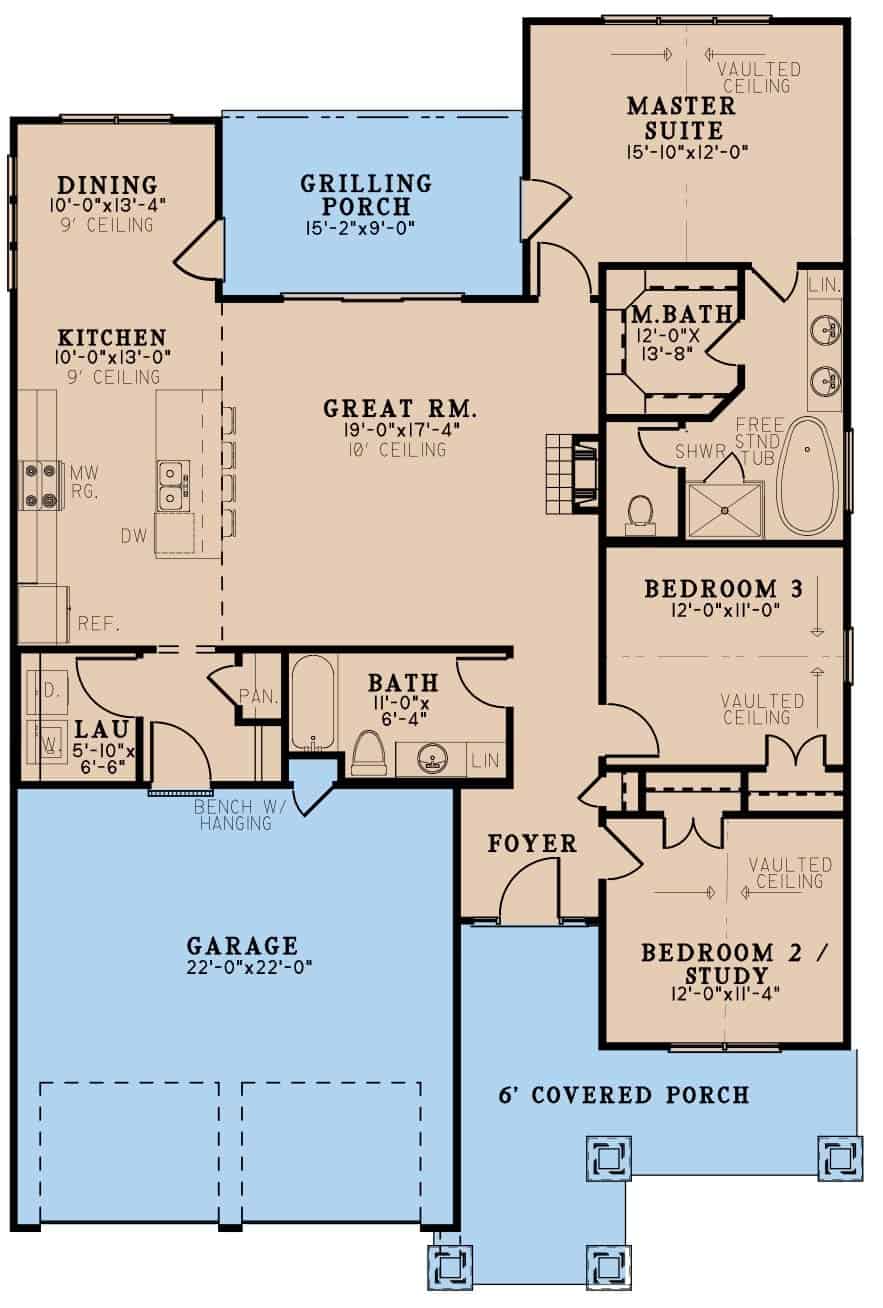

Home Plan: #193-1230 Floor Plan First Story - main level Main Level of Ranch Plan #193-1230
Home Plan: #193-1230 Floor Plan First Story - main level Main Level of Ranch Plan #193-1230
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 193-1230
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1591
Main Floor:
1591
Unfinished Sq Ft:
Garage :
508
Porch :
346

Dimensions

Width:
42' 4"
Depth:
63' 10"
Ridge Height:
23' 8"

Architectural Styles

Country
Ranch
Bungalow
Traditional
Craftsman
Cottage

Exterior Wall Material

Vinyl Siding
Rock/Stone
Wood Siding

Roofing Type

Gable
Hip
Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

8/12
9/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Mud Room
Family Room
Main Level Laundry
Storage
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Kitchen Features

Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

This Single Family Ranch-Traditional Style House Plan has 1591 square feet, 3 bedrooms, and 2 bathrooms.




For this designer, if you choose optional features such as but not limited to: 2x6 exterior walls, reverse or optional basement, the ...
