| 1654 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 105' 4" WIDTH | 60' 6" DEPTH | 2 GARAGE BAY |
We have created a brick duplex with the warmth of a single family home. Upon entering the foyer, a great room with an eleven-foot ceiling, built in media center and cozy fireplace awaits you. Travel through the foyer to the kitchen open to a hearth and dining room with optional fireplace accessing a rear-covered porch. The laundry room with a built in ironing board center is centrally located and just steps away from the kitchen. For the utmost in privacy, the master suite is located away from the two additional bedrooms and full bath. The luxurious master bathroom has a corner whirlpool tub with glass block, a separate shower, private toilet area, large walk-in closet and private access to the rear porch. A double car garage with storage room complete this lovely design.
Each plan set includes the following:
-
floorplan
-

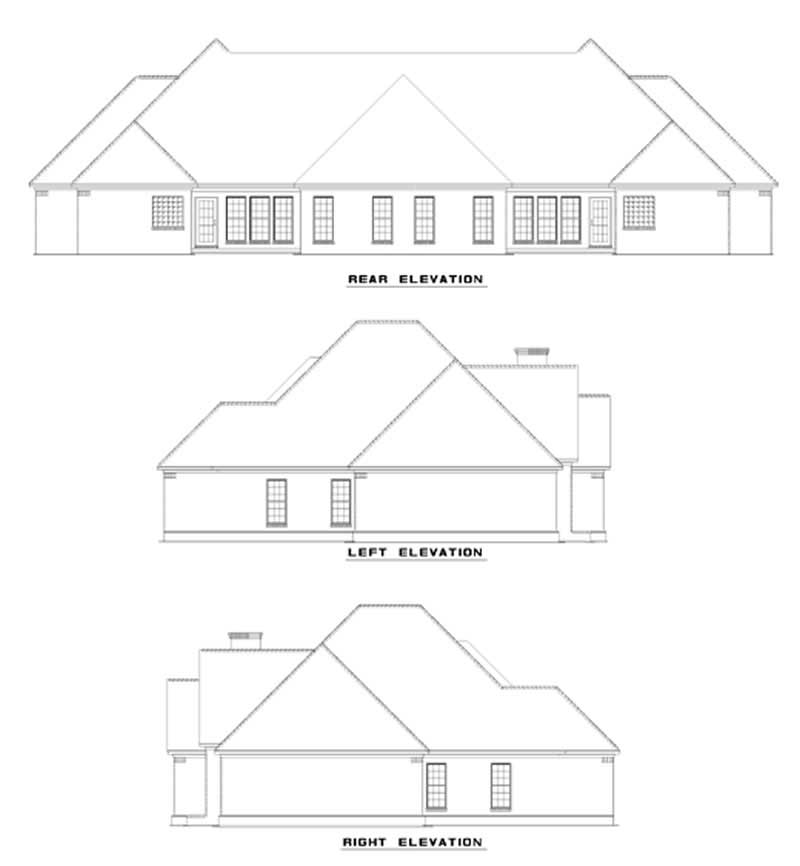

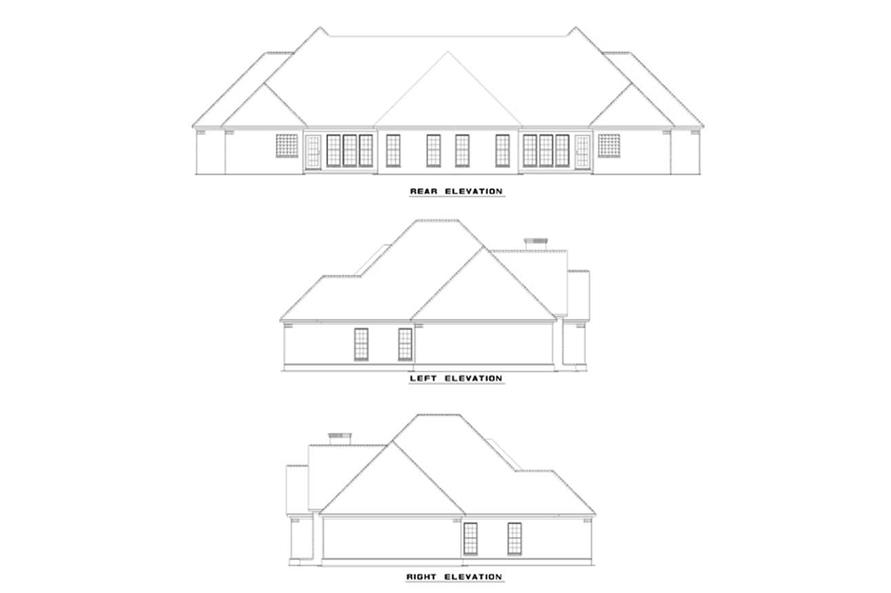

4 side exterior elevations,
-
electrical plan,
-
birds-eye view of the roof,
-
foundation plan,
-
and some miscellaneous details.
Please Note
We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

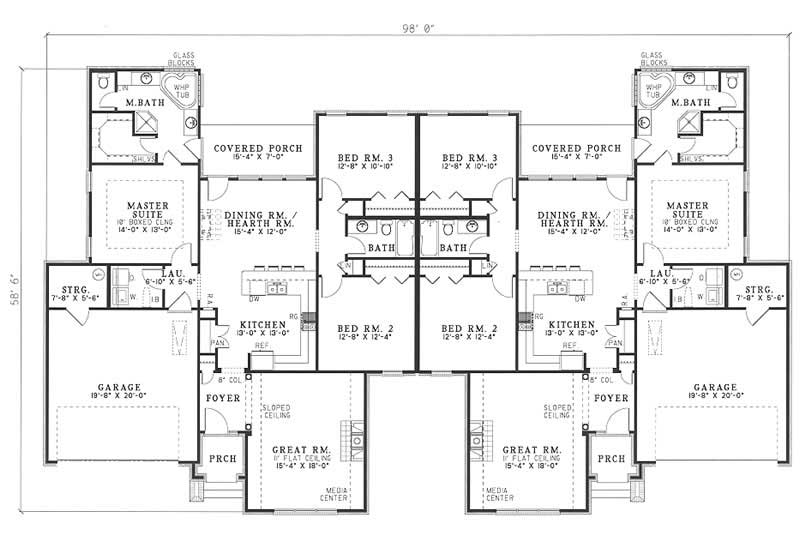

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Roofing Type
Ceiling Height
Special Feature
Garage Type
Fireplaces
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
