3-Bedroom, 1695 Sq Ft Contemporary Plan with Walk-In Pantry
Related House Plans
| 1695 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 54' 8" WIDTH | 48' 8" DEPTH | 3 GARAGE BAY |

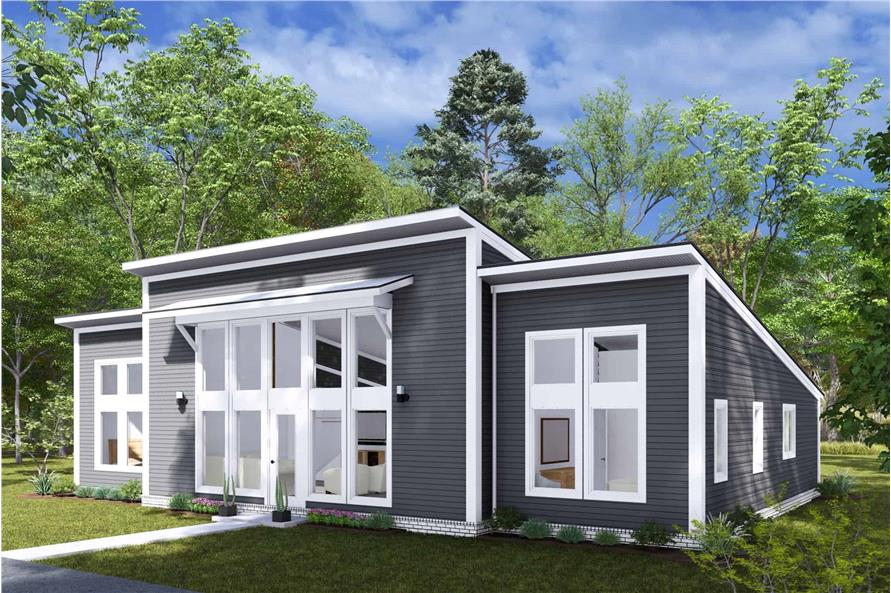

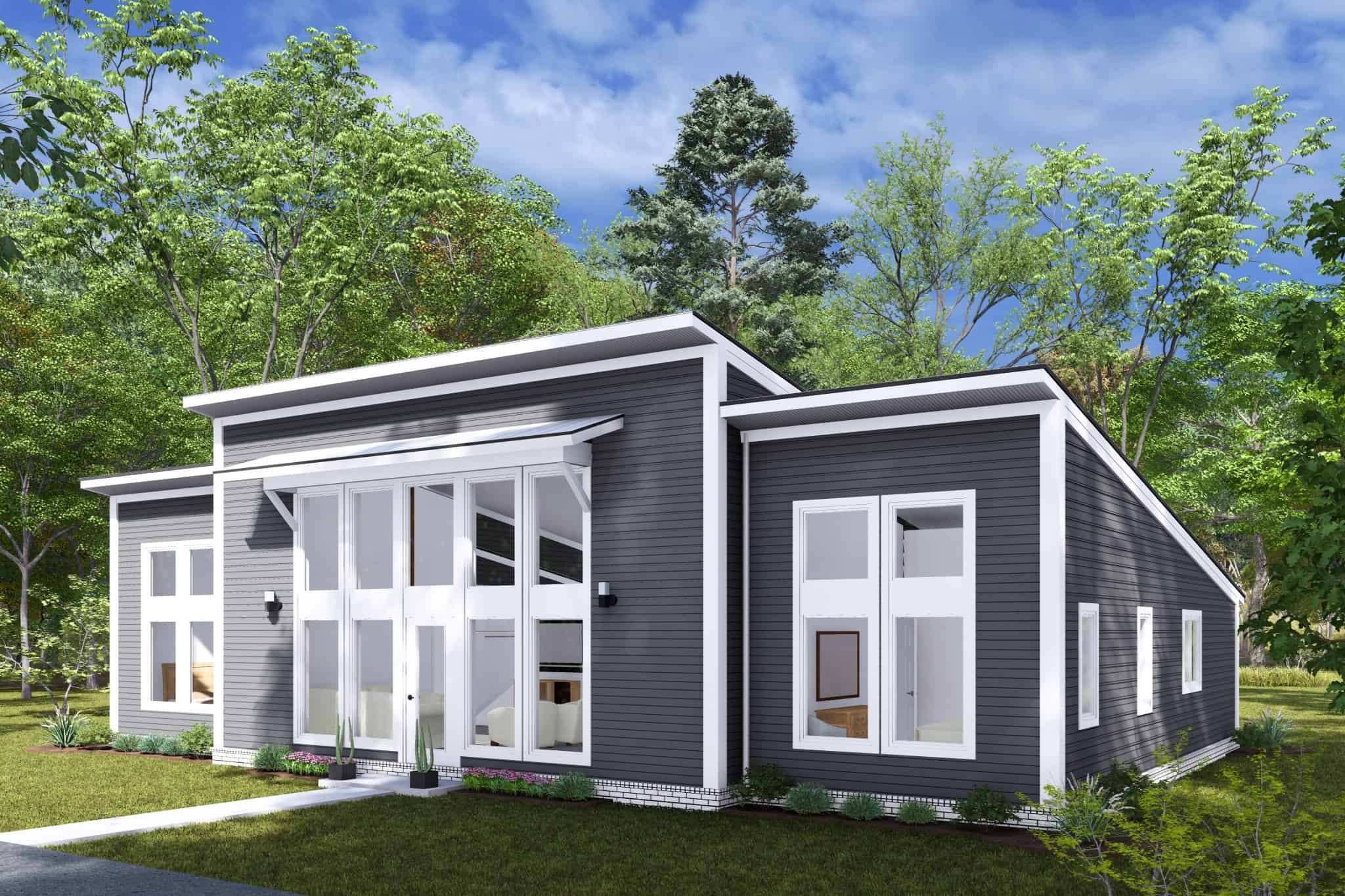

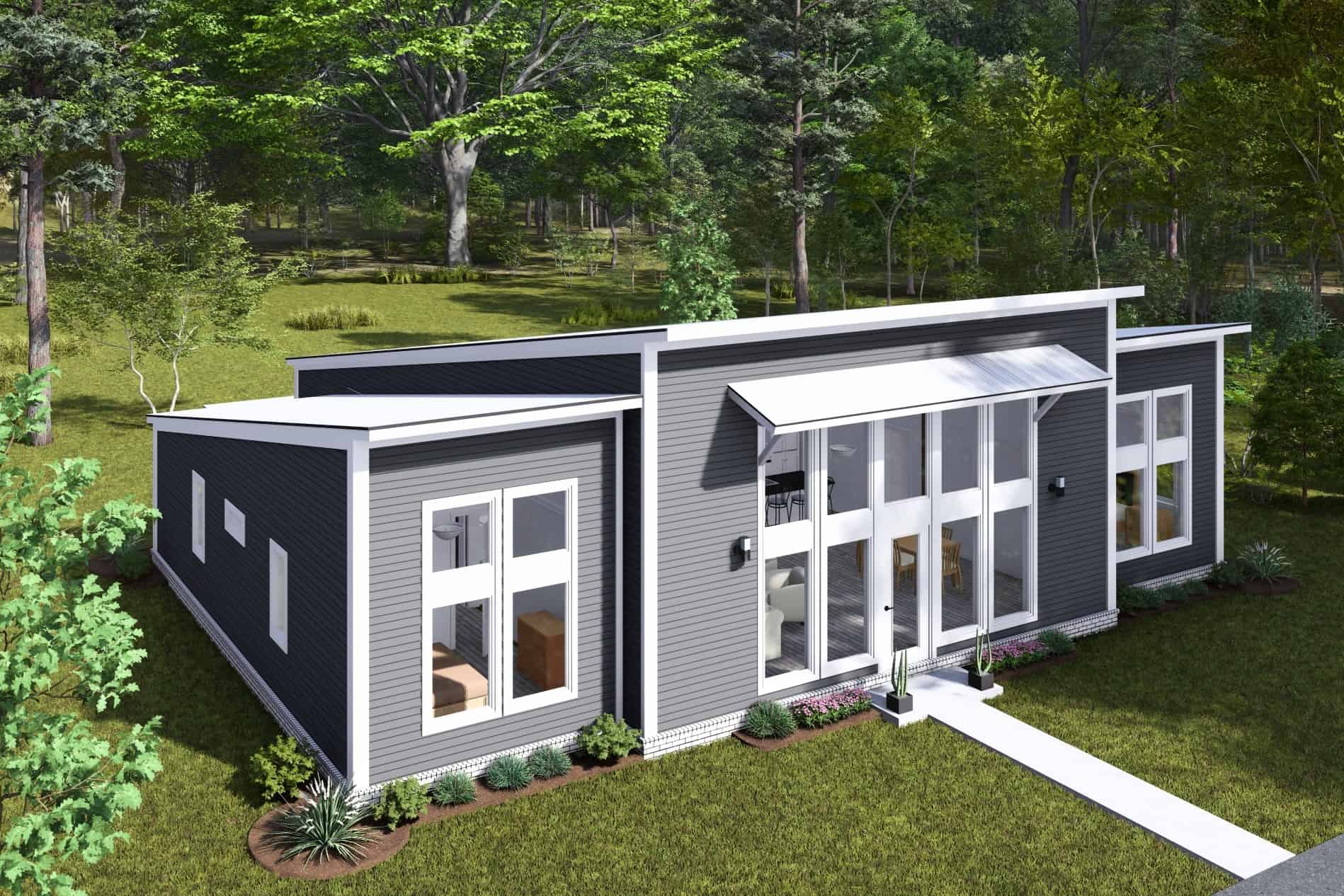

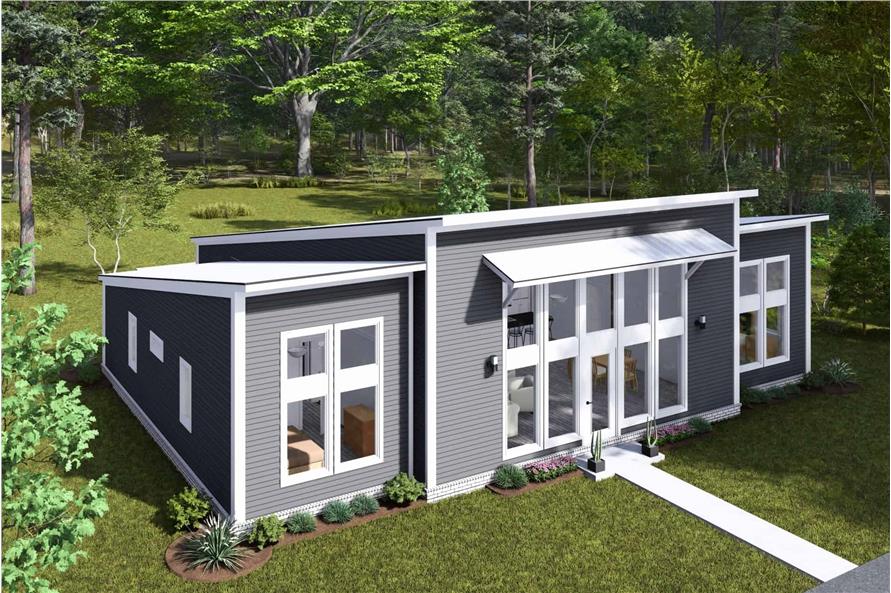

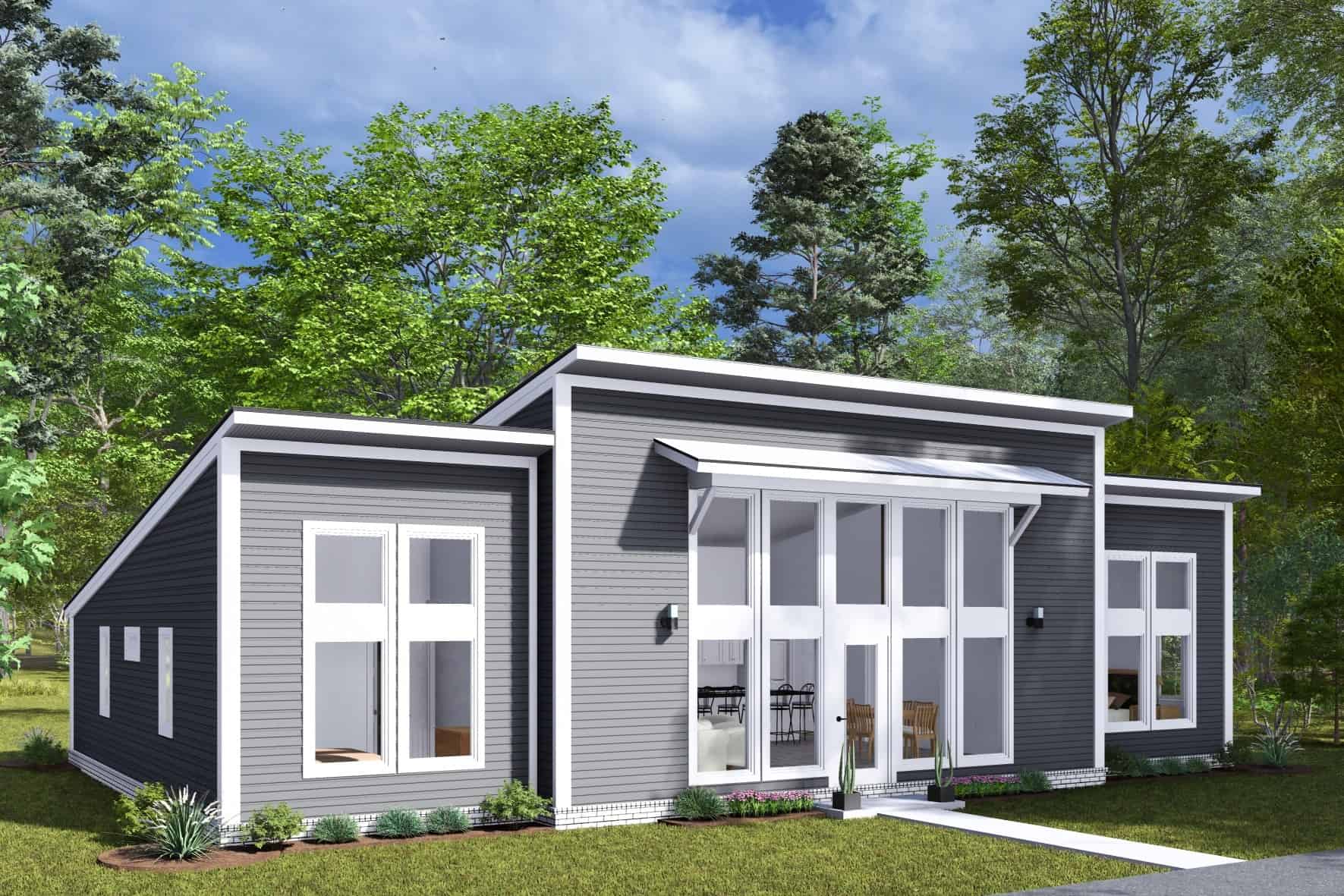

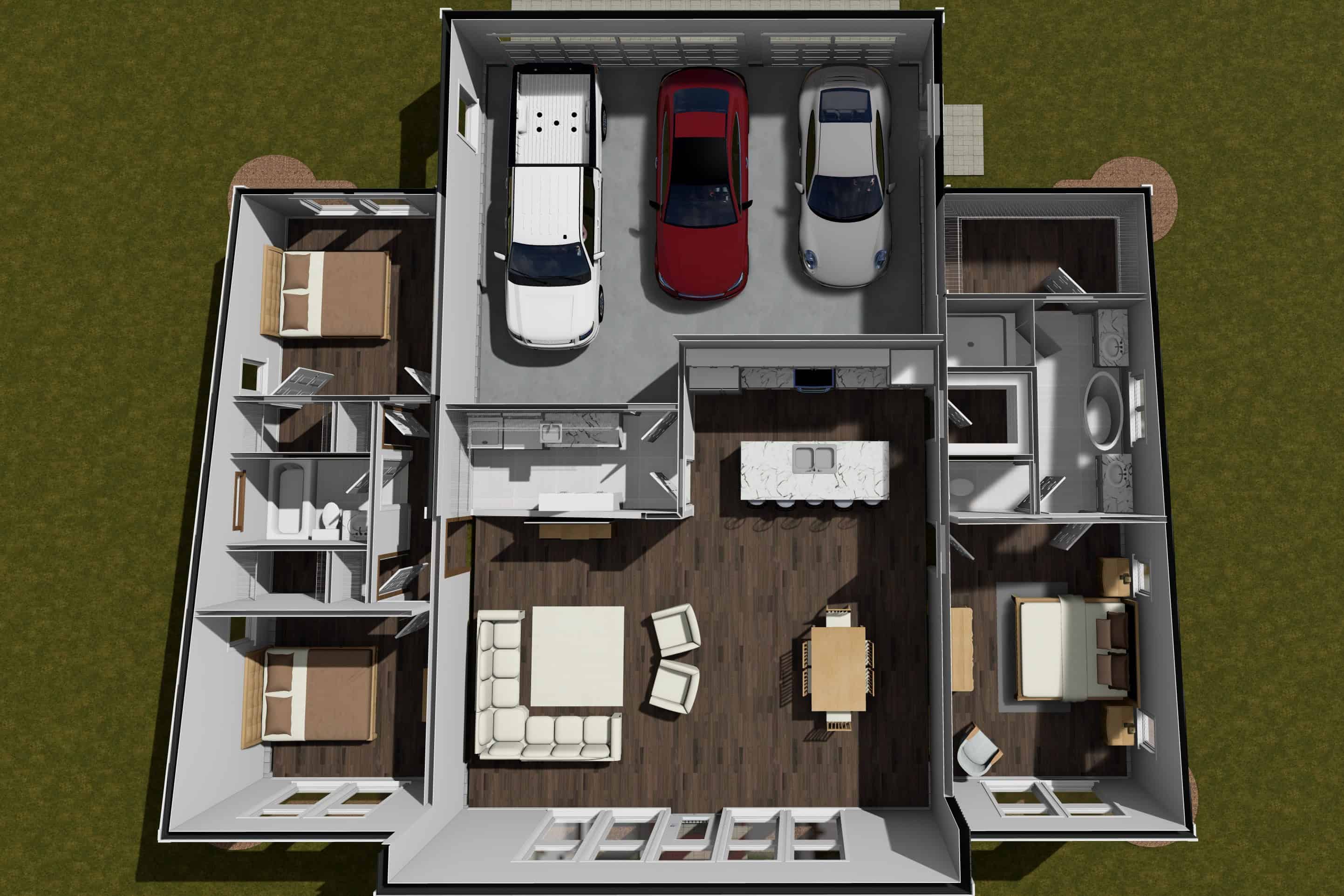

This 3-bedroom, 1,695 sq ft contemporary plan features an open living concept linking the great room, kitchen with island, and dining. Highlights include a walk-in pantry, mudroom, 3-car garage, and a split bathroom design for convenience.
Each plan set includes the following:
- Front elevation and construction notes
- Rear and side elevations
- Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)
- Second-floor plan (if applicable) with the same info as shown on first-floor plan
- Typical wall section
- Typical foundation details
- Roof plan showing roof pitches, ridges & valleys.
- Foundation plan
- Full building section
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

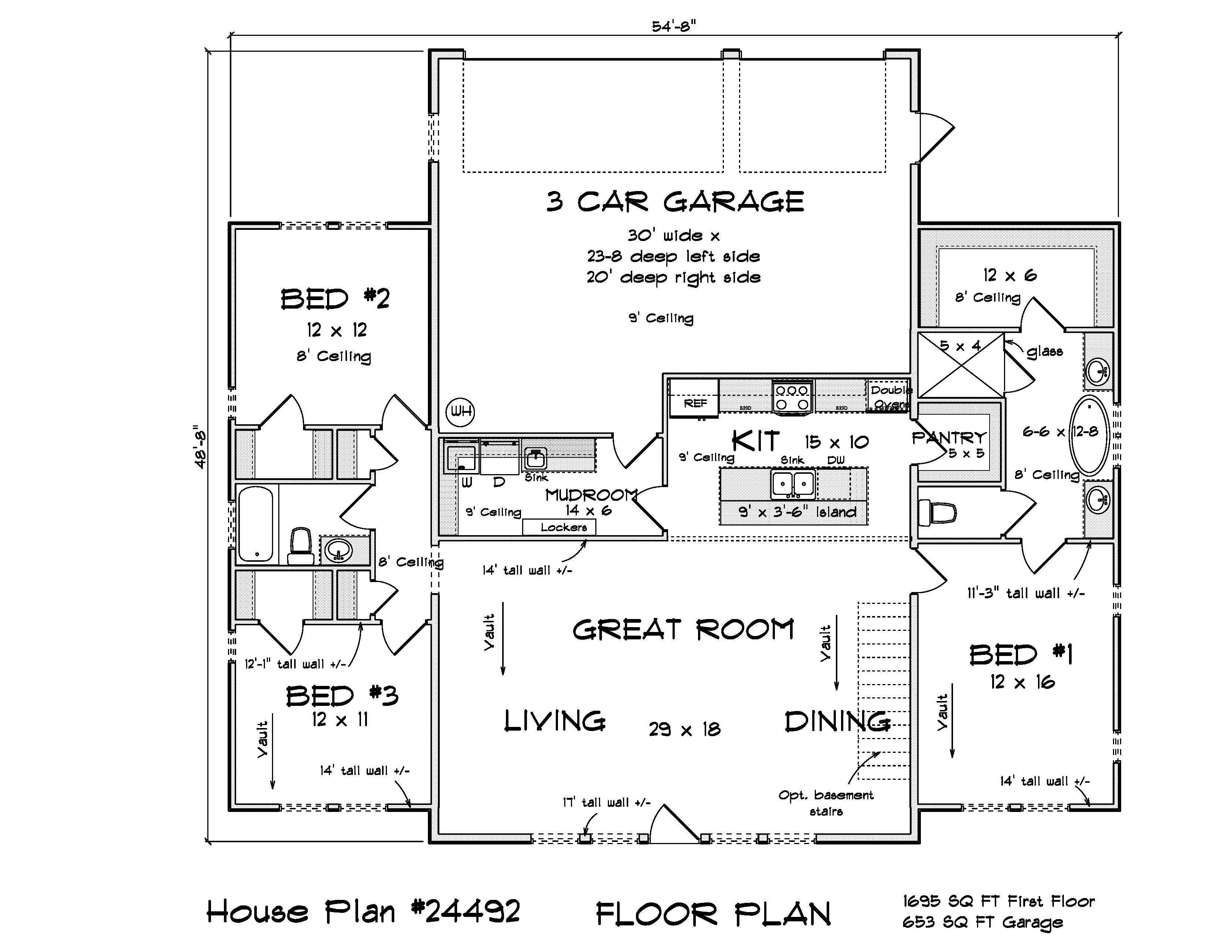

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Roof Pitch
Ceiling Height
Special Feature
Garage Type
Exterior Wall Framing
Kitchen Features
Master Suite Features
Additional Notes from Designer
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
