About Plan # 109-1046

About Plan # 109-1046

2000 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 63' 0" WIDTH 62' 8" DEPTH 3 GARAGE BAY
We've integrated our customers most requested features into a mid-sized ranch in the creation of this attractive new design. The Craftsman style siding and stone exterior is accented with a "Palladian" window, dormers, multi-level trim and an inviting front porch. A flexible office/living/4th bedroom, an exquisite master suite, a 3-car garage with a utility sink, and a large screened porch are sure to make this 2000 square foot home irresistible. The exceptional master suite has direct access to the deck, a sitting area and a full-featured bath Spacious walk-in closets help create a true "Master's Retreat." A bay window brightens the casual dining room and kitchen. Vaulted or tray ceilings adorn the living, family room, master suite and cozy coffee corner. Other rooms have 9' ceilings. The upper level bonus room features 495 sq. ft. of functional living space with 5 ft. knee walls rising up to an 8 ft. ceiling. The secondary bedrooms, each measuring approx. 13' x 11', have walk-in closets and share a "Jack and Jill" bath. A breezy screened porch, measuring 16x138, features a vaulted ceiling with a ceiling fan.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

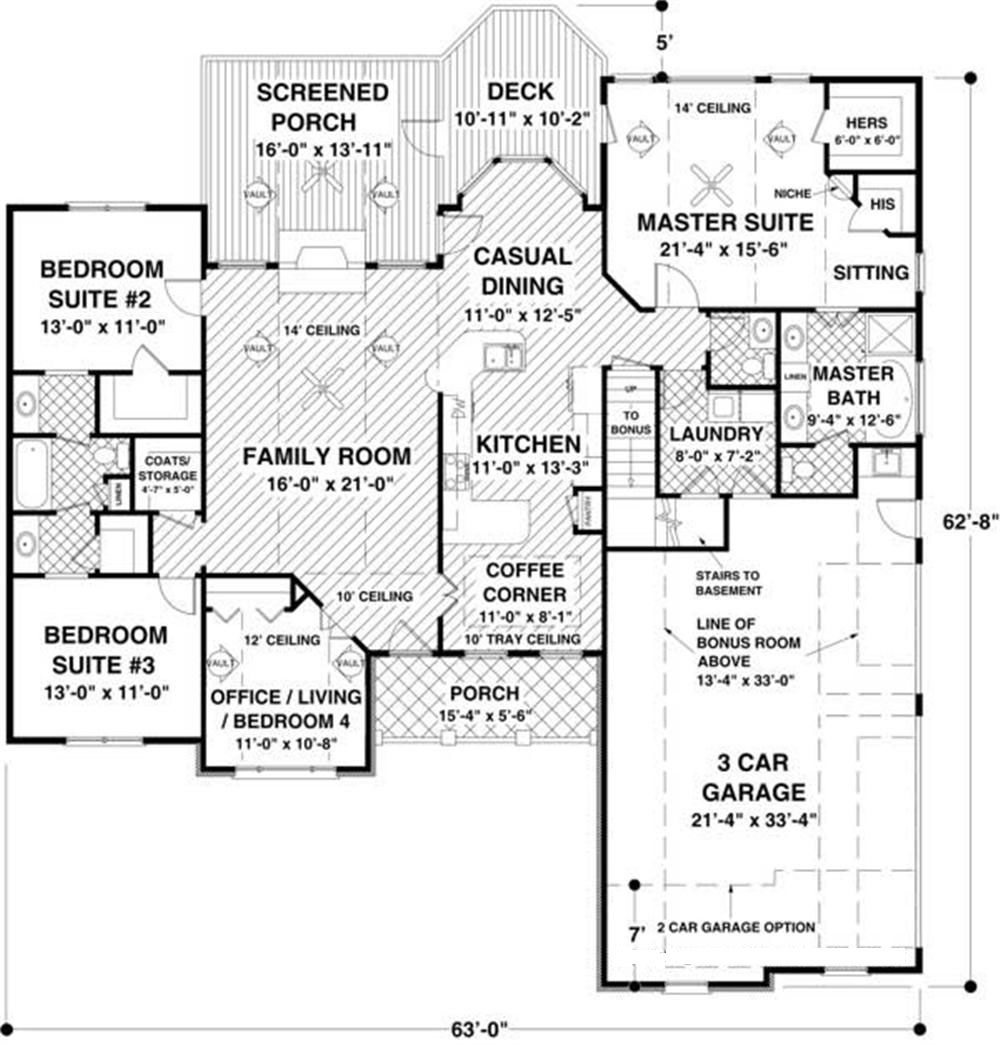

Home Plan: #109-1046 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #109-1046
Home Plan: #109-1046 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #109-1046
